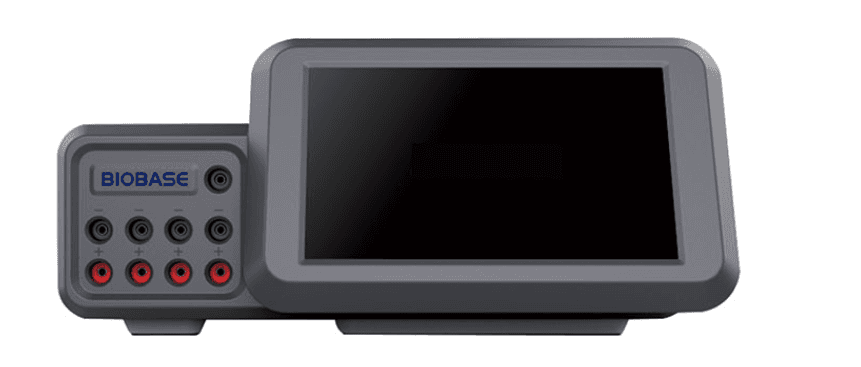

Electrophoresis Power Packs
For use with our Vertical and Horizontal Electrophoresis products. Our power pack models provide variable current, voltage, power, and timing options for the perfect gel run. A large LCD screen allows for ease of use with program storage.
Model | 1 | 2 | 3 | ||
|---|---|---|---|---|---|
SKU | BB-600D | BB-300I | BB-600I | ||
Output | Constant voltage or current/power adjustable | 2-300V (resolution:V) | 5-600V (resolution:V) | ||
Output Range | 5-600V, 1-1200mA, 5-300V | 5-2000mA (resolution 1mA) | 4-6000mA (resolution 1mA) | ||
Timing | 1 minute - 99 hours 59 minutes | 1 minute - 99 hours 59 minutes | 1 minute - 99 hours 59 minutes | ||
Parallel Output | 4 groups | 4 groups | 4 groups | ||
Temperature | -20 to +85°C | -20 to +85°C | -20 to +85°C | ||
Power Supply | AC220V±10%, 50/60Hz (standard); AC110±10%, 60Hz (optional) | AC220V±10%, 50/60Hz (standard) | AC220V±10%, 50/60Hz (standard) | ||
| External Size(L*W*H) | 300*300*130mm | 250*350*105mm | 250*350*105mm | ||
| Package Size(L*W*H) | 450*410*260mm | 440*330*210mm | 440*330*210mm | ||
| Gross Weight | 3.6kg | 6kg | 6kg | ||
Features | 7 inch LCD screen Up to 10 programs can be saved at once Maintainable microcurrent Automatic settings for voltage, current, and power |
Introduction and Principle
Electrophoresis tanks are generally used for the analysis and size separation of nucleic acids, i.e., DNA and RNA. However, it can also be used for the analysis of protein complexes. In anelectrophoresis system, the gel matrix is cast and submerged in a running buffer within the electrophoresis tank. The tank is divided into two compartments separated by agarose gel.
Apparatus and Equipment
The electrophoresis power packs are dedicated power supply devices and for exclusively for electrophresis use. Do not use these items to power any other devices and apparatus.
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 50 × 45 × 30 cm |
| Device Type | Model 1, Model 2, Model 3 |
| Brand | Biobase |
