Temperature Controller_Homeothermic Monitoring System

• Specifications
• Introduction
• Apparatus
• Protocol
• Applications
• Precautions
• References

Specifications

Model	Product	Description
CS-HS-0001	1-Channels Homeothermic system	Complete System: 1 Homeothermic Control Unit_1 Channel 1 Heating Pad 120 X 205 mm (Standard) 1 Temperature probe: ø1.5 x 15mm (Standard)
CS-HS-0002	2-Channels Homeothermic system	Complete System: 1 Homeothermic Control Unit_2 Channel 1 Heating Pad 120 X 205 mm (Standard) 1 Temperature probe: ø1.5 x 15mm (Standard)

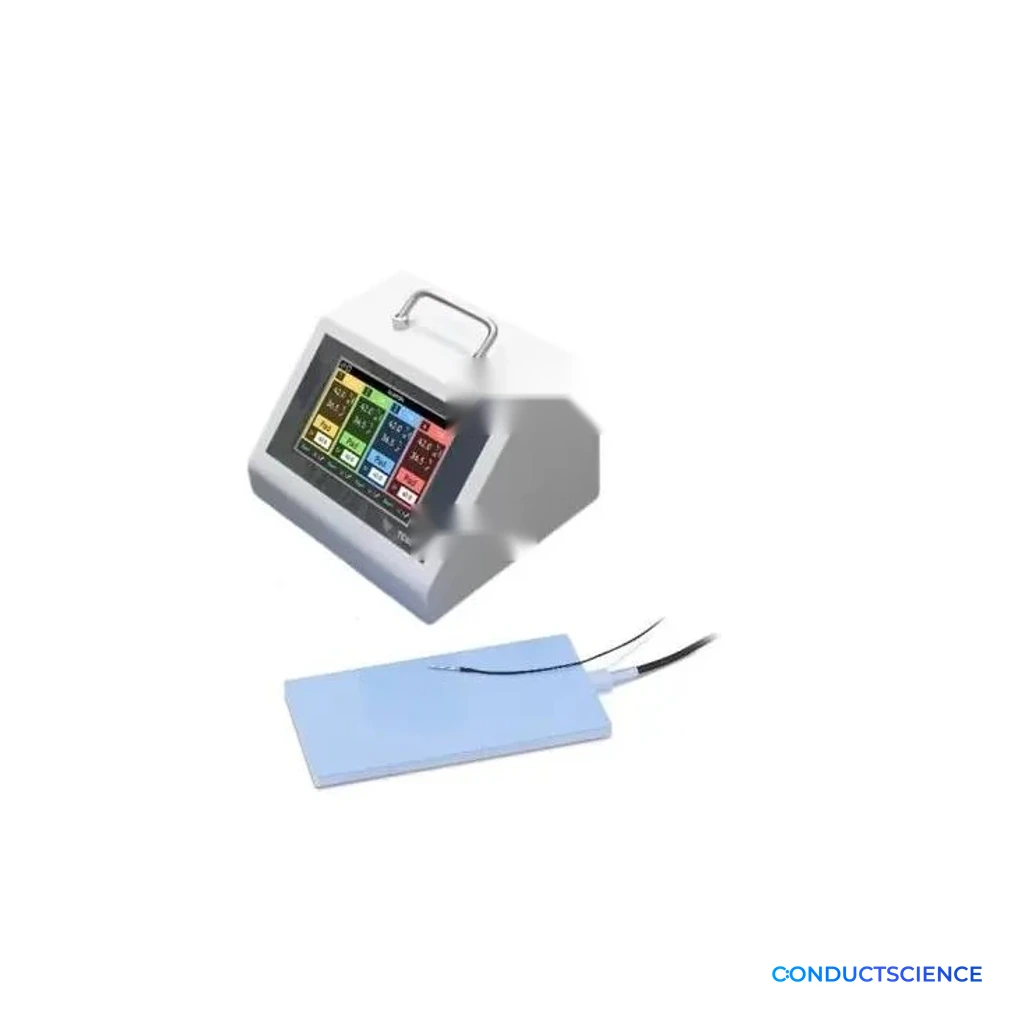

CS-HS-0003	4-Channels Homeothermic system	Complete System: 1 Homeothermic Control Unit_4 Channel 2 Heating Pad 120 X 205 mm (Standard) 2 Temperature probe: ø1.5 x 15mm (Standard)

*Homeothermic Monitoring System – Temperature Controller  includes the complete system.

Accesories

Model	Product	Size	Description
CS-TP-2001	Temperature Probe (Standard)	Mouse	Rod diameter: 1.5 mm / Rod length: 15 mm Cord length: 100 cm
CS-TP-2002	Temperature Probe	Rat	Rod diameter: 2.mm / Rod length: 30 mm Cord length: 100 cm
CS-HP-2013	Heating Pad*	Mouse XS	Heating Pad,  70*100MM, 12V_8W
CSHP-2014	Heating Pad (Standard)	Mouse	Heating Pad, 120*205MM, 12V_35W
CS-HP-2005	Heating Pad*	Rat	Heating Pad, 150*250MM, 12V_15W
CS-HP-2009	Heating Pad*	Cage Sm	Heating Pad, 120*400MM, 12V_40W
CS-HP-2007	Heating Pad*	Cage	Heating Pad, 200*350MM, 12V_40W
CS-HP-2008	Heating Pad*	Cage XL	Heating Pad, 300*500MM, 12V_50W
CS-HP-2006	Heating Pad*	Cage XXL	Heating Pad, 400*600MM, 12V_40W

The standard configurations includes a standard heating pad (120*205MM) and standard temperature probe (ø1.5 x 15mm). Other heating pads are options suitable to add to the system.

Features

• A closed-loop system with a rectal probe
• Easy-to-use color touch screen control
• Two-channel with independent control
• Precise and stable control of a subject's temperature
• Flexible heating pads, easy to clean,
• Multiple heating pad sizes are available
• Audible alarms function
• Centigrade(℃)and Fahrenheit degree (℉) mode display
• Real-time display of the working status of the heating pad, and monitor the working state of the channel: idle (IDLE), warning (WARNING), standby (STANDBY), and normal work
•  Heating range: 0-60 ℃, 0.1 ℃ resolution, Degrees Celsius and Fahrenheit can be switched
•  Power supply: 90-264 V, 50/60 Hz
•  Control unit size: 4CH: L180 x W150 x H110 mm
•  Control unit weight: 1.3 kg



Screen

• Tilting screen
• Easy-to-use touch
• Screen control
• 4.3 inch Color LCD

Channels

• Two-channels
• Independent control
• For Rectal Probes
• For Heating Pads

System

• UI switches for prompts
• UI switches for alarms
• Independet circuits
• Audible alarms function

Heating

• Rapid heating system
• Precise and stable
• Heating range: 20-45 ℃
• 0.1 ± ℃ resolution



Display

• Real-time display
• Monitor state of Channels
• Status display: Working
• Idle, Warning and Standby

Pads

• Flexible
• Easy to clean
• Three sizes available
• Non toxic silicone

Rectal Probes

• Flexible
• Closed-loop system
• Specific control system
• Two channels available

Temperature

• Precise & stable control
• Accuracy of 0.2°C
• Switchable ºC and ºF
• Monitor/control system

Homeothermic Monitoring System – Temperature Controller

Advantages

Double channels displayed on UI enables two animals’ surgeries and experiments independently at the same time. The UI displays a working progress bar of heating pads, and rectal probes working status: Idle, Warning, Standby, and Working Simultaneous monitoring Heating pads and Rectal Probes data A corresponding heat insulating pad is underneath every heating pad to prevent temperature loss.

Introduction

The Heat and Temperature controller system, also known as the homeothermic monitoring system, is recurrently used for thermal regulation and monitoring in rodent surgeries. The normal body temperature of rodents ranges between 36.2-37.5ºC, whereas the cages in which they are housed have an ambient temperature of 23-24ºC. This difference in temperatures can result in hypothermia in rodents. Additionally, anesthetization and post-operative recovery from anesthesia can also cause hypothermia in rodents. A heat and temperature controller consisting of a thermal controller, a rectal probe, a heating pad, and a heat insulation pad is used for rodent thermoregulation in research laboratories. Impaired thermoregulation resulting from general anesthesia during stereotaxic surgeries is the leading cause of hypothermia in rodents. In mammals, including rodents, the variations in core temperature are limited to +/- 0.3oC by the body's autonomic and behavioral responses. This narrow temperature range is called the "inter-threshold range," and the hypothalamus can extend this range 10-20fold, thus tolerating a fluctuation of (+/-) 2-4oC in body temperature. Anesthetics suppress the hypothalamus causing hypothermia before the beginning of any heat conservation mechanisms like vasoconstriction etc. Furthermore, control of arteriovenous shunting is lost due to the injection of general anesthesia. This loss of control causes heat redistribution from core to peripheral areas, ultimately decreasing core temperature. In a nutshell, hypothermia is induced as soon as the anesthesia is injected (Schuster and Pang, 2017). Therefore, one must take precautions beforehand to prevent it. For this, a heat and temperature control system is used. The heat and temperature control system uses a rectal probe, also known as a thermal sensor, gently inserted into the rodent's body via the rectal route to measure body temperature. A temperature controller with a digital display shows the temperature measured by the rectal probe. Additionally, a heating pad is used to overcome hypothermia, and the temperature controller also monitors its temperature.

Apparatus and Equipment

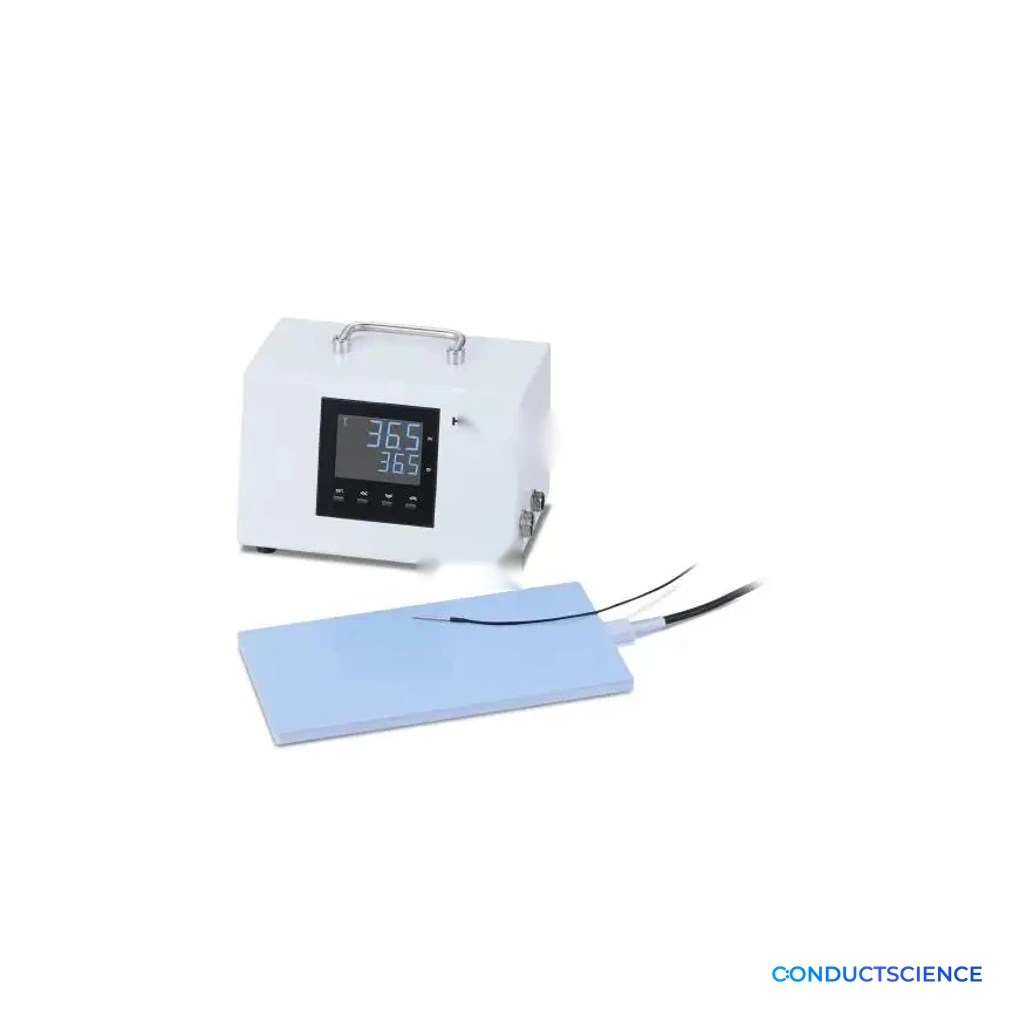

The homeothermic monitoring system provided by Conduct Science is a closed-loop system that includes a flexible rectal probe that enables the digital temperature controller to collect real-time feedback from the heating pad, automatically controlling the rodent's body temperature. The temperature controller (20.5x14.8x8.0cm) has an LCD that indicates the system’s current status, such as 'heating,' 'stand-by,' 'warning,' etc. The temperature scale can be interchanged between Fahrenheit and Celsius. Heating pads are made of high-quality silicone and efficiently provide warmth to the animals during surgery. They are available in three different sizes for rats, mice, and home cages. One can order them according to their experimental requirements. The homeothermic system has a temperature control range of 25-45ºC.

Protocol

Following protocol can be followed using a heat and temperature control system (de Diego-García et al., 2019).

1. Anesthetize the animal and ensure that it is sedated.
2. Place the rodent in a prone position on the " stereotaxic frame. "
3. Place a heating pad beneath so that the animal is in contact with the heating pad.
4. Insert the rectal probe into the rectum.
5. Connect the temperature controller to both probes and heating pad and keep adjusting the heating pad according to changes in rodents’ body temperature.

Applications

Thermoregulation in Rodent Models Prevention of Perioperative Hypothermia Hankenson et al. (2018) studied the thermal biology of rodents and their thermoregulatory mechanisms in a research environment. They stated that rodents’ physical and physiological abilities allow them to survive in low temperatures of up to 4oC and high temperatures of up to 43oC. These upper and lower temperature limits mark the boundaries of the murine “thermoneutral zone (TNZ).” The thermoneutral zone is “the range in which the resting metabolic rate of heat production is at equilibrium with animals’ evaporative heat loss to the surrounding environment.” The researchers must regularly monitor differences in body temperatures resulting from the ambient vivarium temperatures and anesthesia injection. For the measurement of core temperature, rectal thermometry is used. The rectal probe is inserted up to 2cm into the colon. Normal body temperature in anesthetized animals is then maintained by using devices like heating pads. During the entire process, the temperatures are regularly monitored by heat and temperature controller devices. Skoven et al. (2021) studied the interhemispheric integration of neural activity behind the left and right motor cortex by optogenetically stimulating glutamatergic neurons in the motor cortex. They took twenty-one young male rats about three weeks old and housed them in the lab facility for a week before stereotaxic surgery. After shaving off their fur, the researchers pre-operatively administered the animals subcutaneously with analgesics for infection and pain management. They used a rectal probe to measure the rodents’ temperature and used a heating pad to keep the animal warm throughout the surgery. They also used a homeothermic monitoring system to monitor the temperature of the probe and the heating pad. Following this, they performed a surgery and chronically implanted the electrodes in the contralateral left motor cortex. They concluded that optogenetic stimulation evokes a trans-local response in the left motor cortex. Lu et al. (2019) studied the side effects of the anticancer drug Cisplatin using rodent models. They found that Cisplatin could induce Ca+2 ion accumulation, hearing loss, exocytosis, and functional alterations in Ca+2 ion channels. They took fifteen C57/BL6 mice, injected them with a single dose of Cisplatin, and later performed Auditory Brainstem Response (ABR) thresholds on days 0 and 3 of cisplatin treatment for model verification. During ABR, the mice were intra-peritoneally anesthetized. Following anesthesia administration, they monitored the temperature of the subjects with a homeothermic monitoring system. The temperature was constantly maintained at 37oC throughout the ABR. The results indicated a significant difference between the control group mice and the test group mice. The test group mice experienced hearing loss. Hankenson et al. (2018) studied the thermal biology of rodents and their thermoregulatory mechanisms in a research environment. They stated that rodents' physical and physiological abilities allow them to survive in low temperatures of up to 4oC and high temperatures of up to 43oC. These upper and lower temperature limits mark the boundaries of the murine "thermoneutral zone (TNZ)." The thermoneutral zone is "the range in which the resting metabolic rate of heat production is at equilibrium with animals' evaporative heat loss to the surrounding environment." The researchers must regularly monitor differences in body temperatures resulting from the ambient vivarium temperatures and anesthesia injection. For the measurement of core temperature, rectal thermometry is used. The rectal probe is inserted up to 2cm into the colon. Normal body temperature in anesthetized animals is then maintained by using devices like heating pads. During the entire process, the temperatures are regularly monitored by heat and temperature controller devices. Skoven et al. (2021) studied the interhemispheric integration of neural activity behind the left and right motor cortex by optogenetically stimulating glutamatergic neurons in the motor cortex. They took twenty-one young male rats about three weeks old and housed them in the lab facility for a week before stereotaxic surgery. After shaving off their fur, the researchers pre-operatively administered the animals subcutaneously with analgesics for infection and pain management. They used a rectal probe to measure the rodents' temperature and used a heating pad to keep the animal warm throughout the surgery. They also used a homeothermic monitoring system to monitor the temperature of the probe and the heating pad. Following this, they performed a surgery and chronically implanted the electrodes in the contralateral left motor cortex. They concluded that optogenetic stimulation evokes a trans-local response in the left motor cortex. Lu et al. (2019) studied the side effects of the anticancer drug Cisplatin using rodent models. They found that Cisplatin could induce Ca+2 ion accumulation, hearing loss, exocytosis, and functional alterations in Ca+2 ion channels. They took fifteen C57/BL6 mice, injected them with a single dose of Cisplatin, and later performed Auditory Brainstem Response (ABR) thresholds on days 0 and 3 of cisplatin treatment for model verification. During ABR, the mice were intra-peritoneally anesthetized. Following anesthesia administration, they monitored the temperature of the subjects with a homeothermic monitoring system. The temperature was constantly maintained at 37oC throughout the ABR. The results indicated a significant difference between the control group mice and the test group mice. The test group mice experienced hearing loss.

Precautions

1. Ensure that all connections are properly made and secured.
2. Do not over-heat the heating pad.
3. Prevent animal’s direct contact with the heating pad. An insulating pad can be placed as a barrier between the animal and the heating pad.

Summary

1. A homeothermic monitoring system is recurrently used for thermal regulation and monitoring in rodent surgeries.
2. Impaired thermoregulation resulting from general anesthesia during stereotaxic surgeries is the leading cause of hypothermia in rodents.
3. The heat and temperature controller keeps the rodents' body temperature within the range of the thermoneutral zone.
4. It consists of a rectal probe, a heating pad, and a digital temperature controller.
5. A homeothermic monitoring system prevents the animals from perioperative hypothermia.

References

1. Schuster, C. J., & Pang, D. S. J. (2018). Forced-air pre-warming prevents peri-anaesthetic hypothermia and shortens recovery in adult rats. Laboratory animals, 52(2), 142-151.
2. de Diego-García, L., Sebastián-Serrano, Á., Bianchi, C., Di Lauro, C., & Díaz-Hernández, M. (2020). ATP Measurement in Cerebrospinal Fluid Using a Microplate Reader.  In Purinergic Signaling (pp. 233-241). Humana, New York, NY.
3. Hankenson, F. C., Marx, J. O., Gordon, C. J., & David, J. M. (2018). Effects of rodent thermoregulation on animal models in the research environment. Comparative medicine, 68(6), 425-438.
4. Skoven, C. S., Tomasevic, L., Kvitsiani, D., Pakkenberg, B., Dyrby, T. B., & Siebner, H. R. (2021). Profiling the transcallosal response of rat motor cortex evoked by contralateral optogenetic stimulation of glutamatergic cortical neurons. bioRxiv.
