Manual Micromanipulator System

Overview

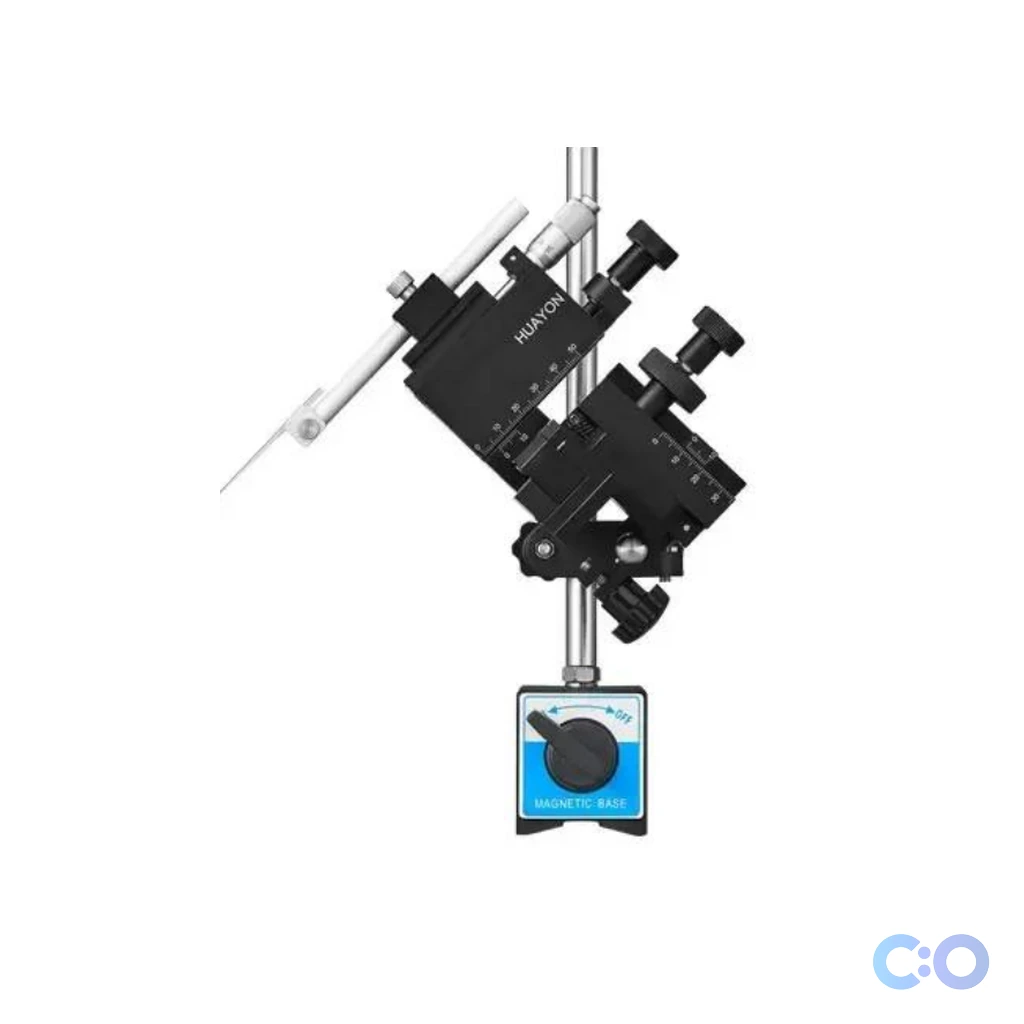

The Manual Micromanipulator System gives labs a single buying path for manual micropositioning around capillaries, injectors, syringe heads, probes, and electrodes. The family covers standard left/right manual configurations, angled pitch setups, compact mini positioning, universal bracket positioning, and focused one-axis manual movement for microscope-guided and stereotaxic-adjacent stations.

Source extraction from catalog pages 30 and 31 plus current source rows supports 13 mm fine X travel, 45 mm coarse X travel, 22 mm Y travel, 27 mm Z travel, 0.01 mm fine reading accuracy, pitch-adjustment paths, universal 360 degree bracket positioning, compact mini positioning, and one-axis 25 mm manual travel.

Selection Guidance

Start with the operator side and station geometry: choose left or right for standard manual positioning, pitch adjustment when the approach angle matters, universal positioning when the holder path must rotate around the work field, mini when bench or microscope clearance is tight, and one-axis when the workflow needs a focused single-axis advance.

Setup Planning

Plan the manipulator with the stereotaxic frame or microscope, vibration-control surface, base type, holder path, capillary glass, syringe or pump head, injector, electrode, and any tubing required by the procedure station.
