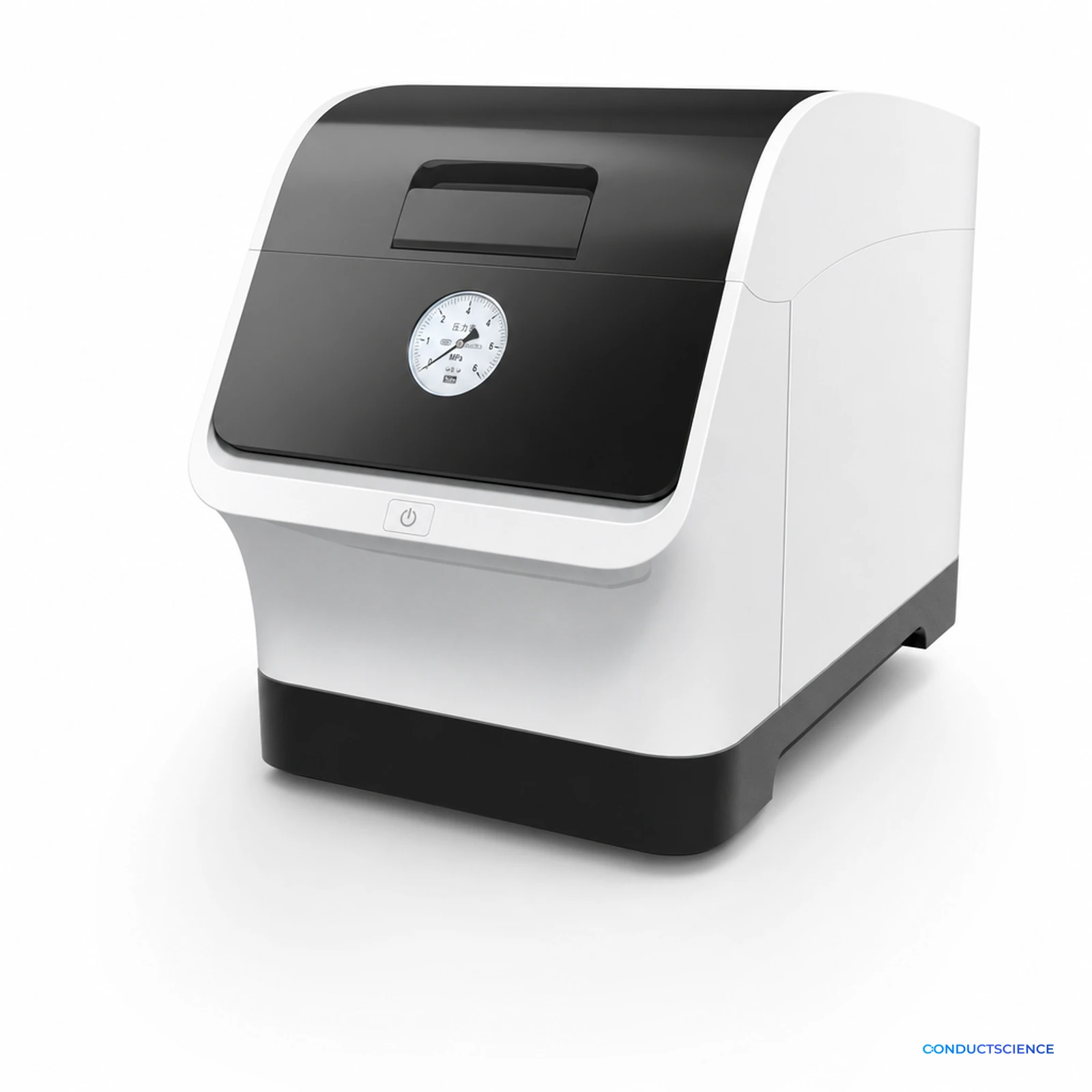

Microwave Digestion System, 300 °C / 200 bar
Closed-vessel microwave digestion for sample preparation ahead of ICP-MS and ICP-OES.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Microwave Digestion System, 300 °C / 200 bar fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- CS-ANL-00014
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Quote-reviewed before fulfillment
- Category
- Sample Prep
- Build notes
- Confirm accessories, station layout, and support needs before purchase
A closed-vessel microwave digestion system that takes solid samples to complete dissolution ahead of elemental analysis. Quartz and TFM vessels with duplex-steel pressure jackets carry the digest to 300 °C, and automated cooling and pressure release return the rotor to a safe opening state without operator intervention.
Key features
- Rapid cooling of the reaction chamber.
- Programmed independent cooling water circulation for rapid cooling of high temperatures.
- Precision spiral water cooling process to enhance heat exchange area and maximize cooling time.
- Rapid cooling with no secondary boiling due to pressure relief.
- Efficient Coupling Technology: Patented technology
- Direct coupling of microwave excitation and waveguide design which has been granted to improve microwave efficiency.
- The microwave impedance is completely matched, and the microwave transmission efficiency is improved to the best
- Barrel type symmetrical sample holder ensures the consistency of sample digestion.
Applications
Built for elemental analysis and sample-preparation laboratories.
- The super microwave digestion instrument can not only be used extensively in the digestion of basic samples such as biological, food, medicine, material, cosmetic and environmental samples, but can also be applicable to the samples that are hard to be digested by the traditional microwave, such as porcelain, carbon, ore, petroleum and PEEK samples. In the pressurized digestion cavity, multiple samples can be analyzed simultaneously; complete digestion can be fulfilled even for mixed samples, requiring no sample classification.
- Soil sample analyzing
- Cosmetic sample analyzing
- Pharmaceutics sample analyzing
- Geological and mining
- Microwave digestion is widely used in the fields including biology, food, medicine, geology, metallurgy, coal, environmental monitoring.
- The fully automated microwave workstation is suitable for the digestion of the cosmetic, pharmaceutical, environmental, food, geological and mining and petrochemical samples.
- The pre-pressure and high-temperature heating functions fully meet the special requirements for complex samples.
Choosing the right configuration
Confirm the sample and acid chemistry, vessel material, batch capacity, ventilation, cooling, and electrical requirements before installation. ConductScience reviews the full digestion workflow and the downstream elemental-analysis method during quote preparation.
Safety
- The temperature is up to 300 ℃; Pressure up to 200Bar.
- The pressure-bearing parts of the tank are designed with duplex steel to ensure pressure resistance and reliability
- This machine can automated cooling, release the pressure and open the lid to keep the operator away from the high pressure cavity.
- In the heating process, the bumping of sample can be effectively suppressed without cross-contaminate.
- Pressure balance inside and outside the tube. The tube would not deform, which make the product last longer.
- The design of the device conforms to GB/T 26814 Microwave Disintegration Device and the standard design specification for pressure vessels
- High-pressure piping with Teflon is adopted inside and external positive pressure atmosphere process to prevent acid corrosion
Features & Benefits
Ambient temperature
- 15℃-35℃
Ambient humidity
- 35~80% RH, no condensation
Power supply
- single-phase (220 ± 20) VAC, 16A, 50 Hz
Required exhaust velocity
- at least 6 m/s
Microwave emission power
- 1200W
Maximum temperature
- 300℃
Maximum working pressure
- 200Bar
Reaction-chamber volume
- 1L
Digestion capacity
- 6 × 60ml, 8 × 35ml, 18 × 15ml, or 24 × 8ml per cavity
Pre-pressure range
- 40-100Bar inert gas
Microwave leakage
- less than 0.01 mW / cm²
Process-temperature control range
- 0-500℃
Process-temperature precision
- ±0.1℃
Cooling-water temperature accuracy
- ±0.1℃
Cooling-water range
- 5-35℃
Control-terminal storage
- minimum 128G
What does this instrument measure, and who is it for?
It measures nothing directly; it takes solid samples to complete dissolution before elemental analysis. It is built for elemental analysis and sample-preparation laboratories. It is a bench instrument that sits upstream of elemental analysis, inside a fume extraction path.
What measurement principle does it use?
Microwave energy heats the sample and acid inside a sealed vessel, so the digest reaches temperatures and pressures an open vessel cannot hold. Automated cooling and pressure release return the rotor to a safe opening state without operator intervention.
Which specifications are confirmed?
The specification table lists sixteen confirmed ordering parameters for this instrument. Use them to compare the operating range, utilities, and analytical performance required by the method. They include Ambient temperature at 15℃-35℃, Ambient humidity at 35~80% RH, no condensation and Power supply at single-phase (220 ± 20) VAC, 16A, 50 Hz.
What should be confirmed before ordering?
Confirm vessel and rotor selection for your sample mass, acid compatibility, fume extraction, and clearance around the pressure-relief path. These are configured and quoted per installation, so raise anything unusual about the site during quote review rather than after delivery.
What else is needed to run it?
The elemental analyser the digest is destined for, inductively coupled plasma mass spectrometry or optical emission, and vessels rated for your acid and sample mass.
How is it supplied?
This instrument is configured and quoted per installation rather than sold at a list price. Request a quote and we will confirm the configuration, the site requirements and the lead time before anything is ordered.
