Automatic Tissue Processor 12 Tanks, RF-0099
RF-0099 automatic tissue processor with 12-station reagent configuration, 120-specimen basket capacity, 7-inch color touchscreen, 20 programmable cycles, and built-in UPS for uninterrupted operation.
ISO and CE certified.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Automatic Tissue Processor 12 Tanks, RF-0099 fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- RF-0099
- Sizing
- 47.24 x 16.93 x 19.29 cm
- Ordering
- Online checkout and quote request available
- Category
- Tissue Processing
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The RF-0099 is a fully enclosed automatic tissue processor designed for histology and pathology laboratories requiring high-capacity, reliable overnight processing. The system accommodates 12 reagent cups — the final 3 dedicated to paraffin infiltration — and processes up to 120 standard cassette specimens per run.
A 7-inch color touchscreen LCD provides intuitive program management, supporting up to 20 editable processing cycles with flexible scheduling down to the second. The built-in UPS system provides over 5 hours of battery-backed operation during power outages, protecting in-process specimens from interruption.
Key Features

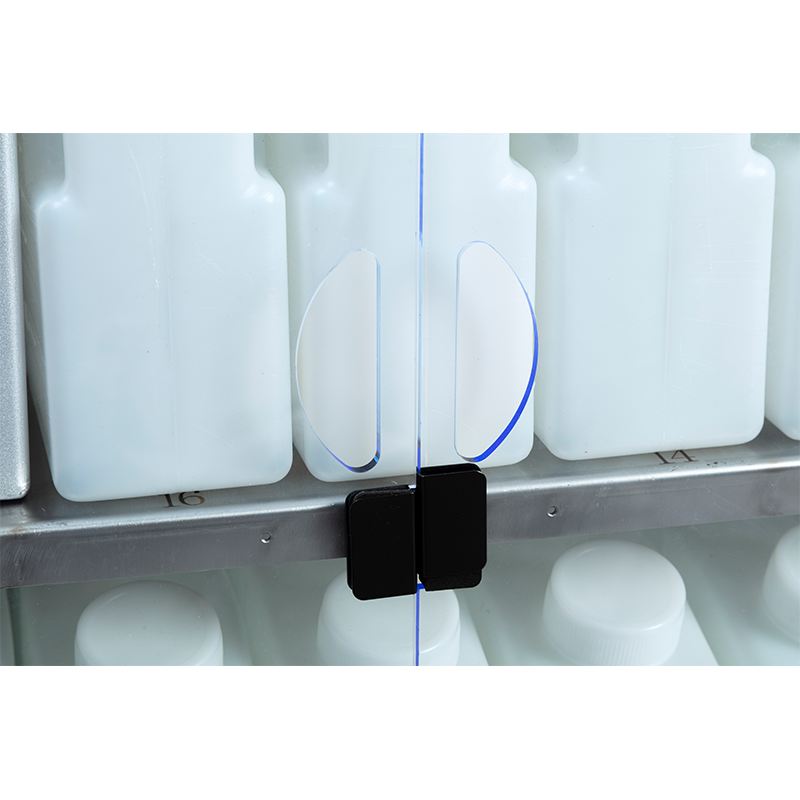

- 12-station reagent configuration (9 reagent + 3 paraffin cups)
- 120-specimen basket capacity (standard cassette)

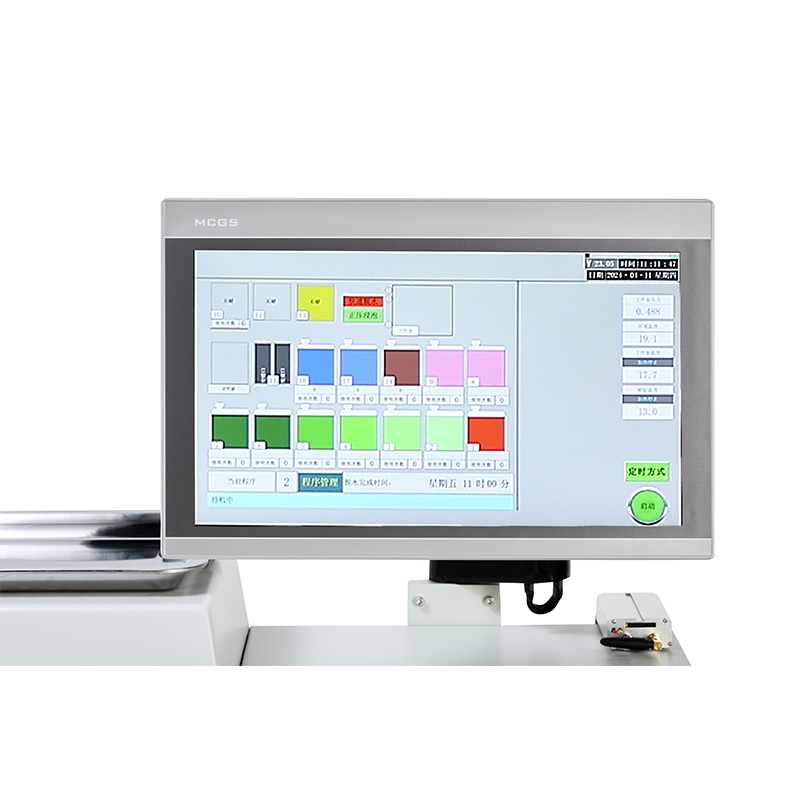

- 7-inch color touchscreen LCD
- 20 fully editable programmable processing cycles
- Built-in UPS — 16-hour battery backup, 5+ hours continuous operation during power outage
- Internal dry heating with triple-protection temperature control
- Adjustable agitation: 1–15 shakes per cycle, up/down motion with 3 stirring cycles
- Single cylinder working time adjustable from 0 to 99 hours
- Flexible start scheduling (year / month / day / hour / minute / second)
- Protection function prevents accidental cylinder stop
- Gas decomposition system for laboratory safety
- ISO and CE certified
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RF-0099 |
| Number of reagent cups | 12 (last 3 paraffin cups) |
| Single cup capacity | 2000 mL |
| Basket capacity | 120 specimens (standard cassette) |
| Programmable cycles | 20 editable programs |
| Single cylinder working time | 0–99 hours (adjustable) |
| Liquid shake time | 1–15 times (adjustable) |
| Paraffin cup temperature range | RT – 99°C (adjustable) |
| Display | 7-inch color touchscreen LCD |
| Battery backup (UPS) | 16 hours |
| Power supply | AC220V ±10% 50Hz / AC110V ±10% 60Hz |
| Dimensions (L × W × H) | 1200 × 430 × 490 mm |
| Certifications | ISO, CE |
Weight
- 75.0 kg
Dimensions
- L: 47.24 mm
- W: 16.93 mm
- H: 19.29 mm
