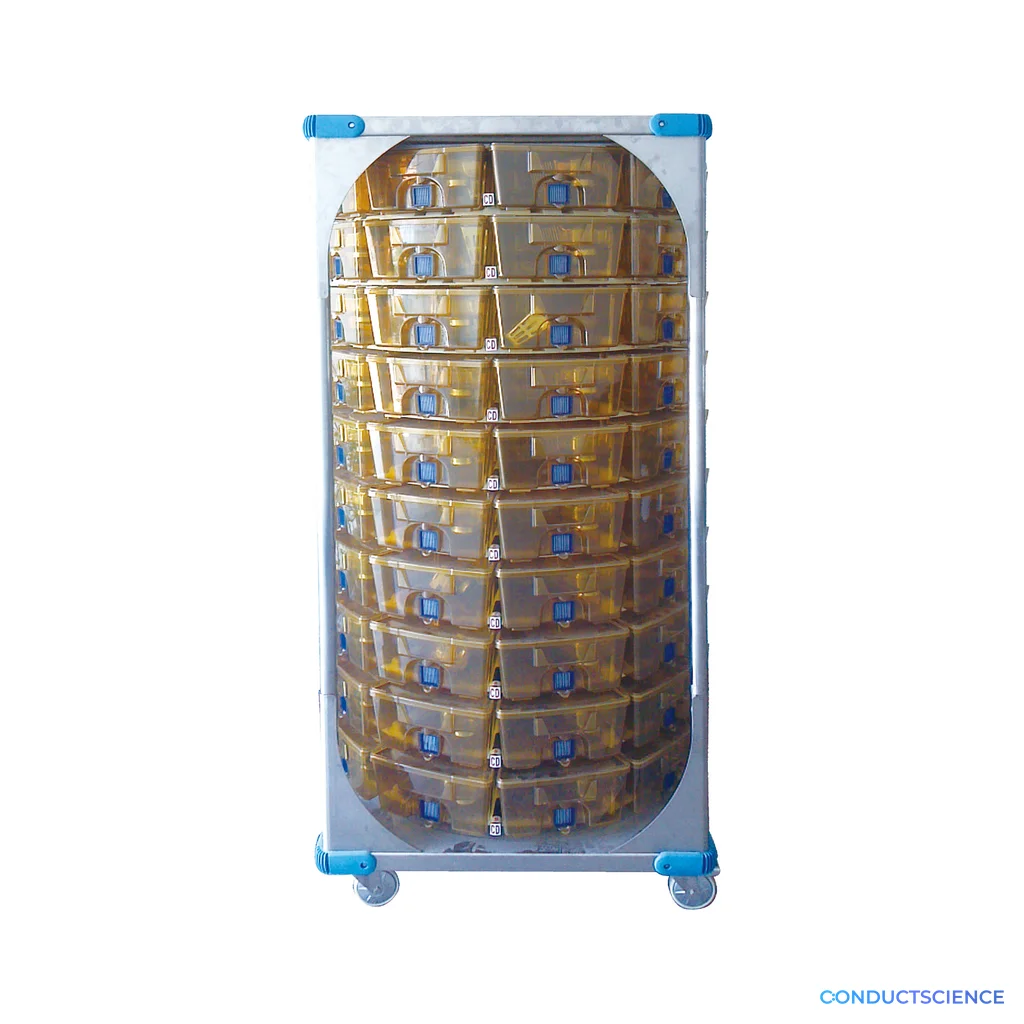

100-Cage Rotating EVC System
Rotating exhaust-ventilated mouse housing with 100 cages arranged across a 10 × 10 carousel for wall-adjacent rooms where staff need access to every position without walking around a conventional rack.
The 900 × 1000 × 1980 mm system is offered with PSU or PPSU cages and documents ISO 7 cleanliness, at least 20 air changes per hour, filtered cage airflow, touchscreen control, and UPS backup of at least 8 hours.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about 100-Cage Rotating EVC System fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- 2 selectable configurations
- SKU family
- CS-EVC-ROT-100
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Quote-reviewed before fulfillment
- Category
- EVC Systems
- Build notes
- PSU · 150 °C · >200 cycles, PPSU · 180 °C · >500 cycles
Use rotation to make dense EVC housing practical to service
This rotating EVC system arranges mouse cages around a turntable so each position can be brought to the working side of the rack. It is intended for rooms where wall-adjacent placement and direct access are important, while the study still needs separated cage airflow and centrally managed exhaust. The carousel changes the care workflow, so rotation, cage identification, stopping position, staff reach, and emergency access should be evaluated before selection.
The system holds 100 cages across 10 levels and 10 positions. The rack measures 900 × 1000 × 1980 mm and uses SUS304 stainless steel with a PPO turntable. Each cage provides 540 cm² of floor area and a 14 cm height, with a 300 mL water bottle and 500 g food box. Documented operating values include ISO 7 cleanliness, airflow no greater than 0.1 m/s, at least 20 air changes per hour, and noise no greater than 50 dB(A).
Choose the cage polymer around the approved sanitation process. The PSU configuration is documented for a maximum temperature of 150 °C and more than 200 cycles at 135 °C for 10 minutes. The PPSU configuration is documented for a maximum of 180 °C and more than 500 cycles under the same cycle conditions. These are material endurance values; the facility should confirm its actual autoclave load, chemistry, inspection criteria, and replacement policy.
Each sealed cage uses intake and exhaust filtration, while the top exhaust package provides touchscreen control and monitoring. The built-in UPS is documented for at least 8 hours. Facility planning should cover central exhaust, AC 220 V at 50 Hz and 150 W, alarm response, lighting settings, airflow verification, turntable clearance, cage-change support, sanitation, maintenance, and the delivery route.
Share the mouse program, expected cage use, care schedule, sanitation and autoclave cycle, room drawing, exhaust conditions, power, alarms, lighting, monitoring, backup plan, and commissioning requirements with ConductScience. The final quote will define PSU or PPSU cages, the rack and turntable, exhaust and control package, husbandry components, installation, testing, training, and accessories. This makes the space-saving layout part of a complete operating plan.
Features & Benefits
Capacity and layout
- 100 cages · 10 levels × 10 positions · 360° rotating turntable
Rack dimensions
- 900 × 1000 × 1980 mm
Rack and turntable
- SUS304 stainless steel rack · PPO turntable
Cage geometry
- 540 cm² floor area · 14 cm height
Husbandry capacity
- 300 mL water bottle · 500 g food box
Ventilation performance
- ISO 7 · ≤0.1 m/s · ≥20 air changes/h · ≤50 dB(A)
Electrical and backup
- AC 220 V · 50 Hz · 150 W · UPS ≥8 h
Steam-cycle basis
- 135 °C for 10 min
| Model | SKU | Listed price | Status | Dimensions |
|---|---|---|---|---|
| PPSU · 180 °C · >500 cycles | CS-EVC-ROT-100-PPSU | Quote | Available | Confirmed during quote |
| PSU · 150 °C · >200 cycles | CS-EVC-ROT-100-PSU | Quote | Available | Confirmed during quote |
Setup Guide
What’s in the Box
- Selected rotating EVC system; rack, turntable, PSU or PPSU cages, exhaust and controls, husbandry components, UPS, accessories, and commissioning scope confirmed in the quote
When should PPSU be selected over PSU?
Select it when the approved sanitation cycle and expected service life need the higher documented temperature and cycle endurance.
Can the rack sit directly against a wall?
The rotating layout is designed for wall-adjacent access, but service, exhaust, emergency, and delivery clearances still need room review.
What should be tested during commissioning?
Test rotation, cage access, exhaust, airflow, controls, alarms, lighting, power-loss response, sanitation, and staff workflow.
