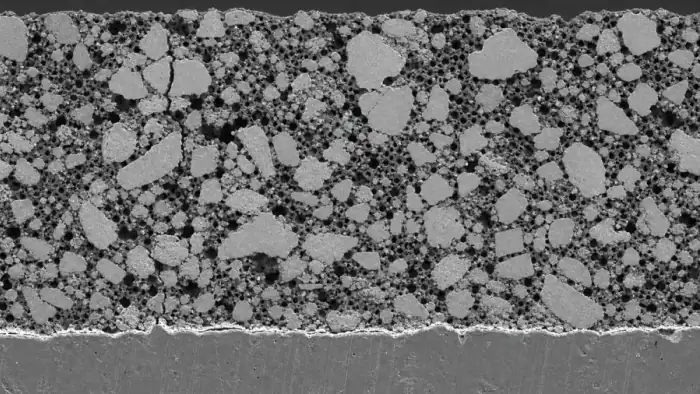

Battery electrode analysis
Coating, particle, pore, and crack measurements for electrodes, before and after cycling.
Example outputs shown for illustration. Numbers depend on your samples and protocol.
The measurement, today
Electrode quality combines coating, particle, pore, and crack metrics that today live in separate manual measurements.
From image to reviewed result
- 1
Calibrate the scale
Set spatial scale from a bar or known dimension. Every downstream number inherits real units.
- 2
Detect & segment
Segmentation models find the objects and regions of interest: grains, particles, pores, fibers, cells.
- 3
Measure
Quantify size, count, area fraction, density, and orientation. The metrics your method already defines.
- 4
Review the overlay
Inspect the result on every field. Adjust thresholds by hand; the change is logged with the output.
- 5
Export & compare
Publication-ready statistics, plus batch comparison across lots, conditions, and time points.
What you export
Related applications

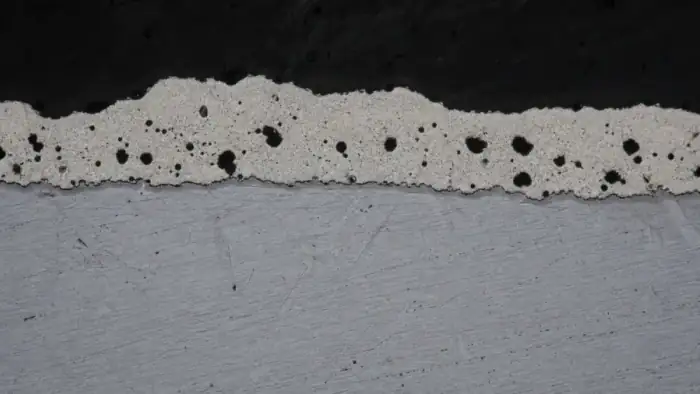

Coating thickness & porosity
Thickness profiles and sub-surface porosity from polished coating cross-sections.
Nanoparticle analysis
TEM and SEM particle size, shape, and agglomeration for nanomaterials and catalysts.

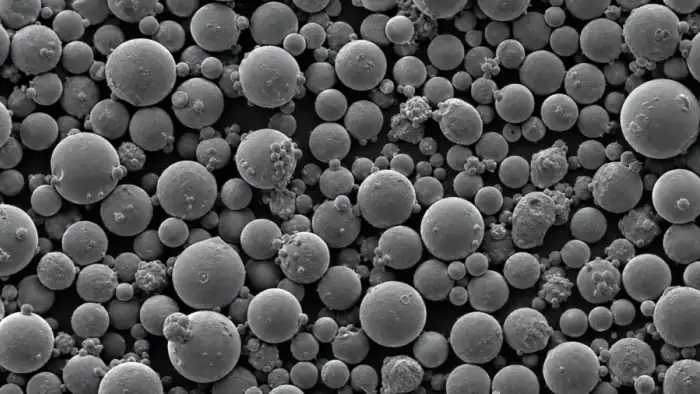

Additive manufacturing QC
From powder morphology to post-build cross-sections: layer anomalies and pore maps.
Send a sample image and a measurement goal
We will show the closest ConductVision workflow and flag what needs custom validation for your images.
