Agricultural Seed X-Ray Inspection System
X-ray seed imaging system for corn, rice, pine & more.
56 lp/cm resolution, 7% contrast, Φ80 mm FOV. HY-1080 or HY-1090 with image intensifier. Request a quote.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Agricultural Seed X-Ray Inspection System fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- AGR-0009
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Agriculture & Food Science
- Build notes
- Confirm accessories, station layout, and support needs before purchase

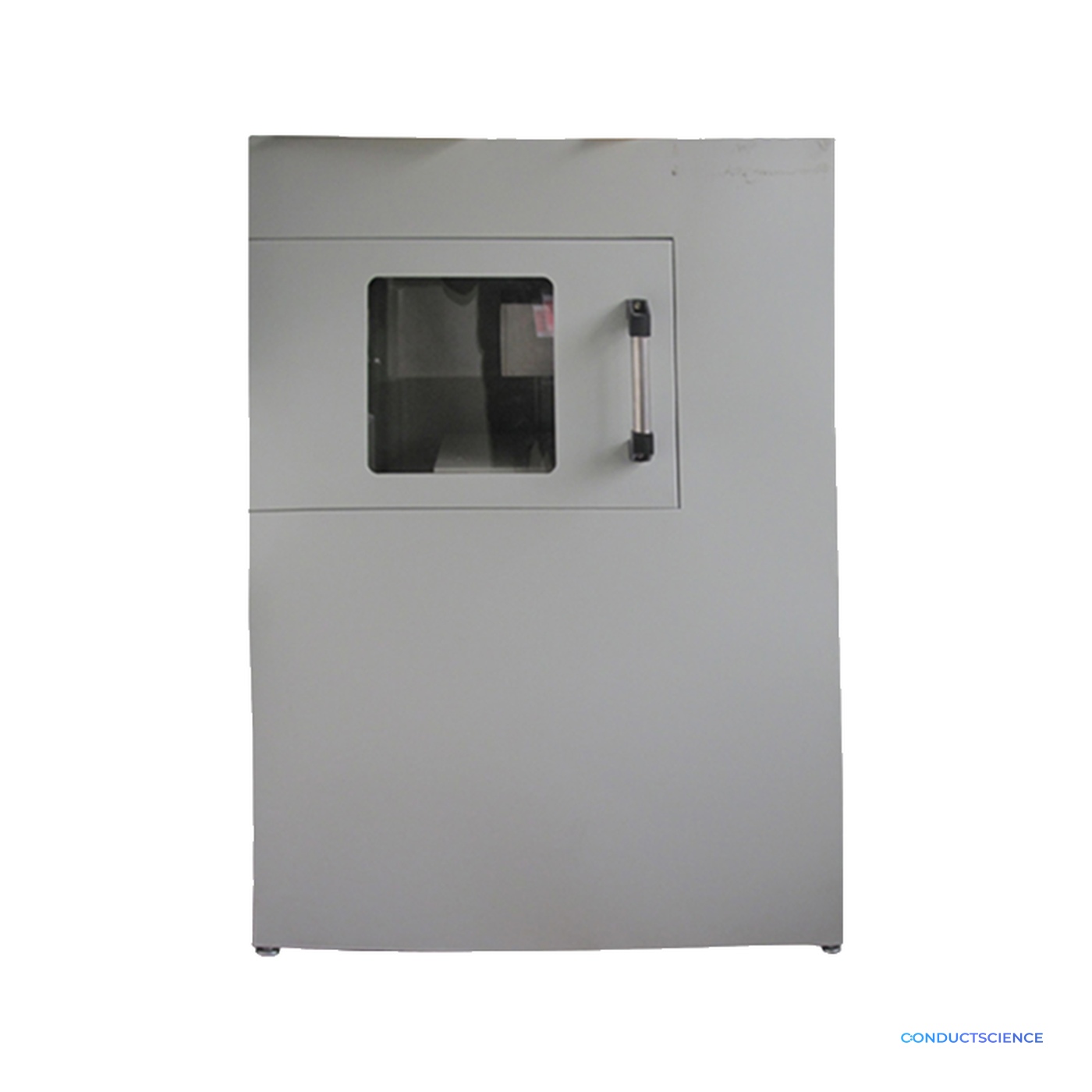

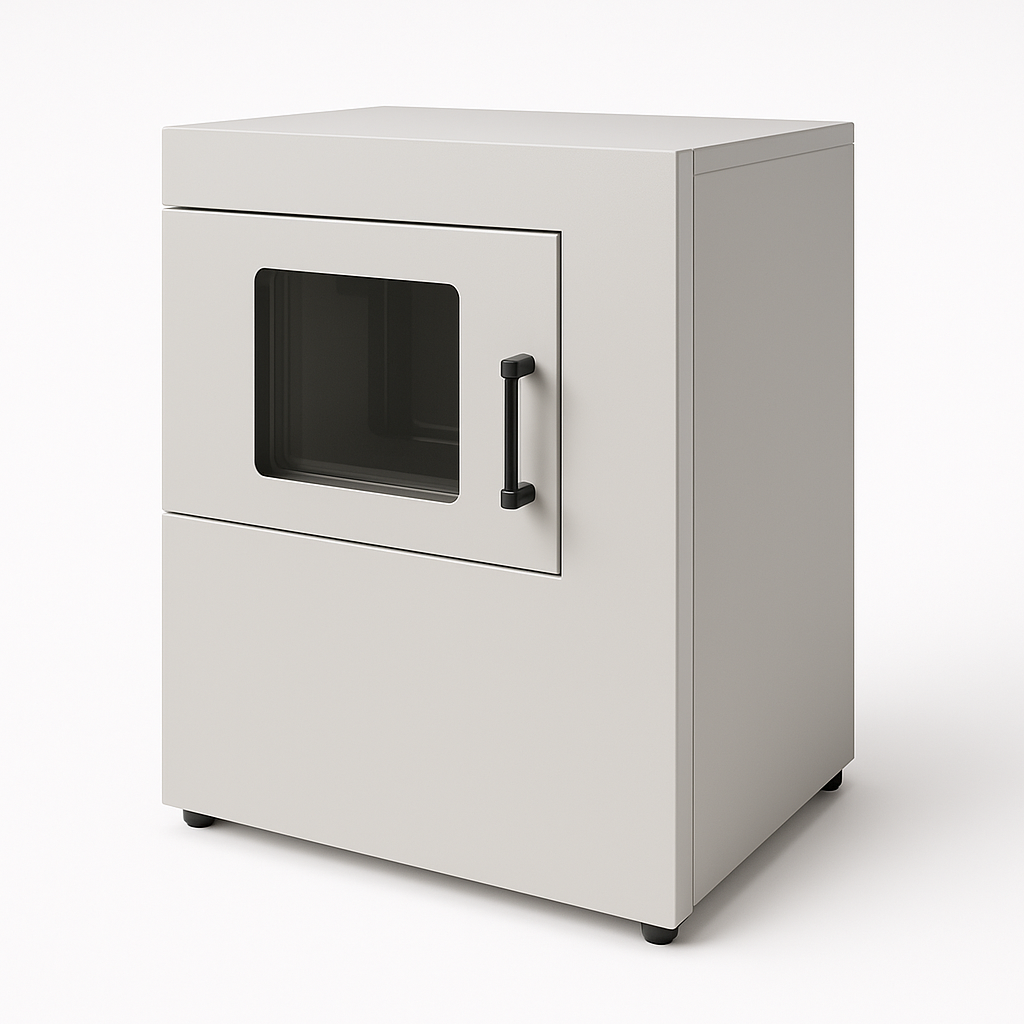

The HY-1080/HY-1090 Intelligent Agricultural X-Ray Machine is a dedicated seed and plant-material imaging system that uses X-ray transmission to reveal internal structures invisible to the naked eye. It penetrates a wide range of agricultural and forestry samples — including corn, rice, orange stalks, fir wood, pine seeds, chestnuts, and rapeseed — to image internal pest cavities, germ development, fill levels, and overall seed quality without opening or destroying the sample.
The key comparison qualifier for seed X-ray systems is imaging resolution paired with contrast sensitivity. With a resolution of 56 lp/cm, a 7% contrast ratio, and 7 grayscale levels, the HY-1080/HY-1090 renders fine internal detail that supports confident assessment of viability, pest infestation, and developmental stage. Output screen brightness exceeds 7 cd/cm², and the system accommodates samples within a Φ80 mm field of view at a maximum object-to-detector spacing of 300 mm.
Two models are available to match your laboratory setup. The HY-1080 images seed internal structure directly onto a connected computer screen and saves images for record-keeping and further analysis. The HY-1090 extends this with an added image intensifier system and the flexibility to output to either a dedicated display or a computer screen, offering enhanced versatility for higher-throughput or more demanding imaging workflows.
Because the optimal configuration depends on your sample types, throughput requirements, and display environment, the HY-1080/HY-1090 is available through a guided quote process. Contact our team to discuss your protocol and receive a configuration matched to your seed science or forestry research needs.
Model Family
- HY-1080 / HY-1090
Photogenous Output
- > 1.5 million
Imaging Field of View (Photo Range)
- Φ80 mm
Maximum Sample-to-Detector Spacing
- 300 mm
Output Screen Brightness
- > 7 cd/cm²
Tube Voltage
- 60–85 kV
Tube Current
- 0.2–0.4 mA
Contrast Ratio
- 7%
Grayscale Levels
- 7
Resolution
- 56 lp/cm
Leakage Radiation
- < 5 mR/h
Weight
- 6.5 kg
What types of seeds and plant materials can this X-ray machine image?
The system is designed to penetrate and image a broad range of agricultural and forestry samples, including corn, rice, orange stalks, fir wood, pine seeds, chestnuts, and rapeseed, among others. It reveals internal features such as pest cavities, germ development, and seed fill without damaging the sample.
What is the imaging field of view and maximum sample spacing?
The imaging field of view (photo range) is Φ80 mm in diameter, and the maximum spacing between the sample and detector is 300 mm, accommodating a variety of sample holders and container types.
What is the difference between the HY-1080 and HY-1090 models?
The HY-1080 captures and displays internal seed images directly on a connected computer screen and saves those images for analysis. The HY-1090 includes all HY-1080 capabilities and adds an image intensifier system, plus the option to output to either a dedicated display or a computer screen, making it suited for environments where enhanced brightness or display flexibility is needed.
What are the key imaging performance specifications?
The system delivers a resolution of 56 lp/cm, a contrast ratio of 7%, and 7 grayscale levels. Output screen brightness exceeds 7 cd/cm², and the photogenous output exceeds 1.5 million, supporting clear visualization of subtle internal structures. Tube voltage operates in the 60–85 kV range with a tube current of 0.2–0.4 mA.
What are the radiation safety characteristics of the instrument?
Leakage radiation is rated at less than 5 mR/h, reflecting the shielded design intended for laboratory use. The complete unit weighs 6.5 kg. For site-specific safety requirements, contact our team during the quote and configuration process.
