Dog T Maze
Behavioral testing apparatus for assessing spatial learning, memory, and decision-making capabilities in canine subjects through standardized T-maze protocols.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Dog T Maze fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Dog
- SKU family
- CS-958186
- Sizing
- Dog T maze: Length of maze 3 m · Width of maze 3 m
- Ordering
- Online checkout and quote request available
- Category
- Behavioral Mazes
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The Dog T Maze is a specialized behavioral testing apparatus designed for canine cognitive and spatial learning assessments. This maze configuration provides researchers with a standardized platform for evaluating decision-making, spatial memory, and learning capacity in dogs through controlled choice paradigms. The T-shaped design creates a simple yet effective testing environment where subjects must navigate between two alternative pathways based on various experimental protocols.
This apparatus enables systematic investigation of cognitive processes including spatial working memory, reversal learning, and reward-based decision making in canine subjects. The maze structure supports both automated and manual testing protocols, making it suitable for research applications ranging from basic cognitive assessment to complex behavioral pharmacology studies involving learning and memory modulation.
How It Works
The T-maze operates on the principle of spatial choice behavior, where subjects must navigate from a start arm into one of two goal arms based on experimental contingencies. The apparatus creates a controlled environment for measuring cognitive processes through systematic presentation of choice scenarios. During testing, dogs are placed in the start arm and must choose between left and right pathways, with reinforcement contingencies determining correct responses based on the specific experimental protocol.
Spatial learning is assessed through repeated trials where subjects learn to associate specific spatial locations with rewards or outcomes. Working memory components are evaluated using delayed alternation protocols, where correct responses depend on remembering the previous trial's choice or outcome. The maze design allows for measurement of response latencies, choice accuracy, and behavioral patterns that reflect underlying cognitive processes and neurobiological mechanisms.
Features & Benefits
Sizes by model
| Measurement | Dog T maze |
|---|---|
| Length of maze | 3 m |
| Width of maze | 3 m |
| Height of maze | 1.5 m |
- Width of entrance door: 1m
- Length of start compartment: 1m
- Width of start compartment: 1m
- Length of central compartment: 1m
- Width of central compartment: 1m
- Length of lateral arm: 3m
- Width of lateral arm: 1m at their narrowest point
- Height of aperture at both exits: 0.8m
Behavioral Construct
- Spatial Learning
- Working Memory
- Decision Making
- Spatial Navigation
- Cognitive Flexibility
Automation Level
- manual
Research Domain
- Anxiety and Depression
- Behavioral Pharmacology
- Developmental Biology
- Learning and Memory
- Neurodegeneration
Species
- Dog
Compatible Tracking Software
- ConductVision
Shipping weight
- 6.06 lb
Shipping box
- L: 65.0 cm
- W: 36.0 cm
- H: 27.0 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Maze Complexity | Simple T-shaped design with two choice arms | Radial arm mazes offer 4-8 arms while water mazes use circular platforms | Simplified choice paradigm reduces task complexity and allows focus on specific cognitive processes |
| Subject Requirements | Designed specifically for canine subjects | Most mazes are designed for rodent subjects with different scaling | Appropriate sizing and design considerations for dog behavioral testing protocols |
| Testing Environment | Dry maze testing with open-top observation | Water-based mazes require swimming while elevated mazes test anxiety responses | Eliminates confounding factors from swimming ability or height-related anxiety responses |
| Setup Requirements | Standard laboratory space with minimal infrastructure | Water mazes require temperature control and filtration systems | Simpler setup and maintenance requirements for routine cognitive testing protocols |
The Dog T Maze provides a straightforward spatial choice testing platform specifically designed for canine behavioral research, offering simplified cognitive assessment capabilities with minimal infrastructure requirements compared to more complex maze designs.
Practical Tips
Verify maze dimensions match your subject size requirements before beginning protocols.
Why: Proper scaling ensures subjects can navigate comfortably while maintaining spatial testing validity.
Clean maze surfaces between subjects using appropriate disinfectants to eliminate scent cues.
Why: Olfactory cues from previous subjects can confound spatial learning measurements.
Habituate subjects to maze environment before formal testing begins.
Why: Reduces novelty-related stress responses that can interfere with cognitive performance measurements.
Monitor for persistent side preferences that may indicate bias rather than spatial learning.
Why: Side biases can mask true spatial learning and require protocol adjustments or additional training.
Record multiple behavioral measures including choice latency and navigation patterns.
Why: Comprehensive data collection provides richer analysis of cognitive processes beyond simple choice accuracy.
Maintain consistent environmental conditions across testing sessions.
Why: Environmental variability can introduce confounding factors that affect reproducibility of cognitive measurements.
Ensure maze structure stability and inspect for any sharp edges or hazards.
Why: Subject safety is paramount and structural integrity prevents injury during active navigation behaviors.
Setup Guide
What’s in the Box
- T-maze structural components (typical)
- Assembly hardware and fasteners (typical)
- Setup and operation manual (typical)
- Maintenance guidelines (typical)
Warranty
ConductScience provides standard one-year manufacturer warranty covering structural defects and construction issues. Technical support is available for setup guidance and protocol optimization.
Compliance
References
Background reading relevant to this product:
Protocol and background
Introduction
The Dog T-Maze is used in spatial navigation and memory tasks that assess cognitive abilities in dogs. The maze is a square-shaped arena that contains inner walls that form a “T” shaped maze. The longitudinal alley of the “T” shaped maze serves as the starting arm and two lateral arms as the choice arms. The start arm consists of a panel that creates a division between the starting area and decision point, and can be used for acclimatization or to include delays as per protocols. Additional panels are also equipped onto the ends of the lateral arms to create exits as needed.
Performances of dogs in spatial mazes such as the Radial Arm Maze have shown their ability to readily acquire spatial learning and memory tasks as well as their flexibility in spatial information processing (Craig et al., 2012; Macpherson & Roberts, 2010). Furthermore, dogs also share a similar pattern of age-related cognitive decline to that observed in humans (Schütt et al., 2016). The Dog T-Maze, thus, can be effectively used as a translational tool in learning and memory research. In contrast to other complex assays, the Dog T-Maze uses a two-choice paradigm that is effective enough to allow observation of cognitive dysfunctions. Generally, Dog T-Maze protocols task the subjects to learn the route that leads to the correct exit out of the maze. Behavioral flexibilities can also be evaluated in the maze using reversal learning protocols or protocols that involve delays.
Other T-Maze variations used in the study of learning and choice behaviors in other animals include the Rodent T-Maze, the Piglet T-Maze, the Zebrafish Bifurcating T-Maze, and the Ant T-Maze.
Apparatus and Equipment

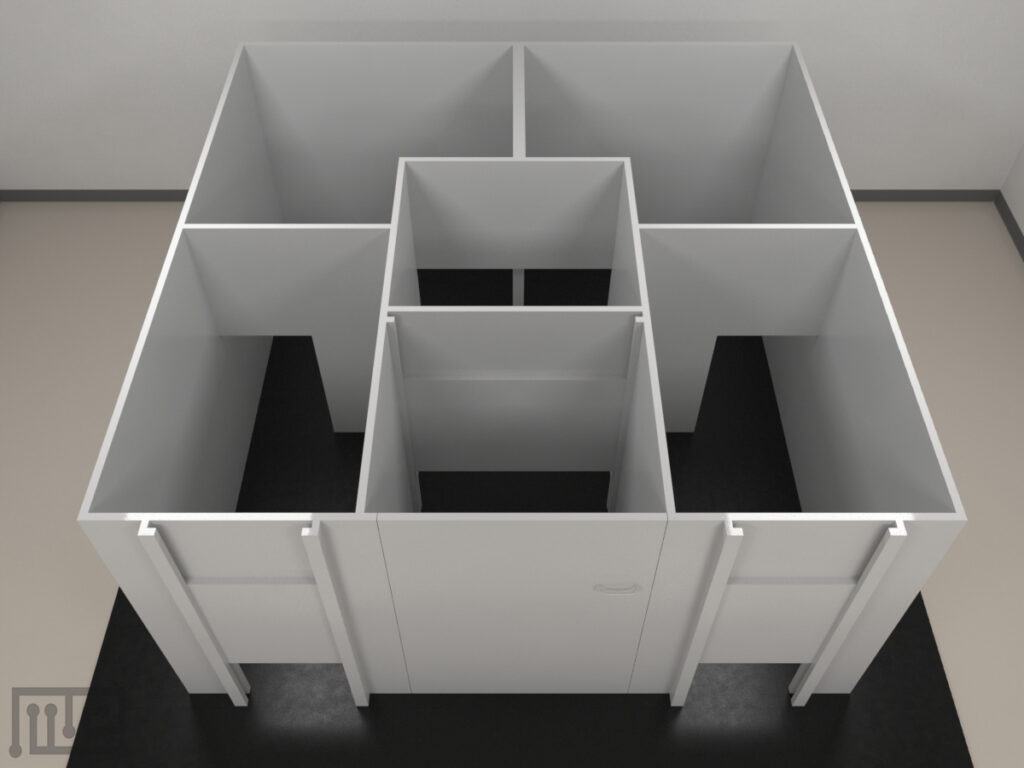

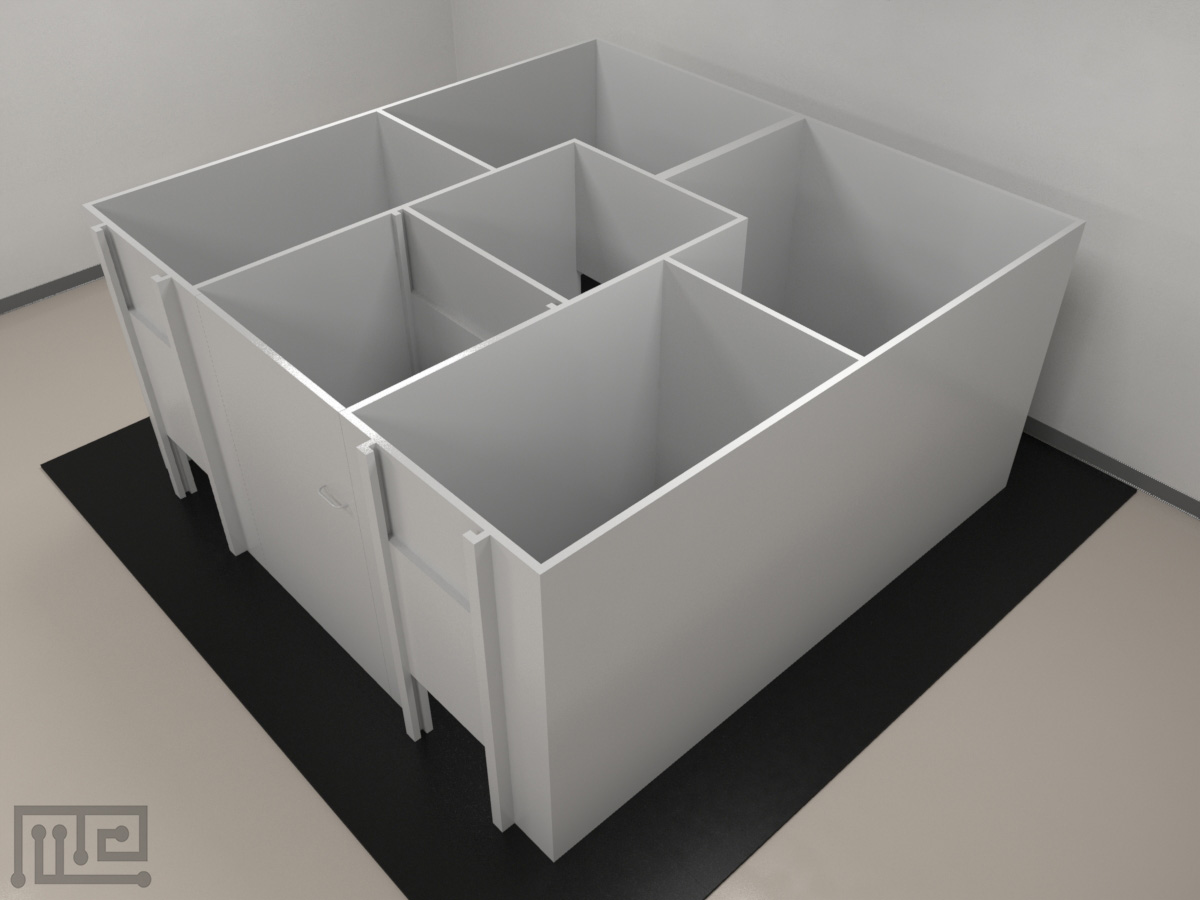

The Dog T-Maze is a squared shaped apparatus that measures 3 m in width, 3 m in length, and 1.5 m in height. The walls of the maze are made of acrylic panels. The front wall of the apparatus contains a door (1 m wide) at the center, which serves as the entrance of the maze. The entrance leads to the starting arm, which is divided into a start compartment (1 x 1 m) and a central compartment (1 x 1 m) by a sliding panel. The central compartment contains two identical, symmetrical openings that lead to the lateral arms of the maze. The lateral arms are 3 x 1 m at their narrowest points and contain an aperture (0.8 m in height) at the ends, which serves as the exit. Sliding panels are equipped onto the exits, which can either keep them opened or closed.
Training Protocol
Clean the apparatus before and after every trial to prevent the influence of any odor cues from previous trials. Appropriately light the apparatus. A tracking and recording system such as the Noldus Ethovision XT can be used to assist with observations.
Direction-Determination Trial
Keep all the sliding panels of the maze closed. Lead the subject into the start compartment. Call the subject and immediately raise the start alley panel to initiate the task. Allow the subject to enter the central compartment and freely enter any of the two lateral arms. Keep the exit panel of the arm the subject chooses first closed. Allow the subject to navigate back into the central compartment to the other lateral arm. Once the subject is midway in the second lateral arm, raise the sliding panel of the exit door and allow the subject to exit the maze. Set the first arm entered by the subject as the incorrect arm and the arm from which it exits as the correct arm for all proceeding learning and memory trials.
Dog T-Maze Training Trials
Keep the exit panel of the correct arm open. Lead the subject into the start compartment and perform trials in the same manner as Direction-Determination Trials. Perform trials until the subject reaches the required learning criterion. Separate trials with a predetermined inter-trial interval.
Retention Test
Following a retention period after the Dog T-Maze training trials perform the retention trials. Keep the exit panels in both lateral arms open. Lead the subject into the start compartment and perform trials in the same manner as Direction-Determination trials. Conduct trials until the subject exits the apparatus through the correct lateral arm in at least 3 out of 4 trials.
Reversal Learning Task
After the subject completes Retention Trials, conduct Reversal Learning Trials to test the subject’s ability to modify previously acquired behavioral responses. Conduct trials in the same manner as the Dog T-Maze Task, however, keep the previously incorrect lateral arm’s exit open and the other exit panel closed.
Data Analysis
The following can be observed using the Dog T-Maze:
- Number of times the subject entered the correct arm
- Number of times the subject entered the incorrect arm
- Decision latency (time in seconds from the owner’s call to a lateral arm choice)
- Trial duration (time in seconds from the lateral arm choice to exit from the apparatus)
- Total trial duration
- Number of errors made
Strengths and Limitations
Strengths
The Dog T-Maze is a simple two-choice apparatus that can be used to evaluate spatial navigation and memory abilities of dogs. The start arm and the ends of the lateral arms of the maze are equipped with sliding panels that allow manipulation of entries and exits. Additionally, the panel in the start arm divides it into a start area and a decision area. The start area can be used to acclimatize the subject prior to initiating trials or to induce delays in trials. The Dog T-Maze can be adapted as per the needs of different protocols to test behavioral flexibilities as well as other learning and memory-related tasks in dogs.
Limitations
Factors such as age, gender, and strain of the subject may affect task performance. The task is performed in a series of phases and may take a substantial amount of time. Exploratory behavior of the subjects may influence task performance. Unintentional stimuli may affect the way the subject performs the task.
Summary
- The Dog T-Maze can be used to test spatial navigation and memory in dogs.
- It is a square-shaped apparatus with internal walls that create the “T” shaped maze.
- The Dog T-Maze is equipped with sliding panels in the starting arm and the exit doors, which can be used to manipulate entries and exits in the maze.
References
- Craig, M., Rand, J., Mesch, R., Shyan-Norwalt, M., Morton, J., & Flickinger, E. (2012). Domestic dogs (Canis familiaris) and the radial arm maze: Spatial memory and serial position effects. Journal of Comparative Psychology, 126(3), 233–242.doi: 10.1037/a0025929
- Macpherson, K., & Roberts, W. A. (2010). Spatial memory in dogs (Canis familiaris) on a radial maze. Journal of comparative psychology, 124(1), 47. doi: 10.1037/a0018084
- Mongillo, P., Araujo, J. A., Pitteri, E., Carnier, P., Adamelli, S., Regolin, L., & Marinelli, L. (2013). Spatial reversal learning is impaired by age in pet dogs. Age, 35(6), 2273-2282. doi:10.1007/s11357-013-9524-0
- Mongillo, P., Bertotto, D., Pitteri, E., Stefani, A., Marinelli, L., & Gabai, G. (2015). Peripheral leukocyte populations and oxidative stress biomarkers in aged dogs showing impaired cognitive abilities. Age, 37(3), 39. doi:1007/s11357-015-9778-9
- Mongillo, P., Scandurra, A., D’Aniello, B., & Marinelli, L. (2017). Effect of sex and gonadectomy on dogs’ spatial performance. Applied animal behaviour science, 191, 84-89. doi:10.1016/j.applanim.2017.01.017
- Schütt, T., Helboe, L., Pedersen, L. Ø., Waldemar, G., Berendt, M., & Pedersen, J. T. (2016). Dogs with cognitive dysfunction as a spontaneous model for early Alzheimer’s disease: a translational study of neuropathological and inflammatory markers.Journal of Alzheimer's Disease, 52(2), 433-449. doi: 10.3233/JAD-151085.
From the Maze Engineers documentation for this apparatus.
What maze dimensions are appropriate for different dog sizes?
Consult product datasheet for specific dimensional specifications. Maze sizing should accommodate comfortable movement while maintaining appropriate scale for spatial testing protocols.
How do I implement delayed alternation protocols?
Use variable delay intervals between start arm placement and choice availability, typically ranging from seconds to minutes depending on working memory assessment requirements.
What reinforcement methods work best with this maze?
Food rewards, toy access, or social reinforcement can be delivered in goal arms. Consistency in reinforcement type and timing is critical for reliable behavioral measurements.
How many trials are needed for reliable data?
Protocol-dependent, but typically 10-20 trials per session with multiple sessions required for learning curve analysis and statistical power in cognitive assessments.
Can the maze be used for reversal learning studies?
Yes, the T-maze design supports reversal protocols where reinforcement contingencies are switched after initial learning criteria are met.
What behavioral measures should be recorded?
Standard measures include choice accuracy, response latency, path efficiency, and any stereotypical behaviors or navigation patterns during trials.
How do I control for side preferences?
Randomize or counterbalance reinforcement locations across trials, and monitor for persistent side biases that may require protocol adjustment or additional training.
