Behavioral Mazes

Circular Hole Board

Name: Circular Hole Board
Brand: MazeEngineers
SKU: CS-958389
Availability: InStock

SKU CS-958389

$4,490.00

Unit: Each

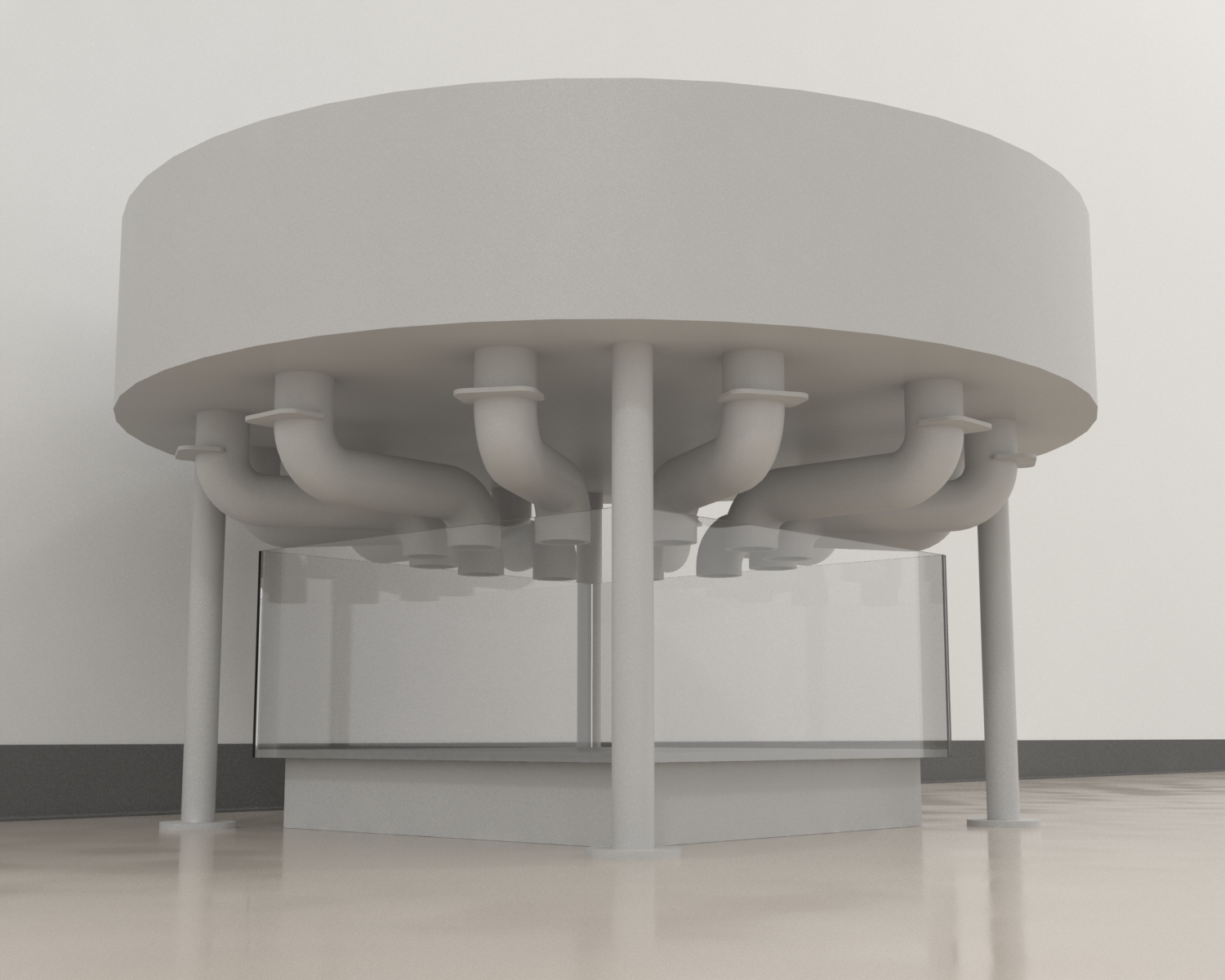

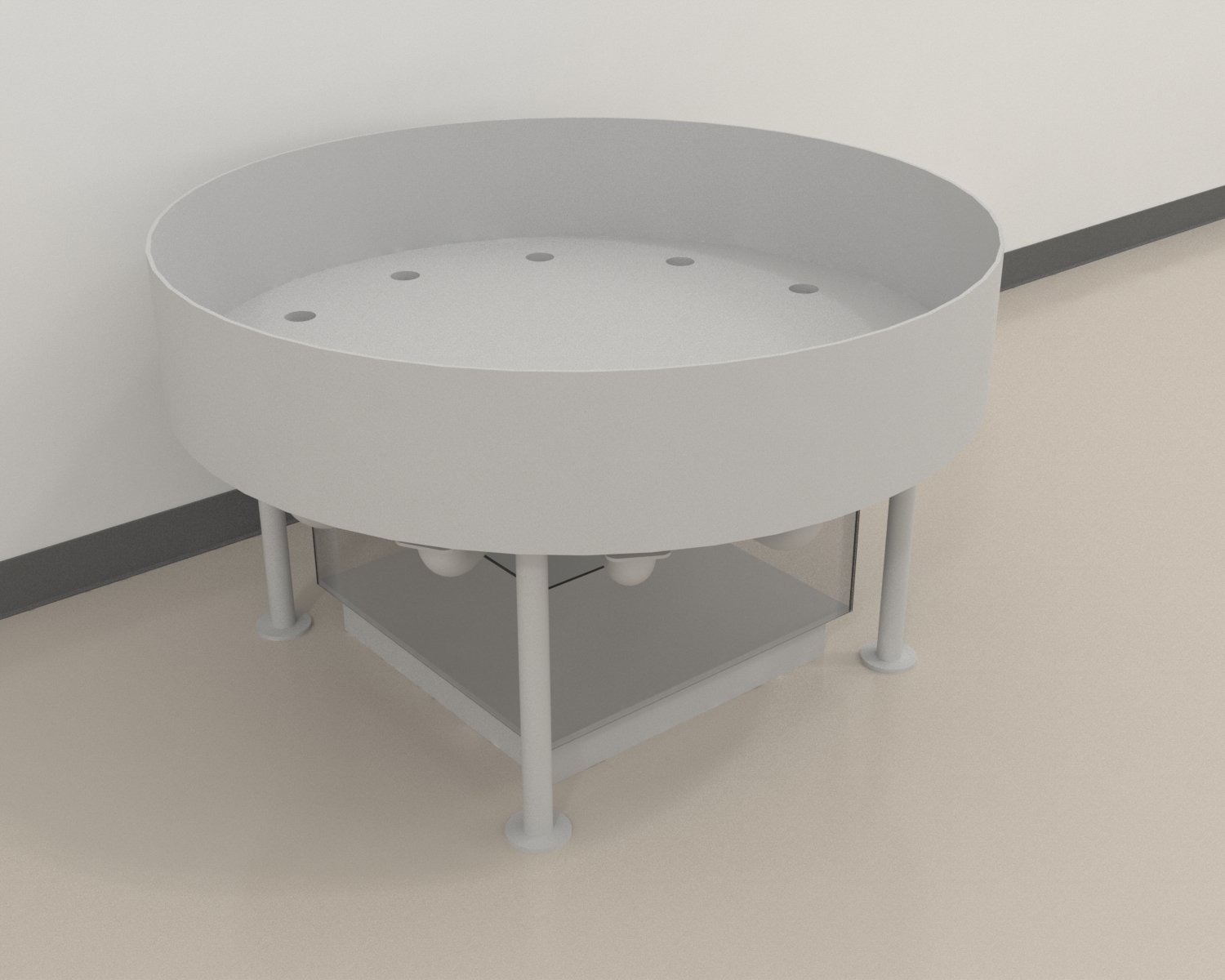

The Circular Hole Board consists of a removable white round plexiglass plate elevated 50 cm above a table.

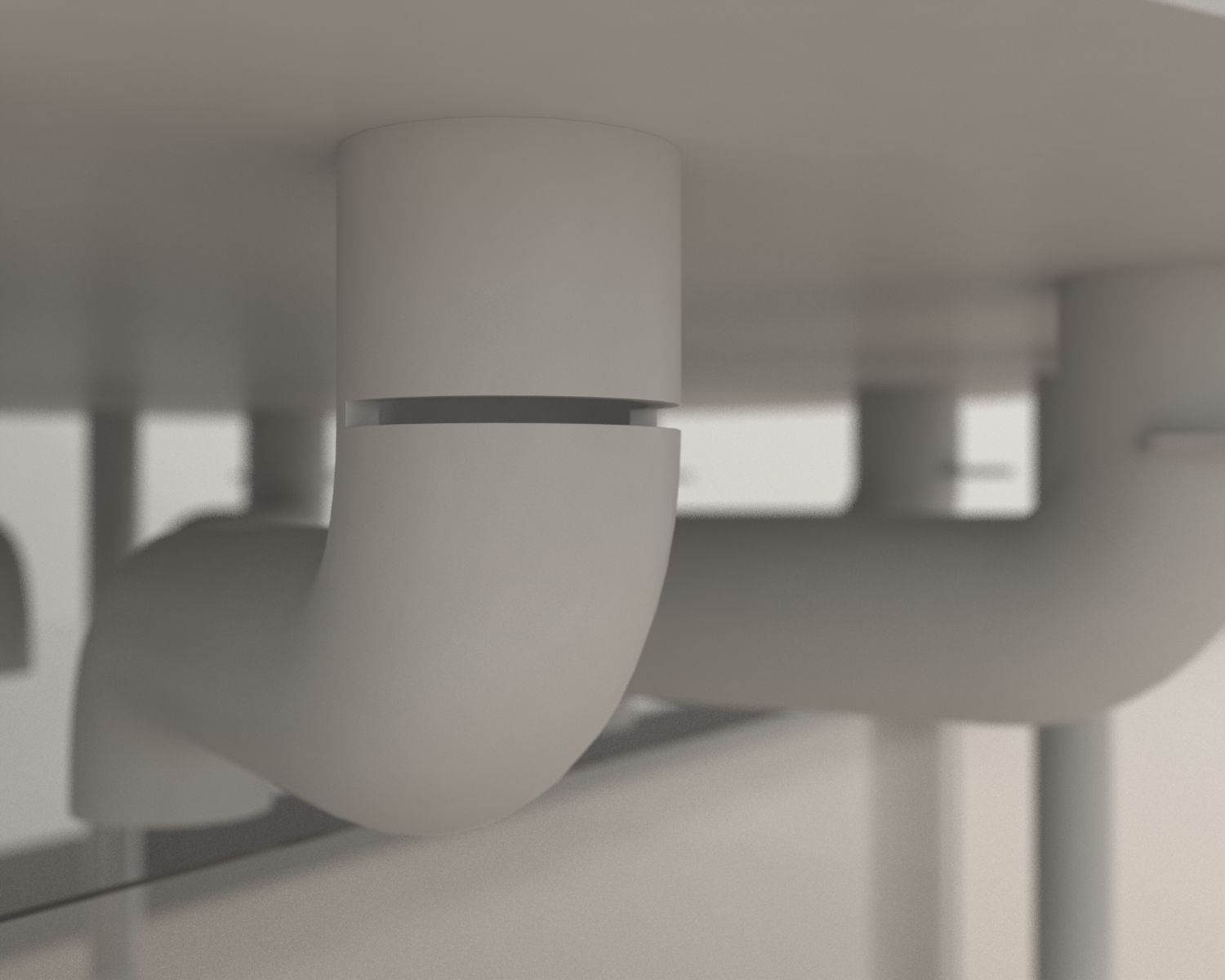

The plate includes 12 holes that measure 5 cm in diameter and are placed at equal distances from each other. Each open hole serves as the exit that leads to the animal’s home cage via an S-shaped tunnel. The Circular Hole Board is used to study spatial learning, memory, and spatial navigational strategies in rodents. It is an adaptation of the Hole Board apparatus used to assess rodents’ exploratory behaviors. The Circular Hole Board tests the ability of rodents to remember the correct open hole across trials. Maze Engineers offer the Circular Hole Board.

CE MarkedBAA available

Scientist guidance

Louise Corscadden, PhD

Director of Science · ConductScience

Ask Louise about Circular Hole Board fit, setup, configuration, or quote prep.

Already working with us? Sign in to connect this with My Scientist.

Key Specifications

Full details →

Model fit: Mouse
SKU family: CS-958389
Sizing: Mouse: Diameter 120 cm · Elevation 50 cm
Ordering: Online checkout and quote request available
Category: Behavioral Mazes
Build notes: Confirm accessories, station layout, and support needs before purchase

Category: Behavioral Mazes

Need Help? Visit our Support CenterKnowledge base, order lookup, and ticket support

Research identifier

This ID comes from NCBI Taxonomy. Use it in data records and methods sections.

Species: Mouse NCBITaxon:10090

Download this ID as a JSON-LD file

Sizes by model

Measurement	Mouse
Diameter	120 cm
Elevation	50 cm

12 holes
Diameter 5 cm

All species

120cm diameter

Elevation: 50cm

12 holes - 5cm diameter

Product Overview

Storage Included

Assembly Required

Warranty Length : 1 YEAR!
