The Horizontal Grid Test is a motor function assessment apparatus used to evaluate grip strength, motor coordination, and neuromuscular function in laboratory rodents. The apparatus consists of a vertically positioned grid box with transparent plexiglass mounting that allows researchers to observe and record animal behavior during the test procedure.
The test measures an animal's ability to maintain grip and coordinate movement while navigating a wire mesh surface. Subjects are placed on the horizontal grid and their latency to fall, grip strength, and movement patterns are recorded. This paradigm is particularly valuable for assessing motor deficits in disease models and evaluating therapeutic interventions targeting neuromuscular function.
How It Works

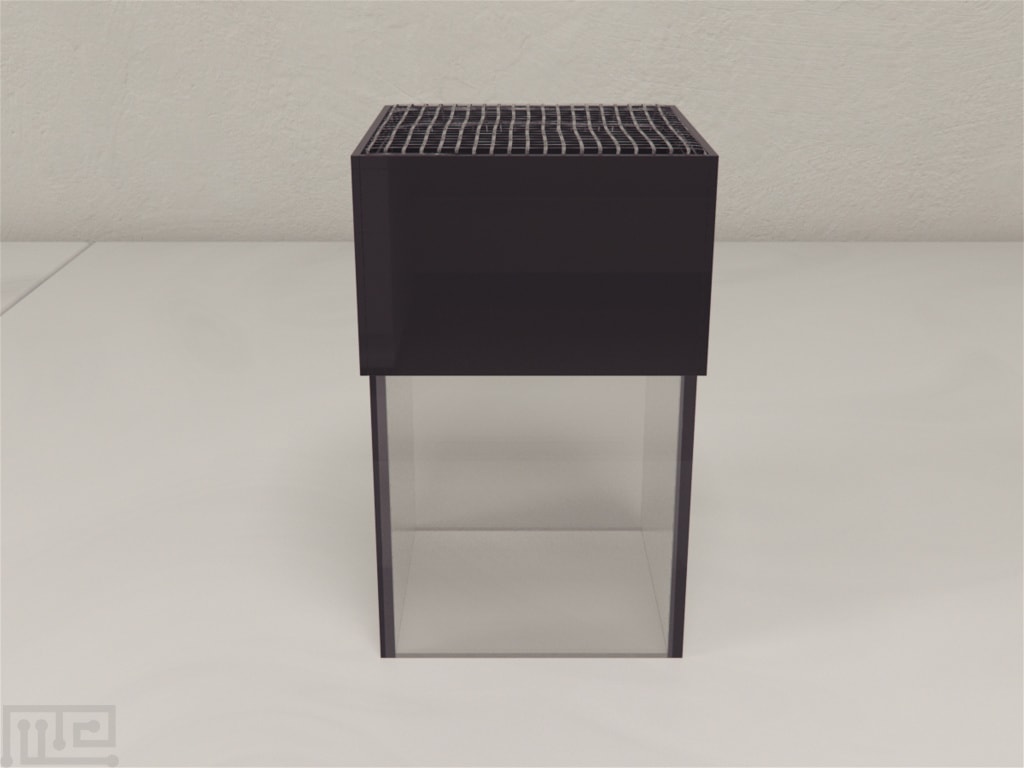

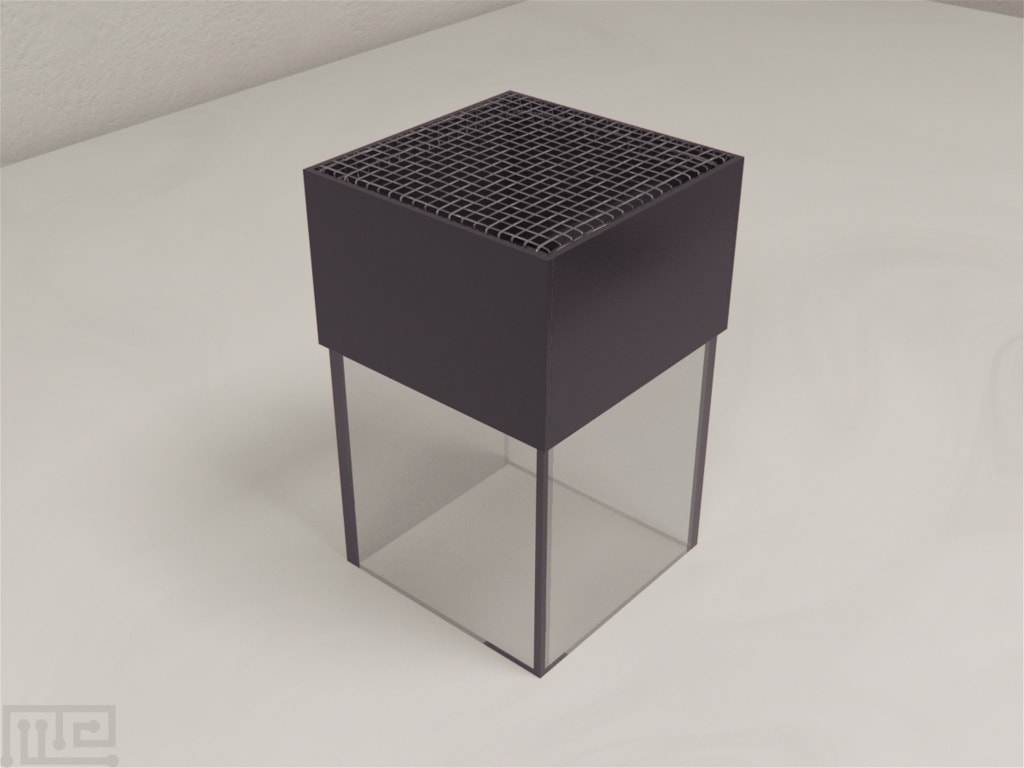

The Horizontal Grid Test operates on the principle of gravitational challenge combined with grip strength assessment. Animals are placed on the horizontally oriented wire mesh grid while the apparatus is positioned vertically, requiring subjects to maintain grip against gravitational force to prevent falling.
The transparent plexiglass construction allows for continuous behavioral observation and video recording from multiple angles. The wire mesh openings are sized appropriately for each species (0.8 cm for mice, 1.0 cm for rats) to allow secure grip without entrapment. The black acrylic upper section provides visual contrast while the transparent lower section enables clear observation of limb positioning and grip patterns.
Test parameters typically include latency to fall, number of paw slips, and total time spent on the grid. These measurements provide quantitative assessment of grip strength, motor coordination, and neuromuscular function that can be compared across experimental groups and time points.
Features & Benefits
Species-specific wire mesh openings
Optimized grip dimensions (0.8 cm for mice, 1.0 cm for rats) ensure appropriate challenge level while preventing paw entrapment.
Transparent plexiglass construction
Enables clear behavioral observation and video recording from multiple angles for comprehensive motor assessment.
Vertically positioned grid orientation
Provides gravitational challenge that effectively tests grip strength and motor coordination under controlled conditions.
Dual-section mounting design
Black acrylic upper section provides visual contrast while transparent lower section allows detailed observation of limb positioning.
Standardized dimensions
Consistent grid box sizes (12×12 cm mice, 18×18 cm rats) ensure reproducible testing conditions across studies.
Appropriate height mounting
Species-specific heights (20 cm mice, 30 cm rats) provide optimal testing duration while ensuring animal safety.
Durable plexiglass material
Withstands repeated cleaning cycles and provides long-term stability for longitudinal motor function studies.
Research identifiers
These IDs come from NCBI Taxonomy. Use them in data records and methods sections.
Horizontally positioned grid with vertical apparatus mounting
Inverted or angled grid configurations
Natural orientation reduces test anxiety and provides physiologically relevant motor challenge.
Observation Access
Transparent plexiglass construction with dual-section design
Opaque or limited visibility apparatus designs
Enables comprehensive behavioral observation and video analysis from multiple angles.
Species Accommodation
Dedicated mouse and rat configurations with species-specific dimensions
Single-size apparatus requiring adaptations
Optimized grip challenge and safety parameters for each species without modifications.
Wire Mesh Specifications
Precisely sized openings (0.8 cm mice, 1.0 cm rats)
Standard mesh sizes not optimized for grip testing
Prevents paw entrapment while ensuring appropriate grip challenge for reliable motor assessment.
Height Configuration
Species-appropriate mounting heights (20 cm mice, 30 cm rats)
Fixed height systems requiring platform adjustments
Eliminates need for additional equipment while maintaining consistent testing conditions.
This horizontal grid apparatus provides species-optimized motor testing with transparent observation access and natural grip orientation. The dual-section plexiglass design enables comprehensive behavioral analysis while maintaining appropriate challenge levels for reliable motor function assessment.
Model
Size
SKU
Listed price
Status
Shipping box
Mouse
Height 20 cm
ME-5001
$790.00
Available
43.2 × 38.0 × 27.9 cm
Rat
Height 30 cm
ME-5002
$890.00
Available
43.2 × 38.0 × 27.9 cm
Neuroscience
Assessing motor deficits in Parkinson's disease models by measuring grip strength and coordination during grid navigation tasks.
Behavioral Pharmacology
Evaluating motor side effects of pharmaceutical compounds by comparing pre- and post-treatment performance on grip strength tests.
Motor Function
Quantifying neuromuscular function changes in aging studies by measuring latency to fall and grip maintenance duration.
Neurodegeneration
Monitoring disease progression in ALS or muscular dystrophy models through longitudinal grip strength and motor coordination assessments.
Pain Research
Assessing mechanical allodynia and motor function impairment in neuropathic pain models using grip strength measurements.
Toxicology
Screening for neurotoxic effects of test compounds by evaluating motor coordination and grip strength deficits.
Practical Tips
Calibration
Verify grid positioning is perfectly vertical using a level before each testing session.
Why: Even slight angular deviations can affect gravitational challenge and introduce measurement bias.
Maintenance
Inspect wire mesh weekly for damage or deformation that could affect grip uniformity.
Why: Damaged mesh creates inconsistent grip challenges and potential safety hazards for test subjects.
Best Practices
Allow animals to acclimate to the apparatus for 30-60 seconds before starting timed trials.
Why: Reduces novelty stress and provides more reliable baseline motor function measurements.
Data Quality
Record environmental temperature and humidity as these factors can affect grip performance.
Why: Temperature changes affect paw pad moisture and grip adhesion, potentially confounding motor assessments.
Troubleshooting
If animals consistently fall immediately, check for residual cleaning solution or moisture on the grid surface.
Why: Chemical residues or dampness reduce grip friction and produce artificially poor performance scores.
Safety
Position soft padding beneath the apparatus to prevent injury from falls during testing.
Why: Protects animals from impact injury while maintaining the psychological motivation to grip the mesh.
Best Practices
Conduct testing at consistent times of day to control for circadian effects on motor performance.
Why: Motor coordination and grip strength can vary significantly across the light-dark cycle in rodents.
Data Quality
Use high-speed video recording to capture subtle paw slip events that may be missed by observers.
Why: Detailed movement analysis provides more sensitive detection of motor deficits than timing alone.
Setup Guide
Unpack and Inspect
Remove apparatus from packaging and inspect grid box, plexiglass mount, and wire mesh for damage or defects.
Position Apparatus
Mount the grid box vertically using the provided mounting system, ensuring stable positioning and proper height adjustment.
Clean Grid Surface
Clean wire mesh thoroughly with 70% ethanol and allow to dry completely before first use.
Setup Recording Equipment
Position video camera or timing equipment to capture animal behavior through the transparent plexiglass sections.
Environmental Preparation
Ensure testing room has appropriate lighting and minimal noise distractions for consistent behavioral assessment.
Protocol Validation
Conduct practice trials with control animals to establish baseline measurements and verify timing accuracy.
Data Collection Setup
Prepare data sheets or electronic recording systems for capturing latency times, grip patterns, and behavioral observations.
What’s in the Box
Grid box apparatus with wire mesh (species-specific)
Vertical mounting system with height adjustment
Plexiglass enclosure (black and transparent sections)
Assembly hardware and mounting brackets (typical)
User manual and protocol guide (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for setup and protocol development.
Compliance
ARRIVE GuidelinesSupports standardized reporting of motor function experiments in animal research through consistent apparatus design and measurement protocols.
Guide for the Care and Use of Laboratory AnimalsApparatus design considerations align with humane animal testing principles for behavioral and motor function assessment.
References
Background reading relevant to this product:
1.Sung Tae Kim et al. (2009) “Vertical grid test and modified horizontal grid test are sensitive methods for evaluating motor dysfunctions in the MPTP mouse model of Parkinson's disease” Brain Researchdoi:10.1016/j.brainres.2009.09.103
What is the optimal trial duration for grid testing protocols?
A
Trial duration typically ranges from 60-180 seconds depending on study objectives. Shorter durations assess initial grip strength while longer trials evaluate endurance and fatigue. Consult product datasheet for species-specific recommendations.
Q
How should the apparatus be cleaned between animal trials?
A
Clean wire mesh and plexiglass surfaces with 70% ethanol between subjects to prevent scent transfer and maintain hygiene. Allow complete drying before next trial to prevent slipping artifacts.
Q
What behavioral parameters should be recorded during testing?
A
Key measurements include latency to first fall, total time maintained on grid, number of paw slips, and grip pattern observations. Video recording enables post-hoc analysis of limb coordination and movement strategies.
Q
Can this apparatus be used for longitudinal studies?
A
Yes, the durable plexiglass construction supports repeated testing over weeks or months. Maintain consistent environmental conditions and testing protocols to ensure reliable longitudinal comparisons.
Q
How does this compare to inverted screen tests?
A
The horizontal grid provides gravitational challenge in a natural orientation while inverted screens test against gravity in an unnatural position. Grid testing may be less stressful and more physiologically relevant for motor assessment.
Q
What statistical considerations apply to grid test data?
A
Latency data often requires non-parametric analysis due to ceiling effects. Consider survival analysis methods for time-to-fall data and repeated measures designs for longitudinal studies.
Q
Are there specific handling protocols for different disease models?
A
Disease models with severe motor deficits may require modified protocols including shorter maximum trial times and careful monitoring for animal welfare. Establish humane endpoints before testing begins.
Have a question about this product?
Each paper below used this product. Under each title is the paper’s own sentence naming the equipment it used.
The Horizontal Grid Test measures neuromuscular grip endurance and limb placement by recording how long a rodent holds onto a wire grid and how often its paws slip through the openings. Tillerson and colleagues used grid-based measures to detect sensorimotor impairments that track neurochemical deficits in mouse models. 1
In the inverted configuration the grid is rotated above a padded surface and the apparatus records latency to fall and maximal hang time, while a horizontal-walk configuration scores foot faults as paws slip through the grid. Together these give a combined index of grip strength, endurance, and limb placement that is sensitive to muscle and motor-system deficits. 1
Body weight, motivation, grid spacing and wire diameter, fatigue across trials, and repeated-trial learning all change hold times and foot faults independent of true neuromuscular function. A defensible protocol fixes the grid geometry and inversion timing, reports body weight, standardizes inter-trial rest, and separates the first trial from later, learning-influenced trials. 1
§ 2
Methods
2.1 Procedure
Inverted-grid hang testing with foot-fault scoring, holding-impulse calculation, and standardized inter-trial rest.
Pre-test setup
1.Acclimation and habituation: Habituate animals to the room and to brief handling so the first measured trial reflects neuromuscular function rather than novelty or handling stress.
2.Apparatus calibration: Verify grid spacing, wire diameter, inversion height, and the padded landing surface, and confirm the timer and side-view camera capture the moment of fall and individual foot faults.
3.Set the protocol: Fix the number of trials, the maximum hang duration, the inter-trial rest interval, and whether the test uses the inverted-hang or horizontal-walk configuration before any data are collected.
4.Record body weight: Weigh each animal before testing, because body weight is a major non-neuromuscular driver of hang time and is needed to compute holding impulse.
Trial sequence
1.Place on the grid: Allow the animal to grip the grid with all four paws, then invert or position the grid according to the protocol and start the timer.
2.Record latency to fall: Stop the timer when the animal releases and drops onto the padded surface, capping at the pre-defined maximum hang duration.2
3.Score foot faults: Count foot faults where a paw slips through the grid openings, scored from side-view video in the horizontal-walk configuration.4
4.Compute holding impulse: Multiply hang time by body weight to express a holding impulse that accounts for the load the animal supported.
5.Rest and repeat: Allow the planned inter-trial rest to limit fatigue, then clean the grid between subjects to remove odor and urine cues before the next trial.
Critical methodological constraints
Body weight. Report body weight and express results as holding impulse where possible.4
Grid geometry. Wire diameter and grid spacing set grip difficulty. Geometry must be held constant across groups so hang times and foot faults are comparable.2
Fatigue across trials. Standardize the inter-trial rest interval.
Repeated-trial learning. Separate them when interpreting group differences.3
2.2 Measurement & Analysis
Core horizontal-grid endpoints for grip endurance, limb placement, and quality control.
Latency To Fall
Grip endurance (inverted grid)
Time the animal holds onto the inverted grid before releasing, the primary grip-endurance readout.2
Foot Faults
Limb placement
Count of paw slips through the grid openings in the horizontal-walk configuration, indexing limb placement accuracy.4
Holding Impulse
Strength-time
Hang time multiplied by body weight, a strength-time product that adjusts grip endurance for the load supported.
Maximal Hang Time
Endurance ceiling
The longest single hang across trials, capped at the protocol maximum, indexing the endurance ceiling.2
Re-grip Attempts
Quality-control flag
Number of times the animal re-grips or shifts position during a hang; high counts flag an unstable or invalid trial.
+ Additional metrics: body weight, trial number, inter-trial interval, grid spacing, configuration used, and per-trial video notes.
2.3 hold fraction (analysis)
A compact fraction of the testing window the animal spent holding onto the grid.
Formula: time holding / (time holding + time off-grid) x 100. Interpret with body weight, grid geometry, fatigue, and trial number because hold fraction depends heavily on the load supported and grip difficulty. 1
2.4 sample-size planning
Estimate the N per group needed to detect a literature-anchored motor effect at the endpoint you plan to report. Override the defaults with your own pilot numbers.
MPTP-treated vs control mouse on an inverted grid; representative magnitudes from Tillerson et al. (2002) sensorimotor impairment study.1
Formula: n = 2 · ((zα/2 + zβ) / d)2, where d = |μ₁ − μ₂| / σ. Assumes equal allocation, normality, and homoskedasticity. The attrition cushion inflates total N by 1 / (1 − dropout); confirm with your IACUC.
§ 3
Results
3.1 Sample apparatus output
Representative output from an inverted-grid hang session capped at a 180 s maximum hang duration.
Table 1 · Per-animal Horizontal Grid Test scoring output
Animal
Group
Latency to fall
Foot faults
Max hang
Hold fraction
HG-001
Control
118 s
3
172 s
85.0%
HG-002
Control
105 s
2
160 s
82.0%
HG-003
Control
112 s
4
178 s
83.6%
HG-004
Impaired
58 s
9
98 s
54.7%
HG-005
Impaired
49 s
10
88 s
49.0%
HG-006
Impaired
61 s
8
102 s
56.5%
Synthetic example for illustration only. Report body weight and express grip endurance as holding impulse before interpreting neuromuscular differences.
§ 4
Discussion
Limitations of the paradigm, methodological caveats, and current directions.
4.1 Common confounds
Variables that can shift Horizontal Grid Test results apart from the effect under study.
Body weight
Heavier animals fall sooner from an inverted grid independent of neuromuscular function. Report weight and express results as holding impulse where possible.
Motivation
A poorly motivated or stressed animal may release early without a true strength deficit, so handling and habituation must be standardized.
Grid spacing and wire diameter
Grid geometry sets grip difficulty. Wire diameter and spacing must be held constant across groups for hang times and foot faults to be comparable.
Fatigue across trials
Repeated hangs with short rest reduce hold times through fatigue rather than a stable deficit.
Repeated-trial learning
Animals can improve grip strategy across trials, so the first trial and later trials measure partly different things. Separate them when interpreting differences.
Confound checklist
Tick the confounds your protocol addresses, then export a methods-paragraph blurb you can paste into your manuscript.
Preview exported markdown
4.2 Construct validity caveats
The horizontal grid test is strongest when grid geometry, inversion timing, and inter-trial rest are fixed, body weight is reported, and the first trial is separated from later, learning-influenced trials. A single hang time is a screening signal; confirm neuromuscular deficits with holding impulse and an independent strength or coordination assay such as grip strength or the rotarod. 1
4.3 Special considerations
Inverted hang or horizontal walk?
Use the inverted-hang configuration for grip endurance and the horizontal-walk configuration for limb placement and foot faults. The two index different functions and should be reported as distinct endpoints.
Should I report body weight?
Yes. Body weight is one of the largest non-neuromuscular drivers of hang time and is required to compute holding impulse, which adjusts grip endurance for the load the animal supported.
How do I limit fatigue effects?
Standardize the inter-trial rest interval and cap the number of trials.
4.4 Current directions
Quarterly editorial review of emerging Horizontal Grid Test methodology. Q2 2026
Methods
Holding-impulse standardization
Expressing grip endurance as hang time multiplied by body weight improves comparability across cohorts that differ in mass.
Emerging
Video-based foot-fault scoring
High-frame-rate side-view video improves foot-fault counting consistency in the horizontal-walk configuration and reduces observer burden.
Methods
Standardized grid geometry
Reporting wire diameter and grid spacing is increasingly expected because grid geometry sets grip difficulty and hang times.
Emerging
Multi-assay motor batteries
The horizontal grid is paired with grip strength, rotarod, and gait analysis to separate neuromuscular strength from coordination and limb placement.
§ 5
Background references
5 selected methods and validation studies of the Horizontal Grid Test, from any lab.
Tillerson JL, Caudle WM, Reveron ME, Miller GW. Detection of behavioral impairments correlated to neurochemical deficits in mice treated with moderate doses of MPTP. Exp Neurol. 2002;178(1):80-90.doi:10.1006/exnr.2002.8021
Deacon RM. Measuring the strength of mice. J Vis Exp. 2013;(76):2610.doi:10.3791/2610
Aartsma-Rus A, van Putten M. Assessing functional performance in the mdx mouse model. J Vis Exp. 2014;(85):51303.doi:10.3791/51303
Carlson CG, Rutter J, Bledsoe C, et al. A simple protocol for assessing inter-trial and inter-examiner reliability for two noninvasive measures of limb muscle strength. J Neurosci Methods. 2010;186(2):226-230.doi:10.1016/j.jneumeth.2009.11.006
Brooks SP, Dunnett SB. Tests to assess motor phenotype in mice: a user's guide. Nat Rev Neurosci. 2009;10(7):519-529.doi:10.1038/nrn2652
