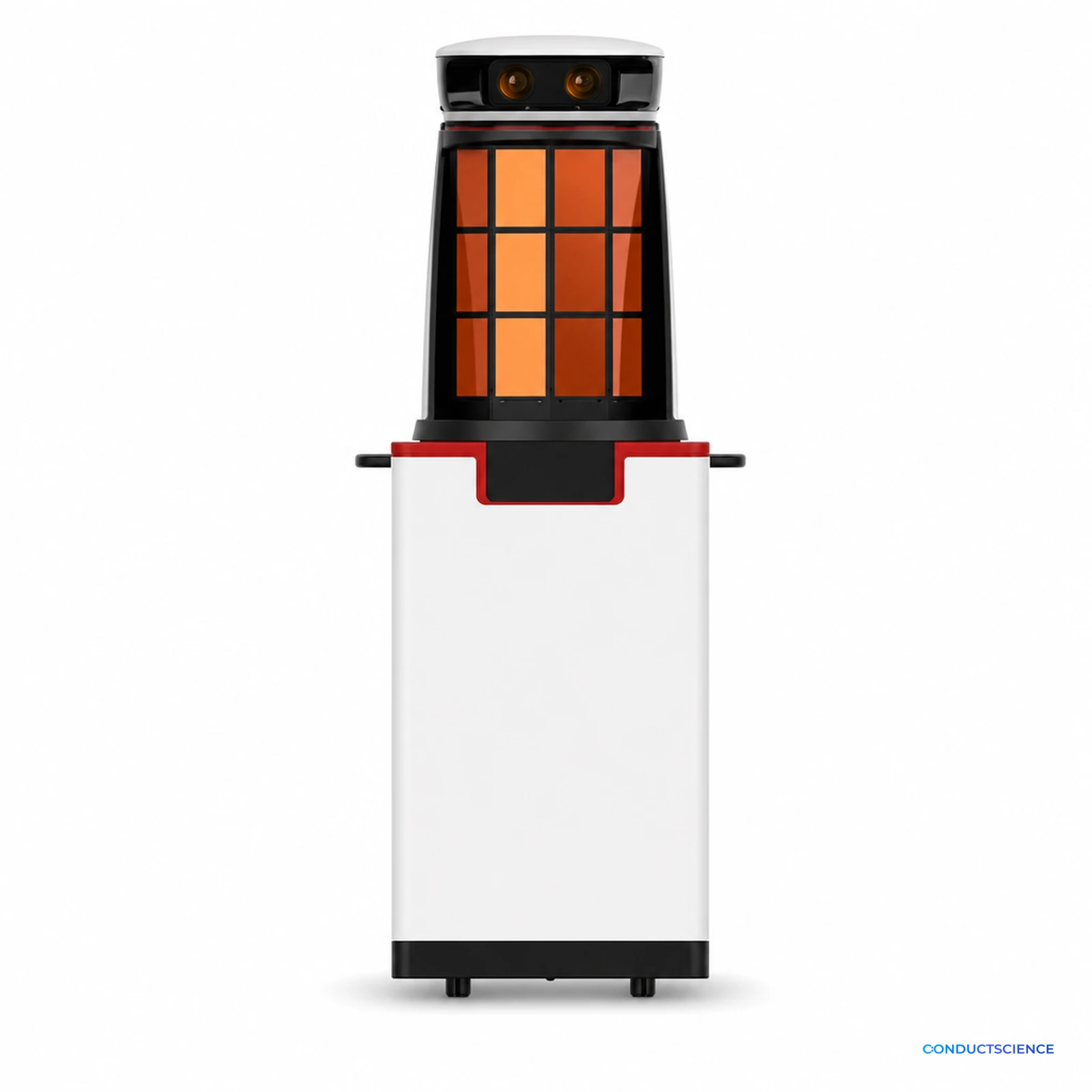

FTIR Gas Analyzer for Multi-Component Monitoring
Fourier-transform infrared gas analyzer resolving many species simultaneously from one spectrum.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about FTIR Gas Analyzer for Multi-Component Monitoring fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Measuring components
- TIC,VOC, >400kinds
- Smart detect
- All-day and fully automatic detect
- Band range
- 600-5000cm⁻¹ (expandable)
- Measure radius
- 5km
- Lower limit of measurement
- ppm
- Measure angle
- horizontal 360°and pitch 60°
A Fourier-transform infrared gas analyzer. Full-spectrum acquisition means a single measurement resolves many species at once, so a changing gas mixture is characterised rather than merely detected.
Key features
- Full-spectrum acquisition resolves multiple gas species from one measurement.
- A heated optical path supports measurement of conditioned process and emission samples.
- Continuous data output supports fixed monitoring and trend analysis.
Applications
Built for environmental and industrial hygiene monitoring teams.
- Industril parks, environmental protection and fire protection field.
Choosing the right configuration
Select the wavelength range, optical resolution, sample presentation, calibration set, and data workflow for the matrices being measured. ConductScience reviews those choices with the intended method before quoting the instrument.
Features & Benefits
Measuring components
- TIC,VOC, >400kinds
Smart detect
- All-day and fully automatic detect
Band range
- 600-5000cm⁻¹ (expandable)
Measure radius
- 5km
Lower limit of measurement
- ppm
Measure angle
- horizontal 360°and pitch 60°
Interferometer
- Self-designed Michelson interferometer
Measure method
- Continuous monitoring, remote screen video display, automatic saving of results, automatic warning
Detector
- Stirling cooled MCT detectors, no need liquid nitrogen
Display
- Visible/infrared imaging/ chemical analysis, Three-in-one overlay display
Datasheet
Specifications, models, materials, and operating envelopes
What does this instrument measure, and who is it for?
It measures many gas species at once from a single infrared spectrum. It is built for environmental and industrial hygiene monitoring teams. It is a bench instrument that returns a result without consuming the sample, so the same material can be re-run or passed on.
What measurement principle does it use?
A single interferogram is transformed into a full infrared spectrum, so every species with an infrared signature is measured simultaneously rather than one at a time.
Which specifications are confirmed?
The specification table lists ten confirmed ordering parameters for this instrument. Use them to compare the operating range, utilities, and analytical performance required by the method. They include Measuring components at TIC,VOC, >400kinds, Band range at 600-5000cm⁻¹ (expandable) and Measure radius at 5km.
What should be confirmed before ordering?
Confirm sample presentation geometry, whether an existing calibration model can be transferred to this instrument, and the ambient temperature stability of the location. These are configured and quoted per installation, so raise anything unusual about the site during quote review rather than after delivery.
What else is needed to run it?
A calibration model for your matrix. Near-infrared and infrared instruments measure absorbance; the model is what turns absorbance into composition, and it is matrix-specific.
How is it supplied?
This instrument is configured and quoted per installation rather than sold at a list price. Request a quote and we will confirm the configuration, the site requirements and the lead time before anything is ordered.
