HD Automatic 3D Digital Stereo Zoom Video Microscope Motor Drive Electronic PCB Microscope
Motorized 3D digital stereo zoom microscope with 1X-5X objectives, up to 276X total magnification, and LED ring illumination for electronic component and materials inspection.
| Automation Level | semi-automated |
| Product Type | Microscope |
| Microscope Type | Stereo / Dissecting |
| Application | Assembly & Rework, Sample Preparation |
| Skill Level | Intermediate |
| Brand | ConductScience |
The HD Automatic 3D Digital Stereo Zoom Video Microscope is a motorized optical inspection system designed for detailed examination of electronic components, materials, and industrial samples. The system features a 1X-5X objective lens with 5:1 zoom ratio, providing magnification up to 276X when combined with digital camera and display systems through standard C-mount adapter compatibility.

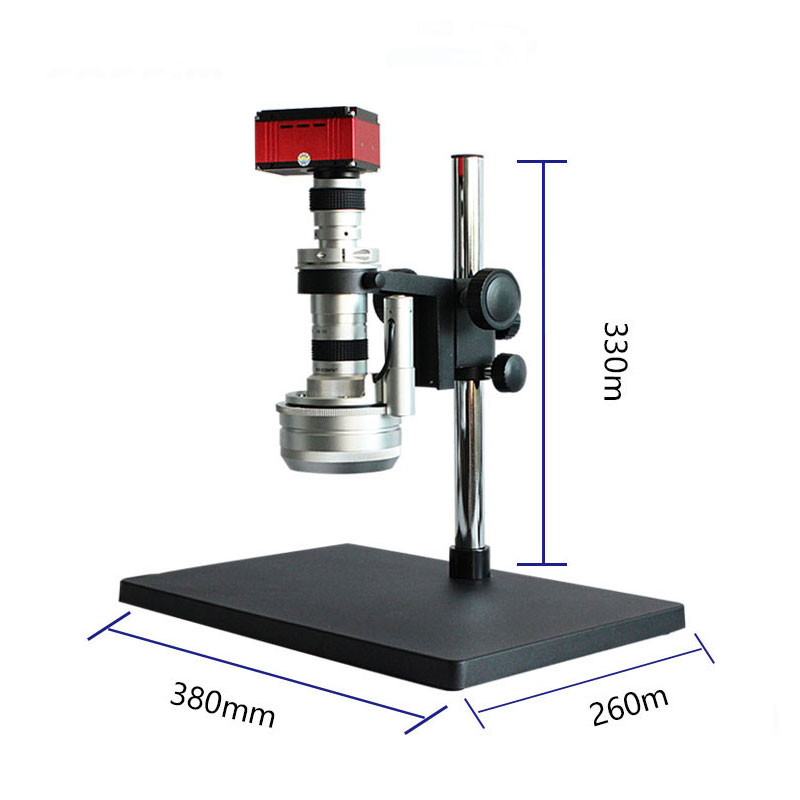

The microscope incorporates column focusing with imported motor electric controller for precise positioning, offering 60mm handwheel focus range and 45mm maximum working distance. The LED ring light illumination system operates at 12V 10W with universal 100V-240V input voltage compatibility. The working base measures 380x260x22mm with 330mm pole length, providing stable platform for precision inspection tasks.
How It Works
The stereo zoom microscope employs dual optical paths to create three-dimensional visualization of specimens. Light from the LED ring source illuminates the sample from multiple angles, while the 1X-5X zoom objective system collects reflected light through separate left and right channels. This stereoscopic imaging principle provides depth perception and true 3D visualization of sample topography.
The motorized focusing system uses column-based mechanics with imported electric controller for precise Z-axis positioning. The 30mm maximum field of view captures wide specimen areas, while the C-mount adapter enables integration with digital cameras for image capture and analysis. Digital magnification multiplies the optical magnification factor, achieving total system magnification up to 276X depending on camera and display specifications.
The working distance of 45mm maximum allows adequate clearance for sample manipulation while maintaining optimal optical performance. The LED ring illumination provides uniform, shadow-free lighting across the specimen surface, essential for consistent image quality and accurate defect detection.
Features & Benefits
Automation Level
- semi-automated
Product Type
- Microscope
Microscope Type
- Stereo / Dissecting
Application
- Assembly & Rework
- Sample Preparation
Skill Level
- Intermediate
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Environmental Monitoring
- Industrial Hygiene
- Materials Science
- Pharmaceutical QC
Weight
- 1.01 kg
Dimensions
- L: 14.96 mm
- W: 10.24 mm
- H: 0.87 mm
Comparison Guide
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Magnification Range | 1X-5X optical with up to 276X total magnification | Fixed magnification models often provide 2-3 discrete settings | Continuous zoom allows optimal magnification selection for each specimen without changing objectives |
| Focusing System | Motorized column focusing with imported electric controller | Manual focus mechanisms are common in entry-level models | Automated focusing reduces operator fatigue and provides repeatable positioning for consistent results |
| Working Distance | 45mm maximum working distance | Compact systems often offer shorter working distances | Extended clearance accommodates larger specimens and allows probe access during inspection |
| Digital Integration | Standard C-mount adapter for camera connectivity | Some models require proprietary camera systems | Universal mounting standard ensures compatibility with wide range of imaging systems and future upgrades |
| Illumination System | 12V 10W LED ring light with 100V-240V input | Halogen illumination is still common in basic models | LED technology eliminates heat generation and provides consistent color temperature for accurate imaging |
| Field of View | 30mm maximum field of view | Smaller field of view in high-magnification systems | Wide viewing area reduces need for specimen repositioning and enables comprehensive inspection coverage |
This system combines continuous zoom optics with motorized precision focusing and digital integration capabilities. The C-mount compatibility and LED illumination provide modern imaging advantages, while the 45mm working distance and 30mm field of view offer practical benefits for diverse inspection applications.
Practical Tips
Use precision stage micrometers to verify magnification accuracy across the full 1X-5X zoom range before critical measurements.
Why: Zoom systems can introduce magnification errors that vary with lens position, affecting dimensional measurements.
Clean LED ring light surfaces monthly with lint-free cloths to maintain uniform illumination intensity.
Why: Dust accumulation on LED arrays creates uneven lighting that affects image quality and defect detection sensitivity.
Allow 15-minute warm-up period for LED illumination to reach stable intensity before critical imaging sessions.
Why: LED output can vary during initial heating, potentially affecting photometric measurements and color reproduction.
If motorized focus becomes erratic, check cable connections to the imported motor controller and verify power supply stability.
Why: Loose connections or voltage fluctuations can cause positioning errors that compromise focus repeatability.
Match camera pixel size to optical magnification requirements to avoid under-sampling or excessive digital magnification artifacts.
Why: Improper camera selection can limit resolution or introduce interpolation errors that degrade measurement accuracy.
Ensure adequate ventilation around the microscope base to prevent heat buildup from extended LED operation.
Why: Even low-heat LED systems can accumulate thermal energy that affects mechanical stability and optical performance.
Use the 60mm focus range strategically by setting coarse position first, then fine-tuning with motor control for optimal precision.
Why: This approach maximizes the motorized system's precision while maintaining efficient workflow for specimen changes.
Verify working distance measurements periodically using calibrated height standards, especially after transport or setup changes.
Why: Working distance affects magnification calibration and depth of field calculations essential for accurate dimensional analysis.
Setup Guide
What’s in the Box
- HD Digital Stereo Zoom Microscope main unit
- 1X-5X zoom objective lens assembly
- Motorized column focusing system
- LED ring light illumination system
- Working base (380x260x22mm)
- Support pole (330mm)
- C-mount adapter
- Power supply (100V-240V to 12V)
- Focus handwheel controller
- User manual and documentation (typical)
- Calibration certificate (typical)
Warranty
ConductScience provides standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for setup and operation guidance.
Compliance
References
Background reading relevant to this product:
What digital cameras are compatible with the C-mount adapter?
The standard C-mount adapter accommodates most scientific and industrial digital cameras with C-mount threading. Camera selection should consider pixel size and sensor dimensions to optimize the 276X maximum magnification and 30mm field of view capabilities.
How does the motorized focusing system compare to manual focusing for precision work?
The imported motor electric controller provides consistent, repeatable focus positioning with reduced vibration compared to manual systems. The 60mm focus range allows fine positioning increments essential for depth profiling and multilayer inspection tasks.
What is the optical resolution limit at maximum magnification?
Optical resolution depends on numerical aperture of the 1X-5X objective system and illumination wavelength. Consult product datasheet for specific resolution specifications at various magnification settings.
Can the LED ring light intensity be adjusted for different specimen types?
The 12V 10W LED ring light system provides uniform illumination, though intensity control specifications are not detailed. Contact technical support for information about available dimming or intensity adjustment options.
What sample thickness can be accommodated with the 45mm working distance?
The 45mm maximum working distance allows examination of specimens up to several centimeters thick, depending on objective lens position and focusing range utilization. The 60mm handwheel focus range provides additional clearance adjustment.
How does this system compare to traditional stereo microscopes for 3D visualization?
This monocular system connects to digital devices for 3D visualization, differing from dual-eyepiece stereo microscopes. The motorized focusing and digital integration offer advantages for image documentation and analysis workflows.
What maintenance is required for the motorized focusing system?
Regular cleaning of optical surfaces and periodic lubrication of mechanical components maintain performance. The imported motor controller should be protected from dust and moisture according to manufacturer specifications.
Can multiple magnification levels be programmed for automated inspection routines?
The 1X-5X zoom range with 5:1 ratio allows continuous magnification adjustment. Specific programmable positioning capabilities depend on the motor controller features - consult technical specifications for automation options.
