Laser Particle Counter

Laser Dust Particle Counter

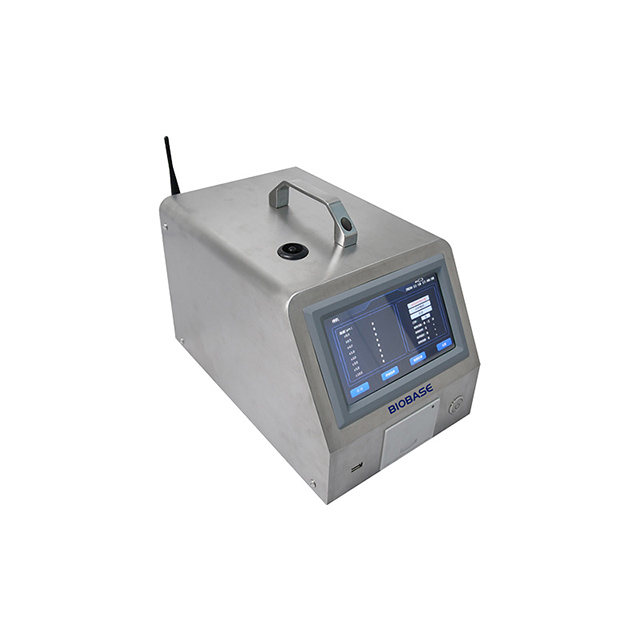

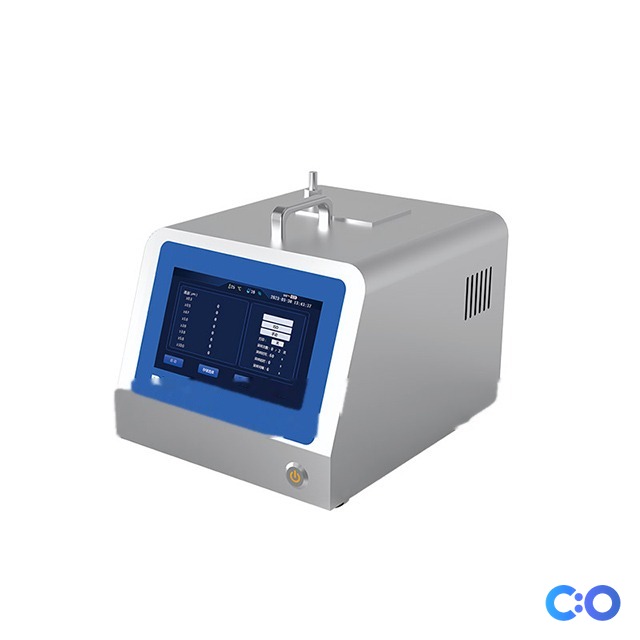

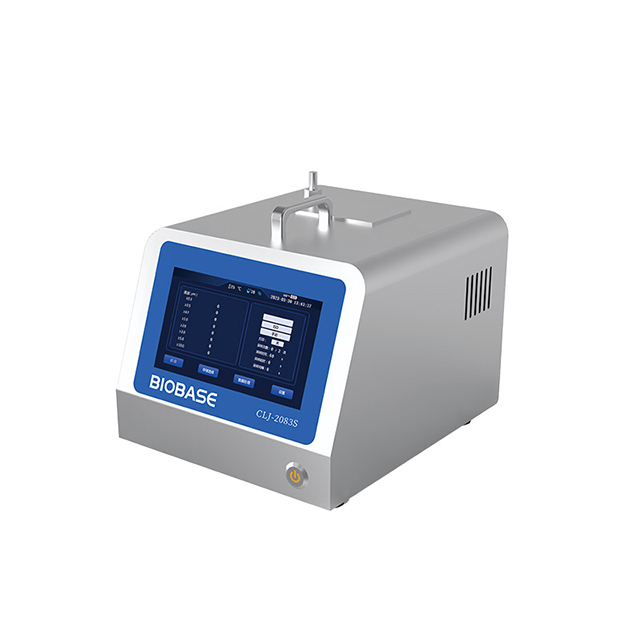

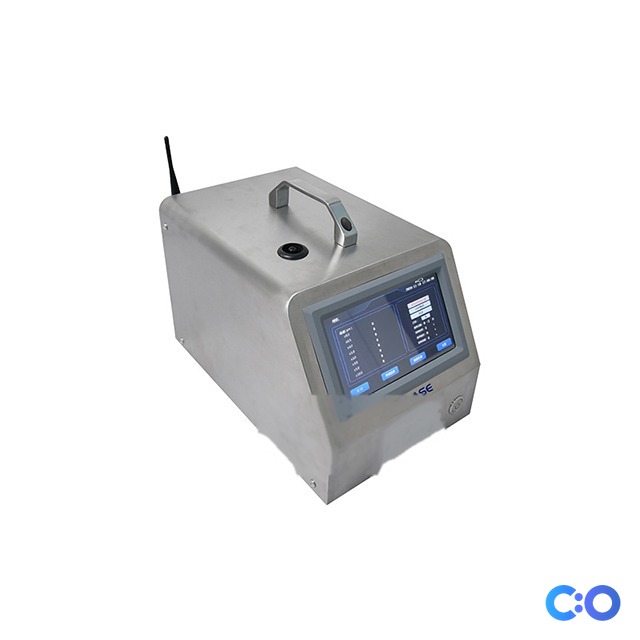

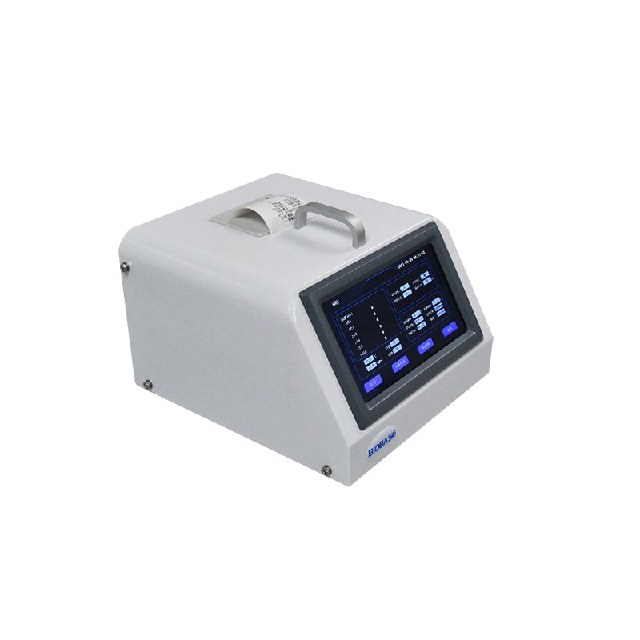

This laser particle counter series provides precise airborne particle measurement for cleanroom monitoring, environmental air quality assessment, and contamination control. Available in three configurations — standard 6-channel, premium 8-channel stainless steel with battery, and high-flow 28.3 L/min — to match your monitoring requirements from ISO Class 5 through Class 8.

Applications

• Cleanroom certification and routine monitoring (ISO 5-8)
• Pharmaceutical manufacturing environmental monitoring
• Semiconductor fabrication facility air quality
• Hospital and surgical suite air quality verification
• Food processing and packaging environment monitoring
• HEPA/ULPA filter integrity and leak testing
• Aerospace and defense clean manufacturing areas

Key Features

• Multi-Channel Detection: 6 or 8 simultaneous particle size channels from 0.3 to 10.0 µm
• 95% UCL Calculation: Built-in statistical analysis for ISO 14644-1 compliant cleanroom classification
• 7-Inch Touchscreen: Intuitive color display for real-time particle count visualization
• Semiconductor Laser Source: Long-life laser (>30,000 hours) for stable, reliable detection
• Built-In Thermal Printer: Generate hard-copy reports at the point of measurement
• 4 GB SD Card Storage: Extensive data logging with USB transfer capability

Operating Principle

Air is drawn through the optical sensing chamber at a controlled flow rate. A focused semiconductor laser beam illuminates particles as they pass through the sensing volume. Each particle produces a light scattering pulse proportional to its size, which is detected by a photosensitive receiver. The instrument classifies each pulse into the appropriate size channel and accumulates counts over the sampling period.
