48MP Super High Definition Industrial Digital Video Measuring USB 2.0 HDMI Camera
48MP industrial camera with dual HDMI/USB output for precision measurement and documentation in tablet testing and quality control applications.
Louise Corscadden, PhD
Neuroscience · ConductScience
Ask Louise about 48MP Super High Definition Industrial Digital Video Measuring USB 2.0 HDMI Camera fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.

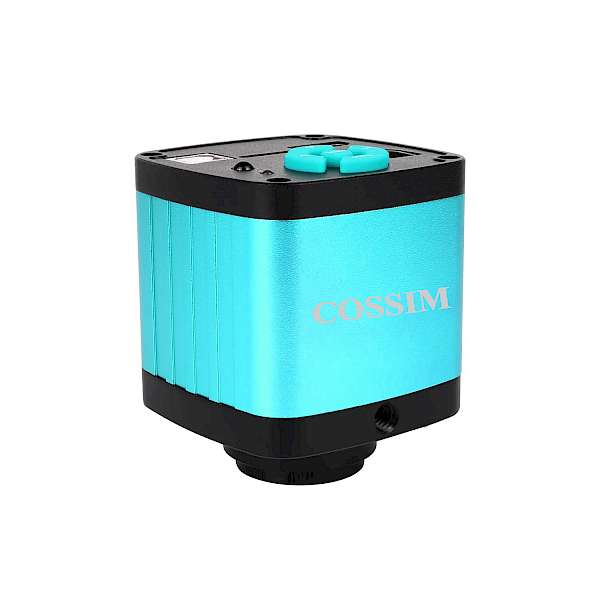

The 48MP Super High Definition Industrial Digital Video Measuring USB 2.0 HDMI Camera is a high-resolution imaging system designed for precision measurement and documentation applications in research and quality control environments. This compact camera features a 1/3 inch 48MP sensor with 1.335μm × 1.335μm pixel resolution, providing detailed imaging capabilities for tablet hardness testing and industrial measurement applications.

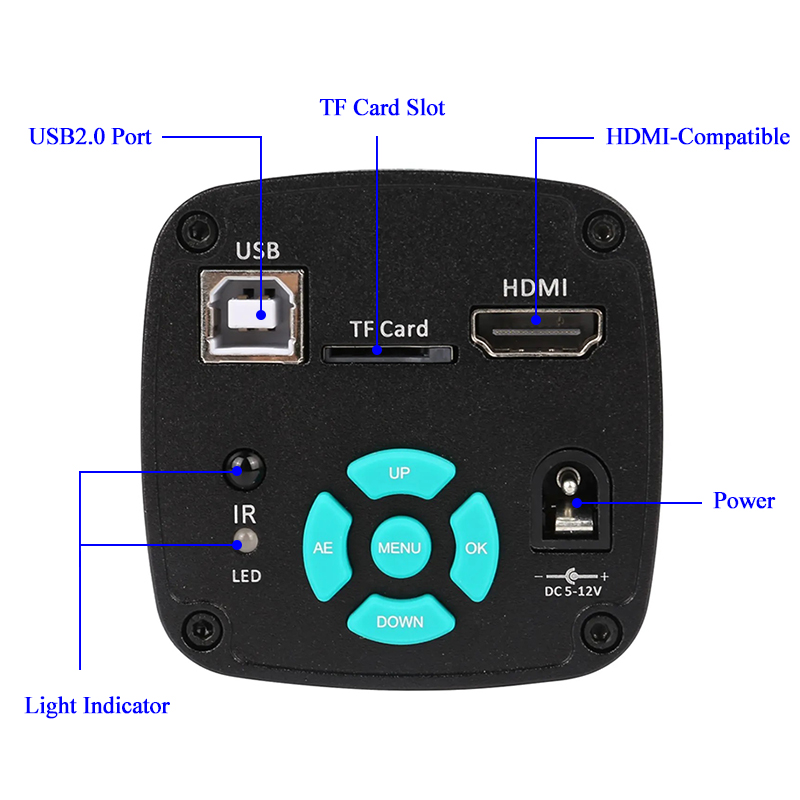

The camera offers dual output connectivity via HDMI and USB 2.0, enabling real-time display at 1920×1080 resolution with 60fps video capture capability. The system includes integrated measurement tools with support for 8 adjustable scribing lines, centerline functionality, and 64GB internal storage for data capture. The C/CS lens mount compatibility allows for flexible optical configurations to meet specific measurement requirements.
How It Works
The camera utilizes a 1/3 inch 48MP CMOS sensor with 1.335μm × 1.335μm pixel dimensions to capture high-resolution images for measurement applications. The sensor converts optical signals into digital data, which is processed through the camera's internal electronics to provide real-time imaging output via HDMI at 1920×1080 resolution with 60fps capability.
The integrated measurement system includes programmable scribing functionality supporting 8 straight lines with adjustable color, thickness, and position parameters. White balance control is available in both automatic and manual modes with RGB adjustability for optimal color accuracy under various lighting conditions. The centerline support feature enables precise alignment and measurement reference for dimensional analysis applications.
Data capture and storage utilize the 64GB internal memory system, while remote control functionality allows for hands-free operation during testing procedures. The dual output configuration enables simultaneous live viewing and digital recording for comprehensive documentation workflows.
Features & Benefits
Automation Level
- semi-automated
Product Type
- Microscope Camera
Application
- Industrial Inspection
Camera Resolution
- 48MP
Skill Level
- Entry Level
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Food Science
- Industrial Hygiene
- Materials Science
- Pharmaceutical QC
Weight
- 0.25 kg
Dimensions
- L: 4.9 mm
- W: 6.6 mm
- H: 6.6 mm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Sensor Resolution | 48MP with 1.335μm pixel size | Entry-level models often offer 5-20MP resolution | Higher resolution enables more detailed measurement documentation and improved accuracy for small feature analysis. |
| Output Connectivity | Dual HDMI and USB 2.0 output | Basic models typically offer single output option | Simultaneous live viewing and digital capture streamlines workflow efficiency in measurement applications. |
| Measurement Tools | 8 adjustable scribing lines with centerline support | Software-based measurement tools vary by model | Integrated measurement features eliminate need for separate software packages and provide immediate visual references. |
| Video Frame Rate | 1920×1080 @ 60fps | Standard models often limited to 30fps | Higher frame rate enables smoother real-time viewing for dynamic measurement applications. |
| Internal Storage | 64GB built-in storage | Many models require external storage devices | Standalone data collection capability reduces system complexity and improves reliability. |
| Remote Operation | Remote control support | Manual operation typically required | Hands-free control minimizes vibration and interference during sensitive measurements. |
This camera provides high-resolution imaging capabilities with integrated measurement tools and dual output connectivity. The combination of 48MP sensor resolution, 64GB internal storage, and remote control operation offers comprehensive functionality for industrial measurement applications.
Practical Tips
Use certified reference standards to verify scribing line accuracy and establish measurement traceability.
Why: Ensures measurement reliability and maintains quality system requirements.
Clean lens surfaces regularly with appropriate optical cleaning materials to maintain image quality.
Why: Dust and contamination can affect measurement accuracy and image clarity.
Configure manual white balance settings for consistent lighting conditions to ensure repeatable color accuracy.
Why: Automatic white balance may vary between measurements affecting comparative analysis.
Verify adequate lighting and focus before capturing measurement images to ensure optimal data quality.
Why: Poor image quality can compromise measurement accuracy and documentation value.
Check power supply voltage if camera performance becomes unstable during operation.
Why: Voltage fluctuations within the 5V-12V range can affect camera stability and image quality.
Allow camera to reach thermal equilibrium in the operating environment before making critical measurements.
Why: Temperature changes can affect sensor performance and dimensional stability.
Use the remote control feature during sensitive measurements to minimize vibration and movement artifacts.
Why: Manual camera operation can introduce measurement errors through physical disturbance.
Regularly backup data from internal storage to prevent loss of measurement records.
Why: Internal storage serves as temporary holding and should not be the primary data archive.
Setup Guide

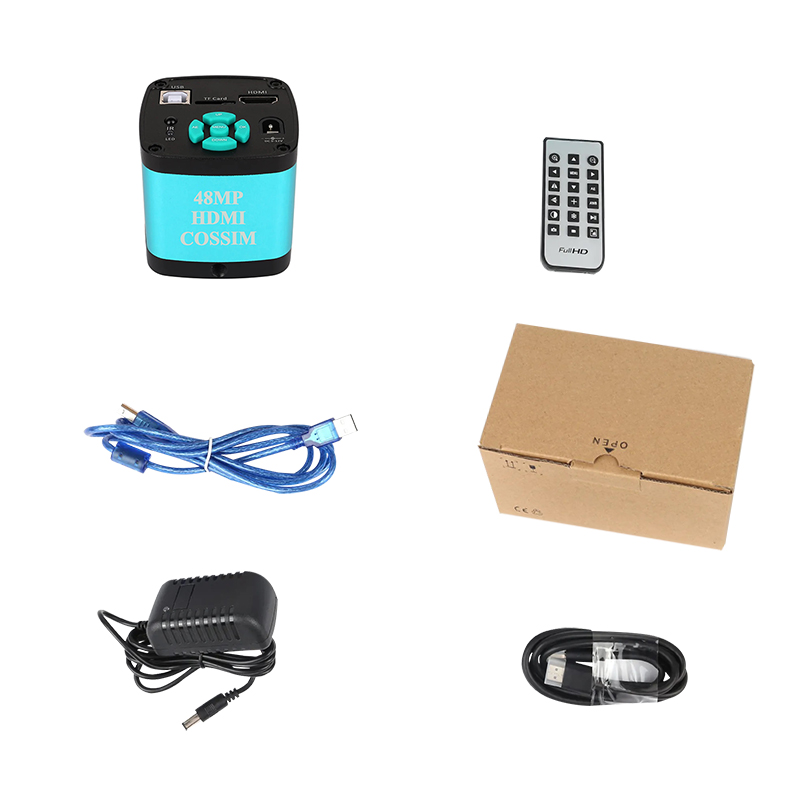

What’s in the Box
- 48MP industrial camera unit
- Power adapter (5V-12V DC)
- HDMI cable (typical)
- USB 2.0 cable
- Remote control unit
- User manual and setup guide
- Lens mount adapter (typical)
Warranty
ConductScience provides a standard 1-year manufacturer warranty covering defects in materials and workmanship. Technical support includes setup assistance and troubleshooting guidance for optimal system performance.
Compliance
References
Background reading relevant to this product:
What lens magnifications are compatible with the C/CS mount system?
The C/CS mount system accepts standard industrial lenses with various magnifications. Consult lens manufacturer specifications for working distance and field of view calculations based on your measurement requirements.
Can the scribing lines be calibrated for dimensional measurements?
The 8 scribing lines support adjustable positioning, color, and thickness parameters. Calibration procedures should use certified reference standards appropriate for your measurement range and accuracy requirements.
What file formats are supported for image and video capture?
Consult product datasheet for specific file format specifications. The 64GB internal storage provides local data retention capability.
How does the automatic white balance perform under laboratory lighting conditions?
The system offers both automatic and manual white balance modes with RGB adjustability. Manual mode provides precise color control for consistent lighting conditions typical in laboratory environments.
What is the minimum working distance for close-up measurements?
Working distance depends on the selected lens configuration. C/CS mount compatibility allows for macro lenses and extension tubes to achieve close focusing for detailed measurements.
Can the camera operate in temperature-controlled environments?
Consult product datasheet for operating temperature specifications. The compact 0.25kg design facilitates installation in various environmental conditions.
How is measurement data exported from the internal storage?
Data transfer utilizes the USB 2.0 interface for connection to computer systems. Specific data export protocols and software compatibility should be verified with product documentation.
What power supply options are available for laboratory installations?
The camera accepts DC input from 5V to 12V, providing flexibility for various power supply configurations in laboratory settings.
