3840*2160 SONY 4K Digital Microscope Camera with HDMI+USB+LAN+WIFI Outputs
Ultra-high definition 4K microscope camera with Sony sensors and comprehensive connectivity options including HDMI, USB, LAN, and WiFi for advanced imaging applications.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about 3840*2160 SONY 4K Digital Microscope Camera with HDMI+USB+LAN+WIFI Outputs fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Automation Level
- Semi-automated
- Product Type
- Microscope
- Microscope Type
- Digital
- Application
- General Laboratory
- Skill Level
- Intermediate
- SKU family
- MCX-0077
The 3840*2160 SONY 4K Digital Microscope Camera with HDMI+USB+LAN+WIFI Outputs is a high-resolution imaging system designed for advanced microscopy applications requiring ultra-high definition documentation and analysis. This camera integrates Sony IMX334 or IMX485 sensors with comprehensive connectivity options including HDMI 1.4, USB video transmission, Ethernet networking, and wireless capabilities.
The system features embedded XCAMView software accessible via USB mouse control, enabling direct operation without requiring a dedicated PC workstation. Multiple output interfaces support simultaneous video streaming, local storage via SD card, and network-based image transfer, making it suitable for collaborative research environments and remote microscopy applications.
How It Works
The camera utilizes high-sensitivity Sony CMOS sensors (IMX334 or IMX485) to capture microscopic images at 4K resolution (3840×2160 pixels). The sensor converts optical signals from the microscope into digital data, with the larger IMX485 sensor (1/1.2" format) providing enhanced light collection compared to the IMX334 (1/1.8" format). The embedded image processing system handles real-time video compression and format conversion.

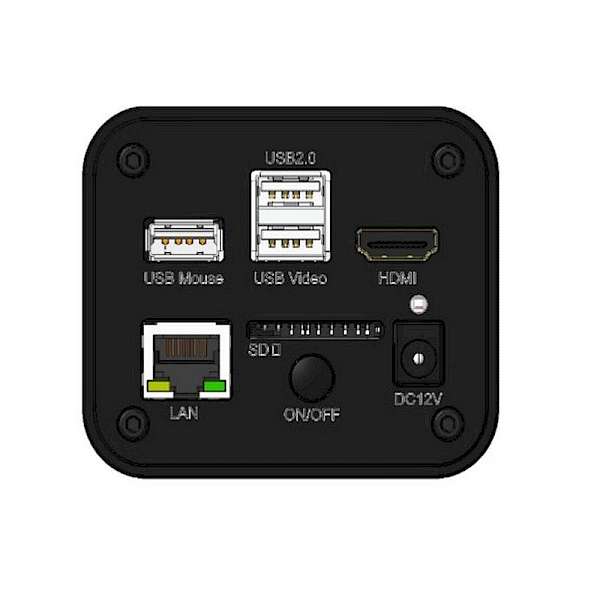

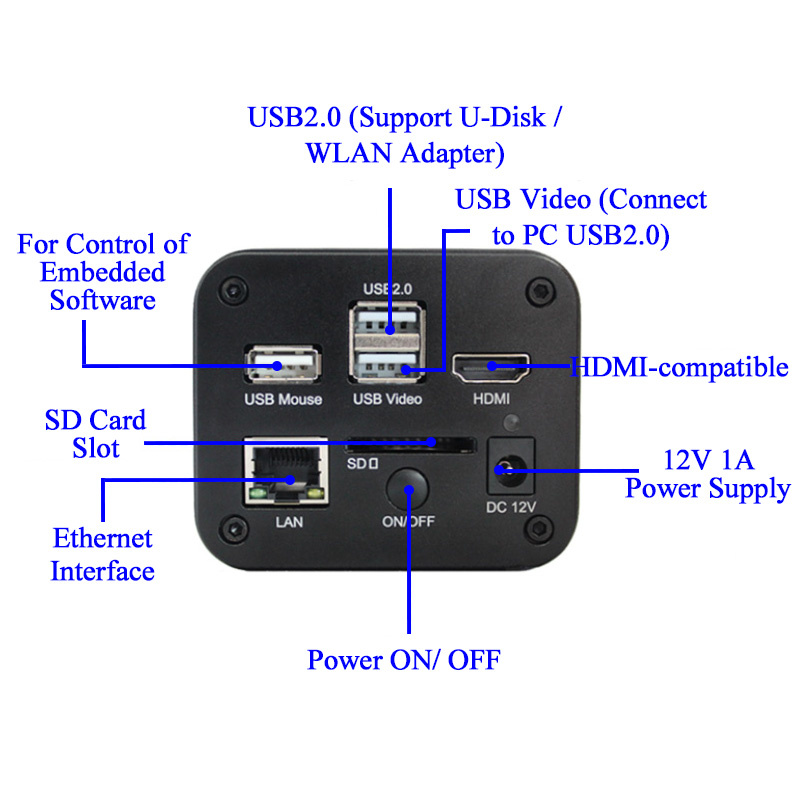

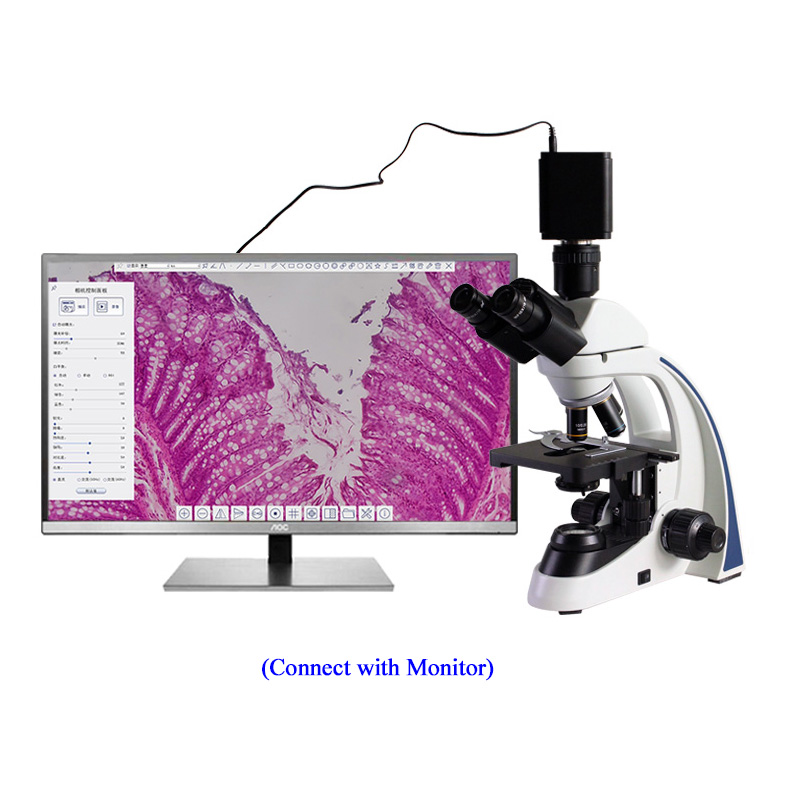

Multiple output interfaces operate simultaneously, allowing HDMI video output compliant with HDMI 1.4 standards for direct monitor connection, USB video transmission for PC integration, and Ethernet connectivity for network-based image transfer. The integrated XCAMView software provides camera control, image capture, and basic analysis functions accessible through USB mouse input.
Wireless connectivity through the 5G WLAN module enables real-time video streaming without physical cable connections, while local storage options include SD card recording and USB flash drive compatibility for offline data archival and transport.
Features & Benefits
Research record
Use these values in methods sections and data records.
- Device type
- Digital camera
OBI:0001048
This ID comes from the Ontology for Biomedical Investigations (OBI).
Download the source data for this record as a JSON-LD file
Methods section wording
digital camera (ConductScience, Skokie, IL, USA; cat. no. MCX-0077)
Automation Level
- semi-automated
Product Type
- Microscope
Microscope Type
- Digital
Application
- General Laboratory
Skill Level
- Intermediate
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Cell Biology
- Developmental Biology
- Environmental Monitoring
- Histopathology
- Materials Science
- Microbiology
- Neuroscience
- Pharmaceutical QC
Shipping weight
- 1.9 lb
Shipping box
- L: 4.9 cm
- W: 6.6 cm
- H: 6.6 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Image Resolution | 4K Ultra-HD (3840×2160 pixels) | Entry-level models typically offer 1080P or lower resolution | Higher resolution enables more detailed documentation of microscopic structures and supports digital zoom without significant quality degradation. |
| Sensor Options | Choice of Sony IMX334 (1/1.8") or IMX485 (1/1.2") sensors | Most models offer single sensor configuration | Sensor selection allows optimization for specific applications, with larger sensors providing enhanced low-light performance. |
| Connectivity Interfaces | HDMI, USB, LAN, and WiFi outputs with simultaneous operation | Basic models typically provide USB-only connection | Multiple simultaneous outputs enable collaborative workflows and flexible integration with existing laboratory infrastructure. |
| Standalone Operation | Embedded XCAMView software with USB mouse control | Most cameras require dedicated PC software for operation | Independent operation capability reduces equipment requirements and simplifies microscopy workflows. |
| Storage Capabilities | SD card (SDIO 3.0) and USB flash drive compatibility | Limited to PC-based storage solutions | Local storage options provide data security and enable portable data transfer without network dependencies. |
| Wireless Streaming | 5G WLAN module for real-time video transmission | Wired connections only in most systems | Wireless capability supports remote microscopy applications and eliminates cable management constraints. |
This camera system distinguishes itself through 4K imaging resolution, comprehensive connectivity options, and standalone operation capabilities. The combination of Sony sensor technology, embedded software, and multiple simultaneous output interfaces provides enhanced flexibility for modern microscopy workflows compared to traditional USB-only camera systems.
Practical Tips
Perform white balance calibration using a blank microscope slide under consistent lighting conditions before each imaging session.
Why: Proper white balance ensures accurate color reproduction and consistent image quality across different specimens and lighting conditions.
Use the largest sensor format (IMX485) available for low-light applications such as fluorescence microscopy.
Why: The larger sensor format provides improved light sensitivity and signal-to-noise ratio critical for detecting weak fluorescent signals.
Monitor network bandwidth when using wireless streaming for critical documentation to prevent frame loss or compression artifacts.
Why: Wireless transmission quality directly affects image fidelity and can compromise scientific documentation if bandwidth is insufficient.
Clean the camera sensor and optical interfaces monthly using appropriate lens cleaning materials and techniques.
Why: Dust and contamination on optical surfaces degrade image quality and can introduce artifacts that interfere with microscopic analysis.
If HDMI output fails to display, verify monitor compatibility and try manual format switching between 4K and 1080P modes.
Why: Some monitors may not support automatic format detection, requiring manual resolution selection for proper display output.
Ensure proper grounding of all electrical connections, especially when using multiple interface connections simultaneously.
Why: Multiple electrical connections increase the risk of ground loops and electrical interference that can damage sensitive imaging equipment.
Establish consistent file naming conventions when using local storage options to maintain organized data management.
Why: Systematic file organization prevents data loss and facilitates efficient retrieval during analysis and documentation workflows.
Regularly update embedded software and verify SD card integrity to prevent data corruption during extended recording sessions.
Why: Software updates address performance issues while SD card maintenance ensures reliable data storage during critical imaging experiments.
Setup Guide
What’s in the Box
- 4K Digital Microscope Camera (main unit)
- 12V/1A DC Power Adapter
- USB Cable for Video Transmission (typical)
- HDMI Cable (typical)
- USB Mouse for Software Control (typical)
- User Manual and Software Documentation
- C-mount Adapter (typical)
- SD Card (typical)
Warranty
ConductScience provides standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for installation and operation procedures.
Compliance
References
Background reading relevant to this product:
What is the difference between the IMX334 and IMX485 sensor options?
The IMX334 uses a 1/1.8" format (7.68×4.32mm) sensor while the IMX485 features a larger 1/1.2" format (11.14×6.26mm) sensor. The larger IMX485 provides enhanced light sensitivity and improved signal-to-noise ratio for low-light microscopy applications.
Can the camera operate independently without a connected computer?
Yes, the camera features embedded XCAMView software accessible via USB mouse control, enabling standalone operation for image capture, recording, and basic analysis without requiring a dedicated PC workstation.
What video formats and frame rates does the camera support?
The camera outputs 4K resolution at 3840×2160 pixels with HDMI 1.4 compliance. Specific frame rates and compression formats should be consulted in the product datasheet for detailed recording specifications.
How does the wireless streaming capability work in practice?
The 5G WLAN module enables real-time video transmission over wireless networks, allowing remote viewing and collaborative microscopy sessions. Network bandwidth and latency will affect video quality and responsiveness.
What storage capacity and recording duration can be expected?
Recording duration depends on SD card capacity and video compression settings. Consult product datasheet for specific storage requirements per hour of 4K video recording.
Is the camera compatible with all microscope brands and models?
The camera uses standard C-mount connection and should be compatible with most modern microscopes featuring C-mount or trinocular outputs. Verify mechanical and optical compatibility with specific microscope models before purchase.
Can multiple output interfaces be used simultaneously?
Yes, HDMI, USB, and network outputs can operate concurrently, enabling simultaneous live viewing, PC streaming, and network transmission for collaborative research applications.
What are the power requirements and consumption specifications?
The camera operates on 12V DC power with 1A current consumption (12W total power). The included power adapter provides appropriate voltage regulation for stable operation.
