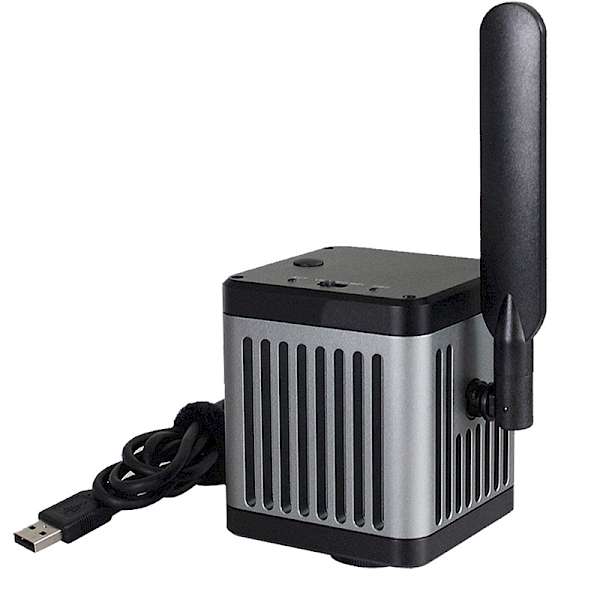

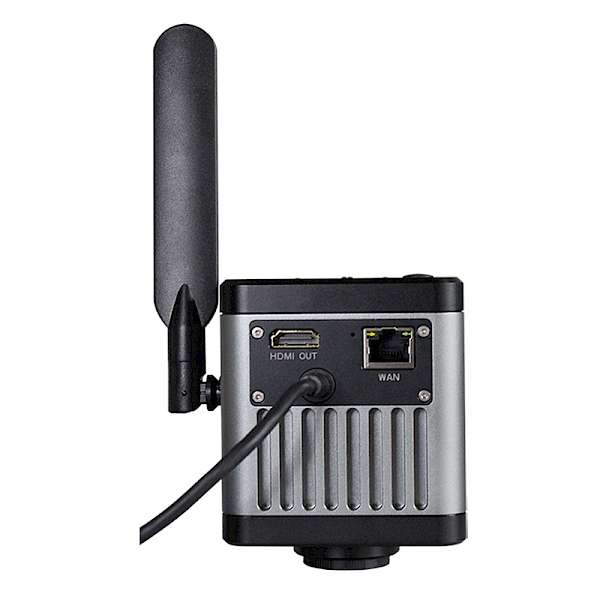

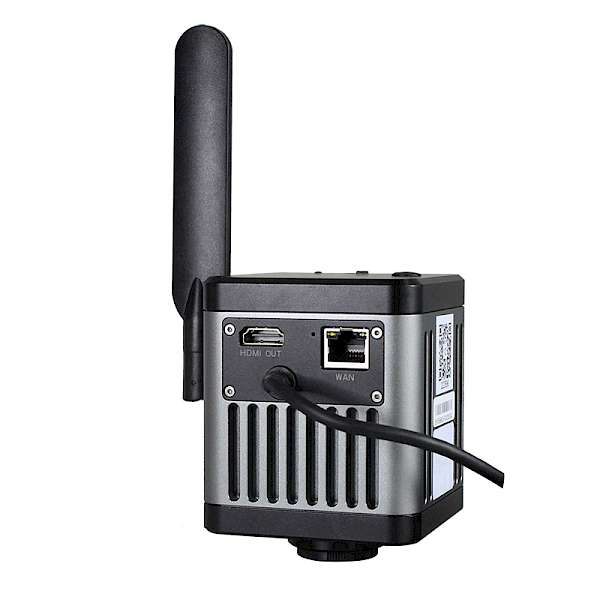

Ultra-High 12MP 5G WIFI+4K HDMI+USB+LAN Digital Microscope Camera with Measuring Function Software
12MP CMOS digital microscope camera with measuring software, featuring 4000×3000 resolution and real-time preview for microscopic imaging applications.
| Automation Level | semi-automated |
| Product Type | Microscope Camera |
| Application | General Laboratory |
| Camera Resolution | 12MP |
| Connection Interface | Ethernet, HDMI, USB, WiFi |
| Skill Level | Intermediate |
The Ultra-High 12MP Digital Microscope Camera incorporates a SONY IMX412 CMOS sensor to capture high-resolution microscopic images at 4000×3000 pixels. The system provides real-time preview capabilities and supports both automatic and manual exposure control for optimal image acquisition across varied microscopic specimens.
This digital imaging system features USB connectivity for direct computer interface and includes dedicated PC software for image capture, measurement, and analysis. The camera supports exposure times from 10 microseconds to 333 milliseconds with ISO sensitivity equivalent to 100-12800, enabling imaging across diverse lighting conditions and specimen types.
How It Works
The camera utilizes a SONY IMX412 CMOS sensor with 1.55μm × 1.55μm pixel pitch to convert optical signals into digital data. Light from the microscope objective passes through the camera's optical interface and strikes the 1/2.3" sensor surface, where photodiodes convert photons to electrical charges through the photoelectric effect.
The rolling shutter exposure system sequentially reads pixel rows to build the complete image frame. Real-time auto-exposure algorithms analyze image histograms to optimize exposure duration between 10μs and 333ms, while white balance adjustment maintains color accuracy across the 380-650nm spectral response range. Digital signal processing converts raw sensor data into standardized image formats for computer analysis.
Features & Benefits
Automation Level
- semi-automated
Product Type
- Microscope Camera
Application
- General Laboratory
Camera Resolution
- 12MP
Connection Interface
- Ethernet
- HDMI
- USB
- WiFi
Skill Level
- Intermediate
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Cell Biology
- Clinical Diagnostics
- Histopathology
- Materials Science
- Microbiology
Weight
- 1.9 kg
Dimensions
- L: 4.9 mm
- W: 6.6 mm
- H: 6.6 mm
Comparison Guide
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Sensor Resolution | 12MP (4000×3000 pixels) | Entry-level models typically offer 5-8MP resolution | Higher resolution enables detailed morphometric analysis and publication-quality documentation. |
| Sensor Type | SONY IMX412 CMOS | Generic CMOS sensors with varying performance characteristics | Established sensor technology provides consistent image quality and color reproduction. |
| Exposure Control | 10μs to 333ms range with auto and manual modes | Limited exposure ranges or auto-only control | Extended range accommodates diverse specimen types from bright-field to low-light applications. |
| Preview Frame Rate | 30fps at multiple resolutions | Lower frame rates or reduced preview resolution | Smooth real-time viewing facilitates accurate specimen positioning and focus adjustment. |
| Connectivity | USB with dedicated PC software | USB-only or proprietary software solutions | Direct computer integration with measurement capabilities for quantitative analysis workflows. |
This system combines high-resolution CMOS imaging with comprehensive exposure control and measurement software integration. The 12MP sensor and extended exposure range support both routine documentation and specialized imaging applications.
Practical Tips
Perform scale calibration at each magnification level using certified calibration slides.
Why: Magnification changes require independent calibration to maintain measurement accuracy.
Clean sensor surface periodically using lens cleaning solution and lint-free wipes.
Why: Dust accumulation on sensor reduces image quality and introduces artifacts.
Use manual exposure control for consistent imaging conditions across specimen sets.
Why: Auto-exposure can vary between specimens, compromising quantitative comparisons.
If images appear overexposed, reduce exposure time or adjust microscope illumination intensity.
Why: Overexposure causes data loss in bright regions that cannot be recovered in post-processing.
Capture images in highest resolution mode for publication and detailed analysis requirements.
Why: Resolution cannot be improved after capture, but high-resolution images can be downsampled if needed.
Ensure proper grounding of all electrical connections to prevent static discharge damage to sensor.
Why: CMOS sensors are sensitive to electrostatic discharge which can cause permanent pixel damage.
Setup Guide
What’s in the Box
- Digital microscope camera unit
- USB cable
- Power adapter (DC 5V 2A)
- PC measurement software
- User manual
- Calibration certificate (typical)
Warranty
ConductScience provides a one-year manufacturer warranty covering defects in materials and workmanship, with technical support for software installation and operation.
Compliance
References
Background reading relevant to this product:
What calibration procedures are required for quantitative measurements?
Use calibration slides with known dimensions at each magnification level. The measurement software requires scale calibration for accurate dimensional analysis.
How does the rolling shutter affect imaging of moving specimens?
Rolling shutter can introduce distortion in rapidly moving specimens. Use shortest exposure times and consider specimen immobilization for critical measurements.
What file formats does the software support for image export?
Consult product datasheet for specific file format compatibility and measurement data export options.
Can the camera operate with fluorescence illumination systems?
The 380-650nm spectral response covers visible fluorophores. Verify compatibility with specific fluorescence wavelengths and filter sets.
What are the computer system requirements for the PC software?
Consult product datasheet for minimum system specifications including operating system, RAM, and USB interface requirements.
How does pixel size affect measurement accuracy?
1.55μm pixel pitch determines theoretical resolution limits. Actual measurement precision depends on magnification, calibration accuracy, and specimen contrast.
