7X~45X Monocular Continuous Zoom Stereo Microscope with Universal Flip Foldable Holder & 4K HDMI Camera
Monocular continuous zoom stereo microscope (7X~45X) with 4K HDMI camera, 20mm~1000mm working distance, and integrated LED illumination for specimen examination and digital documentation.
| Automation Level | semi-automated |
| Product Type | Microscope |
| Microscope Type | Stereo / Dissecting |
| Viewing Head | Monocular |
| Application | Assembly & Rework, Sample Preparation |
| Skill Level | Intermediate |
The MCX-0030 monocular continuous zoom stereo microscope combines traditional optical magnification with 4K digital imaging for comprehensive specimen examination and documentation. The system features a 7X~45X continuous zoom range through a 0.7X~4.5X objective with 1:6.4 zoom ratio, providing magnifications from 5X to 100X when used with the included 10.1-inch display. The integrated SONY IMX678 sensor captures 3840×2160 resolution images with 2.0μm pixel size for detailed digital documentation.

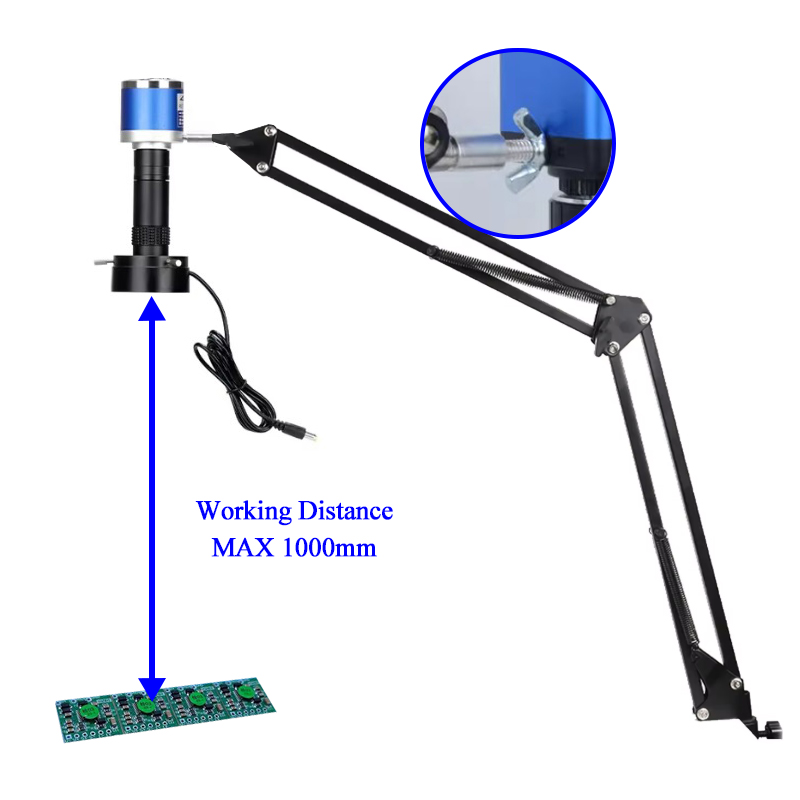

The universal flip foldable holder provides flexible positioning with a working distance range of 20mm to 1000mm, accommodating specimens from small components to larger assemblies. LED ring illumination ensures consistent lighting across the zoom range. The C-mount interface supports standard microscopy accessories, while HDMI and TF card outputs enable direct recording and live display without requiring a computer connection.
How It Works
The stereo microscope operates on the principle of providing two slightly offset optical paths to create a three-dimensional view of specimens. Light from the LED ring illuminator reflects off or passes through the specimen, with the 0.7X~4.5X objective collecting light at different angles. The continuous zoom mechanism adjusts magnification smoothly across the 1:6.4 ratio range without discrete steps, enabling seamless observation at optimal magnifications.

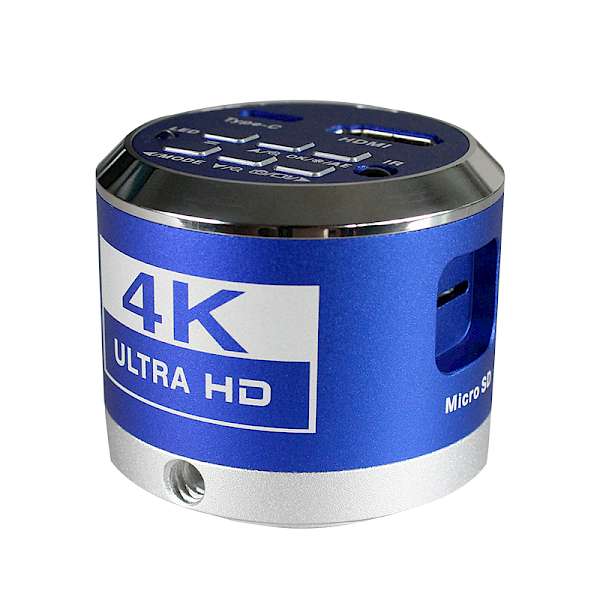

The integrated SONY IMX678 sensor converts the optical image to digital format at 3840×2160 resolution with 2.0μm pixel spacing. The C-mount interface maintains parfocal alignment between visual observation and digital capture. The pole focusing mechanism provides coarse and fine focus adjustment across the 20mm to 1000mm working distance range, accommodating specimens from microscopic details to larger assemblies while maintaining optical clarity.
Features & Benefits
Automation Level
- semi-automated
Product Type
- Microscope
Microscope Type
- Stereo / Dissecting
Viewing Head
- Monocular
Application
- Assembly & Rework
- Sample Preparation
Skill Level
- Intermediate
Brand
- ConductScience
Research Domain
- Environmental Monitoring
- Food Science
- Industrial Hygiene
- Materials Science
- Microbiology
- Pharmaceutical QC
Weight
- 1.9 kg
Dimensions
- L: 4.9 mm
- W: 6.6 mm
- H: 6.6 mm
Comparison Guide
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Zoom Ratio | 1:6.4 continuous zoom (7X~45X) | Entry-level models often provide 2X-4X zoom ratios with fewer intermediate settings | Greater magnification flexibility reduces the need for objective changes during specimen examination |
| Working Distance | 20mm~1000mm adjustable range | Standard systems typically offer 60-100mm fixed working distance | Extended range accommodates both detailed inspection and manipulation of larger specimens |
| Digital Resolution | 4K (3840×2160) with 2.0μm pixels | Basic digital systems often provide 1080p or lower resolution capture | Higher resolution enables detailed documentation and measurement of microscopic features |
| Output Options | HDMI + TF card dual output | Many systems require computer connection for image capture and storage | Direct recording capability reduces setup complexity and enables standalone operation |
| Illumination System | Integrated LED ring light | Basic models may use halogen lighting or require separate illumination setup | LED illumination provides consistent color temperature and reduces heat generation near specimens |
The MCX-0030 combines extended zoom range, 4K imaging, and flexible working distance in a unified system designed for diverse specimen examination requirements. The continuous zoom and dual output capabilities reduce operational steps compared to traditional stereo microscope configurations.
Practical Tips
Use a stage micrometer to verify magnification accuracy across the full zoom range, especially at the extreme 7X and 45X positions.
Why: Optical systems can have slight variations at zoom extremes that affect measurement accuracy.
Clean LED ring light surfaces weekly with appropriate lens cleaning solutions to maintain consistent illumination intensity.
Why: Dust accumulation on LED surfaces reduces light output and creates uneven specimen illumination.
Optimize working distance for your typical specimens rather than using maximum magnification at minimum distance.
Why: Proper working distance provides better depth of field and reduces mechanical interference during specimen manipulation.
Adjust LED ring light intensity when changing magnifications to maintain consistent specimen contrast.
Why: Higher magnifications often require increased illumination to maintain image quality and reduce digital noise.
If focus drift occurs during extended observations, allow 15-30 minutes warm-up time before critical measurements.
Why: Thermal expansion of mechanical components can cause minor focus shifts until thermal equilibrium is reached.
Record images at multiple magnifications when documenting specimens to capture both overview and detail perspectives.
Why: The continuous zoom capability enables comprehensive documentation without repositioning specimens.
Ensure adequate ventilation around LED ring light during extended operations to prevent heat buildup.
Why: While LEDs generate less heat than traditional sources, proper cooling maintains component longevity and operational stability.
Setup Guide
What’s in the Box
- MCX-0030 monocular stereo microscope head
- Universal flip foldable holder
- 4K HDMI camera with C-mount
- 0.5X adapter lens
- LED ring light with power supply
- HDMI cable (typical)
- TF card and card reader (typical)
- 10.1-inch display monitor (typical)
- Power adapters and cables (typical)
- User manual and calibration documentation (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for setup and operational questions.
Compliance
References
Background reading relevant to this product:
What is the actual working distance range and how does it affect specimen handling?
The working distance ranges from 20mm to 1000mm, allowing examination of specimens from small components requiring close positioning to larger assemblies. The extended range accommodates manipulation tools and prevents mechanical interference during specimen handling.
How does the continuous zoom mechanism compare to discrete objective systems?
The 1:6.4 zoom ratio provides seamless magnification changes from 7X to 45X without losing focus or requiring objective changes. This maintains specimen positioning and reduces examination time compared to systems requiring discrete objective switching.
What image quality can be expected from the 4K camera system?
The SONY IMX678 sensor captures 3840×2160 resolution images with 2.0μm pixel size. Image quality depends on specimen contrast, illumination conditions, and magnification used. Optimal results require proper LED ring light adjustment and focus calibration.
Is the system compatible with existing microscopy accessories?
The standard C-mount interface accepts industry-standard microscopy cameras and accessories. The 0.5X adapter lens is included, and the system supports additional C-mount devices with appropriate mechanical clearance.
What are the power requirements and setup considerations?
The system requires standard AC power for the LED illumination and camera systems. Setup requires stable mounting surface and adequate clearance for the working distance range. HDMI display connection is needed for live viewing.
How does the pole focusing mechanism perform across the working distance range?
The pole focusing provides mechanical stability and precision across the 20mm to 1000mm range. Focus accuracy is maintained through the continuous zoom range, though optimal performance requires proper initial calibration and periodic verification.
What file formats and storage options are available for image capture?
The system outputs through HDMI for live display and supports TF card storage for direct recording. Specific file formats and recording parameters should be verified in the product datasheet as they depend on the integrated recording system.
