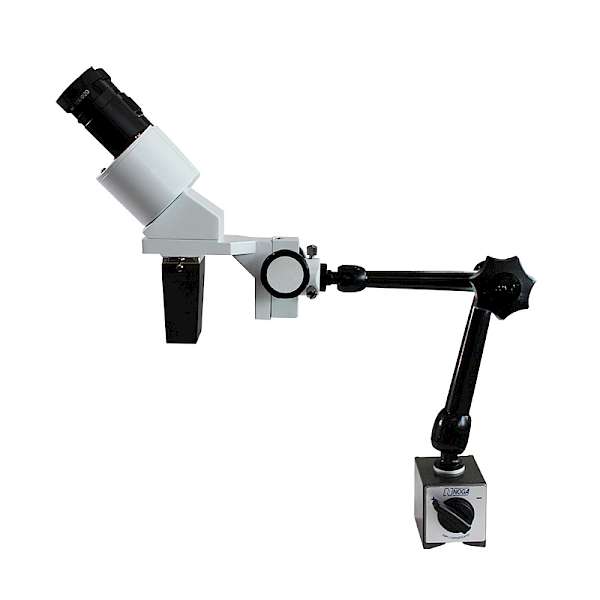

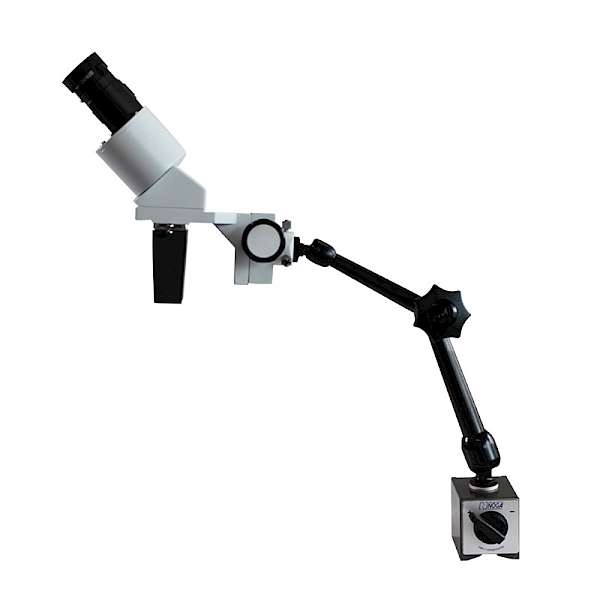

40X Binocular Industrial Stereo Microscope with Adjustable Magnetic Base & Flexible Arm
Binocular stereo microscope offering 5X-40X magnification with flexible positioning arm and 800N magnetic base for industrial inspection and laboratory sample examination.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about 40X Binocular Industrial Stereo Microscope with Adjustable Magnetic Base & Flexible Arm fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- MCX-0025
- Sizing
- 5.5 x 5.0 x 6.0 cm
- Ordering
- Online checkout and quote request available
- Category
- Microscopy
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The 40X Binocular Industrial Stereo Microscope with Adjustable Magnetic Base & Flexible Arm provides magnification capabilities from 5X to 40X through interchangeable objective lenses (0.5X and 1X standard) paired with 10X standard and 5X eyepieces. The binocular head features a 45° inclined viewing angle with interpupillary distance adjustment from 55-75mm and ±5 diopter compensation for individual eye differences.
The microscope incorporates a flexible arm system with total extension capability of 317mm (L1+L2+L3 segments) and working distance of 250mm, enabling positioning over samples of varying sizes and configurations. The magnetic base provides 800N holding force on ferrous surfaces, with compact dimensions of 50 x 60 x 55mm and total system weight of 1.9kg for stability without excessive bulk.
How It Works
Stereo microscopy employs two separate optical paths positioned at a convergence angle to create three-dimensional visualization of specimens. Each optical train captures the sample from a slightly different perspective, similar to human binocular vision. The brain processes these two images to reconstruct depth perception and spatial relationships within the sample.
The variable magnification system uses interchangeable objectives (0.5X, 1X standard) combined with eyepieces (10X standard, 5X) to achieve total magnifications from 5X to 40X. Light illumination, typically from external sources, provides contrast enhancement for surface features and topographical details. The long working distance (250mm) accommodates sample manipulation and measurement tools while maintaining focus.
The flexible arm mechanism allows three-dimensional positioning of the optical head relative to the magnetic base. Each arm segment provides controlled movement for precise sample alignment without disturbing the base position. The magnetic attachment system distributes 800N of holding force across the base contact area, providing stability on ferrous work surfaces while enabling rapid repositioning between samples.
Features & Benefits
Automation Level
- manual
Product Type
- Microscope
Microscope Type
- Stereo / Dissecting
Viewing Head
- Binocular
Application
- Assembly & Rework
- Industrial Inspection
- Sample Preparation
Skill Level
- Entry Level
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Environmental Monitoring
- Industrial Hygiene
- Materials Science
- Microbiology
- Pharmaceutical QC
Weight
- 1.9 kg
Dimensions
- L: 5.5 mm
- W: 5.0 mm
- H: 6.0 mm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Working Distance | 250mm working distance accommodating sample manipulation | Fixed-mount systems often provide 100-150mm working distance | Extended working distance enables use of measurement tools and sample preparation equipment during observation. |
| Base Mounting System | 800N magnetic base with 50 x 60 x 55mm footprint | Conventional systems require permanent table mounts or larger base plates | Magnetic attachment enables rapid setup and repositioning between work locations without mechanical fasteners. |
| Positioning Flexibility | 317mm total arm length with M8 threaded segments | Most entry-level models offer limited or no arm adjustment | Three-dimensional positioning capability accommodates irregular samples and confined workspace geometries. |
| Magnification Range | 5X-40X through interchangeable 0.5X and 1X objectives | Basic models typically offer fixed magnification or limited zoom range | Variable magnification supports both overview assessment and detailed feature examination within single setup. |
| User Accommodation | 55-75mm interpupillary adjustment with ±5 diopter compensation | Entry-level systems may lack diopter adjustment | Individual eye corrections eliminate need for prescription eyewear and support multiple user environments. |
| System Weight | 1.9kg total weight for portable applications | Bench-mount systems often exceed 5-10kg including stands | Reduced weight enables field use and multi-location deployment while maintaining optical stability. |
This microscope provides flexible sample access through extended working distance and positioning capability while maintaining portability through magnetic base mounting. The interchangeable optics system covers inspection requirements from overview to detailed analysis without requiring multiple instruments.
Practical Tips
Verify magnification accuracy using stage micrometers at each objective/eyepiece combination before critical measurements.
Why: Optical tolerances in interchangeable systems can affect actual magnification values compared to nominal specifications.
Clean magnetic base contact surfaces regularly to maintain full holding force and prevent debris accumulation.
Why: Contamination between base and work surface reduces magnetic attraction and can compromise system stability.
Position external illumination at 45-60° angles to sample surface for optimal contrast without harsh shadows.
Why: Oblique lighting enhances surface topography visualization and reduces glare from reflective specimens.
If arm joints become loose during use, check M8 thread engagement and retighten connections without over-torquing.
Why: Vibration and repeated positioning can cause threaded connections to loosen, affecting stability and focus retention.
Allow thermal equilibration after transport before critical measurements, particularly in temperature-variable environments.
Why: Optical components expand and contract with temperature changes, potentially affecting focus and magnification accuracy.
Verify magnetic base attachment security before positioning expensive or hazardous samples under the microscope.
Why: Inadequate magnetic coupling can result in system movement during observation, potentially damaging samples or optics.
Use lens cleaning tissues and appropriate solvents (isopropanol for glass surfaces) rather than cloth materials on optical elements.
Why: Improper cleaning materials can scratch lens coatings and degrade optical performance permanently.
Store eyepieces in protective containers when not in use to prevent dust accumulation on internal lens surfaces.
Why: Internal contamination requires professional cleaning and can significantly impact image quality and contrast.
Setup Guide
What’s in the Box
- Binocular microscope head with 45° viewing angle
- Flexible arm assembly with M8 connecting threads
- Magnetic base (50 x 60 x 55mm)
- 0.5X objective lens
- 1X standard objective lens
- 10X standard eyepieces (pair)
- 5X eyepieces (pair)
- User manual and setup instructions (typical)
- Protective foam packaging
Warranty
ConductScience provides standard one-year manufacturer warranty covering optical and mechanical components, with technical support for setup and operational guidance.
Compliance
References
Background reading relevant to this product:
What is the effective magnification range and how is it achieved?
Total magnification ranges from 5X to 40X through combinations of interchangeable objectives (0.5X, 1X) and eyepieces (5X, 10X). The 1X objective with 10X eyepieces provides 10X magnification, while the 0.5X objective with 5X eyepieces yields 2.5X for the lowest magnification.
How does the working distance affect sample accessibility?
The 250mm working distance allows placement of measurement tools, sample manipulation instruments, and heating/cooling stages between the objective and specimen without optical interference, supporting active sample preparation protocols.
What surfaces are compatible with the magnetic base system?
The magnetic base requires ferrous (iron-containing) surfaces for attachment and provides 800N holding force. Non-ferrous surfaces like aluminum, brass, or composite benchtops require alternative mounting solutions.
How stable is the flexible arm during observation?
The M8 threaded connections and 317mm total arm length provide adequate rigidity for observation tasks, though vibration-sensitive applications may benefit from additional bracing or alternative mounting configurations.
Can the microscope accommodate different user eye configurations?
Yes, interpupillary distance adjusts from 55-75mm for different users, and each eyepiece provides ±5 diopter compensation to correct individual vision differences without requiring prescription eyewear.
What illumination systems work best with this microscope?
External LED or fiber optic illuminators provide optimal lighting control. The long working distance accommodates oblique, coaxial, or ring lighting configurations for contrast enhancement of different sample types.
How portable is this system for field or multi-location use?
At 1.9kg total weight with compact 50 x 60 x 55mm base, the system supports portable applications. The magnetic base enables rapid setup on suitable ferrous surfaces without tools or permanent mounting hardware.
What maintenance requirements should be expected?
Routine cleaning of optical surfaces with appropriate lens cleaning materials, periodic inspection of arm joint tightness, and magnetic base contact surface cleaning comprise standard maintenance protocols.
