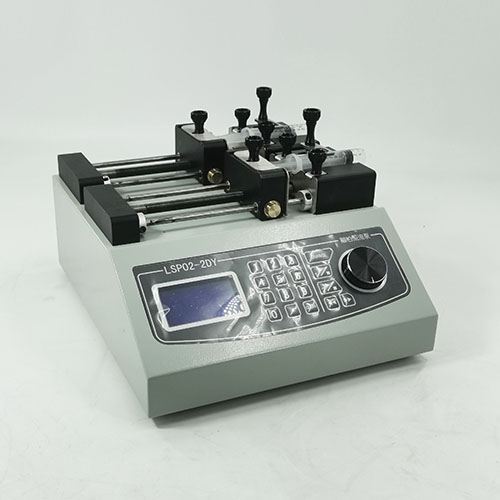

LSP02-2DY Independent Dual Channel Syringe Pump
Precision dual-channel syringe pump with independent, synchronous, and constant flow modes for laboratory fluid control applications.
Features microprocessor-controlled stepper motor drive with 280N linear thrust and intuitive color LCD interface.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about LSP02-2DY Independent Dual Channel Syringe Pump fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- 1 selectable configuration
- SKU family
- RBP-0122
- Shipping box
- 280 × 325 × 158.5 cm
- Ordering
- Online checkout and quote request available
- Category
- Syringe Pumps
Overview
The LSP02-2DY Independent Dual Channel Syringe Pump delivers precise fluid control for demanding laboratory applications. This advanced system features a robust metal construction with powder coating finish and intuitive color display interface. Designed exclusively for research applications, this pump cannot be used for clinical experiments.
Key Features
The pump incorporates a 128×64 LCD display showing parameters and operating status in real-time. Digital membrane keypad and rotary encoder switch provide precise control over pump operations. The microprocessor-controlled 16-subdivision stepper motor drives a lead screw connected via synchronous belt, generating up to 280N linear thrust for reliable fluid delivery. Three operating modes offer maximum flexibility: independent operation for separate channel control, synchronous mode for coordinated dual-channel operation, and constant flow mode for steady-state applications.
Applications
Ideal for microfluidics research, drug delivery studies, perfusion experiments, and analytical chemistry applications requiring precise dual-channel fluid control. The independent and synchronous modes support both infusion and withdrawal operations, with programmable infusion-then-withdrawal sequences for complex experimental protocols. Perfect for cell culture perfusion, chromatography sample injection, and automated reagent delivery systems.
Research identifier
This ID comes from the Chemical Methods Ontology (CHMO). Use it in data records and methods sections.
- Device type
- Syringe pump
CHMO:0002787
| Parameter | Specification |
|---|---|
| Display | 128×64 LCD showing parameters and operating status |
| Control Interface | Digital membrane keypad with rotary encoder switch |
| Drive System | Microprocessor-controlled 16-subdivision stepper motor |
| Linear Thrust | 280N |
| Operating Temperature | 5°C - 40°C (41°F - 104°F) |
| Humidity Range | 20% - 80% RH |
| Operating Modes | Independent, Synchronous, Constant Flow |
| Functions | Infusion, withdrawal, programmable infusion-then-withdrawal |
| Fuse Rating | 5 x 20 mm, 250V~, Fast, 1A |
| Construction | Dual-channel metal housing with powder coating |
What are the three operating modes available?
The LSP02-2DY offers independent mode (separate channel control), synchronous mode (coordinated dual-channel operation), and constant flow mode for steady-state applications.
Can this pump be used for clinical applications?
No, this syringe pump is designed exclusively for research and laboratory applications and cannot be used for clinical experiments.
What is the maximum linear thrust capacity?
The pump generates up to 280N linear thrust through its microprocessor-controlled 16-subdivision stepper motor and lead screw drive system.
