Graphite Digester
Graphite digester using infrared radiation and graphite block conduction heating.
Available in 10 or 20-position. Stores 200 digestion programs with up to 25 segments each. RT+5 to 450 °C; ±1 °C; 7-inch LCD.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Graphite Digester fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Heating Method
- Infrared radiation graphite conduction heating
- Temperature Control
- PID intelligent temperature control algorithm
- Heating Modes
- Curve heating and linear heating
- Programmable Groups
- 200 groups
- Segments per Group
- Up to 25 segments
- Display Size
- 7-inch
This graphite digester uses infrared radiation with graphite block conduction heating
for uniform, rapid sample pre-treatment in food, agriculture, environmental, biochemical,
and chemical industries. PID intelligent temperature control maintains ±1 °C precision
across the full RT+5 to 450 °C range. Up to 200 digestion programs with 25 segments
each can be stored and recalled, and a 7-inch LCD displays real-time temperature curves
for run monitoring.
Applications
Pre-treatment of soil, grain, feed, food, water, plants, seeds, ores, and heavy
metals prior to atomic absorption, ICP, or Kjeldahl analysis.
Technical Specifications
| Parameter | GDA-10 | GDA-20 |
|---|---|---|
| Temperature Range | RT+5 to 450 °C | |
| Temperature Accuracy | ±1 °C | |
| Heating Mode | Infrared radiation + graphite conduction | |
| Programs | 200 programs × 25 segments | |
| Display | 7-inch high-resolution color LCD | |
| Capacity | 10 positions | 20 positions |
| Digestion Tube | Glass 300 mL × 10 | Glass 300 mL × 20 |
| Power Consumption | 1.8 kW | 3.4 kW |
| Power Supply | 220 V ±10%, 50/60 Hz (110 V optional) | |
| External Dimensions (W×D×H) | 360 × 390 × 177 mm | 480 × 390 × 177 mm |
| Net Weight | 20 kg | 26 kg |
| Gross Weight | 38 kg | 58 kg |
How It Works
The Graphite Digester employs infrared radiation combined with graphite conduction heating to achieve rapid and uniform sample digestion. The infrared radiation heating tube transmits energy to the graphite block in the form of electromagnetic waves. When the graphite conducts and heats the digestion solution and sample in the digestion tube, the energy is absorbed by the sample molecules, greatly increasing molecular movement and collision, causing the sample to heat rapidly. Combined with the digestion solution, this accelerates sample breakdown for effective and complete digestion.
PID (Proportional-Integral-Derivative) temperature control continuously monitors and adjusts heating power to maintain precise temperature profiles. The system supports both curve and linear heating modes, allowing researchers to program complex temperature ramps optimized for specific sample matrices. Each digestion program can incorporate up to 25 temperature and time segments, enabling gradual heating protocols that prevent sample loss through violent reactions while ensuring complete matrix breakdown.
Ceramic fiber insulation combined with air duct insulation technology maintains thermal efficiency while protecting the instrument housing. PTFE sealing caps prevent acid vapor escape during digestion, while the integrated exhaust hood manages potentially hazardous fumes generated during sample processing.

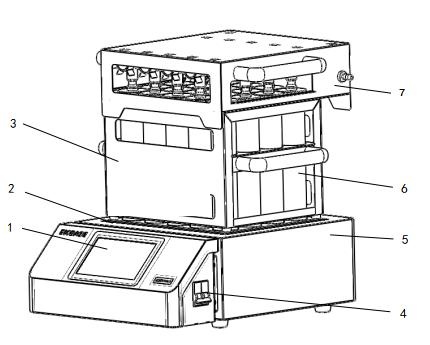

Components
| No. | Component |
|---|---|
| 1 | Display screen (7-inch LCD touchscreen) |
| 2 | Digestion platform (graphite heating block) |
| 3 | Digestion tube frame |
| 4 | Air switch |
| 5 | Shell (with anti-corrosion treatment) |
| 6 | Digestion tubes |
| 7 | Discharge system (exhaust management) |
Software Interface

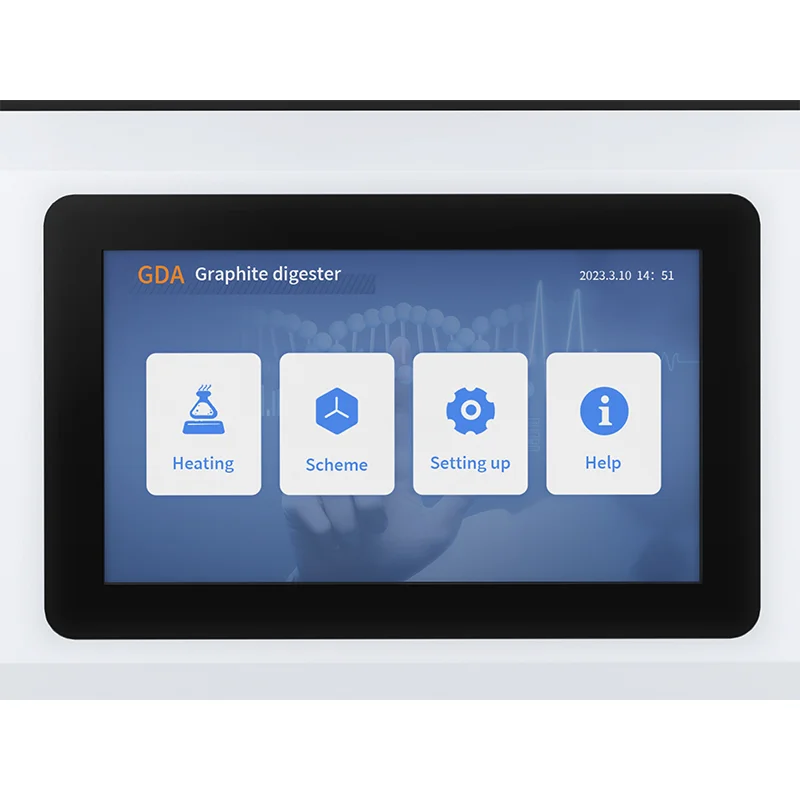

The Graphite Digester features an intuitive 7-inch LCD touchscreen for complete control of digestion programs.

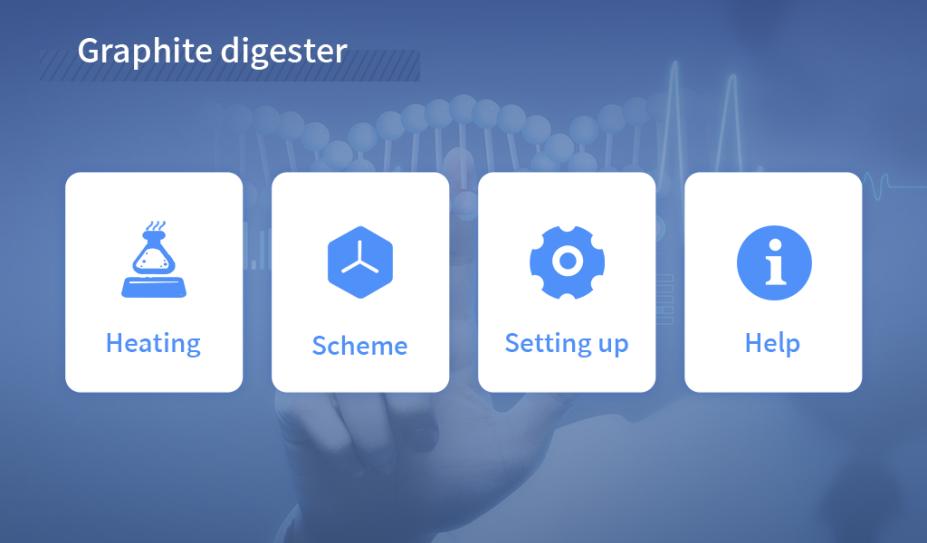

Main Interface
The home screen displays four function buttons: Heating, Scheme, Setting up, and Help.

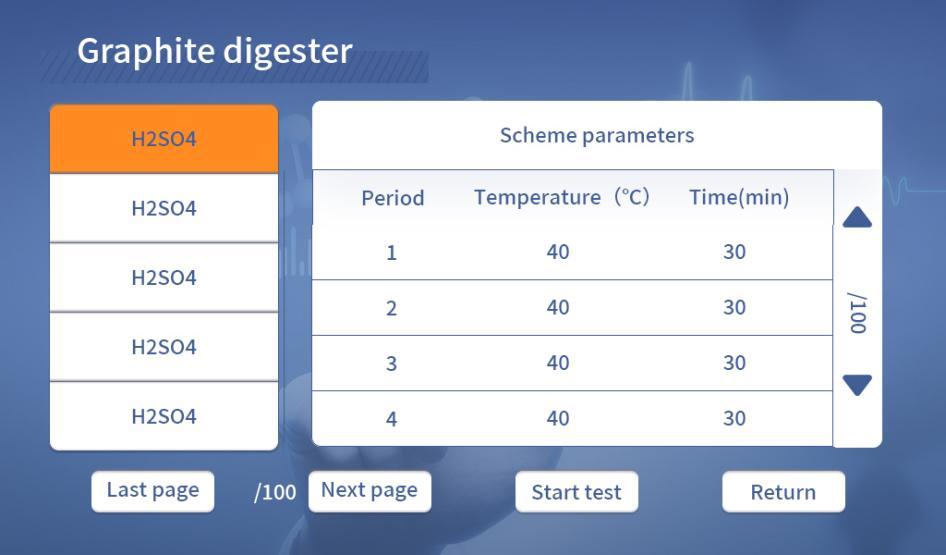

Heating Function
Select a saved digestion scheme from the list. The right panel displays scheme parameters (temperature and time per period). Click Start test to begin.

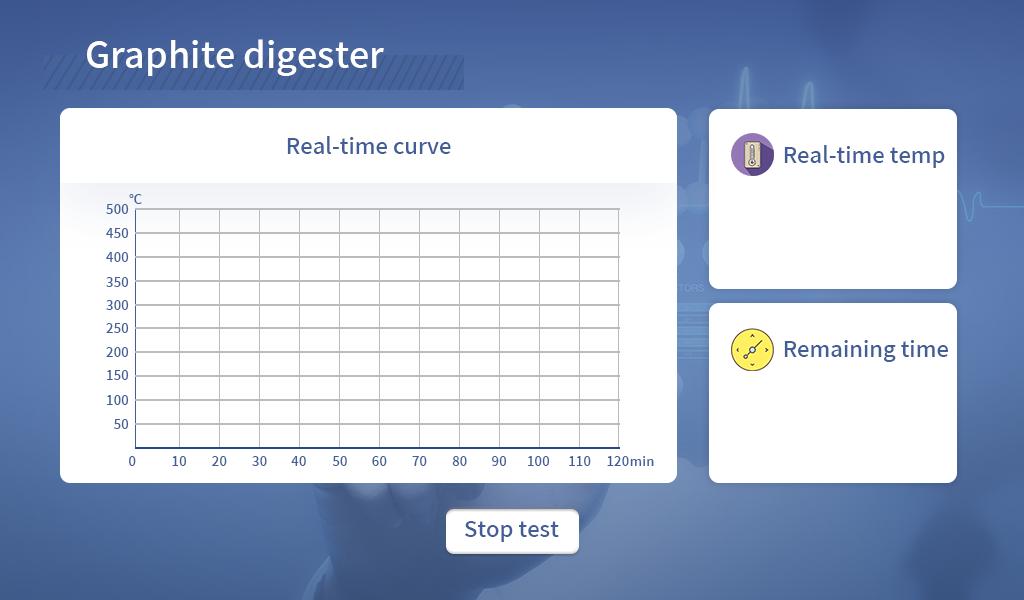

Real-Time Monitoring
During digestion, the interface displays a live temperature curve and current readings including real-time temperature and remaining time. Click Stop test to interrupt at any time.

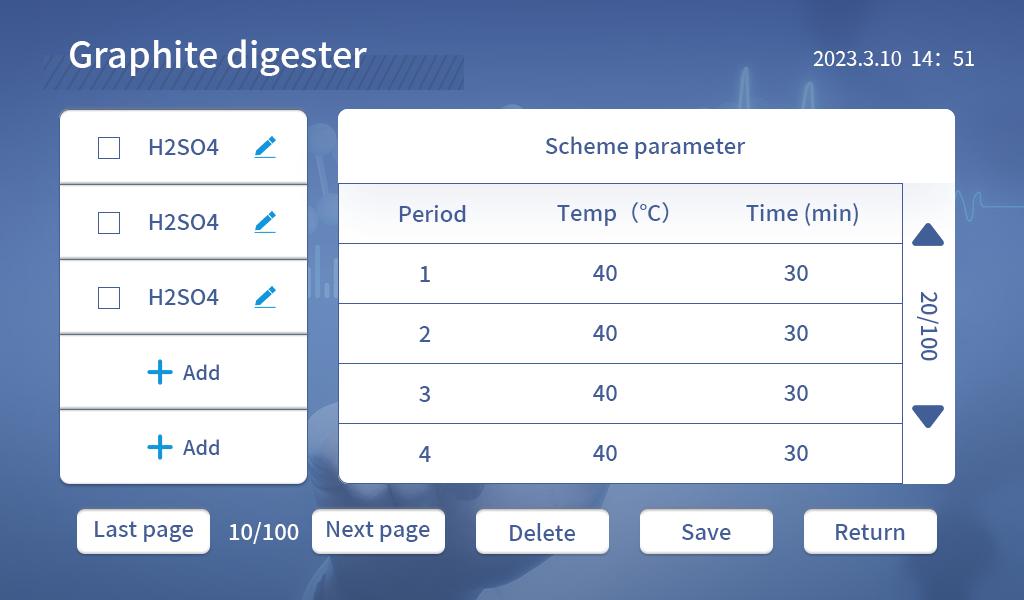

Scheme Editing
Create and manage up to 200 custom digestion schemes, each with up to 25 temperature/time segments. Add new schemes, edit existing ones, or delete unused schemes.

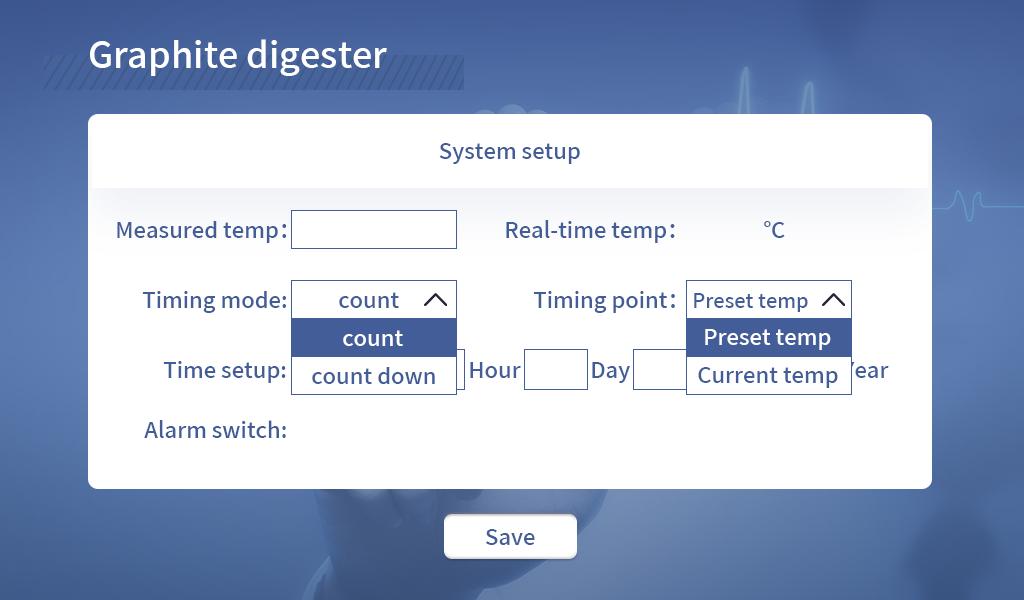

System Setup
Configure instrument settings including temperature calibration, timing mode (count up or count down), timing start point (test start or preset temperature reached), and alarm switch.
Troubleshooting
| Fault | Possible Cause | Solution |
|---|---|---|
| Instrument cannot be powered on | Fuse is burned out | Replace the fuse |
| Instrument cannot be powered on | Internal fault | Contact after-sales support |
| Abnormal temperature display | Abnormal sensor detection | Replace with a new sensor |
| Abnormal temperature display | Poor wire connection | Check the wire connections |
| Instrument does not heat | Heating element is damaged | Replace with a new heating element |
Features & Benefits
Research identifier
This ID comes from the Ontology for Biomedical Investigations (OBI). Use it in data records and methods sections.
- Device type
- Heating block
OBI:0400108
Heating Method
- Infrared radiation graphite conduction heating
Temperature Control
- PID intelligent temperature control algorithm
Heating Modes
- Curve heating and linear heating
Programmable Groups
- 200 groups
Segments per Group
- Up to 25 segments
Display Size
- 7-inch
Display Resolution
- High resolution
Safety Features
- Overvoltage, overcurrent, overheating alarm and leakage protection
Insulation Technology
- Ceramic fiber insulation layer and air duct insulation
Included Accessories
- Digestive tube cooling rack, drip tray, exhaust hood, PTFE sealing cap
Anti Corrosion Treatment
- Special anti-corrosion treatment for acidic liquids
Sample Types
- Soil, grain, feed, food, water, plants, seeds, ores, heavy metals
Automation Level
- semi-automated
Material
- Ceramic fiber
- Graphite
- PTFE
Display Type
- LCD
Research Domain
- Analytical Chemistry
- Environmental Monitoring
- Food Science
- Industrial Hygiene
- Materials Science
Shipping weight
- 6.06 lb
Shipping box
- L: 48.0 cm
- W: 39.0 cm
- H: 17.7 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Heating Technology | Infrared radiation graphite conduction heating | Traditional block heating or microwave systems | Provides rapid heating with superior temperature uniformity across all sample positions |
| Temperature Control | PID intelligent temperature control algorithm | Basic on/off or simple proportional control | Enables precise temperature regulation for reproducible analytical results |
| Programming Capability | 200 digestion programs with 25 segments each | Limited program storage with fewer segments | Accommodates complex heating protocols optimized for diverse sample matrices |
| Display Interface | 7-inch high resolution LCD with real-time temperature curves | Basic LED or small LCD displays | Provides comprehensive process monitoring and intuitive program setup |
| Safety Features | Comprehensive alarm system with overvoltage, overcurrent, overheating protection | Basic temperature limits or manual monitoring | Enables safe unattended operation with automatic shutdown protection |
| Chemical Resistance | Special anti-corrosion treatment for acidic liquids | Standard materials with limited acid resistance | Extends operational lifetime when processing corrosive sample matrices |
The Graphite Digester combines advanced infrared heating technology with intelligent temperature control and extensive programming capability. The system provides superior temperature uniformity and comprehensive safety features for demanding analytical sample preparation workflows.
| Model | SKU | Listed price | Status | Shipping box |
|---|---|---|---|---|
| BIO-GDA-10 | BIO-GDA-10 | $2,480.00 | Available | 39.0 × 36.0 × 17.7 cm |
| BIO-GDA-20 | BIO-GDA-20 | $2,890.00 | Available | 39.0 × 48.0 × 17.7 cm |
Practical Tips
Perform temperature calibration verification quarterly using certified reference thermocouples placed in multiple digestion positions.
Why: Ensures temperature accuracy remains within analytical method specifications across all sample positions.
Clean graphite heating surfaces monthly with appropriate solvents to remove sample residue buildup.
Why: Maintains optimal heat transfer efficiency and prevents contamination between analytical batches.
Develop matrix-matched heating programs with gradual temperature ramps to prevent violent sample reactions.
Why: Minimizes sample loss and ensures complete digestion while maintaining vessel integrity.
Always operate with exhaust hood connected and verify PTFE cap sealing before initiating digestion programs.
Why: Prevents exposure to acid vapors and maintains safe laboratory working conditions.
Include blank digestions and certified reference materials in each analytical batch for quality control.
Why: Validates digestion completeness and identifies potential contamination or systematic errors.
Monitor real-time temperature curves during initial program validation to identify heating irregularities.
Why: Enables early detection of heating element issues or program parameter problems before sample processing.
Allow complete cooling using the provided rack before handling digested samples to prevent thermal shock.
Why: Prevents vessel breakage and ensures operator safety during post-digestion sample transfer.
Inspect PTFE sealing caps regularly for chemical degradation and replace when discoloration or cracking appears.
Why: Maintains proper seal integrity and prevents acid vapor leakage during digestion procedures.
Setup Guide
What’s in the Box
- Host unit with 7-inch LCD touchscreen
- Display screen (1 pc)
- Discharge system (1 set)
- Discharge tube (1.5 m)
- Glass digestion tubes — 10 pcs (GDA-10) or 20 pcs (GDA-20)
- Digestion tube frame (1 pc)
- Waste discharge liquid collection tray (1 set)
- User manual
- Certificate card
- Warranty card
Warranty
ConductScience provides a standard 1-year manufacturer warranty from the date of delivery covering defects in materials and workmanship. The following are not covered: damage from improper use, unauthorized disassembly without manufacturer permission, or improper transportation and storage. Contact our support team for technical assistance with operation, maintenance, and replacement parts.
Compliance
What sample volumes and vessel types are compatible with the digestion system?
Consult product datasheet for specific vessel dimensions and volume capacities. The system accommodates standard laboratory digestion tubes with PTFE sealing caps provided.
What is the maximum operating temperature and heating rate capability?
Temperature specifications including maximum operating temperature and heating rates should be verified in the technical documentation for your specific analytical protocols.
How do I validate temperature uniformity across all digestion positions?
Use certified reference thermocouples placed in each position during empty vessel test runs. Temperature variation should be documented and compared to your analytical method requirements.
What acids and reagent concentrations are compatible with the anti-corrosion treatment?
The system features special anti-corrosion treatment for acidic liquids. Consult chemical compatibility charts in the user manual for specific acid types and concentrations.
Can digestion programs be exported or imported between instruments?
Program transfer capabilities depend on the control system interface. Refer to the user manual for data management options and program backup procedures.
What maintenance schedule is recommended for the graphite heating elements?
Regular visual inspection of heating elements is recommended. Replacement frequency depends on usage intensity and sample matrix corrosivity as outlined in the maintenance section.
How does this compare to microwave digestion systems for similar applications?
Graphite digestion offers atmospheric pressure operation with visual sample monitoring, while microwave systems provide faster heating under pressure. Choice depends on analytical method requirements and sample throughput needs.
