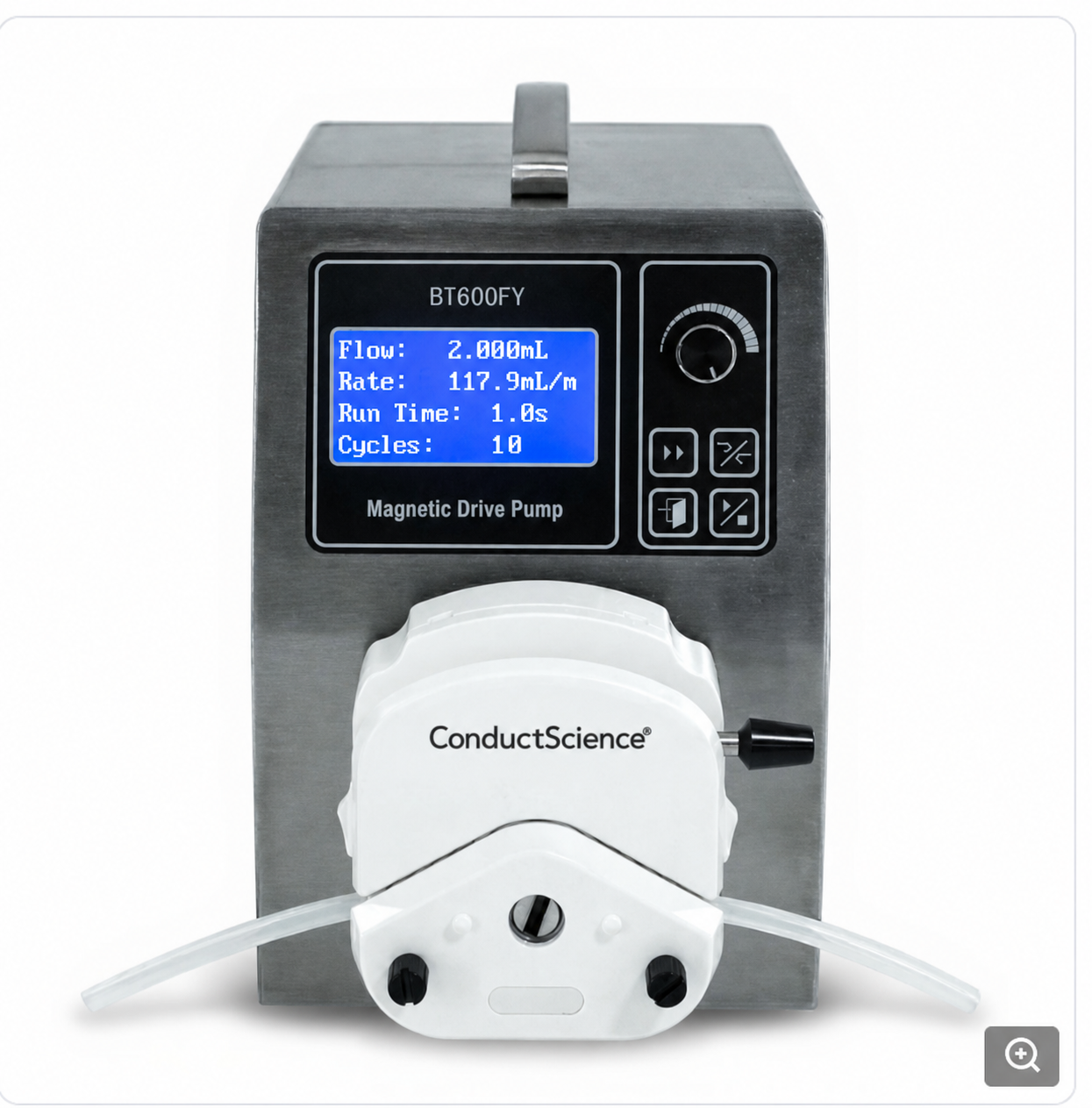

BT600FY High-Precision Peristaltic Pump Dispensing System
The BT600FY High-Precision Peristaltic Pump Dispensing System delivers exceptional accuracy with dispensing volumes from 0.1 mL to 99.9 L and programmable cycles up to 999 times.
Features 304 stainless steel construction, anti-drip suck-back function, and multiple control interfaces for laboratory automation integration.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about BT600FY High-Precision Peristaltic Pump Dispensing System fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- RBP-0047
- Sizing
- 112.9 x 77.4 x 74.7 cm
- Ordering
- Online checkout and quote request available
- Category
- Peristaltic Pumps
- Build notes
- Confirm accessories, station layout, and support needs before purchase
Overview
The BT600FY High-Precision Peristaltic Pump Dispensing System represents the pinnacle of liquid handling technology, combining all functions of basic and flow-rate models with advanced dispensing capabilities. Featuring a durable 304 stainless steel construction and intuitive 128×64 graphic LCD display, this system delivers exceptional precision for demanding laboratory applications requiring accurate fluid dispensing and distribution.
Key Features
This advanced dispensing system offers remarkable versatility with speed control ranging from 0.01 to 600 rpm, ensuring precise flow rates across a wide range of applications. The system supports multiple pump head configurations including YZ1515 and YZ2515 models, accommodating various tubing sizes and flow requirements. With dispensing volumes from 0.1 mL to 99.9 L and programmable dispensing cycles (0-999 times, with 0 representing infinite cycling), users can execute complex protocols with ease. The anti-drip function features adjustable suck-back angles (0-360°) to prevent cross-contamination and ensure clean dispensing.
Applications
Ideal for analytical chemistry, biotechnology research, pharmaceutical development, and quality control laboratories. Perfect for automated reagent addition, sample preparation, chromatography mobile phase delivery, cell culture media dispensing, and high-throughput screening applications. The multiple control interfaces (0-5V, 0-10V, 4-20mA, 0-10kHz) and RS485 communication capability enable seamless integration into automated laboratory systems and LIMS environments.
Weight
- 3.2 kg
Dimensions
- L: 112.9 mm
- W: 77.4 mm
- H: 74.7 mm
Specifications
| Model | BT600FY |
| Construction | 304 Stainless Steel |
| Speed Range | 0.01-600 rpm |
| Display | 128×64 Graphic LCD |
| Compatible Pump Heads | YZ1515, YZ2515, and others |
| Dispensing Volume Range | 0.1 mL - 99.9 L |
| Dispensing Cycles | 0-999 times (0 = infinite) |
| Interval Time | 1-999 seconds |
| Suck-back Angle | 0-360° (anti-drip function) |
| External Control Inputs | 0-5V, 0-10V, 4-20mA, 0-10kHz |
| Communication | RS485 |
| Power Consumption | <60W |
Frequently Asked Questions
What pump heads are compatible with the BT600FY system?
The BT600FY supports multiple pump head configurations including YZ1515, YZ2515, and other compatible models, allowing flexibility in tubing selection and flow rate requirements for different applications.
How does the anti-drip function work?
The system features an adjustable suck-back function with angles ranging from 0-360°, which creates a slight reverse rotation after dispensing to draw fluid back into the tubing and prevent dripping or cross-contamination.
Can this system be integrated with automated laboratory equipment?
Yes, the BT600FY offers multiple external control inputs (0-5V, 0-10V, 4-20mA, 0-10kHz) and RS485 communication capability, making it compatible with most laboratory automation systems and LIMS platforms.
