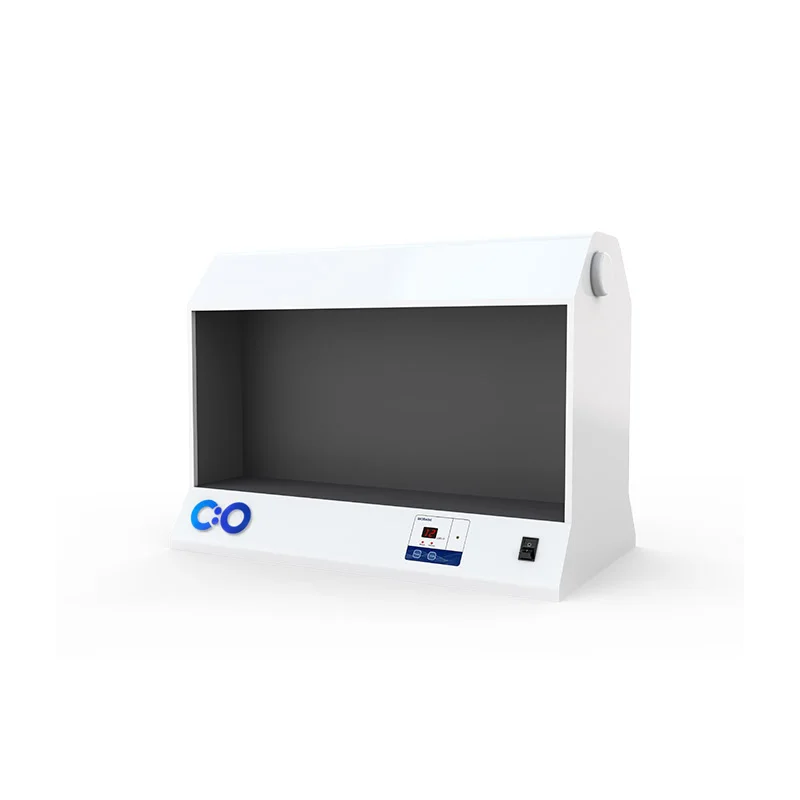

Pharmaceutical Liquid Clarity Tester
Dual-sided visual inspection station for pharmaceutical liquid clarity testing with controlled tri-color fluorescent illumination and automated timing functions.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Pharmaceutical Liquid Clarity Tester fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- BIO-BCM-2
- Shipping box
- 26.77 x 19.69 x 16.14 cm
- Ordering
- Online checkout and quote request available
- Category
- Gel & Clarity Testing
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The Pharmaceutical Liquid Clarity Tester is a specialized visual inspection instrument designed for evaluating the clarity and opalescence of liquid pharmaceutical preparations. This dual-sided benchtop system employs controlled tri-color fluorescent illumination with high-precision light sensors to provide standardized conditions for visual assessment of parenteral solutions, injectables, and other liquid dosage forms.
The system features adjustable illuminance control (1000-4000 LUX) with flicker elimination technology to reduce visual fatigue during extended inspection periods. Automated functions include programmable timing controls (1-99 seconds) and alarm triggers to support reproducible testing protocols. The dual-sided design allows simultaneous operation by two technicians, improving laboratory throughput for routine clarity assessments.
How It Works
The Pharmaceutical Liquid Clarity Tester operates on the principle of controlled visual inspection under standardized illumination conditions. The system employs dedicated tri-color fluorescent lamps (2x8W) with high-precision light sensors that maintain consistent illuminance between 1000-4000 LUX. This controlled lighting environment eliminates variables that can affect visual assessment, such as ambient light fluctuations and shadow formation.
The optical design incorporates flicker elimination technology and shading systems to create uniform illumination across the inspection area. Samples are examined through direct visual comparison with reference standards or controls, following established pharmacopeial methodologies. The automated timing system (1-99 seconds) ensures consistent inspection durations, while alarm triggers provide standardized endpoints for assessment protocols.
The dual-sided configuration allows independent operation by two inspectors, with each side maintaining identical optical conditions. This design supports both routine quality control workflows and comparative studies where multiple operators assess the same samples under standardized conditions.
Features & Benefits
Design Type
- dual-sided
Simultaneous Operation
- two-person
Light Sensor Type
- high-precision
Lamp Type
- dedicated tri-color fluorescent
Illuminance
- adjustable
Flicker Elimination
- yes
Visual Fatigue Reduction
- minimized
Automated Testing
- timed testing
Alarm Triggers
- yes
Continuous Analysis
- automated
Automation Level
- semi-automated
Accuracy
- high detection resolution
Research Domain
- Analytical Chemistry
- Clinical Diagnostics
- Pharmaceutical QC
Shipping weight
- 22.05 lb
Shipping box
- L: 26.77 cm
- W: 19.69 cm
- H: 16.14 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Inspection Capacity | Dual-sided design supporting simultaneous two-person operation | Single inspection station limiting throughput | Doubles inspection capacity for high-volume quality control workflows. |
| Illumination Control | Adjustable illuminance 1000-4000 LUX with high-precision sensors | Fixed illumination with limited adjustment capability | Enables optimization for different sample types and testing requirements. |
| Visual Fatigue Management | Flicker elimination technology with optimized tri-color lighting | Standard fluorescent lighting with potential flicker | Reduces operator fatigue during extended inspection sessions, maintaining assessment quality. |
| Timing Automation | Programmable 1-99 second timing with alarm triggers | Manual timing methods without standardization | Ensures consistent inspection durations and protocol standardization across operators. |
| Power Consumption | 20W total power consumption with dual 8W fluorescent lamps | Higher power requirements with less efficient lighting systems | Energy-efficient operation while maintaining optimal illumination conditions. |
The system offers dual-sided operation capability with precision-controlled illumination and automated timing functions, providing standardized conditions for visual clarity assessment. The combination of adjustable illuminance, flicker elimination, and automated protocols supports reproducible testing workflows in pharmaceutical quality control environments.
Practical Tips
Allow fluorescent lamps to stabilize for 15 minutes after power-on before conducting inspections.
Why: Ensures consistent illumination conditions and eliminates warm-up variations that could affect assessment accuracy.
Monitor lamp performance regularly and replace fluorescent tubes when illuminance uniformity degrades.
Why: Maintains consistent optical conditions required for reproducible visual assessments over time.
Position the unit away from direct sunlight and ambient lighting sources that could interfere with controlled illumination.
Why: Eliminates external light variables that can affect visual assessment accuracy and consistency.
Use consistent sample positioning and viewing angles across both inspection sides for comparative assessments.
Why: Ensures reproducible inspection conditions when multiple operators assess the same samples.
If illumination appears uneven, check lamp alignment and clean optical surfaces to remove dust or contamination.
Why: Maintains uniform lighting distribution necessary for accurate visual clarity assessment.
Document inspection timing settings and illuminance levels used for each test batch to ensure traceability.
Why: Provides documentation trail for regulatory compliance and enables investigation of any assessment discrepancies.
Allow adequate rest periods for operators during extended inspection sessions to prevent visual fatigue.
Why: Maintains inspection accuracy and operator well-being during high-volume testing workflows.
Setup Guide
What’s in the Box
- Pharmaceutical Liquid Clarity Tester main unit
- Power cable with appropriate connector
- User operation manual
- Sample holder accessories (typical)
- Lamp replacement guide (typical)
- Calibration verification procedure (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support available for setup and operational questions.
Compliance
References
Background reading relevant to this product:
What illuminance range is required for USP and Ph.Eur. visual inspection methods?
The system provides 1000-4000 LUX adjustable illuminance, which encompasses the range typically specified in pharmacopeial visual inspection methods. Consult specific method requirements for optimal settings.
How does the dual-sided design maintain consistent optical conditions?
Each side employs identical tri-color fluorescent lamp systems with high-precision light sensors to ensure uniform illumination conditions across both inspection positions.
What timing protocols are supported for standardized inspections?
The automated timing function spans 1-99 seconds with programmable settings and alarm triggers to support consistent inspection durations as required by testing protocols.
Can the system accommodate different container sizes for inspection?
The system is designed for visual inspection of liquid samples in appropriate containers. Consult product datasheet for specific container compatibility and positioning requirements.
How is visual fatigue minimized during extended use?
The system incorporates flicker elimination technology and optimized illumination design to reduce eye strain during prolonged inspection sessions.
What maintenance is required for the fluorescent lamp system?
Regular lamp replacement and illuminance verification are recommended to maintain consistent optical conditions. Follow manufacturer guidelines for lamp service intervals.
Does the system provide data logging or documentation features?
The system includes alarm triggers and timing functions for protocol standardization. Consult product specifications for any integrated documentation capabilities.
