Split-Type Multi-Channel Syringe Pump (2-Channel, Expandable to 8)
A split-architecture syringe pump: one touchscreen controller drives independent pump-head units, each running its own flow rate and direction.
The base configuration includes two channels and expands to eight, so multi-stream droplet and emulsion work — including oil-in-water PLGA microparticle production — runs from a single controller. Sub-micron stroke resolution and ≤±0.5% control accuracy give the monodisperse, repeatable flow that droplet generation depends on.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Split-Type Multi-Channel Syringe Pump (2-Channel, Expandable to 8) fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- WHM-0172
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Microfluidic Pumps & Flow Control
- Build notes
- Confirm accessories, station layout, and support needs before purchase

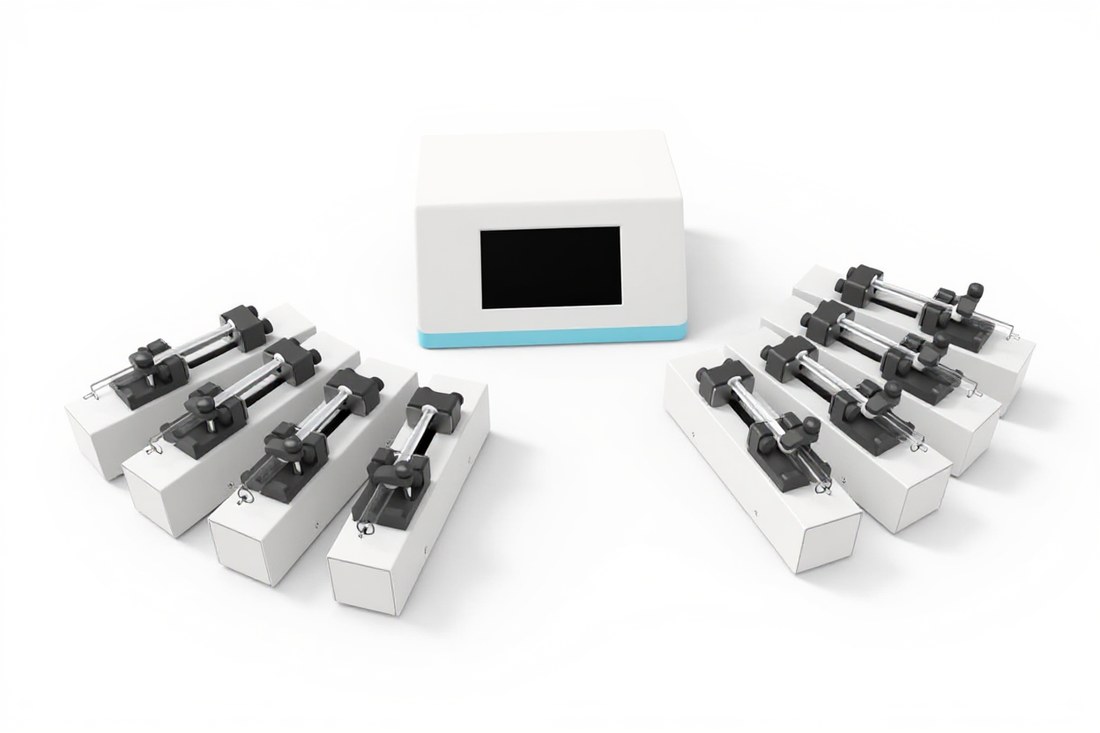

Multi-channel split-type syringe pump
One controller, multiple independent pump heads. Each channel runs its own flow rate, direction, and syringe, so you can drive the dispersed and continuous phases of a droplet junction — or several junctions in parallel — from a single touchscreen.
Specifications
- Architecture: 1 controller + independent pump-head units
- Channels: 2 included; expandable to 8
- Operating modes: Infusion, withdrawal, infuse-then-withdraw, withdraw-then-infuse
- Syringe range: 0.5 µL – 10 mL
- Syringe presets: 10 brand libraries + 5 user-defined slots
- Maximum stroke: 70 mm
- Stroke resolution: 0.078 µm
- Minimum dispense (10 mL syringe): 0.428 µL per microstep
- Linear speed: 4.68 µm/min – 133 mm/min
- Maximum linear force: 20 kgf
- Control accuracy: ≤ ±0.5% (stroke ≥ 30% of maximum)
- Control / display: Full 7-inch color touchscreen; simultaneous multi-channel display
- Power-loss memory: Yes
- Weight: Controller 3 kg; each pump-head unit 1.8 kg
- Dimensions: Controller 300 × 270 × 135 mm; each unit 255 × 60 × 60 mm
- Operating environment: 0–40 °C, relative humidity < 80%
- Warranty: 1 year
- Use: Research use only. Not FDA registered; not for human clinical use.
