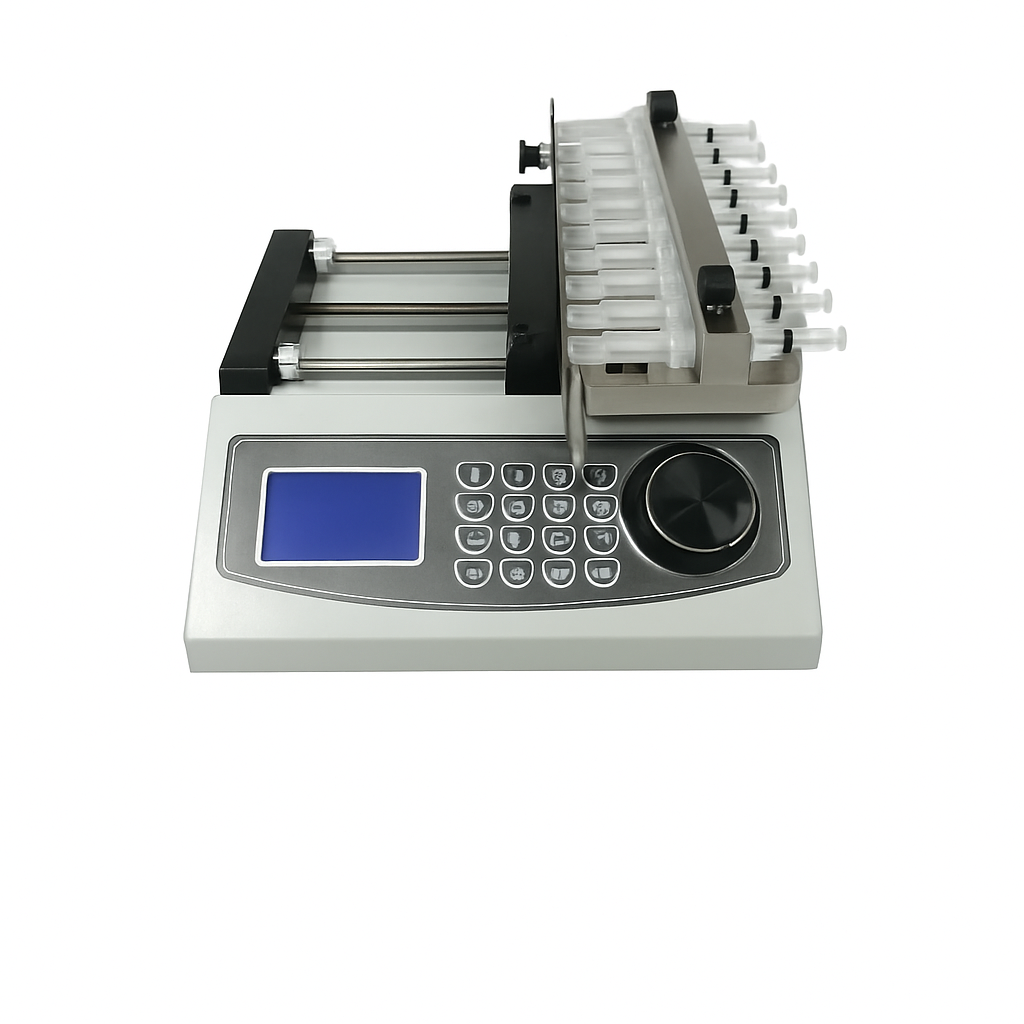

LSP010-2Y Ten-Channel Laboratory Syringe Pump
Precision 10-channel laboratory syringe pump with microprocessor control, RS485 connectivity, and support for syringes ranging from 10 µL to 10 mL.
Delivers accurate multi-channel fluid handling with 280N linear thrust and seven orders of magnitude flow rate range.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about LSP010-2Y Ten-Channel Laboratory Syringe Pump fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- RBP-0132
- Sizing
- 280 x 352.5 x 159 cm
- Ordering
- Online checkout and quote request available
- Category
- Syringe Pumps
- Build notes
- Confirm accessories, station layout, and support needs before purchase
Overview
The LSP010-2Y Ten-Channel Laboratory Syringe Pump is a precision multi-channel fluid delivery system designed for demanding research and laboratory applications. This microprocessor-controlled pump features a durable metal powder-coated exterior and intuitive digital interface, delivering independent control over ten simultaneous channels with exceptional accuracy and reliability.
Key Features
- 10 independent channels for simultaneous multi-sample processing and parallel experiments
- 128×64 graphic LCD display showing parameters and operational status for each channel
- Digital membrane keypad with rotary encoder for intuitive parameter control
- Microprocessor-controlled 16-subdivision stepper motor with screw drive and synchronous belt system
- Linear thrust force up to 280N for consistent pressure delivery across syringe sizes
- Multiple operation modes: infusion, withdrawal, infusion-then-withdrawal, withdrawal-then-infusion, and continuous operation
- RS485 communication bus for computer integration, automation, and networked control
- Safety fuse protection (5×20mm, 250V~, Fast, 1A) for equipment safety
- Auto-calibration function for accurate volume delivery with different syringe sizes
- Automatic stall detection and alarm when mechanical resistance is encountered
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 10 |
| Syringe Compatibility | 10 µL to 10 mL |
| Working Modes | Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous |
| Syringe Selection | Automatic syringe diameter input from manufacturer database or manual entry |
| Display | 128×64 graphic LCD display |
| Display Settings | Volume, flow rate, linear speed |
| Control Interface | Rotary coded switch and membrane keypad |
| Motor Control | Microprocessor-controlled 16-subdivision stepper motor |
| Advance per Micro-step | 0.156 micron |
| Maximum Step Rate | 867 steps/second |
| Minimum Step Rate | 1 step/30 seconds |
| Maximum Linear Rate | 130 mm/min |
| Minimum Linear Rate | 5 µm/min |
| Linear Thrust Force | ≤280N |
| Accuracy | ≤0.5% error (≥30% of max. infusion distance) |
| Power Supply | AC 90-265V, 50Hz/60Hz |
| Power Consumption | <50W |
| Operating Temperature | 5°C - 40°C (41°F - 104°F) |
| Relative Humidity | 20% - 80% RH |
| Dimensions | 280mm × 352.5mm × 159mm (W × H × D) |
| Weight | 6.7 kg |
| Communication Interface | RS485 |
| External Control | Input/output control capability |
| Memory Function | Automatic storage of running parameters on power-off |
| Protection Features | Mechanical blockage detection with automatic stall and alarm |
Applications
Ideal for pharmaceutical research, drug discovery, microfluidics, cell culture perfusion, chemical synthesis, high-throughput screening, and any application requiring precise, programmable multi-channel fluid delivery. The pump's versatile operation modes and RS485 connectivity enable integration into automated laboratory workflows and complex experimental protocols requiring synchronized control across multiple channels.
Safety & Compliance
Important Note: This pump is designed exclusively for laboratory research applications and cannot be used for clinical experiments, medical procedures, or patient-related applications.
Weight
- 6.7 kg
Dimensions
- L: 280 mm
- W: 352.5 mm
- H: 159 mm
Specifications
| Specification | Value |
|---|---|
| Channels | 10 |
| Display | 128×64 LCD showing parameters and working status |
| Control Interface | Digital membrane keypad with rotary encoder |
| Drive System | Microprocessor-controlled 16-subdivision stepper motor with screw drive and synchronous belt |
| Linear Thrust | ≤280N |
| Operation Modes | Infusion, withdrawal, infusion-then-withdrawal, withdrawal-then-infusion, continuous |
| Communication | RS485 bus for computer connectivity |
| Fuse Protection | 5×20mm, 250V~, Fast, 1A |
| Exterior | Metal powder-coated finish |
Frequently Asked Questions
Can this pump be used for clinical applications?
No, this pump is designed exclusively for laboratory research applications and should not be used for clinical experiments or medical procedures.
What communication options are available for automation?
The pump features RS485 communication bus connectivity, allowing integration with computer systems for automated control and data logging in laboratory workflows.
What is the maximum force output of each channel?
Each channel can deliver up to 280N of linear thrust force, providing consistent pressure for a wide range of syringe sizes and fluid viscosities.
