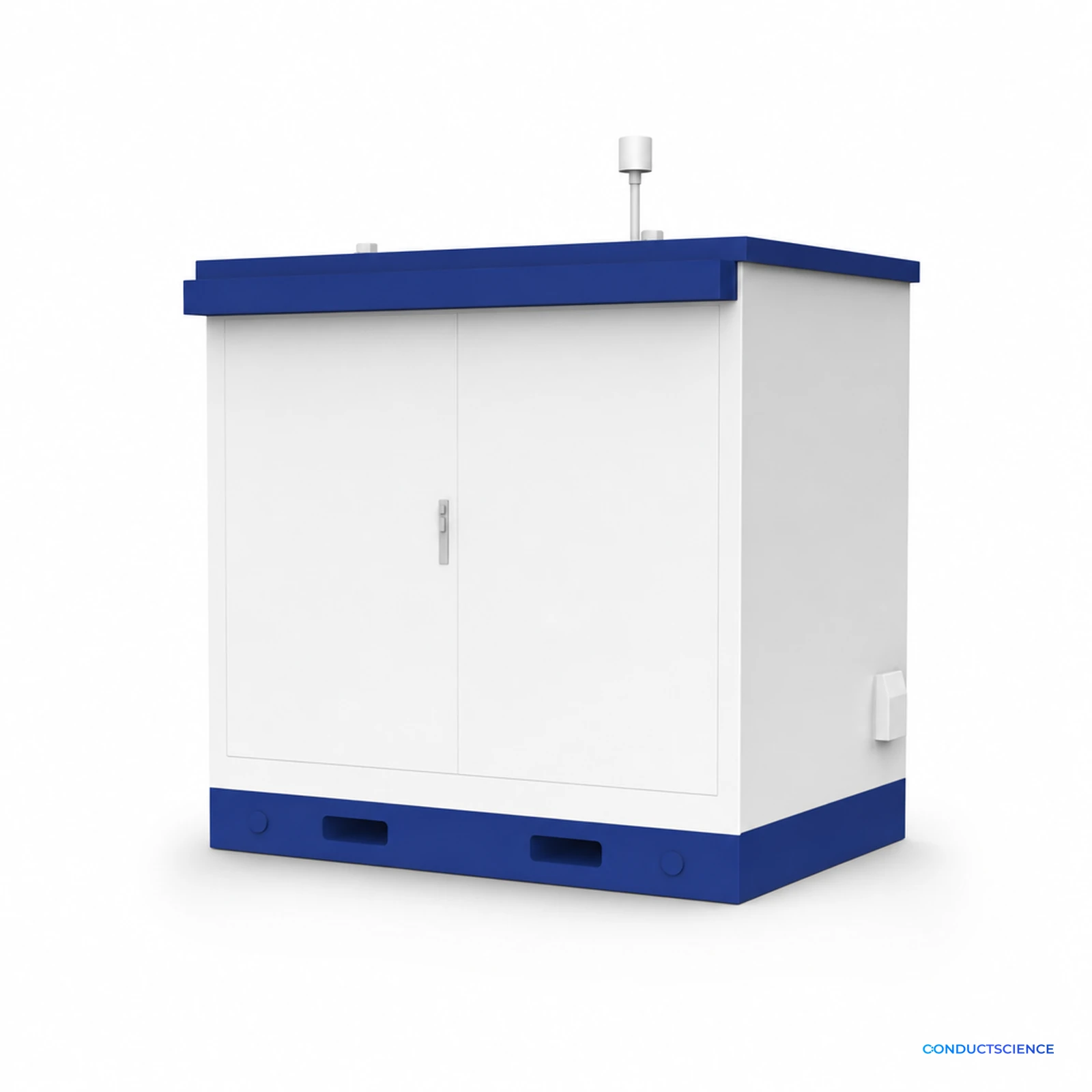

Compact Modular Air Quality Monitoring Station
Outdoor cabinet station measuring criteria gases and particulate in one enclosure.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Compact Modular Air Quality Monitoring Station fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- CS-AIR-00003
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Quote-reviewed before fulfillment
- Category
- Air Quality
- Build notes
- Confirm accessories, station layout, and support needs before purchase
A compact outdoor air-quality station carrying gas and particulate benches in one temperature-controlled cabinet. Modular, so the parameter list can grow without replacing the shelter.
Key features
- Configurable monitoring parameters.
- Compact design for easy on-site installation, use, and maintenance.
- High-power industrial-grade air conditioning minimizes environmental impact.
- Built-in pollution monitoring platform for centralized instrument management, data viewing, and analysis.
Applications
Built for municipal networks and site-boundary compliance programmes.
- ambient air quality monitoring
Choosing the right configuration
Specify the target species, measurement range, zero and span equipment, sample conditioning, shelter or rack arrangement, communications, and reporting method as one monitoring system. ConductScience reviews the site and calibration plan before quoting.
Features & Benefits
Component
- O₃, CO, SO₂, NO₂, PM10, PM2.5
Range
- O₃: 0~500ppb; CO: 0~2000ppm; SO₂: 0~500ppb; NO/NOx: 0~500ppb; PM2.5/PM10: 0~1000μg/m³
Operating Conditions
- Temperature: (-30 to 50)℃, Humidity: (0~95)% RH (no condensation)
Power Supply
- (220±10%)V AC / (45~55)Hz
Dimensions
- 200×130×200cm, Weight: <200kg (excluding equipment)
What does this instrument measure, and who is it for?
It measures criteria gases and particulate together, inside one temperature-controlled cabinet. It is built for municipal networks and site-boundary compliance programmes. It is designed for continuous, unattended operation in a monitoring shelter or cabinet, with periodic zero and span calibration.
What measurement principle does it use?
Reference-grade gas and particulate benches housed in one temperature-controlled outdoor cabinet, with the parameter list expandable without replacing the shelter.
Which specifications are confirmed?
The specification table lists five confirmed ordering parameters for this instrument. Use them to compare the operating range, utilities, and analytical performance required by the method. They include Component at O₃, CO, SO₂, NO₂, PM10, PM2.5 and Power Supply at (220±10%)V AC / (45~55)Hz.
What should be confirmed before ordering?
Confirm siting and inlet configuration, zero and span gas supply, the calibration interval your reporting regime requires, and the data acquisition and reporting path. These are configured and quoted per installation, so raise anything unusual about the site during quote review rather than after delivery.
What else is needed to run it?
A zero air generator and a multi-point dilution calibrator. Every concentration this analyser reports is measured against its zero. A zero that is not actually zero is a systematic error in every number downstream of it, so the calibration gear is not an accessory, it is what makes the readings defensible.
How is it supplied?
This instrument is configured and quoted per installation rather than sold at a list price. Request a quote and we will confirm the configuration, the site requirements and the lead time before anything is ordered.
