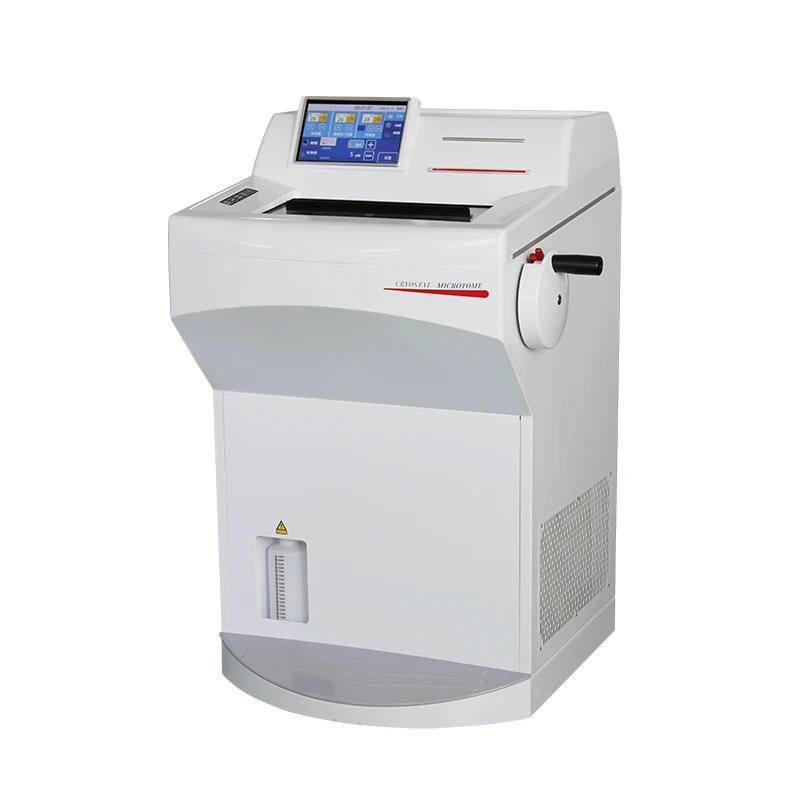

Cryostat Freezing Plus Microtome 2265
Cryostat for frozen tissue sectioning, with 24 freezing stations, six quick-freezing positions and touchscreen controls.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Cryostat Freezing Plus Microtome 2265 fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- CS-BIO-00025
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Cryostats
- Build notes
- Confirm accessories, station layout, and support needs before purchase
Frozen tissue sectioning
The 2265 cryostat combines a refrigerated chamber, microtome and touchscreen controls for preparing frozen tissue sections. It has 24 freezing stations, including six semiconductor quick-freezing stations.
The chamber cools to −30 °C and the blade holder to −45 °C. Section thickness and trimming thickness can each be set from 0 to 999.9 µm in 0.1 µm increments.
Plan your installation
The cabinet measures 750 × 870 × 1360 mm. Specify your laboratory voltage when requesting a quote: 220 V / 50 Hz is standard, with a 110 V / 60 Hz option.
Section thickness setting
- 0 to 999.9 µm; 0.1 µm increments
Trimming setting
- 0 to 999.9 µm; 0.1 µm increments
Specimen retraction setting
- 0 to 999.9 µm
Horizontal stroke
- 30 mm
Vertical stroke
- 70 mm
Chamber temperature
- Down to −30 °C
Blade holder temperature
- Down to −45 °C
Freezing stations
- 24 total, including 6 semiconductor quick-freezing stations
Dimensions (W × D × H)
- 750 × 870 × 1360 mm
Power supply
- 220 V / 50 Hz; 110 V / 60 Hz option
Frozen tissue section preparation for histology and research microscopy.
Warranty
Your quote confirms warranty coverage, service arrangements and delivery timing for the selected configuration and destination.
