FK600-T4 Four-Channel Liquid Filling System

Overview

The FK600-T4 is a four-channel peristaltic liquid filling system built for precision, high-throughput dispensing in laboratory and industrial settings. Four independent filling units are housed in a 304 stainless steel frame driven by a 7-inch industrial color touchscreen. Each channel runs its own programmable volume, speed, and timing profile, and the modular design scales to 32 total channels for production-line deployments.

Key Features

• Four independent channels — individual volume, speed, and timing per channel
• Wide dispensing range — 0.01 mL to 9,999.99 mL per cycle with 0.01 mL resolution
• 7-inch industrial color touchscreen — animated fill-status view with real-time channel data
• Channel enable/disable — activate or deactivate individual channels per run
• Adjustable anti-drip — 0–360° reverse-rotation backflow eliminates post-fill drips
• On-board volume calibration — correction function compensates for tubing wear and viscosity changes
• Expandable to 32 channels — add dispensing unit groups sharing a single controller
• External trigger input — switch-signal support for PLC or automated line integration
• Three pump head options — YZ1515, YZ2515, and DMD15 to match flow and precision needs
• 304 stainless steel construction — chemical-resistant and easy to sanitize

Applications

Pharmaceutical dispensing, reagent aliquoting, chemical filling, cosmetics production, food and beverage QC, clinical sample preparation, and serial dilution workflows. Suited to any multi-channel application requiring repeatable, programmable liquid volumes from micro-scale to bulk.

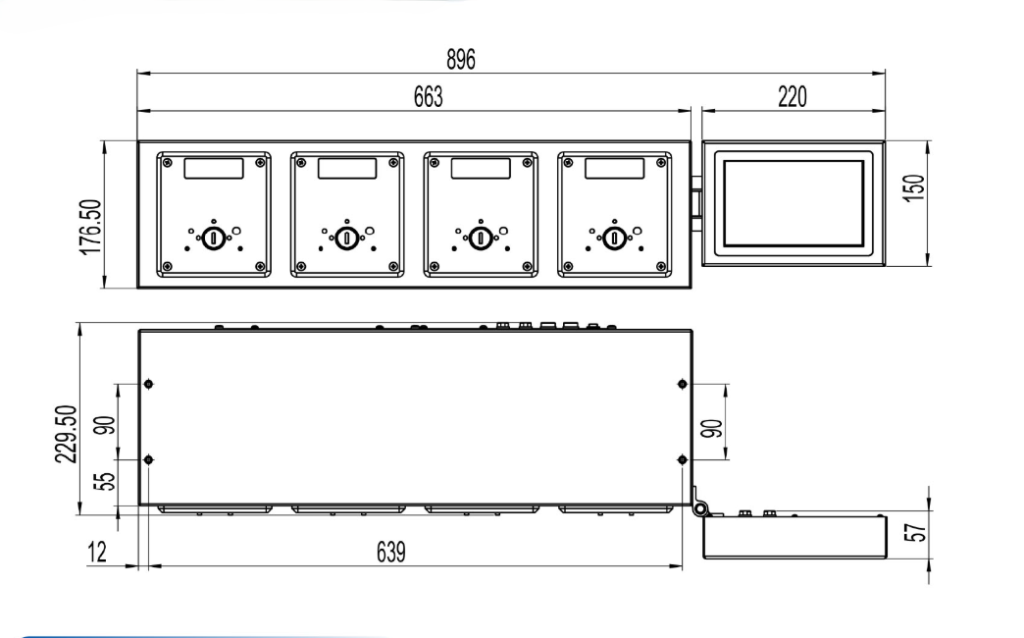

Dimensional Drawing
