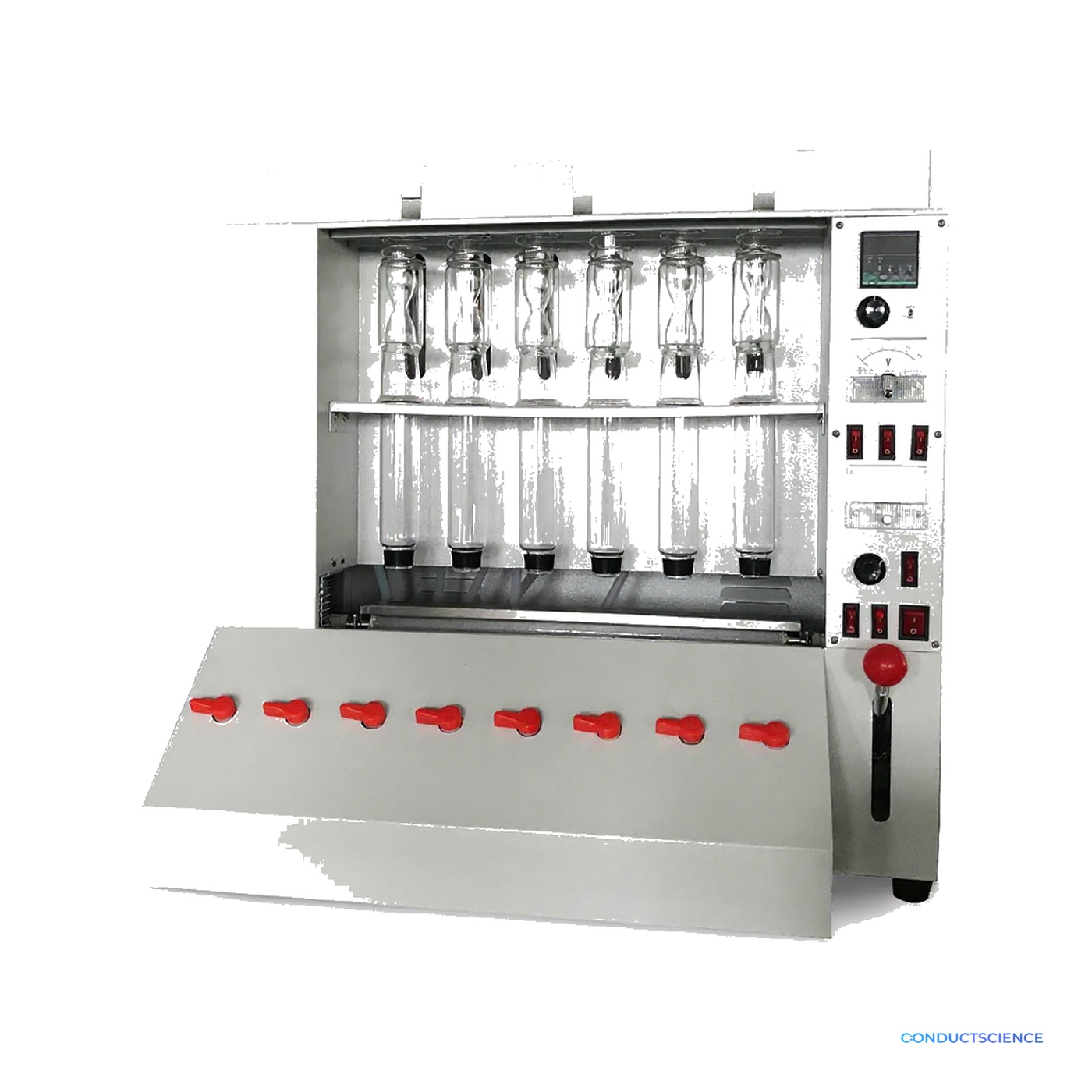

Raw Fiber Analyzer
Acid-alkali crude fiber extractor for grains, feeds & food.
6 samples per run, ~100 min cycle, reproducibility error ≤ 0.4% (fiber < 10%). 2,800 W, 30 kg bench unit.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Raw Fiber Analyzer fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- AGR-0044
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Quote-reviewed before fulfillment
- Category
- Agriculture & Food Science
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The Raw Fiber Analyzer is a benchtop crude fiber extractor designed to quantify raw fiber content in grains, animal feeds, foods, and other agricultural and sideline products. It applies the acid-alkali boiling method: samples are digested under precisely controlled acid and alkali conditions, soluble substances are removed with ether, and residual minerals are eliminated by high-temperature incineration—yielding an accurate crude fiber value.
The analyzer processes six samples per run, making it well suited for quality-control laboratories and research groups that need consistent, repeatable throughput. A full extraction cycle takes approximately 100 minutes, encompassing 40 minutes of acid digestion, 40 minutes of alkali digestion, and 20 minutes of filtration and washing.
Reproducibility is a key benchmark for fiber analysis. This instrument meets tight error tolerances: for samples with raw fiber levels below 10%, the absolute error is ≤ 0.4%; for samples at or above 10% fiber, the absolute error is ≤ 4%. These performance thresholds support reliable data across a wide range of sample matrices and fiber concentrations.
The unit runs on AC 220 V / 50 Hz at 2,800 W and requires a water supply with pressure greater than 1.5 MPa and a water temperature below 20 °C. At 30 kg and a compact 670 × 450 × 670 mm footprint, it fits standard laboratory bench space without a dedicated installation.
Measuring Object
- Raw fiber content in grains, feeds, foods, and other agricultural and sideline products
Samples per Run
- 6
Reproducibility Error (fiber < 10%)
- Absolute error ≤ 0.4%
Reproducibility Error (fiber ≥ 10%)
- Absolute error ≤ 4%
Measuring Time
- Approx. 100 min (acid 40 min + alkali 40 min + filtration/washing 20 min)
Power Supply
- AC 220 V / 50 Hz, 2,800 W
Water Supply Requirements
- Pressure > 1.5 MPa; temperature < 20 °C
Dimensions (W × D × H)
- 670 × 450 × 670 mm
Weight
- 30 kg
What types of samples can this analyzer test?
The analyzer is designed for raw fiber determination in a broad range of matrices including various grains, animal feeds, food products, and other agricultural and sideline products.
How many samples can be processed in a single run?
The instrument processes six samples per run, allowing moderate-throughput batch analysis without manual sequential testing.
How long does a complete extraction cycle take?
A full cycle takes approximately 100 minutes: 40 minutes of acid digestion, 40 minutes of alkali digestion, and 20 minutes for filtration and washing.
What reproducibility can I expect from this instrument?
For samples with raw fiber content below 10%, the absolute reproducibility error is ≤ 0.4%. For samples with raw fiber content at or above 10%, the absolute error is ≤ 4%.
What utility connections does the analyzer require at the bench?
The analyzer requires an AC 220 V / 50 Hz electrical supply rated at 2,800 W, plus a water supply with pressure greater than 1.5 MPa and water temperature below 20 °C.
