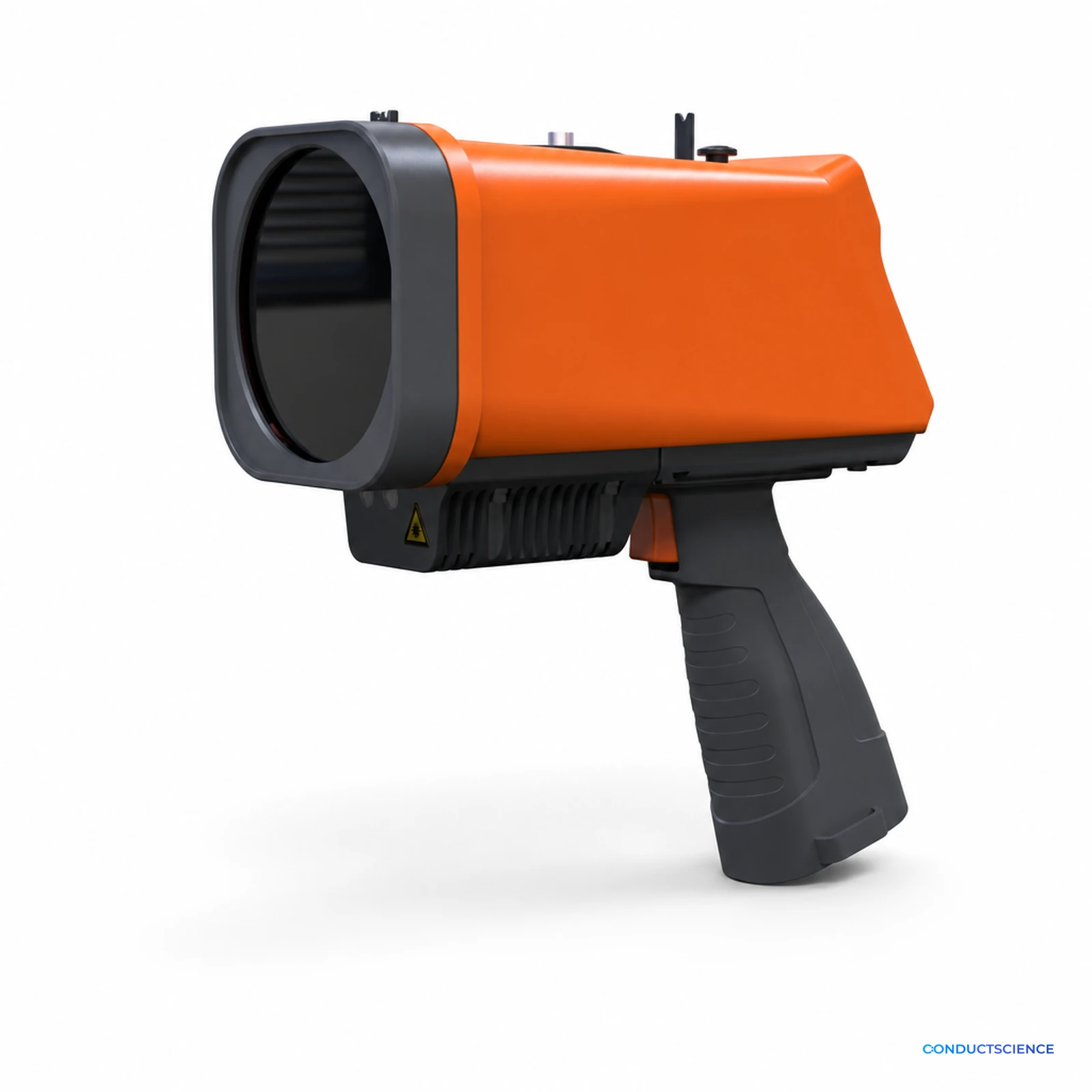

Remote Laser Methane Detector, 30 m Standoff
Handheld TDLAS detector reading methane column density at up to 30 m standoff.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Remote Laser Methane Detector, 30 m Standoff fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- CS-AIR-00026
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Quote-reviewed before fulfillment
- Category
- Air Quality
- Build notes
- Confirm accessories, station layout, and support needs before purchase
A handheld tunable-diode-laser detector that reads methane at a distance, up to a 30 m standoff. Survey a pipe rack, a meter set or a roofline from the ground, the measurement reaches where the operator does not.
Key features
- Locate methane up to 30 meters.
- High sensitivity and ultra-fast response.
- Self-check and automatic calibration before start-up.
- Wireless data logging.
- Visual and audible alarms.
- Easy to operate and maintenance free.
Applications
Built for gas utility survey and pipeline integrity teams.
- high-sensitivity real-time detection of methane from a distance
Choosing the right configuration
Specify the target species, measurement range, zero and span equipment, sample conditioning, shelter or rack arrangement, communications, and reporting method as one monitoring system. ConductScience reviews the site and calibration plan before quoting.
Features & Benefits
Detection Method
- Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Detection Gas
- Methane (CH₄ ) or methane contained gases
Measurement Range
- 0~50,000 ppm·m
Alarm Range
- 1~9,999 ppm·m
Sensitivity
- 5 ppm·m at distance from 0~10m
Accuracy
- ±10% (100~1,000) ppm·m
Response Time
- 0.1s
Battery Duration
- ≥8h at 25°C under screen brightness level 3 and sound volume level 2
Weight
- <1.5kg
What does this instrument measure, and who is it for?
It measures methane column density at a distance, so the measurement reaches where the operator does not. It is built for gas utility survey and pipeline integrity teams. It is designed for continuous, unattended operation in a monitoring shelter or cabinet, with periodic zero and span calibration.
What measurement principle does it use?
Tunable diode laser absorption along the open path between the operator and the target, reporting the methane column density in that path.
Which specifications are confirmed?
The specification table lists nine confirmed ordering parameters for this instrument. Use them to compare the operating range, utilities, and analytical performance required by the method. They include Detection Gas at Methane (CH₄ ) or methane contained gases, Measurement Range at 0~50,000 ppm·m and Alarm Range at 1~9,999 ppm·m.
What should be confirmed before ordering?
Confirm siting and inlet configuration, zero and span gas supply, the calibration interval your reporting regime requires, and the data acquisition and reporting path. These are configured and quoted per installation, so raise anything unusual about the site during quote review rather than after delivery.
What else is needed to run it?
A zero air generator and a multi-point dilution calibrator. Every concentration this analyser reports is measured against its zero. A zero that is not actually zero is a systematic error in every number downstream of it, so the calibration gear is not an accessory, it is what makes the readings defensible.
How is it supplied?
This instrument is configured and quoted per installation rather than sold at a list price. Request a quote and we will confirm the configuration, the site requirements and the lead time before anything is ordered.
