Introduction

The nuclear overhauser effect is defined as a change in the integrated intensity of one spin when the equilibrium population of another spin is perturbed by saturation or inversion. So, it is the transfer of nuclear spin polarization from one spin-active nucleus to another. However, the nuclei being irradiated should be closer to the other nuclei, in space, to transfer the effect.

The nuclear overhauser effect was first theoretically proposed by Albert W. Overhauser in 1953[4]. He stated that if the gyromagnetic ratio of nuclei will be the same as that of electron spin, then, when the electron spin resonance is saturated in the metals, it will affect the polarization of nuclei to the same degrees as of electrons.

The effect was however experimentally observed by I. Solomon. He experimented on an anhydrous sample of hydrofluoric acid[4]. He observed that the longitudinal magnetization of dipolar-coupled pairs of spins, of different frequencies, when saturated or undergone inversion of the 1H resonance, approx 30% increase in the 19F signal was observed. The same was observed in the proton signal when 19F was excited[4].

The quantitative definition[5] of nOe is explained by the following equation, considering the effect between nuclei S and I. Where, S is irradiated and I is observed.

If the intensity of the I nucleus is I0 before irradiation of nucleus S, and I1 after the irradiation. Then, the fractional increase in intensity ηI(S) will be (I0 − I1)/I0[1].

The equation can be represented as:

equation formula
In the extreme narrowing condition it will be:

Where 𝜸s and 𝜸I are the magnetogyric ratios of the two nuclei, S and I.

The nuclear Overhauser effect is an effective technique to determine the molecular structure of the chemical components. Further, configurational and conformational analysis of small organic molecules can also be studied by applying the nOe effect.

To have a clear understanding of the nuclear overhauser effect, a good grasp of the principle and mechanism of “Nuclear magnetic resonance” is required.

Let’s look into the principle, mechanism, and the factors affecting the nuclear overhauser effect.

Relaxation

A spin nucleus such as 1H and 13C have a spin quantum number of ½. When these nuclei are placed in a magnetic field, they adopt one of the two quantized orientations. It includes high energy (𝛃) aligned orientation with the applied B0(magnetic field strength) and low energy (ɑ) aligned orientation against the applied magnetic field[2]. Besides, the spin nuclei also possess characteristic precessional motion at their Larmour frequencies.

A charged nuclei precess at the magnetic field, and the precessional motion occurs at a certain frequency, called Larmour frequency. It is specific to each nucleus and relates to the strength of the applied magnetic field[2].

Boltzmann distribution is used to determine the population of the spins at two levels at thermal equilibrium. Pɑ and P𝛃 represent the spin population at two-level.

So, when the equilibrium is disturbed and a nucleus is perturbed by irradiation using an Rf oscillator, the nuclei can undergo excitation when the oscillator frequency matches with the Larmor frequency of the nuclei.

When this occurs, the excess spin population transitions to a higher energy state from a lower energy state. Then, the system tries to bring the thermal equilibrium to its original state and certain processes come into play. One of these processes is spin-lattice relaxation which is the transfer of energy from spin to the surrounding lattice[1].

The molecule undergoes rotational and internal motions and the applied magnetic field can be disturbed by some other protons inside the molecule present at different energy continuum. So, the relaxation and energy exchange between two nuclei occurs through dipole-dipole interaction[1]

Apart from the populations of the two states (Pɑ and P𝛃), the transition of spins in two states (upper and lower) also depends on the efficiency of relaxation (transition probability, denoted by W) and temperature around the surrounding lattice.

The factors which affect the dipole-dipole relaxation include [1]:

  1. The nature of the nucleus
  2. The internuclear distance “r”
  3. The effective correlation time (𝝉c) of the vector joining the nuclei.

Mechanism of nOe

To understand the mechanism of nOe, a hypothetical situation is created. So, assume that two nuclei termed I and S are in close space to each other and there is no scalar coupling between them. Here, S is irradiated and I being observed.

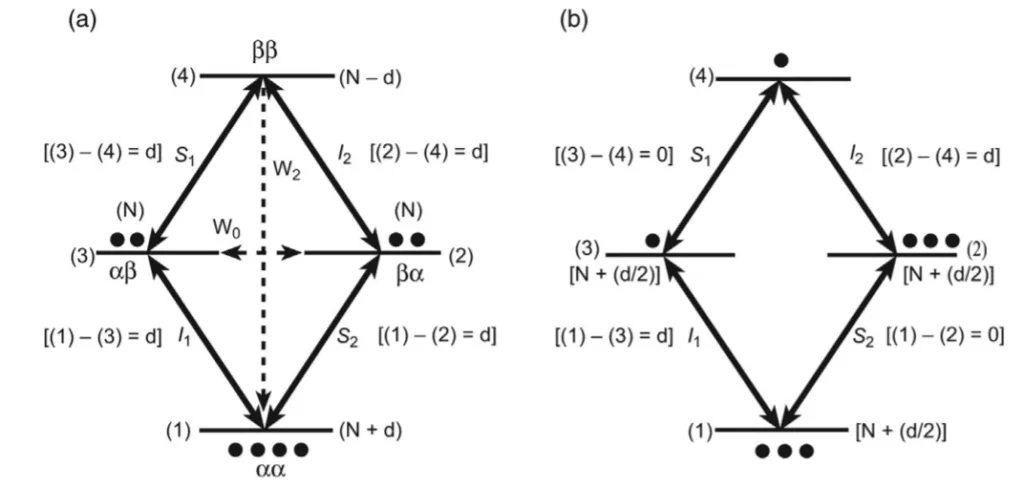

Energy level diagram of the system

Figure: Energy level diagram of the system[1].

  1. The spin population at Boltzmann equilibrium before the irradiation of the nucleus.
  2. The spin population after the irradiation of the S nucleus. Here you can observe that the S nucleus is readily being equalized and the I nucleus remains unaffected.

The two-levels of the transition of nuclei S and I are represented as S1 and S2; and I1 and I2. Further, you know that the nuclei have two energy levels that include alpha (low-energy) and beta (high-energy).

So, the combinations of these states are 𝛂𝜶 (both nuclei at lower state), 𝜶𝞫 (one nucleus at higher and other at lower state), 𝜷𝜶(one nucleus at higher and other at lower state), and  𝞫𝜷 (both nuclei at higher state).

At the thermal equilibrium, the 𝛂𝜶 state contains the highest population, 𝜶𝞫, and 𝜷𝜶 states have an intermediate population, and the 𝞫𝜷 state has the lowest population[1]. And as both the nuclei I and S are not J-coupled, the quantum transitions of both nuclei have the same energy.

Now to understand the nOe, consider the following situations[1]:

  • The population of nucleus I at thermal equilibrium before applying Rf pulse on nucleus S
  • Spin population immediately after applying the pulse to S nucleus
  • Populations at responding time with either W0 or W2 being the predominant relaxation pathway.

So, at thermal equilibrium, the 𝜶𝞫 and 𝜷𝜶 states have N population, 𝛂𝜶 state has (N+d) population, and the 𝞫𝜷 state has (N-d) population. When the pulse has applied, the level 2-4 and 1-2 remain unaffected.

Then the system tries to restore the equilibrium by using a predominant relaxation pathway[1]. It can be double-quantum process W2 (in fast-tumbling, smaller molecules, and lead to positive nOe), or the zero-quantum process W0 (in slower-tumbling macromolecules and lead to negative nOe)[1]

The relaxation occurs by transferring some population x. This whole phenomenon is explained by using the following equation:

When W0 is a predominant relaxation pathway, the x is transferred from 𝜶𝞫 to 𝜷𝜶 state and signal intensity will be reduced. The equation of population difference is represented[5] as:

Between levels 1 and 3:  [ N + (d / 2) – x ] – [N − (d / 2)] = d – x

Between levels 2 and 4:  [ N + (d / 2) ] – [N − (d / 2) + x ] = d – x

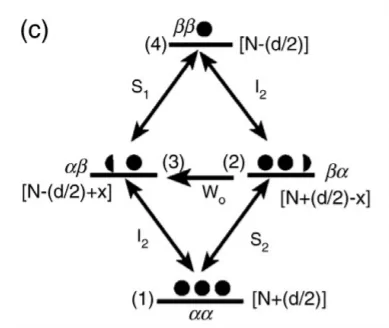

Energy level diagram at different states

Figure: an illustration of population and energy level at different states of nuclei I and S when the system W0 is a predominant relaxation pathway.[1]

When W2 is a predominant relaxation pathway, the x is transferred to the ground state and signal intensity will be enhanced. So, the equation is represented as[5]:

Between levels 1 and 3:  [ N + (d / 2) + x ] – [N − (d / 2)] = d + x

Between levels 2 and 4:  [ N + (d / 2) ] – [N − (d / 2) – x ] = d + x

Illustration of population and energy level

Figure: an illustration of population and energy level at different states of nuclei I and S when the system W0 is a predominant relaxation pathway[1].

Factors Affecting nOe

The nOe depends on some key factors which can alter its response. Further, the effect can also be changed depending on the situation and system of the experiment (like if it’s a three-spin system, three-pin effect, nOe difference spectra.

Factors that affect nOe are[1]:

  • The intrinsic nature of the nuclei I and S.
  • The internuclear distance between both nuclei.
  • The rate of the tumbling off the molecular segment in I and S are present.

Factors of the Molecular Structure Affecting nOe

1. Internuclear distance

The nOe strongly depends on the internuclear distance “r” which can be understood by the following equation.[1]

internuclear distance equation

Where 𝜸s and 𝜸I are the magnetogyric ratios of the two nuclei, S and I.

You can see, here, that the efficiency of the relaxation process depends on (r)-6. So, increasing the internuclear distance by a factor of 2 will decrease the relaxation by a factor of 64. However, the best results can be observed with rigid molecules having an internuclear distance of 3 A0[1].

2. Three-spin system

The case discussed before was of a pair of nuclei. Now, consider another case in which more than a pair of nuclei are arranged linearly at equidistant and exerting relaxation effects on one another.

Like:      A—————B—————C

In this case, the nucleus B will experience more relaxation effects being equidistant from both the nuclei A and C. However, nuclei A and C will only relax by the effect of B[1].

3. Three-spin effects

nOe occurs in two ways: direct and indirect. This effect can be distinguished from their kinetic behavior. Now, consider the same situation as in the above-given case. The nucleus A has a direct effect on the nucleus B and the nOe grows immediately after the irradiation of the neighboring nucleus with a first-order rate constant[1]. Further, the direct nOe also depends on the internuclear distance (r)-6.

However, the indirect nOe is observed after a lag time and the effect can increase or decrease depending on the irradiation time[1]. For example, prolonged irradiation of the A nucleus will build a negative nOe, whereas short irradiation will create a positive nOe at nucleus C.

Experimental Methods Exploiting the Nuclear Overhauser Effect

The one or two dimensional NMR techniques that exploit the nuclear overhauser effect include[6]:

  1. Nuclear overhauser effect spectroscopy (NOESY)
  2. Heteronuclear overhauser effect spectroscopy (HOESY)
  3. Rational frame nuclear overhauser effect spectroscopy (ROESY)
  4. Transferred nuclear overhauser effect (TRNOE)
  5. Double pulsed field gradient spin echo nOe experiment (DPFGSE-NOE)

Practical Factors Affecting nOe Experiment

1. Solvent

The solvent is an essential factor to record the nuclear over Hauser effect. Studies show solvents with sharp intense lock signals (such as d6-DMSO or d6-acetone) are more effective than the weaker lock signal (CDCl3-deuterated chloroform) or broad lock signal (D2O-heavy water)[1]. Heavy water is not a suitable solvent because its chemical shift largely depends on the temperature.

The d6-acetone is preferred in the concentration of 2-3%. Further, the use of protonation of solvents is avoided because they reduce the quality of the spectrum[1]. Also, the presence of exchangeable protons in the solvent can complicate the spectra.

2. Temperature gradient

The temperature gradient affects the quality of the spectrum by disturbing various physiological parameters.[1] For example, different temperatures across a sample can lead to different chemical shifts which further leads to the broadening of the spectral lines.

What are the factors that affect the size of the temperature gradient?

It can be room temperature, heating due to radiofrequency pulses, and due to the flow rate of cooling and heating gases[1].

A larger temperature gradient may impact line broadening and that affects the quality of nOe. So, the temperature gradient should be maintained at a level of 0.05℃ or less.

How can you achieve the required temperature?

It can be done by decreasing the sample-tube diameter, decreasing the sample height, increasing sample viscosity, and using the probe temperature control system[1].

3. Sample purity

The impurities like paramagnetic metal ions can interfere with the nuclear overhauser effect records during experiments. So, it’s necessary to remove these impurities before experimenting[1].

The paramagnetic metal ions can be removed by complexation with ethylenediaminetetraacetate (EDTA) and filtering the solutions through chelating resins. Similarly, oxygen can be removed by repeatedly freezing the content in the NMR tube by dipping it in liquid nitrogen[1].

Also, it’s necessary to remove any moving metal objects near the magnet while performing the nOe experiment.

4. NMR tube quality

The quality of the NMR tube is also a major effect on nOe records. A low-quality NMR tube, instead of high quality, can generate large spinning sidebands, bad line shapes, and also affect the resolution[1]. These problems are difficult to fix.

What comes under the category of good quality NMR tubes?

  • The borosilicate glass used in the making of NMR tubes should have the least paramagnetic impurity[1].
  • It can be operated up to 230 ℃.
  • At ambient temperature, the inner surface of the tube should be resistant to strong acids and bases.

5. Interference of the chemical exchange process

If a nucleus is involved in both the nuclear overhauser effect and the chemical exchange process, then, the intensity of the signal is disturbed.

Further, weak nOe signals are detected, if the chemical exchange process is six to seven times faster than the cross-relaxation rate, regardless of the internuclear distances[1]. So, the identification of signal peaks is considered a major challenge in the case of the chemical exchange process.

Conclusion

The nuclear Overhauser effect is an efficient technique used to determine the 3-D structure of small organic molecules and large biomolecules (such as protein) in solution. The structure is determined by identifying nuclei in close space, where the nOe arises due to dipolar relaxation between nuclei. It is an excellent alternative methodology compared to X-ray crystallography.

The nOe gives detailed information on the internal structure, conformational flexibility, reorientation of molecules, and features that correlate with biological function[3]. It’s a growing area where improvements are being made using modeling software, developing newer experimental protocols, and working on molecular mechanics calculations[3] to get more and clear information on the confirmation of the molecule.
