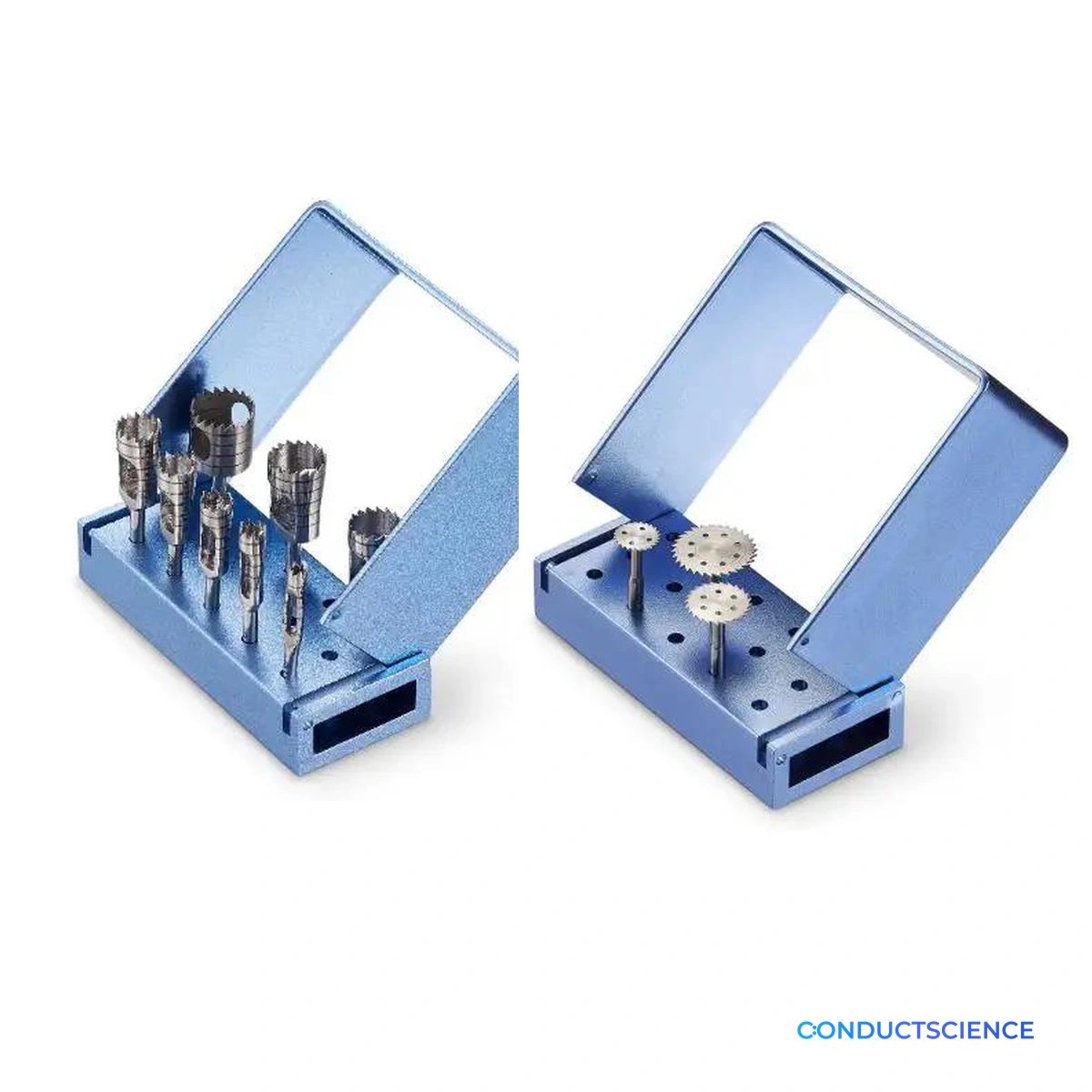

Cranial Trephines and Circular Saws
Selectable cranial trephines and microdrill circular saws for small-animal cranial access, skull-window planning, bone-window preparation, and hard-tissue cutting workflows, with 3.0 mm to 10.0 mm trephine tip diameters on 2.35 mm rods plus 7.0 mm, 10 mm, and 13 mm circular saw options for compatible microdrill setups.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Cranial Trephines and Circular Saws fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- 13 selectable configurations
- SKU family
- CS-SRG-CRANIAL-TREPHINES-SAWS
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Surgical Instruments
- Build notes
- Confirm accessories, station layout, and support needs before purchase
Overview
The Cranial Trephines and Circular Saws page gives neuroscience and small-animal surgery labs a focused selection surface for cranial trephines and microdrill circular saws. The source-backed trephines use a 2.35 mm rod diameter, 26 mm rod length, and selectable 3.0 mm to 10.0 mm tip diameters for circular cranial openings, skull fenestration planning, and bone-window preparation. The circular saw options cover a 3-piece kit plus 7.0 mm, 10 mm, and 13 mm diameters for hard-tissue cutting workflows.
The buying value is diameter control around an existing cranial drill station. Trephines help labs choose the intended circular opening size before the procedure, while circular saws support cutting bone and other hard substances when a saw profile is more appropriate than a burr or standard drill bit. This page keeps the trephine and saw accessories separate from ConductScience microdrills, drill-bit bundles, and stereotaxic drill holders so the buyer can complete an existing station without duplicating the powered drill itself.
Scientific Use
Cranial trephines are used in small-animal neuroscience workflows where a controlled circular skull opening or bone window is part of the surgical preparation. Common planning contexts include cranial-window work, traumatic brain injury model preparation, skull fenestration before downstream access, and regeneration or reconstruction studies after bone removal. Literature examples also describe trephines driven by high-speed microdrills for cranial window preparation in mouse cortical imaging workflows.
Because trephine diameter determines the opening scale, the configuration choice should be made alongside the planned anatomical target, stereotaxic setup, drill holder, microscope access, anesthesia, warming, sterile preparation, and lab-approved surgical workflow. Use the circular saw variants when the station needs a saw-format accessory for hard-tissue cutting rather than a cylindrical trephine opening.
Buying Fit
Choose this page when the purchase is a cranial drill accessory set, replacement trephine, or saw diameter choice. Pair the selected variant with a compatible ConductScience microdrill, stereotaxic microdrill holder or cranial drill holder, drill-bit page, fine tweezers, bone instruments, retractors, magnification, anesthesia, warming, and sterile-field supplies selected around the procedure.
Features & Benefits
Configuration
- Trephine, 3.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 3.5 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 4.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 5.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 6.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 7.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 8.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 9.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Trephine, 10.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length
- Circular saw kit, 3 pieces, 7.0 mm, 10 mm, and 13 mm diameters
- Circular saw, 7.0 mm diameter
- Circular saw, 10 mm diameter
- Circular saw, 13 mm diameter
Accessory groups
- Cranial trephines and circular saw accessories for compatible microdrill workflows
Trephine diameters
- 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm, 8.0 mm, 9.0 mm, and 10.0 mm
Trephine rod format
- 2.35 mm rod diameter and 26 mm rod length
Circular saw options
- 3-piece kit plus 7.0 mm, 10 mm, and 13 mm circular saw diameters
Use fit
- Cranial access, skull fenestration, bone-window preparation, and hard-tissue cutting
Plan with
- Compatible microdrill, drill bits, stereotaxic or cranial drill holder, magnification, anesthesia, warming, and sterile-field setup
| Model | SKU | Listed price | Status | Dimensions |
|---|---|---|---|---|
| Trephine, 3.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-30 | $24.99 | Available | Confirmed during quote |
| Trephine, 3.5 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-35 | $24.99 | Available | Confirmed during quote |
| Trephine, 4.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-40 | $24.99 | Available | Confirmed during quote |
| Trephine, 5.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-50 | $31.99 | Available | Confirmed during quote |
| Trephine, 6.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-60 | $31.99 | Available | Confirmed during quote |
| Trephine, 7.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-70 | $42.99 | Available | Confirmed during quote |
| Trephine, 8.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-80 | $42.99 | Available | Confirmed during quote |
| Trephine, 9.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-90 | $42.99 | Available | Confirmed during quote |
| Trephine, 10.0 mm tip diameter, 2.35 mm rod diameter, 26 mm rod length | CS-SRG-TREPHINE-100 | $42.99 | Available | Confirmed during quote |
| Circular saw kit, 3 pieces, 7.0 mm, 10 mm, and 13 mm diameters | CS-SRG-CIRCULAR-SAW-KIT-3PC | $28.99 | Available | Confirmed during quote |
| Circular saw, 7.0 mm diameter | CS-SRG-CIRCULAR-SAW-70 | $18.99 | Available | Confirmed during quote |
| Circular saw, 10 mm diameter | CS-SRG-CIRCULAR-SAW-100 | $18.99 | Available | Confirmed during quote |
| Circular saw, 13 mm diameter | CS-SRG-CIRCULAR-SAW-130 | $18.99 | Available | Confirmed during quote |
Practical Tips
Choose trephine diameter around the planned cranial opening size before selecting the rest of the drill-station accessories.
Why: The source-backed trephine range runs from 3.0 mm to 10.0 mm, so diameter is the main scientific and purchasing decision.
Review the selected accessory with the ConductScience microdrill, microdrill holder, cranial drill holder, and drill-bit options.
Why: Trephines and circular saws are accessory choices; the powered drill and positioning hardware determine how the station is completed.
Store trephines and saws by diameter in a protected holder or tray and inspect the cutting edges before scheduled work.
Why: Organized storage keeps the correct diameter available and helps preserve cutting performance for repeated cranial-access workflows.
Setup Guide
What’s in the Box
- 1 x selected cranial trephine, circular saw, or 3-piece circular saw kit configuration
- Trephine configurations selected by 3.0 mm to 10.0 mm tip diameter; circular saw configurations selected by 7.0 mm, 10 mm, 13 mm, or 3-piece kit format
Warranty
Support, replacement, and fulfillment terms are confirmed with the final quote and institutional purchasing requirements.
Compliance
Which trephine diameters are available?
The page includes trephines with 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm, 8.0 mm, 9.0 mm, and 10.0 mm tip diameters. The trephines are specified with 2.35 mm rod diameter and 26 mm rod length.
Which circular saw options are available?
The circular saw options include a 3-piece kit plus individual 7.0 mm, 10 mm, and 13 mm diameter saw configurations for compatible microdrill workflows.
How is this different from the Microdrill page?
This page is for the cutting accessories: trephines and circular saws. Use the Microdrill page for the powered drill, and add a stereotaxic microdrill holder or cranial drill holder when the workflow needs fixed positioning.
When should I choose a trephine instead of a circular saw?
Choose a trephine when the workflow is planned around a controlled circular opening diameter. Choose a circular saw when the station needs a saw-format accessory for cutting bone or other hard substances.
What should be ordered with this page for a complete cranial access setup?
A complete setup may include a compatible microdrill, stereotaxic microdrill holder or cranial drill holder, drill bits, fine tweezers, bone instruments, retractors, magnification, anesthesia, warming, and sterile-field supplies selected around the procedure.
