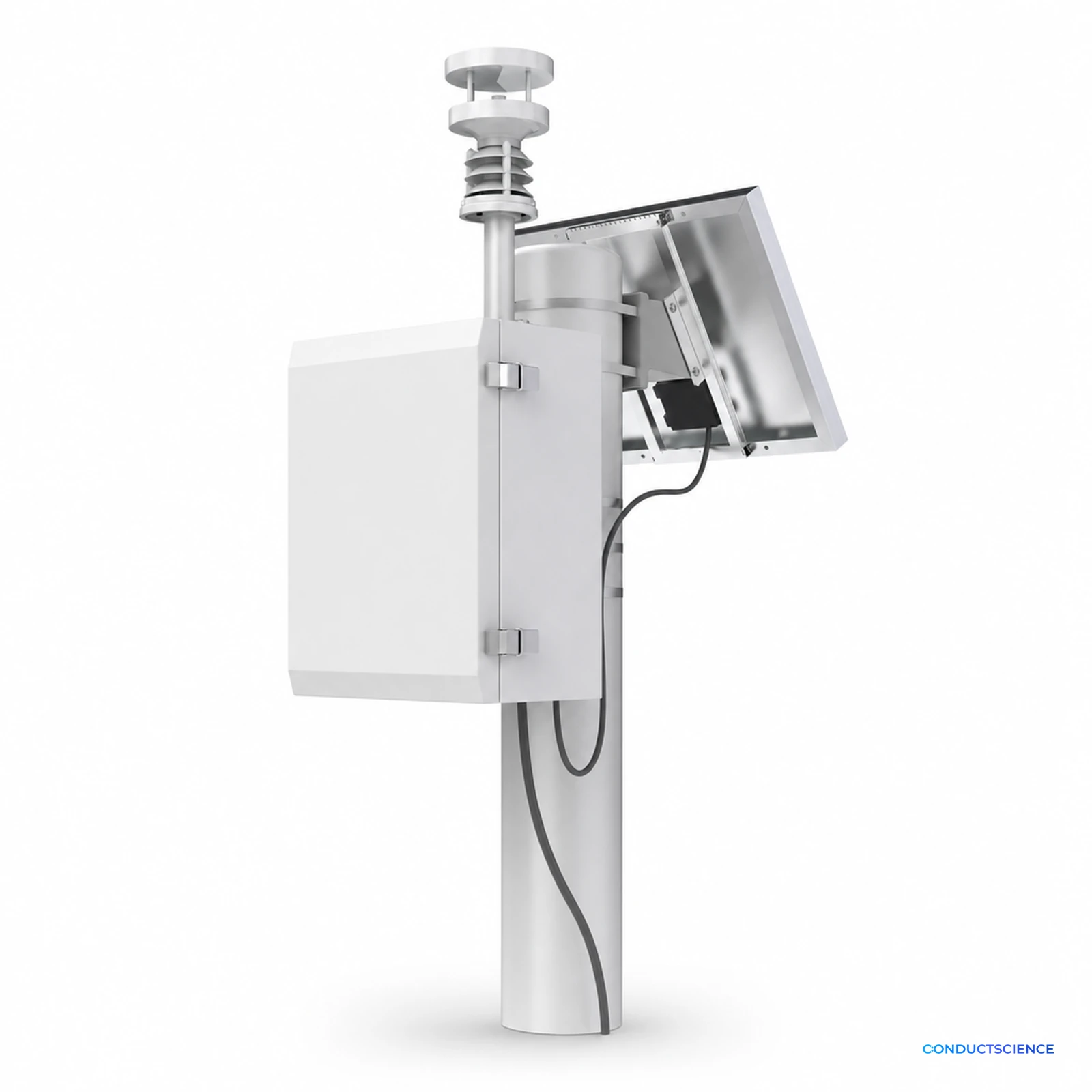

Micro Air Quality Monitoring Station, Pole-Mounted
Low-power pole-mounted station for dense spatial networks and trend analysis.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Micro Air Quality Monitoring Station, Pole-Mounted fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- CS-AIR-00006
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Quote-reviewed before fulfillment
- Category
- Air Quality
- Build notes
- Confirm accessories, station layout, and support needs before purchase
A pole-mounted micro station for spatial pattern work. One reference-grade station tells you the city's air; twenty of these tell you which street. Solar or mains powered, with an expandable parameter list.
Key features
- Customization on parameters according to customer requirement.
- Simultaneous monitoring 10 parameters including PM10 and PM2.5.
- PreCalTM (Pre-calibration), FieldCalTM (Synchronize calibration) and OnTheFlyTM (Portable calibration) with internal temperature compensation to perform highest data validity.
- No consumables, long maintenance interval for minimal maintenance.
Applications
Built for municipal networks, hot-spot mapping and community monitoring programmes.
- trend analysis against stationary AQI analysis
- spatial pollution distribution pattern analysis
- municipal management
Choosing the right configuration
Specify the target species, measurement range, zero and span equipment, sample conditioning, shelter or rack arrangement, communications, and reporting method as one monitoring system. ConductScience reviews the site and calibration plan before quoting.
Features & Benefits
Measuring Factors
- Included factors: SO₂, NO₂, CO, O₃, PM1.0, PM2.5, PM10, and TSPExpandable: meteorological parameters, noise, illumination, rainfall,TVOC, NH₃, H₂S, CH₂O, NO
Particulate Module - Measurement Principle
- Light Scattering Method
Particulate Module - Measuring Range
- 0~1mg/m³ (Expandable)
Particulate Module - Accuracy
- ±20% of readings
Gas Measurement Module - Measurement Principle
- Electrochemical Method
Gas Measurement Module - Measuring Range
- SO₂, NO₂, O₃: 0~500ppb; (Expandable) CO: 0~50ppm; (Expandable)
Gas Measurement Module - Lower Detection Limit
- SO₂, NO₂, O₃: ≤5ppb; CO: ≤0.04ppm
Supply Voltage
- AC 220V/solar power, ≤5W (excluding heating, 10W with heating)
What does this instrument measure, and who is it for?
It measures air quality densely enough to resolve which street, not merely which city. It is built for municipal networks, hot-spot mapping and community monitoring programmes. It is designed for continuous, unattended operation in a monitoring shelter or cabinet, with periodic zero and span calibration.
What measurement principle does it use?
Compact electrochemical and light-scattering sensing, low enough in power and cost to be deployed as a dense network. One reference station tells you the city's air; twenty of these tell you the street's.
Which specifications are confirmed?
The specification table lists eight confirmed ordering parameters for this instrument. Use them to compare the operating range, utilities, and analytical performance required by the method. They include Particulate Module - Measuring Range at 0~1mg/m³ (Expandable), Particulate Module - Accuracy at ±20% of readings and Gas Measurement Module - Lower Detection Limit at SO₂, NO₂, O₃: ≤5ppb; CO: ≤0.04ppm.
What should be confirmed before ordering?
Confirm siting and inlet configuration, zero and span gas supply, the calibration interval your reporting regime requires, and the data acquisition and reporting path. These are configured and quoted per installation, so raise anything unusual about the site during quote review rather than after delivery.
What else is needed to run it?
A zero air generator and a multi-point dilution calibrator. Every concentration this analyser reports is measured against its zero. A zero that is not actually zero is a systematic error in every number downstream of it, so the calibration gear is not an accessory, it is what makes the readings defensible.
How is it supplied?
This instrument is configured and quoted per installation rather than sold at a list price. Request a quote and we will confirm the configuration, the site requirements and the lead time before anything is ordered.
