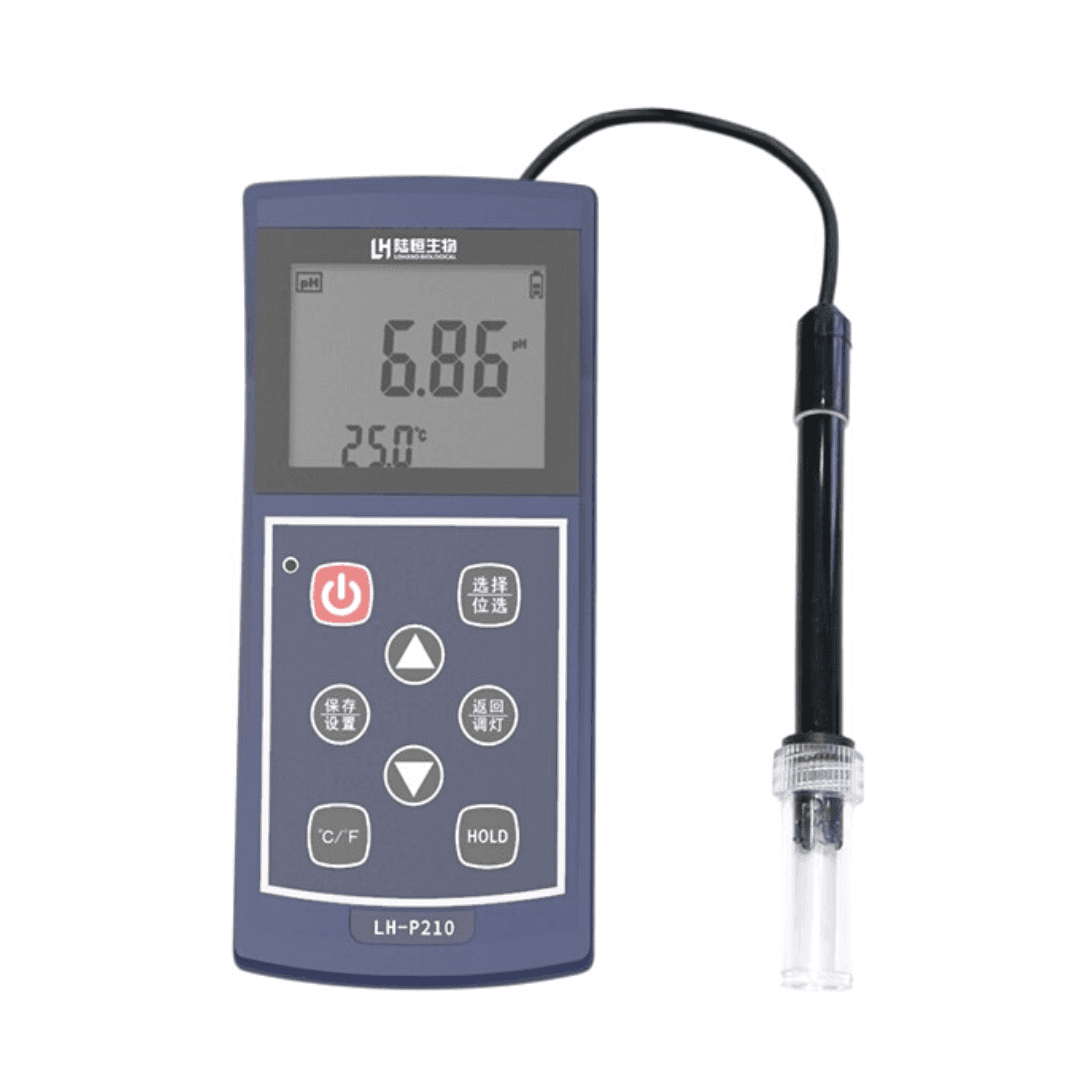

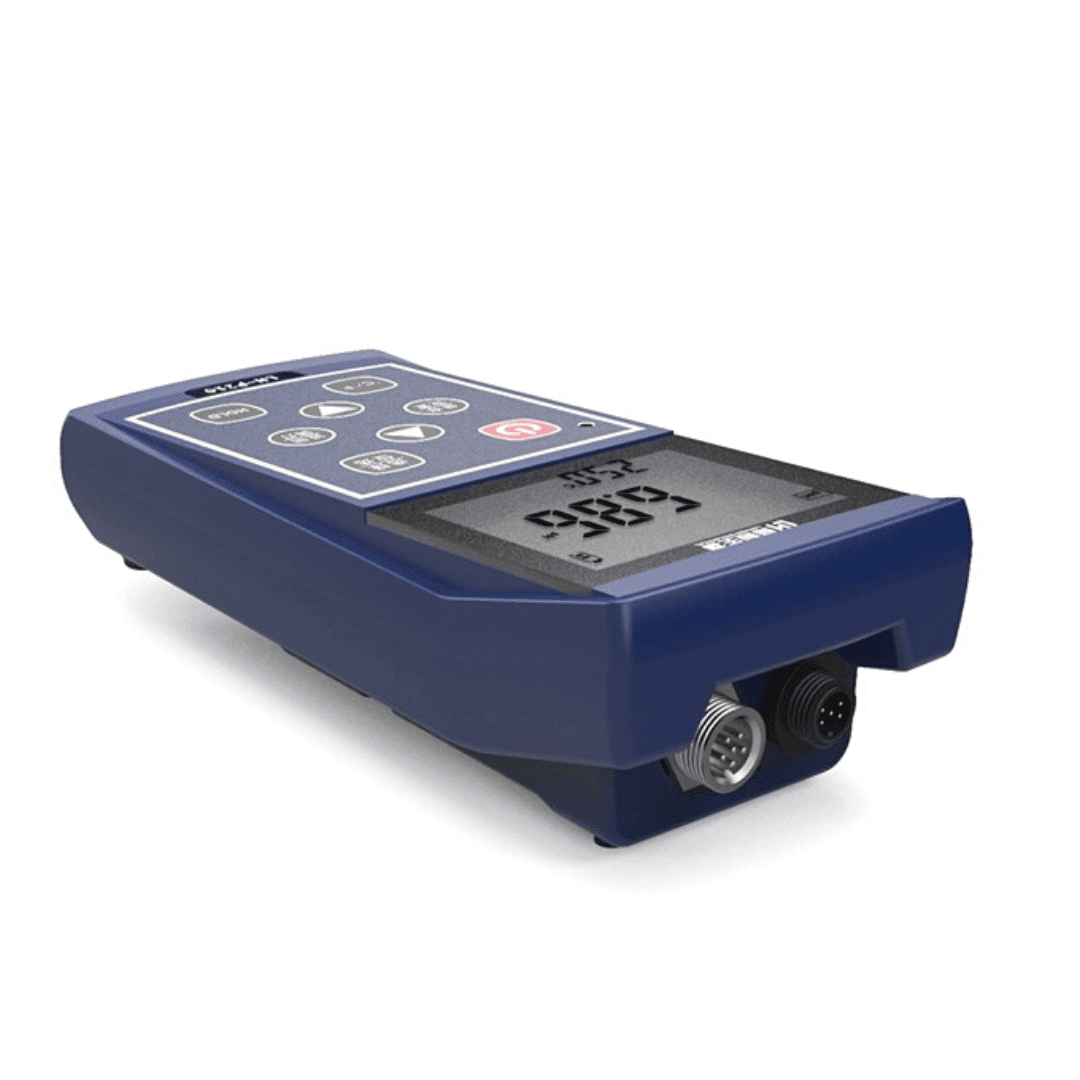

pH analyzer sensor
Portable pH analyzer with 32-bit microprocessor, automatic temperature compensation, and IP65 protection for accurate field and laboratory pH measurements from 0.00-14.00 pH.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about pH analyzer sensor fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- LB-LH-T55-1
- Shipping box
- 16.5 × 7.5 × 5.1 cm
- Ordering
- Online checkout and quote request available
- Category
- Imaging & Analysis
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The pH analyzer sensor is a portable, microprocessor-controlled instrument designed for precise pH, mV, and temperature measurements in field and laboratory environments. Built with a 32-bit microprocessor and automatic temperature compensation, this device provides accurate pH readings across the full 0.00-14.00 pH range with ±0.02 pH accuracy. The IP65-rated housing ensures reliable operation in demanding conditions while the lithium battery power system supports extended field use.
Key measurement capabilities include pH detection with 0.01 pH resolution, millivolt measurements from -1999.9 to 1999.9 mV with 0.1 mV resolution, and temperature monitoring from 0.0-80.0°C. The instrument features flexible calibration options using three types of pH buffer reagents for one-point or two-point calibration procedures, making it suitable for environmental monitoring, water quality assessment, and analytical chemistry applications where accurate pH determination is critical.
How It Works
The pH analyzer operates on the principle of potentiometric measurement using a glass electrode system. When the glass electrode contacts an aqueous solution, hydrogen ions in the solution interact with the hydrated gel layer on the electrode surface, creating a potential difference proportional to the hydrogen ion activity. This potential is measured against a stable reference electrode, typically silver/silver chloride, and converted to pH units using the Nernst equation.
The 32-bit microprocessor processes the electrode signal and applies automatic temperature compensation within the 0.0-60.0°C range, correcting for the temperature dependency of the Nernst slope. The system simultaneously measures temperature using an integrated sensor and adjusts the pH calculation accordingly, ensuring accurate readings across varying environmental conditions.
Calibration is performed using standard pH buffer solutions, with the microprocessor storing calibration parameters for one-point or two-point procedures. The instrument can be calibrated using three different buffer reagent types, allowing users to select buffers appropriate for their specific measurement range and application requirements.
Features & Benefits
Research identifier
This ID comes from the Ontology for Biomedical Investigations (OBI). Use it in data records and methods sections.
- Device type
- pH meter
OBI:0001047
Instrument Type
- Water Quality
Application Area
- Environmental Testing
Automation Level
- manual
Product Application
- Environmental Research
- Environmental Studies
Measuring Range pH
- 0.00-14.00 pH
Measuring Range Mv
- -1999.9~1999.9 mV
pH Temperature Compensation Range
- 0.0-60.0°C (32-140°F)
Protection Grade
- IP65
Microprocessor
- 32-bit
Calibration Options
- One-point or two-point calibration with three kinds of pH buffer reagents
Automatic Temperature Compensation
- Yes
Power Management
- Charging and power failure protection
Backlight
- Automatic on/off by external light
Power/Voltage
- Polymer lithium battery
Temperature Range
- 0.0-80.0°C (32-176°F)
Accuracy
- pH: ≤±0.02pH, mV: ≤±0.1%F.S, Temp: ≤±0.5°C
- pH: 0.01 pH, mV: 0.1 mV, Temp: 0.1°C (0.1°F)
Display Type
- LCD
Weight
- 270g (without electrodes)
Dimensions
- 165mm x 75mm x 51mm
Research Domain
- Analytical Chemistry
- Environmental Monitoring
- Food Science
- Microbiology
- Pharmaceutical QC
Shipping weight
- 0.6 lb
Shipping box
- L: 16.5 cm
- W: 7.5 cm
- H: 5.1 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Measurement Accuracy | ±0.02 pH accuracy with 0.01 pH resolution | Entry-level portable meters often provide ±0.1 pH accuracy with 0.1 pH resolution | Higher precision enables detection of small pH changes critical in environmental monitoring and quality control applications. |
| Temperature Compensation | Automatic compensation from 0.0-60.0°C with integrated temperature sensor | Basic models require manual temperature adjustment or have limited compensation ranges | Eliminates user error and ensures consistent accuracy across varying field conditions without manual calculations. |
| Environmental Protection | IP65 dust and water protection rating | Standard portable meters often have IP54 or no rated protection | Enables reliable operation in harsh field environments where dust and moisture exposure is unavoidable. |
| Calibration Flexibility | Three buffer reagent types with one-point or two-point calibration options | Basic instruments typically support only standard buffers with fixed calibration procedures | Accommodates diverse application requirements and allows optimization for specific pH ranges and measurement conditions. |
| Power System | Polymer lithium battery with charging and power failure protection | Standard models use disposable batteries without power management features | Reduces operating costs and provides reliable power with protection against data loss during extended field operations. |
| Display System | Widescreen LCD with operation prompts and automatic backlight control | Basic instruments have smaller displays without guidance features | Improves usability and reduces operator errors through clear visual feedback and step-by-step operational guidance. |
This pH analyzer combines laboratory-grade accuracy with rugged field portability, offering automatic temperature compensation and comprehensive calibration options. The IP65 protection rating and advanced power management make it particularly suitable for demanding environmental and field applications where reliability is essential.
Practical Tips
Always calibrate using buffers that bracket your expected sample pH range, and perform calibration at the same temperature as your samples when possible.
Why: This ensures optimal accuracy within your specific measurement range and minimizes temperature-related errors.
Store the pH electrode in appropriate storage solution or pH 4.01 buffer, never in distilled water which can damage the electrode junction.
Why: Proper storage maintains electrode hydration and prevents junction clogging that leads to slow response and measurement drift.
Rinse electrodes with distilled water and gently blot dry between samples to prevent cross-contamination.
Why: This eliminates carryover effects that can bias subsequent measurements, especially when measuring samples with significantly different pH values.
If readings are unstable or drifting, check electrode condition by measuring pH 7.00 buffer and verify the reading stabilizes within 2 minutes.
Why: Slow response or continuous drift indicates electrode aging, contamination, or improper storage requiring reconditioning or replacement.
Allow sufficient equilibration time for each measurement, especially in low-conductivity samples or when large temperature differences exist.
Why: Premature readings before electrode equilibrium can result in significant measurement errors and poor reproducibility.
Avoid measuring extremely alkaline samples (pH >12) for extended periods as this can damage the pH electrode glass membrane.
Why: High pH solutions can dissolve the electrode glass, leading to permanent damage and requiring electrode replacement.
Replace calibration buffers regularly and store them properly sealed to prevent contamination and concentration changes.
Why: Degraded or contaminated buffers lead to calibration errors that propagate through all subsequent measurements.
Record ambient temperature during field measurements even when using automatic compensation to document measurement conditions.
Why: Temperature documentation helps identify potential sources of measurement variation and supports data quality assurance protocols.
Setup Guide
What’s in the Box
- pH analyzer main unit
- pH electrode (typical)
- Temperature sensor (typical)
- Calibration buffer solutions (typical)
- Power adapter/charging cable (typical)
- Protective electrode caps (typical)
- User manual and calibration certificate (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with comprehensive technical support for calibration procedures and troubleshooting assistance.
Compliance
What calibration frequency is recommended for maintaining measurement accuracy?
Two-point calibration should be performed daily for routine use, or before each measurement session when high accuracy is critical. Single-point calibration with pH 7.00 buffer can be used for less demanding applications.
How does temperature compensation affect pH readings in field conditions?
Automatic temperature compensation operates from 0.0-60.0°C, adjusting pH calculations based on the temperature-dependent Nernst slope. This eliminates the need for manual corrections when measuring samples at varying temperatures.
What electrode maintenance is required for optimal performance?
Store the pH electrode in pH 4.01 buffer or electrode storage solution when not in use. Clean with distilled water between samples and recondition by soaking in buffer solution if response becomes sluggish.
Can this analyzer measure pH in non-aqueous or low-conductivity samples?
The instrument is designed for aqueous solutions with sufficient ionic strength. Low-conductivity samples may require longer stabilization times, and non-aqueous measurements should be verified against known standards.
How long does the lithium battery operate during continuous field use?
Battery life depends on usage patterns and backlight activation. The power management system includes low-power design features and automatic backlight control to extend operation time, though specific duration should be verified under actual use conditions.
What is the measurement response time for pH stabilization?
Response time varies with sample composition and temperature, typically ranging from 30 seconds to several minutes. The LCD display provides stability indicators to ensure readings are taken after equilibration.
How does this compare to laboratory-grade benchtop pH meters?
This portable analyzer offers comparable accuracy (±0.02 pH) to many benchtop instruments while providing field portability and rugged construction. Benchtop meters may offer additional features like data logging and advanced calibration options.
