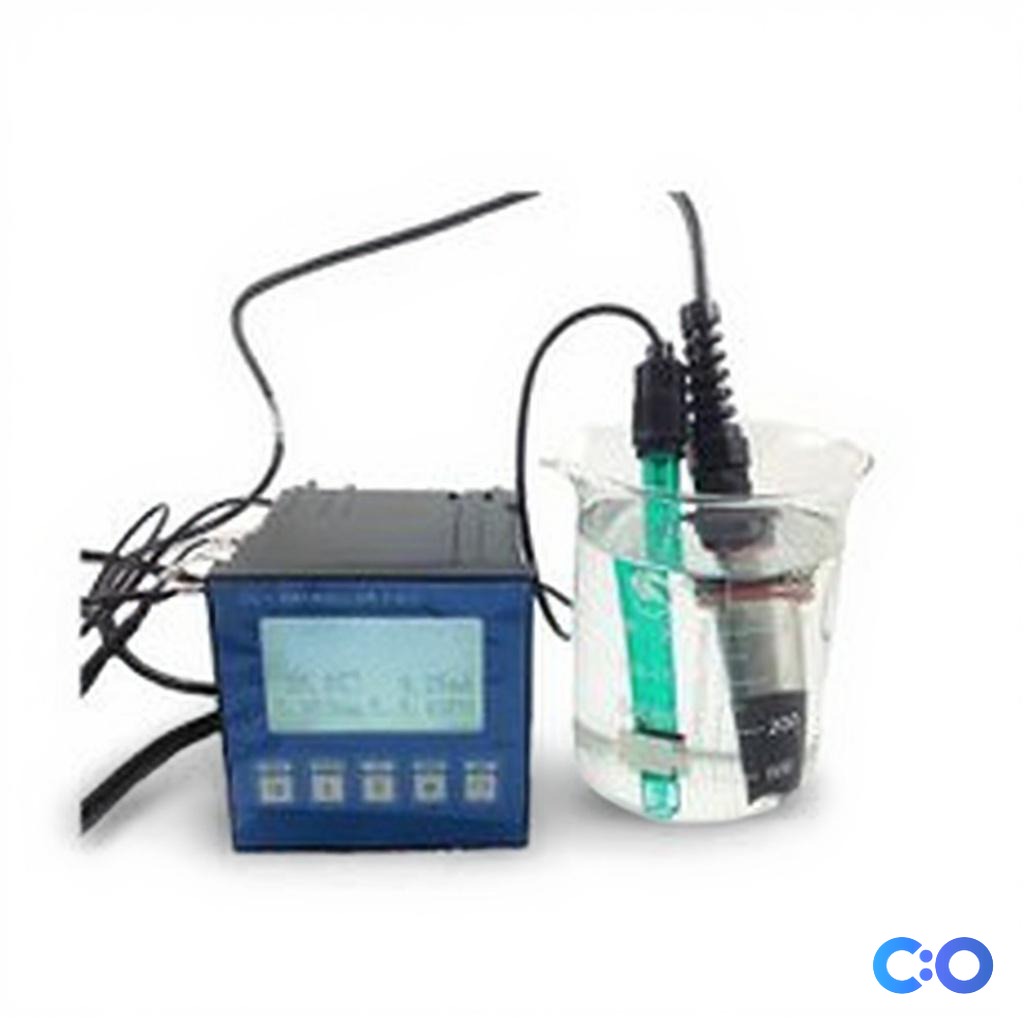

Residual Chlorine Electrode
Amperometric residual chlorine electrode with gold cathode and pH compensation for continuous water quality monitoring from 0-20 mg/L with 0.05 mg/L detection limit.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Residual Chlorine Electrode fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- CS-LH-IND005
- Sizing
- 15.0 x 5.0 x 5.0 cm
- Ordering
- Online checkout and quote request available
- Category
- Industrial Sensors
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The Residual Chlorine Electrode is an amperometric sensor designed for continuous monitoring of free chlorine concentrations in water systems. The electrode utilizes a three-electrode configuration with a gold cathode, silver/silver chloride anode, and reference electrode immersed in an electrolyte chamber. A selective membrane permits hypochlorous acid diffusion while preventing electrolyte leakage and sample contamination.
The sensor measures chlorine concentrations through the electrochemical reduction of hypochlorous acid at the gold cathode, generating a current proportional to chlorine concentration. Integrated pH compensation ensures accurate measurements across varying water conditions. With a measurement range of 0-20 mg/L and detection limit of 0.05 mg/L, the electrode provides reliable quantification for water treatment verification, disinfection monitoring, and process control applications.
How It Works
The residual chlorine electrode operates on the principle of amperometric detection through selective electrochemical reduction. Hypochlorous acid (HClO) in the sample diffuses through a selective membrane into the electrode's electrolyte chamber. At the gold cathode, HClO undergoes reduction according to the reaction: HClO + H+ + 2e- → Cl- + H2O. The resulting reduction current is directly proportional to the hypochlorous acid concentration in the sample.
The three-electrode system maintains stable electrochemical conditions through a silver/silver chloride reference electrode and auxiliary electrode. The selective membrane prevents interference from other oxidizing species while allowing free chlorine to pass. Integrated pH compensation algorithms correct for the pH-dependent equilibrium between hypochlorous acid (HClO) and hypochlorite ion (ClO-), ensuring accurate total free chlorine measurements across the specified pH range of 4-8.
The electrode generates an analog current signal that is converted to chlorine concentration through calibrated response curves. The T90 response time of less than 120 seconds provides near real-time monitoring capability for process control applications.
Features & Benefits
Measuring range
- 0-20mg/L
Lower limit
- 0.05mg/L
Ph range
- 4-8
Repeatability
- 0.05mg/L or 5% larger as the standard
Respinse time
- T90ï¼120S
Velocity of flow
- â¥20L/H
Automation Level
- semi-automated
Brand
- ConductScience
Accuracy
- ±10%ï¼DPDï¼
Research Domain
- Clinical Diagnostics
- Food Science
- Industrial Hygiene
- Microbiology
- Pharmaceutical QC
- Water Quality & Environmental Monitoring
Weight
- 0.26 kg
Dimensions
- L: 15.0 mm
- W: 5.0 mm
- H: 5.0 mm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Detection Range | 0-20 mg/L with 0.05 mg/L lower limit | Entry-level sensors often limited to 0-5 mg/L ranges | Extended range covers both low-level residual monitoring and high-dose disinfection applications without sensor changes. |
| pH Operating Range | pH 4-8 with compensation | Many sensors limited to pH 6-8 ranges | Broader pH tolerance accommodates acidic treatment processes and varying source water conditions. |
| Response Time | T90 <120 seconds | Basic sensors may require 3-5 minutes for stable readings | Rapid response enables real-time process control and immediate alarm response in critical applications. |
| Measurement Accuracy | ±10% versus DPD standards | Lower-cost sensors often specify ±20% or greater | Higher accuracy meets stringent water quality requirements and regulatory compliance protocols. |
| Electrode Design | Gold cathode with silver/silver chloride anode | Some sensors use platinum or carbon electrodes | Gold cathode provides superior chlorine resistance and long-term stability in continuous monitoring applications. |
| Flow Rate Tolerance | ≤20 L/H maximum flow | Varies by model and membrane design | Defined flow specifications ensure optimal membrane performance and prevent sample turbulence interference. |
This electrode offers a comprehensive measurement range with integrated pH compensation and rapid response characteristics. The gold cathode design and selective membrane construction provide reliable performance in continuous water treatment monitoring applications requiring accurate free chlorine quantification.
Practical Tips
Prepare fresh DPD standards daily and store in dark containers to prevent chlorine decomposition during calibration procedures.
Why: Chlorine standards degrade rapidly in light and over time, leading to calibration errors and measurement drift.
Clean the membrane surface weekly with soft brush and deionized water to remove biofilm and mineral deposits.
Why: Membrane fouling reduces response time and measurement accuracy by blocking hypochlorous acid diffusion.
Install the electrode downstream of chemical injection points but upstream of storage tanks to monitor actual residual levels.
Why: This location provides representative measurement of disinfection efficacy while avoiding interference from unmixed chemicals.
If readings drift high, check for membrane damage or electrolyte contamination and replace if necessary.
Why: Membrane integrity is critical for selective chlorine detection and prevention of sample matrix interference.
Record sample temperature and pH alongside chlorine measurements to identify potential measurement influences.
Why: Temperature and pH affect chlorine chemistry and electrode response, enabling better data interpretation and troubleshooting.
Ensure proper ventilation when handling concentrated chlorine calibration solutions and wear appropriate PPE.
Why: Chlorine gas release from concentrated solutions poses respiratory hazards and requires adequate safety precautions.
Verify zero calibration with sodium thiosulfate-dechlorinated water rather than tap water to ensure true chlorine-free baseline.
Why: Complete chlorine removal is essential for accurate zero-point calibration and prevents measurement offset errors.
Replace electrolyte solution according to manufacturer schedule or when response becomes sluggish or unstable.
Why: Electrolyte degradation affects electrochemical stability and measurement precision over extended operation periods.
Setup Guide
What’s in the Box
- Residual chlorine electrode with integrated cable
- Electrolyte refill solution (typical)
- Membrane replacement kit (typical)
- Calibration standards set (typical)
- Installation hardware and fittings (typical)
- Operating manual and calibration procedures (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering electrode defects and performance specifications. Technical support includes calibration guidance and troubleshooting assistance for optimal measurement performance.
Compliance
References
Background reading relevant to this product:
How does pH affect chlorine speciation and measurement accuracy?
The electrode measures total free chlorine (HOCl + OCl-) but responds primarily to hypochlorous acid. pH compensation algorithms correct for the equilibrium shift between HOCl and OCl- across the pH 4-8 range, ensuring accurate total free chlorine reporting regardless of sample pH.
What interfering species can affect measurement accuracy?
Oxidizing species like ozone, bromine, and chlorine dioxide can cause positive interference. The selective membrane minimizes many interferences, but samples with high oxidizer levels may require pretreatment or alternative measurement methods.
How frequently should the electrode be calibrated?
Calibration frequency depends on application criticality and water matrix. Typical schedules range from daily for critical process control to weekly for routine monitoring, with verification against DPD standards recommended between full calibrations.
What is the expected membrane lifetime and replacement indicators?
Membrane life varies with chlorine exposure levels and operating conditions, typically 6-12 months. Replace when response time exceeds specifications, calibration drift increases, or zero stability degrades beyond acceptable limits.
Can the electrode measure chloramine or combined chlorine?
This electrode specifically measures free available chlorine (HOCl/OCl-). Chloramines and combined chlorine species require different measurement techniques, such as DPD colorimetric methods with specific reagent sequences.
What sample temperature limitations apply?
Operating temperature specifications should be verified from the product datasheet. Most electrodes operate effectively in the 0-50°C range, but temperature compensation may be required for accurate measurements across wide temperature variations.
How does sample flow rate affect measurement stability?
Flow rates above 20 L/H can damage the membrane and create turbulence affecting measurement stability. Optimal flow rates provide adequate sample renewal while maintaining gentle contact with the electrode surface.
What data output formats are available for integration with control systems?
Output specifications depend on the connected transmitter or analyzer. Common outputs include 4-20 mA analog signals, digital communication protocols, and alarm relay contacts for integration with SCADA or control systems.
