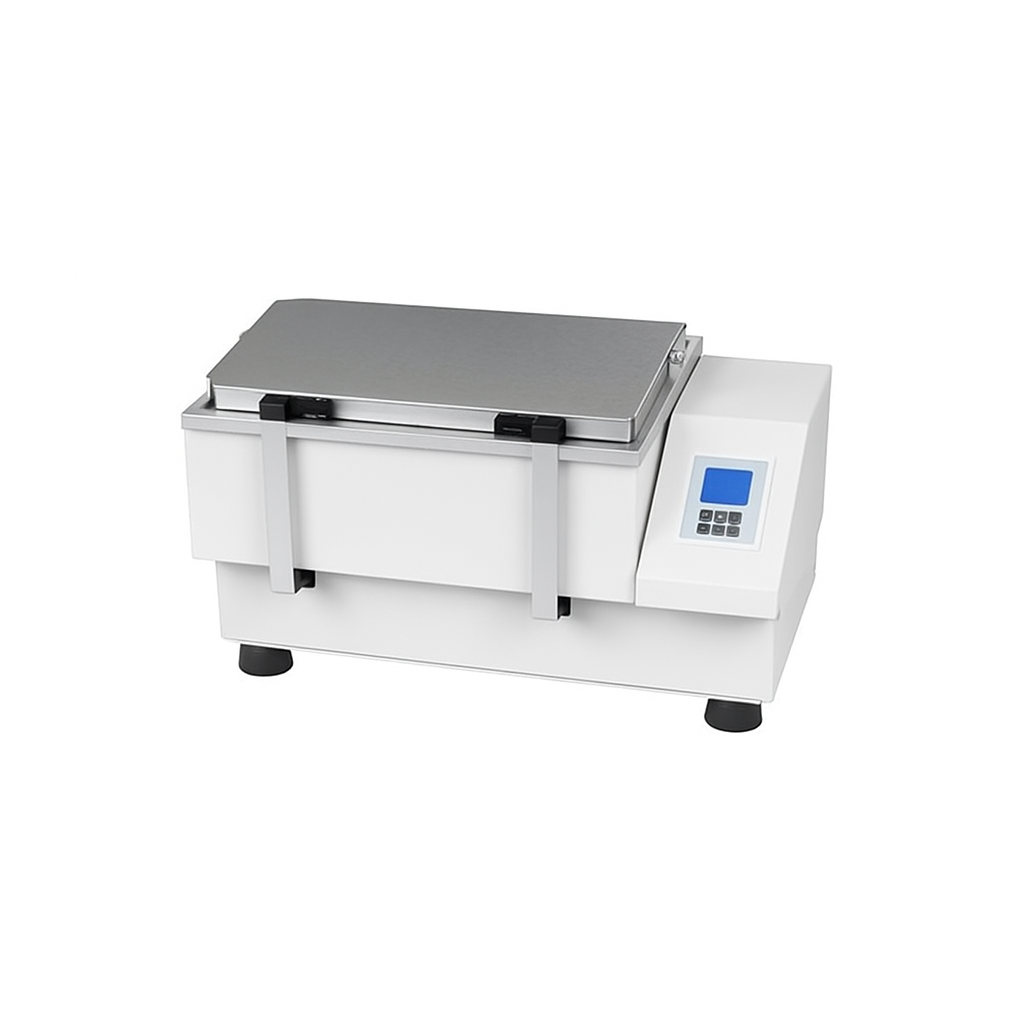

Thermostatic Shaking Water Bath SHZ-A10
The Thermostatic Shaking Water Bath combines controlled water-bath heating with reciprocating shaking for applications requiring stable temperature and consistent sample agitation.
Features digital constant-speed control, LCD interface, and stainless-steel construction.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Thermostatic Shaking Water Bath SHZ-A10 fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- Assigned during quote
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Water Baths
- Build notes
- Confirm accessories, station layout, and support needs before purchase
Description
The Thermostatic Shaking Water Bath combines controlled water-bath heating with reciprocating shaking for applications requiring stable temperature and consistent sample agitation. It is suitable for culture preparation and experimental workflows in biological, microbiological, genetic, environmental, medical, research, educational, and production laboratories.
The system provides digital constant-speed control and an LCD interface displaying temperature, real-time shaking speed, and operating time. Its stainless-steel chamber and universal spring platform accommodate flasks, beakers, and irregularly shaped sample containers. A flow-stabilizing plate helps limit splashing during high-speed operation.
Key Features
- Reciprocating shaking with constant-speed control
- LCD display for temperature, speed, and time
- Operating-parameter memory and recovery
- Temperature and speed alarms
- Flow-stabilizing plate to reduce splashing
- Corrosion-resistant stainless-steel chamber and fixture
- Durable coated-steel exterior
- Universal spring platform for different vessel shapes and sizes
- Continuous or timed operation
Specifications
| Specification | SHZ-A10 |
| Shaking method | Reciprocating |
| Shaking amplitude | 20 mm |
| Shaking speed | 30–300 rpm |
| Temperature range | Ambient +5°C to 100°C |
| Published temperature precision | 0.1°C |
| Temperature control | PID microcomputer control |
| Display | LCD |
| Timer | 1–9,999 minutes/hours or continuous |
| Bath capacity | 32.5 liters |
| Standard accessory | Universal spring platform |
| Platform dimensions | 300 × 400 mm |
| Chamber dimensions | 490 × 390 × 170 mm |
| External dimensions | 720 × 480 × 530 mm |
| Packaged dimensions | 792 × 612 × 616 mm |
| Power consumption | 1,500 W |
| Standard electrical supply | AC 220 V, 50/60 Hz |
| Optional electrical supply | AC 110 V, 50/60 Hz with external transformer |
| Gross weight | 46 kg |
The specified chamber dimensions correspond to approximately 32.5 L of geometric chamber volume, consistent with the provided capacity statement.
Comparison Guide
The SHZ-A10 page contains only one model. Compared with the previously reviewed SWB-301, SWB-302, and SWB-303 series:
| Feature | SHZ-A10 | SWB-301 | SWB-302 | SWB-303 |
| Shaking motion | Reciprocating | Orbital | Orbital and reciprocating | Reciprocating |
| Shaking amplitude | 20 mm | 26 mm | 26 mm | 26 mm |
| Speed range | 30–300 rpm | 0 or 20–300 rpm | 0 or 20–300 rpm | 0 or 20–300 rpm |
| Static operation | Not specified | Yes | Yes | Yes |
| Temperature range | Ambient +5–100°C | Ambient–100°C | Ambient–100°C | Ambient–100°C |
| Published temperature precision | 0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Timer | 1–9,999 min/hr or continuous | 0–9,999 hr/min | 0–9,999 hr/min | 0–9,999 hr/min |
| Platform size | 300 × 400 mm | 498 × 316 mm | 498 × 316 mm | 498 × 316 mm |
| Vessel configurations | Universal spring platform; counts not specified | Up to 24 × 100 mL, 15 × 250 mL, 8 × 500 mL, or 6 × 1 L | Same | Same |
| Bath capacity | 32.5 L | Not published | Not published | Not published |
| Power consumption | 1,500 W | 1,400 W | 1,400 W | 1,400 W |
| External dimensions | 720 × 480 × 530 mm | 640 × 620 × 550 mm | Same | Same |
| Gross weight | 46 kg | 100 kg | 100 kg | 100 kg |
Applications
The Thermostatic Shaking Water Bath is suitable for a wide range of laboratory applications including:
- Culture preparation and sample incubation
- Biological and microbiological research
- Genetic studies and molecular biology
- Environmental testing
- Medical diagnostics and research
- Educational laboratory demonstrations
- Industrial production workflows
