1-Channel Homeothermic Controller Bundle
Closed-loop temperature controller for one warming position. Fixed at 1 pad. Select from 7 heating-pad models.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about 1-Channel Homeothermic Controller Bundle fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- 7 selectable configurations
- SKU family
- Assigned during quote
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Uncategorized
- Build notes
- Confirm accessories, station layout, and support needs before purchase

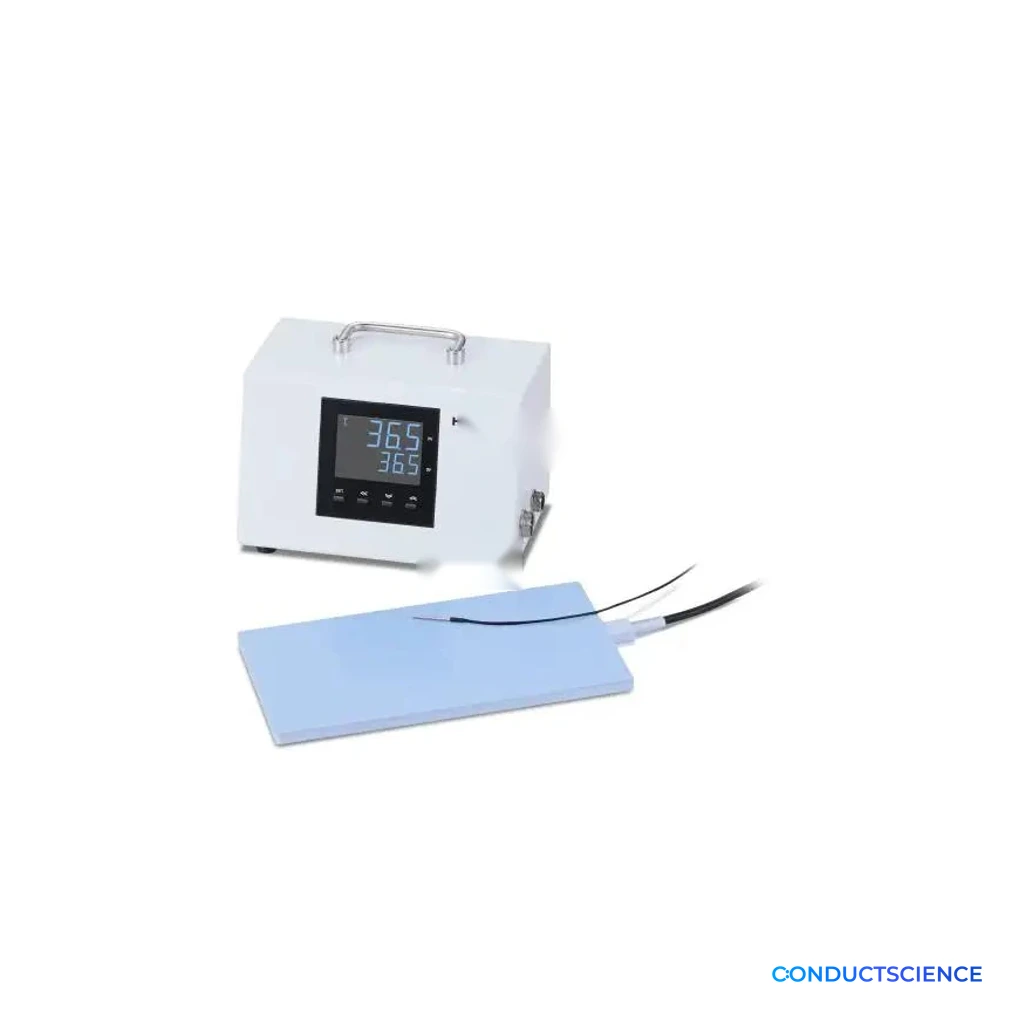

1-Channel Homeothermic Controller Bundle
Overview
The 1-Channel Homeothermic Controller Bundle is a closed-loop temperature-control system for maintaining body temperature in one mouse or rat during anesthesia, surgery, stereotaxic preparation, imaging, perfusion, and recovery workflows.
The controller receives temperature feedback from a compatible rectal probe and adjusts the heating-pad output around the selected target temperature.
This bundle is designed for one animal or one procedure position.
Customer Selection
The customer selects one of seven heating-pad models. The bundle always includes one pad, so no separate pad-quantity selection is required.
Features and Benefits
- One controlled warming position
- Closed-loop rectal-probe feedback
- Seven selectable heating-pad sizes
- Suitable for mouse and rat workflows
- 10–50°C target-temperature setting
- 0.1°C display resolution
- Universal 90–264V AC input
- Replacement and additional pads available separately
What's Included
- One 1-channel Homeothermic Controller
- One heating pad in the selected model
- Associated product documentation
Compatibility Notice
Connector compatibility: The 70 × 100 mm and 120 × 205 mm pads use a 5-pin connector. The larger custom pad formats use a 2-pin connector. Confirm compatibility with the controller before fulfillment.
Controller Specifications
| Controller configuration | 1 channel |
| Controlled positions | 1 |
| Selectable pad quantity | Fixed at 1 |
| Control method | Closed-loop rectal-probe feedback |
| Target-temperature setting | 10–50°C |
| Display resolution | 0.1°C |
| Input power | 90–264V AC, 50/60Hz |
| Output | 24V, 8.3A |
| Compatible species | Mouse and rat |
| Mouse probe planning | 1.5 × 15 mm |
| Rat probe planning | 2.0 × 30 mm |
Heating Pad Models
| Heating-pad model | Dimensions | Electrical rating | Connector |
|---|---|---|---|
| Mouse XS | 70 × 100 mm | 12V/8W | 5-pin |
| Mouse/Rat | 120 × 205 mm | 12V/35W | 5-pin |
| Small | 150 × 250 mm | 12V/15W | 2-pin |
| Long | 120 × 400 mm | 12V/40W | 2-pin |
| Cage | 200 × 350 mm | 12V/40W | 2-pin |
| Cage XL | 300 × 500 mm | 12V/50W | 2-pin |
| Cage XXL | 400 × 600 mm | 12V/15W | 2-pin |
Note: Prices update automatically based on selected heating-pad model and quantity.
Heating Pad Model
- 70×100 mm Mouse XS
- 120×205 mm Mouse/Rat
- 150×250 mm Small
- 120×400 mm Long
- 200×350 mm Cage
- 300×500 mm Cage XL
- 400×600 mm Cage XXL
| Model | SKU | Listed price | Status | Dimensions |
|---|---|---|---|---|
| 400×600 mm Cage XXL | CS-HS-1CH-XXL-1P | $1,500.00 | Available | Confirmed during quote |
| 300×500 mm Cage XL | CS-HS-1CH-XL-1P | $1,500.00 | Available | Confirmed during quote |
| 200×350 mm Cage | CS-HS-1CH-CG-1P | $1,450.00 | Available | Confirmed during quote |
| 120×400 mm Long | CS-HS-1CH-LG-1P | $1,450.00 | Available | Confirmed during quote |
| 150×250 mm Small | CS-HS-1CH-SM-1P | $1,430.00 | Available | Confirmed during quote |
| 120×205 mm Mouse/Rat | CS-HS-1CH-STD-1P | $1,435.00 | Available | Confirmed during quote |
| 70×100 mm Mouse XS | CS-HS-1CH-XS-1P | $1,425.00 | Available | Confirmed during quote |
