High Definition HDMI Professional CCD Camera Microscope Camera for Measuring
Professional HDMI microscope camera delivering 1920×1080 resolution at 60 FPS for precision measurement and documentation applications in quality control and materials analysis.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about High Definition HDMI Professional CCD Camera Microscope Camera for Measuring fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- MCX-0050
- Sizing
- 4.9 x 6.6 x 6.6 cm
- Ordering
- Online checkout and quote request available
- Category
- Microscopy
- Build notes
- Confirm accessories, station layout, and support needs before purchase

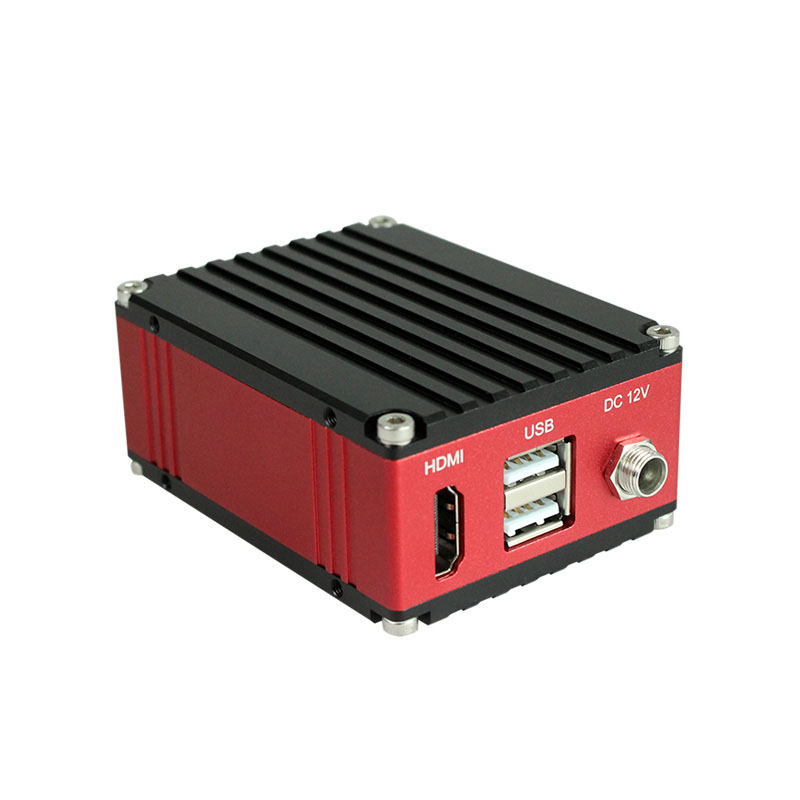

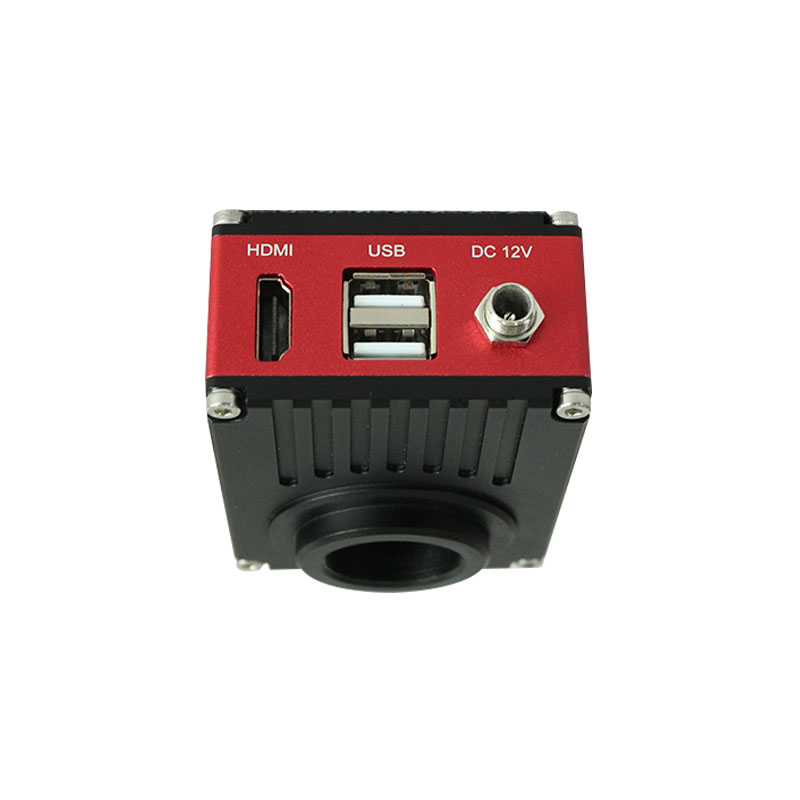

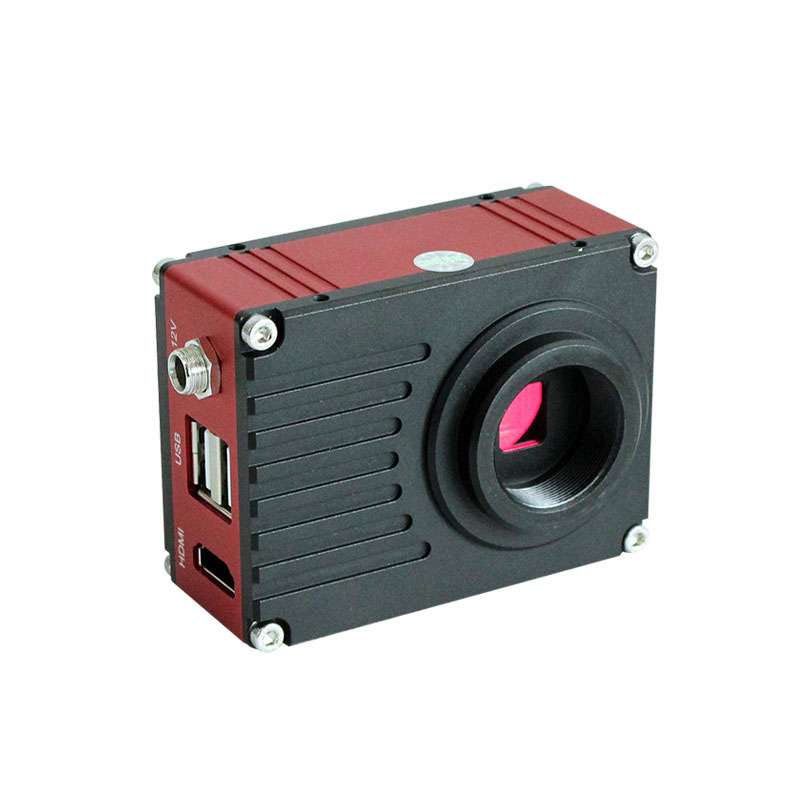

The HD-2KR Professional CCD Camera is a high-definition digital microscope camera designed for precision measurement and documentation applications. This HDMI-compatible imaging system delivers 1920 x 1080 resolution at 60 FPS with 12-bit color depth, providing detailed visual capture for quality control, materials analysis, and measurement workflows. The 3.75μm pixel size ensures fine detail resolution for accurate dimensional analysis and surface inspection.
The camera integrates directly with HDMI-compatible displays and recording systems, eliminating the need for computer-based capture while maintaining high image quality. The rolling shutter mechanism and 1/2" target size optimize image acquisition for static and slow-moving specimens commonly encountered in industrial inspection and materials characterization applications.
How It Works
The HD-2KR camera utilizes a CCD (Charge-Coupled Device) sensor with 3.75μm pixel spacing to convert optical images into digital signals. Light collected by the microscope objective is focused onto the 1/2" CCD target, where photons generate electrical charges proportional to light intensity. The rolling shutter mechanism sequentially reads each row of pixels, enabling 60 FPS capture rates while maintaining 12-bit color depth for accurate color reproduction.
The camera's HDMI output transmits uncompressed digital video signals at 1920 x 1080 resolution, providing direct connection to monitors, recording devices, or documentation systems without computer processing delays. The 12-bit data processing preserves fine gradations in brightness and color, essential for measurement applications requiring precise visual documentation and dimensional analysis.
Features & Benefits
Automation Level
- manual
Product Type
- Microscope Camera
Application
- General Laboratory
Connection Interface
- HDMI
Skill Level
- Professional / Research
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Food Science
- Industrial Hygiene
- Materials Science
- Pharmaceutical QC
Weight
- 1.9 kg
Dimensions
- L: 4.9 mm
- W: 6.6 mm
- H: 6.6 mm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Resolution | 1920 x 1080 HD | Many basic models offer lower resolution options | Higher pixel count provides greater detail capture for accurate measurement and clear documentation. |
| Frame Rate | 60 FPS | Entry-level cameras often provide lower frame rates | Smooth real-time viewing improves operator efficiency during specimen positioning and focus adjustment. |
| Output Interface | HDMI connectivity | USB interfaces require computer processing | Direct display connection eliminates computer dependencies and reduces system complexity. |
| Color Depth | 12-bit processing | Basic cameras typically offer 8-bit processing | Enhanced color gradation preserves subtle contrast details critical for measurement accuracy. |
| Pixel Size | 3.75μm x 3.75μm | Varies significantly by model and sensor type | Fine pixel pitch enables detailed feature capture for precision measurement applications. |
The HD-2KR offers professional-grade imaging specifications with HDMI connectivity for streamlined integration. The combination of 1920x1080 resolution, 60 FPS rate, and 12-bit processing provides detailed capture capability suitable for demanding measurement and documentation applications.
Practical Tips
Calibrate dimensional measurements using a certified stage micrometer at each magnification setting before conducting measurement protocols.
Why: Ensures dimensional accuracy and traceability for quality control documentation requirements.
Clean the camera sensor window monthly using lens cleaning tissue and appropriate solvents to maintain image clarity.
Why: Dust and residue on the sensor degrades image quality and can introduce measurement errors.
Allow 5-minute warm-up time after power-on before critical measurements to ensure sensor thermal stability.
Why: Thermal equilibrium prevents image drift and maintains consistent brightness levels during documentation.
If HDMI signal is unstable, verify cable connections and try a shorter cable or signal booster for long runs.
Why: HDMI signals can degrade over distance, causing intermittent display issues that disrupt workflow.
Set microscope illumination to avoid pixel saturation while maintaining adequate contrast for measurement features.
Why: Overexposed pixels lose dimensional information, while underexposure reduces measurement precision.
Ensure proper ventilation around the camera housing during extended operation to prevent thermal buildup.
Why: Excessive heat can affect sensor performance and reduce component lifespan.
Document illumination settings and camera positioning for each application to ensure reproducible image quality.
Why: Standardized conditions enable consistent results across multiple operators and measurement sessions.
Setup Guide
What’s in the Box
- HD-2KR Camera
- HDMI High Definition Cord
- Power Adapter
- User manual (typical)
- Warranty documentation (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for setup and operational guidance.
Compliance
References
Background reading relevant to this product:
What microscope magnifications work effectively with this camera's pixel resolution?
The 3.75μm pixel size provides optimal resolution for magnifications from 10x to 100x objectives, balancing field coverage with measurement precision for most inspection applications.
Can the camera output be recorded while simultaneously displaying live images?
Yes, HDMI output can be split to feed both a monitor for live viewing and a recording device, enabling simultaneous documentation and real-time observation.
How does the 12-bit color depth benefit measurement applications?
12-bit processing provides 4096 grayscale levels per color channel, preserving subtle contrast variations essential for edge detection and dimensional measurement accuracy.
What are the optimal illumination requirements for this camera?
Consult product datasheet for specific illumination specifications. Generally requires stable, uniform illumination typical of standard microscope systems.
Does the camera require calibration for dimensional measurements?
Yes, dimensional accuracy requires calibration with a stage micrometer at each magnification used, as the camera provides image capture but not inherent measurement calibration.
What is the minimum computer requirements for image processing?
The camera outputs directly via HDMI, so computer specifications depend on the analysis software used rather than camera requirements.
How does rolling shutter affect measurement accuracy?
Rolling shutter is optimized for static specimens typical in measurement applications and does not affect dimensional accuracy for stationary samples.
