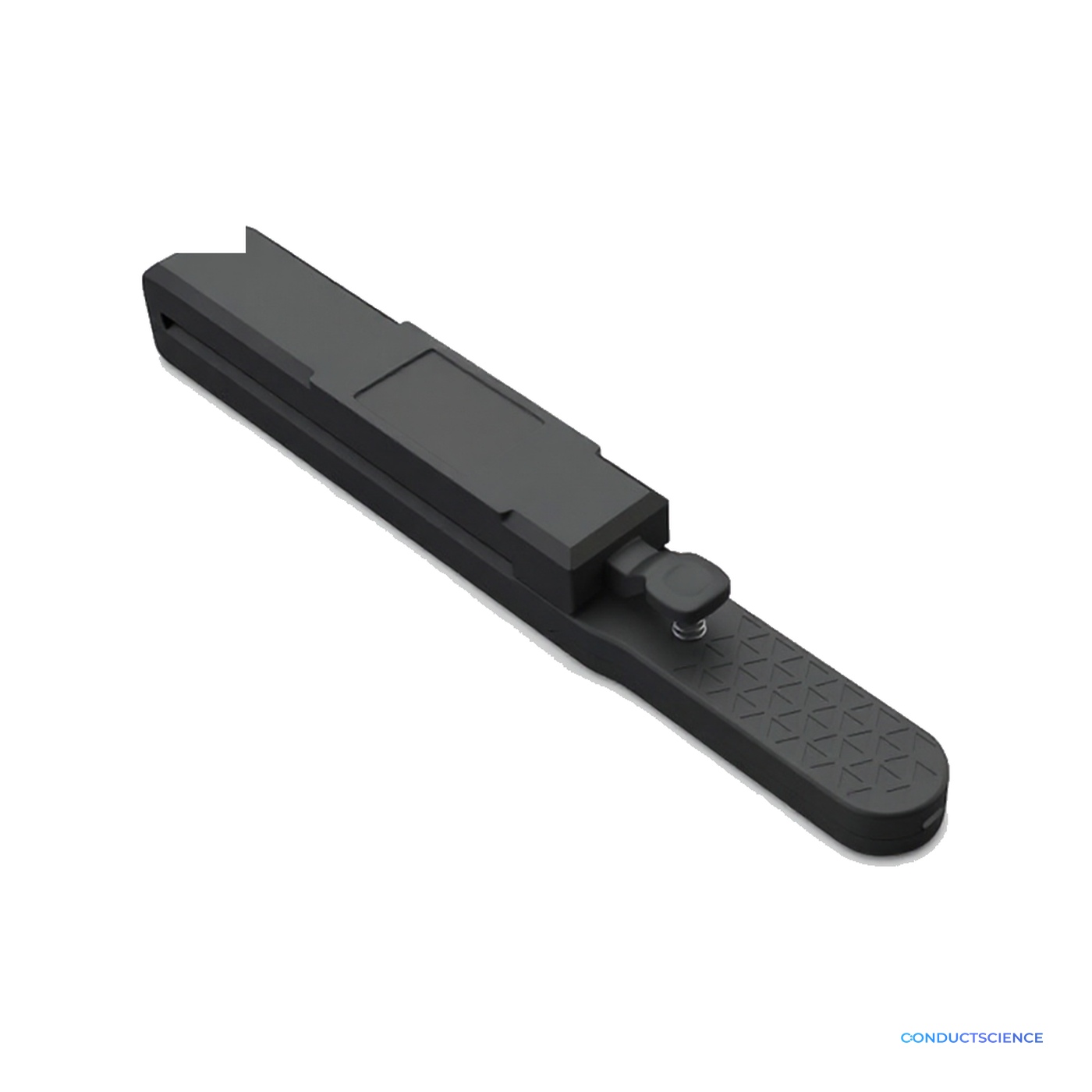

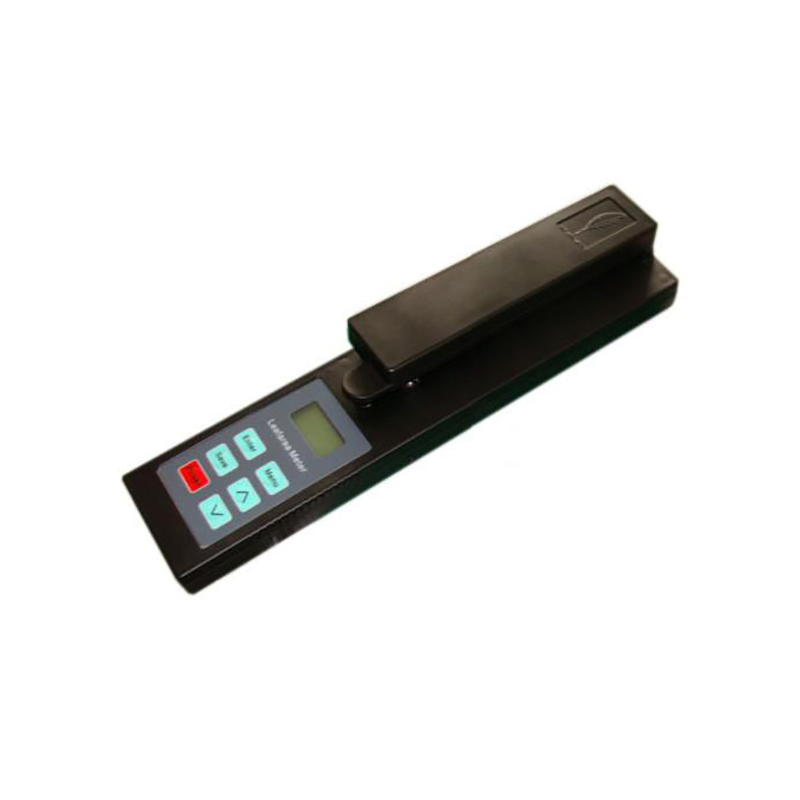

Portable Living Leaf Area Meter
Measure leaf area, length, width and aspect ratio with a portable meter offering ±2% accuracy (areas over 10 cm²) and 0.01 cm² area resolution.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Portable Living Leaf Area Meter fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Test Units
- Millimeter (mm), Square Centimeter (cm²)
- Area Accuracy
- ±2% (samples with a measured area greater than 10 cm²)
- Area Resolution
- 0.01 cm²
- Length Resolution
- 0.1 cm
- Width Resolution
- 0.1 mm
- Measuring Length
- ≤ 1000 mm
The Portable Living Leaf Area Meter measures leaf area, average area, length, width and the ratio of length to width.
Use it to record leaf size for plant growth comparisons. It accepts leaves up to 1000 mm long, 154 mm wide and 8 mm thick, with storage for 250 sets of measurements.
Test Units
- Millimeter (mm), Square Centimeter (cm²)
Area Accuracy
- ±2% (samples with a measured area greater than 10 cm²)
Area Resolution
- 0.01 cm²
Length Resolution
- 0.1 cm
Width Resolution
- 0.1 mm
Measuring Length
- ≤ 1000 mm
Measuring Width
- ≤ 154 mm
Scanning Speed
- 30 mm/s
Leaf Thickness
- ≤ 8 mm
Data Capacity
- 250 sets
What leaf sizes can this meter measure?
The meter measures leaves up to 1000 mm long, 154 mm wide and 8 mm thick.
What are the accuracy and resolution?
Area measurement accuracy is ±2% for samples with a measured area greater than 10 cm². Area resolution is 0.01 cm², length resolution is 0.1 cm, and width resolution is 0.1 mm.
How many measurements can the meter store?
The data capacity is 250 sets.
