Serie 4K 8MP C-mount HDMI+USB Digital Microscope Camera with Video & Measurement Functions
8MP digital microscope camera with Sony IMX334 sensor, 4K HDMI output, embedded software, and measurement capabilities for research imaging applications.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Serie 4K 8MP C-mount HDMI+USB Digital Microscope Camera with Video & Measurement Functions fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Configured during quote
- SKU family
- MCX-0055
- Shipping box
- 4.9 × 6.6 × 6.6 cm
- Ordering
- Online checkout and quote request available
- Category
- Microscopy
- Build notes
- Confirm accessories, station layout, and support needs before purchase
The Serie 4K 8MP C-mount Digital Microscope Camera (MCX-0055) provides high-resolution imaging capabilities for research microscopy applications. Built around a Sony IMX334(C) 1/1.8" sensor (7.68x4.32mm), this camera delivers 8-megapixel image capture with dual output options: HDMI 1.4 standard supporting 4K@30fps or 1080P@30fps for direct monitor connection, and USB video interface for PC integration with MJPEG format streaming.
The system features embedded XCamView software accessible via USB mouse connection, enabling standalone operation without requiring dedicated computer control. Video and image storage utilizes SDIO 3.0 compliant SD card interface, while measurement functions support quantitative analysis workflows. The C-mount interface provides compatibility with standard microscope optical systems, making it suitable for brightfield, darkfield, and fluorescence imaging applications across multiple research disciplines.
How It Works
The camera utilizes a Sony IMX334(C) CMOS sensor with 1/1.8" format (7.68x4.32mm active area) to convert optical images into digital format. The sensor's photodiodes capture incident photons and convert them to electrical signals through photoelectric conversion. These analog signals undergo amplification and analog-to-digital conversion within the camera electronics to produce digital image data.
Image processing occurs through the embedded XCamView software system, which handles exposure control, white balance adjustment, and measurement function calculations. The processed image data streams through two parallel output pathways: HDMI interface compliant with HDMI 1.4 standard for direct monitor display at 4K or 1080P resolution, and USB video interface providing MJPEG compressed video for PC integration.
The C-mount mechanical interface ensures precise optical coupling with microscope systems, maintaining parfocality and proper back-focal distance. The SDIO 3.0 compliant SD card interface enables local storage of captured images and video sequences, while the integrated measurement functions perform pixel-to-distance calibrations for quantitative analysis workflows.
Features & Benefits
Research record
Use these values in methods sections and data records.
- Device type
- Digital camera
OBI:0001048
This ID comes from the Ontology for Biomedical Investigations (OBI).
Download the source data for this record as a JSON-LD file
Methods section wording
digital camera (ConductScience, Skokie, IL, USA; cat. no. MCX-0055)
Automation Level
- semi-automated
Product Type
- Microscope Camera
Application
- General Laboratory
Camera Resolution
- 8MP
Connection Interface
- C-Mount
- HDMI
- USB
Skill Level
- Intermediate
Brand
- ConductScience
Research Domain
- Analytical Chemistry
- Cell Biology
- Environmental Monitoring
- Food Science
- Histopathology
- Materials Science
- Microbiology
Shipping weight
- 1.9 lb
Shipping box
- L: 4.9 cm
- W: 6.6 cm
- H: 6.6 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Sensor Resolution | 8MP Sony IMX334(C) with 1/1.8" format | Entry-level models often provide 2-5MP resolution with smaller sensor formats | Higher resolution enables detailed specimen documentation and supports digital zoom without significant quality loss. |
| Output Interfaces | Dual HDMI 1.4 (4K@30fps) and USB video (MJPEG) outputs | Basic models typically offer single USB output with limited resolution options | Simultaneous viewing and recording capabilities improve workflow efficiency during experiments. |
| Embedded Software | XCamView software with USB mouse control and measurement functions | Most cameras require dedicated PC software for full functionality | Standalone operation reduces equipment requirements and enables use in field or space-constrained environments. |
| Storage Options | SDIO 3.0 compliant SD card storage with high-speed interface | Lower-end models often rely solely on USB tethering for data storage | Local storage provides data security and eliminates dependency on computer availability during critical experiments. |
| Video Output Quality | HDMI 1.4 standard supporting 4K resolution at 30fps | Budget cameras typically limited to 1080P or lower resolution output | 4K output resolution maintains full sensor capability for detailed analysis and presentation purposes. |
This camera combines high-resolution imaging with versatile connectivity options and standalone operation capabilities. The Sony sensor provides professional image quality while dual output interfaces support diverse workflow requirements in research environments.
Practical Tips
Perform measurement calibration using a certified stage micrometer at each magnification setting you plan to use, as optical magnification affects pixel-to-distance relationships.
Why: Accurate calibration ensures reliable quantitative measurements across different magnification settings.
Clean the sensor surface monthly using appropriate CMOS cleaning methods and inspect for dust particles that may appear as artifacts in images.
Why: Regular cleaning maintains image quality and prevents dust artifacts from interfering with specimen analysis.
Use the HDMI output for live viewing during experiments and USB output for simultaneous recording to avoid missing critical observations.
Why: Dual output utilization maximizes documentation capabilities while maintaining real-time experimental control.
Adjust exposure settings through XCamView software to avoid pixel saturation, particularly when imaging bright fluorescent samples.
Why: Proper exposure prevents data loss in highlight regions and maintains quantitative accuracy in intensity measurements.
Monitor the LED status indicator during startup and operation - consistent illumination indicates normal function while flashing may indicate system errors.
Why: LED status monitoring enables early detection of operational issues before they affect experimental results.
Ensure proper ventilation around the camera unit and use only the specified 12V/1A power adapter to prevent thermal damage or electrical issues.
Why: Proper power management and cooling prevent hardware damage and maintain stable operation during extended imaging sessions.
Format SD cards using the camera's built-in formatting function rather than computer-based formatting to ensure optimal compatibility with SDIO 3.0 interface.
Why: Camera-based formatting optimizes file system structure for reliable high-speed data recording during video capture.
Setup Guide

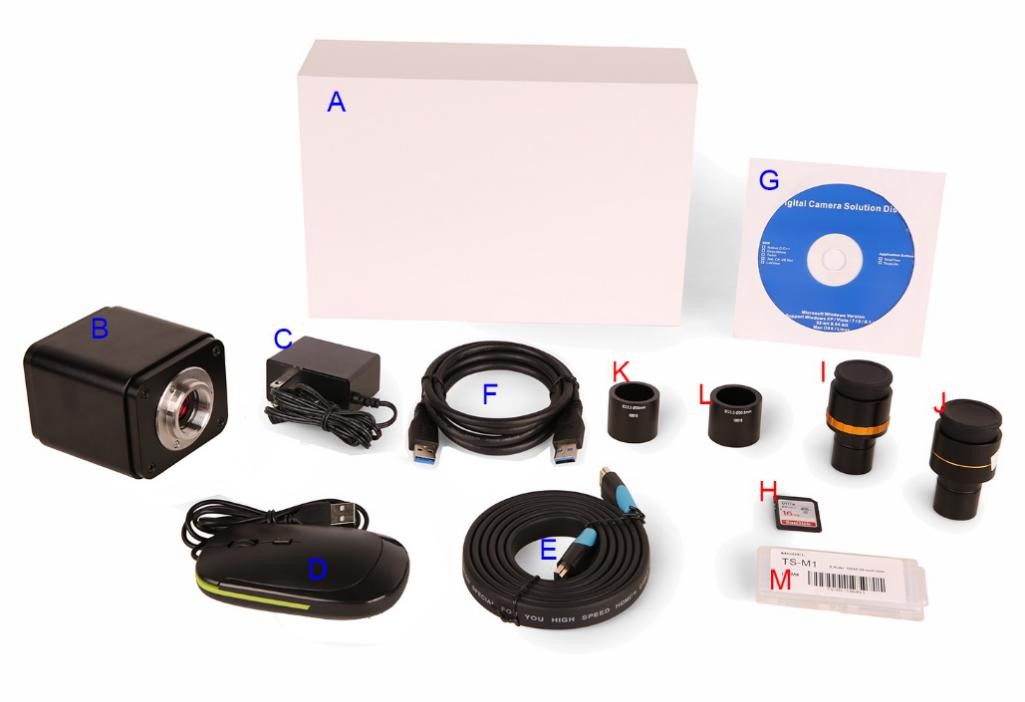

What’s in the Box
- Serie 4K 8MP digital microscope camera unit
- 12V/1A power adapter with regional plug
- USB cable for PC connection
- HDMI cable (typical)
- SD card (typical)
- USB mouse for software control
- User manual and software documentation
- Calibration reference guide (typical)
Warranty
ConductScience provides a comprehensive one-year manufacturer warranty covering defects in materials and workmanship, with technical support for installation guidance and operational troubleshooting.
Compliance
References
Background reading relevant to this product:
What is the effective sensor size and how does it compare to traditional microscopy cameras?
The Sony IMX334(C) sensor provides a 1/1.8" format with 7.68x4.32mm active area, offering a good balance between resolution and light sensitivity. This size is compatible with standard C-mount optics and provides sufficient field of view for most microscopy applications while maintaining 8MP resolution.
Can the camera operate independently without a computer connection?
Yes, the embedded XCamView software allows standalone operation using a USB mouse for control. Images and videos can be stored directly to SD card, and live viewing is available through HDMI output to any compatible monitor, making it suitable for field work or computer-free environments.
What measurement capabilities are integrated into the system?
The camera includes built-in measurement functions accessible through the XCamView software. After calibration with a stage micrometer, users can perform distance, area, and angle measurements directly on captured images. Consult product documentation for specific measurement accuracy specifications.
Is the HDMI output suitable for high-resolution documentation workflows?
The HDMI 1.4 interface supports both 4K@30fps and 1080P@30fps output, providing excellent image quality for documentation and presentation purposes. The 4K mode delivers full sensor resolution for detailed specimen analysis and publication-quality image capture.
How does the dual output system work for simultaneous recording and viewing?
The camera provides parallel HDMI and USB outputs, allowing simultaneous live viewing on a monitor via HDMI while streaming MJPEG video to a PC through USB. This enables real-time observation during experiments while maintaining digital recording capability.
What are the storage limitations and data transfer speeds?
Storage utilizes SDIO 3.0 compliant SD cards with high-speed transfer capabilities. Storage capacity depends on SD card size, while transfer speeds benefit from the SDIO 3.0 standard. Consult product specifications for maximum supported card sizes and sustained recording durations.
Is the camera compatible with fluorescence microscopy applications?
The Sony IMX334(C) CMOS sensor and C-mount interface support fluorescence imaging applications. However, specific quantum efficiency curves and spectral response characteristics should be verified against your fluorophore requirements by consulting the detailed sensor specifications.
What maintenance is required for optimal performance?
Regular sensor cleaning using appropriate methods for CMOS cameras, periodic calibration verification using stage micrometers, and proper storage in dust-free environments. LED status monitoring helps identify any system issues requiring attention.
