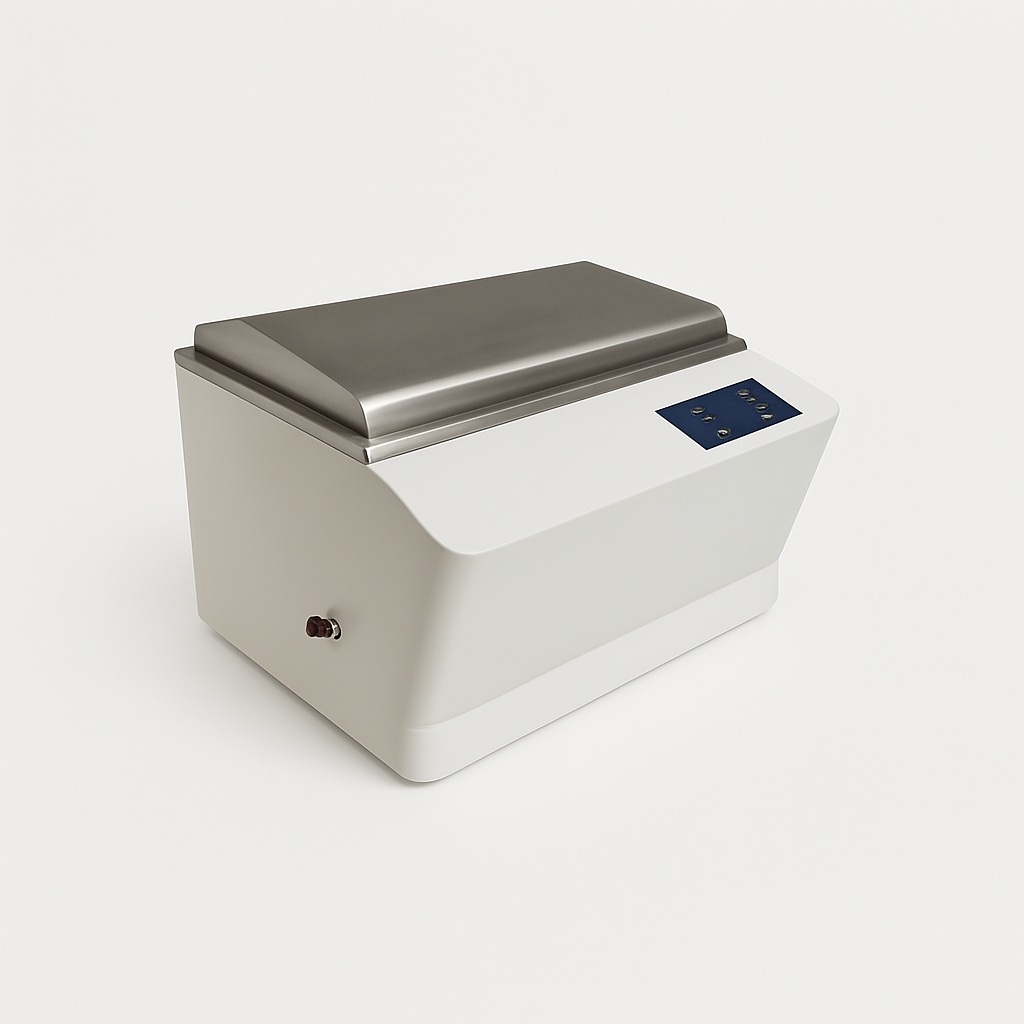

Thermostatic Shaking Water Bath SWB-301, SWB-302, SWB-303
The Thermostatic Shaking Water Bath SWB Series combines controlled water-bath heating with multiple shaking modes (orbital, orbital+reciprocating, and reciprocating) for applications requiring stable temperature and consistent sample agitation.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Thermostatic Shaking Water Bath SWB-301, SWB-302, SWB-303 fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- 3 selectable configurations
- SKU family
- Assigned during quote
- Sizing
- Model-specific dimensions confirmed from the selected configuration
- Ordering
- Online checkout and quote request available
- Category
- Uncategorized
- Build notes
- Confirm accessories, station layout, and support needs before purchase
Description
The Thermostatic Shaking Water Bath SWB Series combines controlled water-bath heating with multiple shaking modes for applications requiring stable temperature and consistent sample agitation. Available in three models offering different shaking motions for specific laboratory workflows.
The system features multi-stage programming capabilities, digital constant-speed control, and an LCD interface displaying temperature, real-time shaking speed, and operating time. Its forced-convection design ensures temperature uniformity, while the stainless-steel chamber and spring-net platform accommodate various sample containers.
Key Features
- Multi-stage programming of speed, temperature, and operating time
- Automatic transitions between programmed operating stages
- Adjustable ultra-low-speed startup
- Automatic locking if speed control is lost
- Forward, reverse, and alternating rotation modes
- LCD display showing temperature, time, and speed together
- Supports static culture by setting the shaking speed to zero
- Forced-convection design for temperature uniformity
Specifications
Common Specifications across all models (SWB-301, SWB-302, SWB-303):
| Specification | Details |
| Bath capacity | 32.5 liters |
| Temperature range | Ambient temperature to 100°C |
| Temperature precision | ±0.1°C |
| Speed range | 0 or 20–300 rpm |
| Shaking amplitude | 26 mm |
| Display | LCD |
| Temperature control | PID |
| Timer | 0–9,999 hours/minutes |
| Shaking platform | 498 × 316 mm |
| Maximum vessel capacity | 24 × 100 mL, 15 × 250 mL, 8 × 500 mL, or 6 × 1,000 mL |
| Standard accessory | Spring-net platform |
| Power consumption | 1,400 W |
| Standard power supply | AC 220 V, 50 Hz |
| Optional power supply | AC 220 V, 60 Hz, or AC 110 V, 50/60 Hz using an external transformer |
| External dimensions | 640 × 620 × 550 mm |
| Package dimensions | 830 × 790 × 720 mm |
| Gross weight | 100 kg |
Comparison Guide
The SWB Series is available in three models, differentiated by shaking motion type:
| Model | Shaking Motion | Best For |
| SWB-301 | Orbital/rotatory | General mixing and culture agitation |
| SWB-302 | Orbital and reciprocating | Versatile applications requiring multiple motion modes |
| SWB-303 | Reciprocating | Cell culture and sensitive sample handling |
Applications
The SWB Series is ideal for a wide range of laboratory applications:
- Cell culture and tissue engineering
- Microbial fermentation and culture preparation
- Protein expression and enzyme activity studies
- Environmental sample processing
- Clinical diagnostics and research
- Educational laboratory experiments
- Pharmaceutical and chemical research
- Industrial production workflows
Setup & Support
For detailed setup instructions, model-specific operational guidelines, and maintenance recommendations, please refer to the product documentation provided with your unit. Our technical support team is available to assist with installation, configuration, and optimization for your specific application.
Documentation
Complete product documentation is available including:
- Installation and commissioning guides
- Operating manuals for each model variant
- Maintenance schedules and procedures
- Technical specifications and certifications
- Troubleshooting and safety bulletins
Contact our support team for access to full documentation and technical resources.
Q&A
Common questions about the SWB Series:
- Which model should I choose? - Selection depends on your application: orbital (SWB-301) for general mixing, hybrid (SWB-302) for versatility, or reciprocating (SWB-303) for gentle handling.
- What accessories are available? - Multiple platform options, flask holders, and specialized containers are available for different sample types.
- Is customization possible? - Yes, custom configurations and voltage options can be arranged for specific requirements.
- What is included in the warranty? - Standard warranty covers manufacturing defects and parts replacement; service plans are available.
For additional questions or technical consultation, contact our support team.
Model
- SWB-301
- SWB-302
- SWB-303
| Model | SKU | Listed price | Status | Dimensions |
|---|---|---|---|---|
| SWB-303 | SWB-303 | $2,599.00 | Available | Confirmed during quote |
| SWB-302 | SWB-302 | $3,699.00 | Available | Confirmed during quote |
| SWB-301 | SWB-301 | $3,199.00 | Available | Confirmed during quote |
