Plant Y Maze
PVC Y-maze apparatus for studying plant tropism responses and spatial learning behaviors in seedlings, featuring configurable orientation and integrated stimulus presentation chambers.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Plant Y Maze fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.

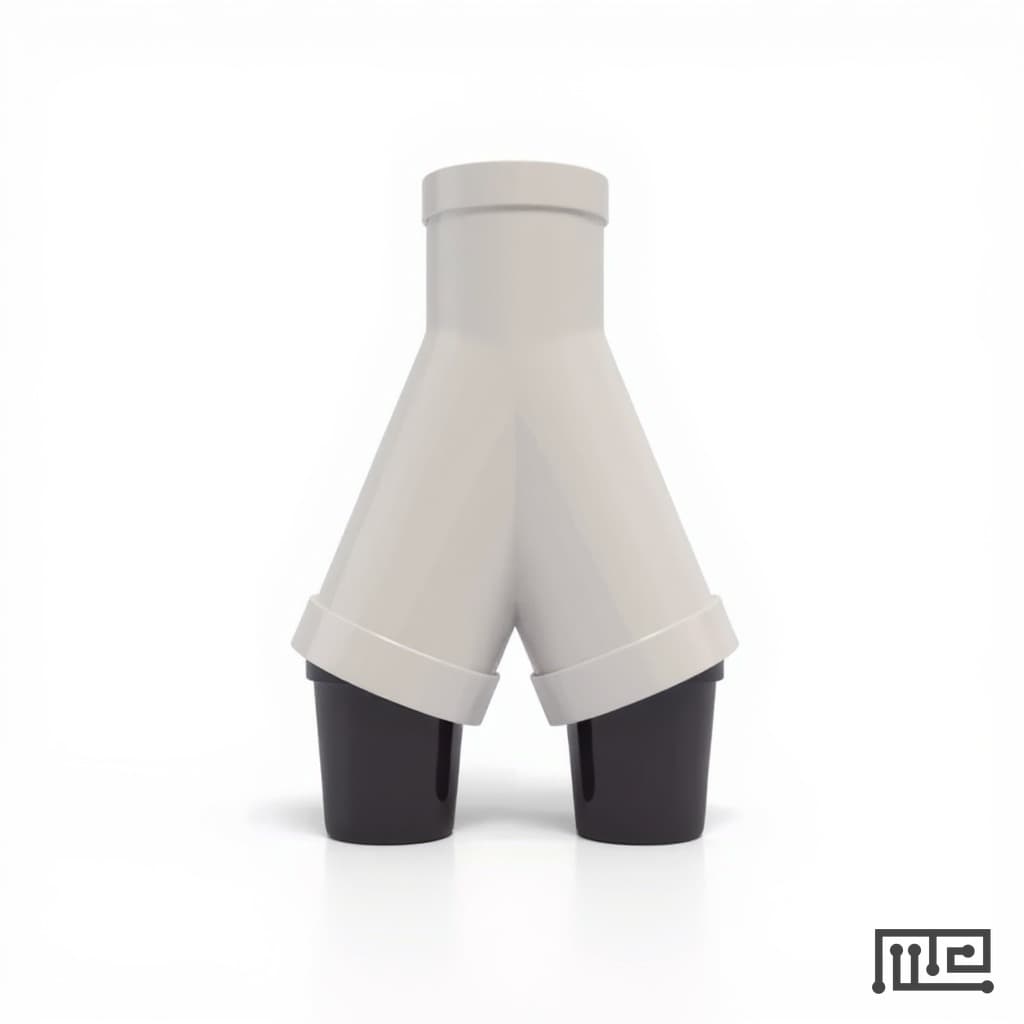

The Plant Y-Maze is a specialized botanical research apparatus designed to investigate tropism responses and spatial learning behaviors in plants. Constructed from PVC with a Y-shaped configuration featuring two branch arms at 45-degree angles, this system enables controlled studies of phototropic, hydrotropic, and gravitropic responses in seedlings. The apparatus includes integrated black plastic pots and transparent observation trays to facilitate stimulus presentation and behavioral documentation.
The system accommodates garden pea seedlings and other compatible plant species for investigating directional growth responses to environmental stimuli. Researchers can configure the apparatus upright to assess phototropic responses or inverted to study hydrotropic behaviors during foraging tasks. The standardized dimensions and controlled environment enable reproducible experimental conditions for quantifying plant navigation and stimulus response mechanisms.
How It Works
The Plant Y-Maze operates by presenting seedlings with directional stimuli through its branching architecture while constraining growth pathways to enable quantitative behavioral analysis. The Y-shaped configuration creates a decision point where developing plants must orient toward one of two branch arms in response to environmental gradients. Phototropic responses are mediated by photoreceptor systems that detect light direction and intensity, triggering differential auxin distribution that promotes directional growth toward illuminated chambers.
Hydrotropic responses involve root perception of moisture gradients through specialized mechanoreceptor and chemoreceptor mechanisms, directing root growth toward areas of higher water availability. The transparent observation trays enable real-time monitoring of growth patterns while the controlled chamber environment isolates specific stimulus variables. The standardized pot dimensions and arm angles ensure consistent geometric constraints across experimental replicates.
Features & Benefits
maze_height
- 10.5 cm
arm_branch_point
- 6.5 cm from base
base_arm_diameter
- 5.5 cm
branch_arm_diameter
- 6 cm
branch_arm_length
- 4 cm
arm_angle
- 45 degrees from each other
junction_width
- 9.5 cm
pot_depth
- 4.5 cm
pot_diameter
- 5.5 cm
tray_dimensions
- 9 x 7 x 4.0 cm
included_accessories
- ['2 black plastic pots', '2 clear plastic trays']
plant_compatibility
- ['Garden pea seedlings']
Behavioral Construct
- spatial learning
- stimulus response
- directional growth
- foraging behavior
- tropism responses
Automation Level
- manual
Material
- PVC
Color
- Black
- Clear
Research Domain
- Developmental Biology
- Environmental Monitoring
- Materials Science
- Neuroscience
Species
- Garden pea seedlings
Compatible Tracking Software
- ConductVision
Weight
- 21.0 kg
Dimensions
- L: 43.2 mm
- W: 38.0 mm
- H: 27.9 mm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Apparatus Height | 10.5 cm total height | Many plant behavior systems exceed 15 cm | Compact scale enables tabletop operation and facilitates microscopic observation of growth responses. |
| Branch Configuration | 45-degree branch angles with 4 cm arm length | Fixed 90-degree designs are common | Optimized angle provides natural decision geometry that better reflects plant foraging behaviors. |
| Observation System | Integrated transparent trays for root monitoring | Most systems require separate observation chambers | Real-time growth documentation without experimental disruption or specimen transfer. |
| Material Construction | PVC with black and clear components | Glass or metal construction is typical | Lightweight, chemically inert material enables easy handling and reduces contamination risk. |
| Stimulus Delivery | Modular pot system with 5.5 cm diameter chambers | Fixed stimulus ports or external delivery systems | Independent stimulus control in each branch enables complex gradient establishment and experimental flexibility. |
The Plant Y-Maze combines compact laboratory-scale dimensions with integrated observation capabilities and flexible stimulus delivery. The standardized geometry and modular design provide reproducible experimental conditions for quantitative tropism studies.
Practical Tips
Pre-condition seedlings in darkness for 12 hours before stimulus presentation to enhance phototropic sensitivity.
Why: Dark adaptation increases photoreceptor responsiveness and produces more pronounced directional growth responses.
Inspect transparent trays for scratches or cloudiness that could interfere with observation quality.
Why: Clear visual access is essential for accurate growth trajectory measurement and documentation.
Document ambient environmental conditions including temperature, humidity, and background light levels for each experimental session.
Why: Environmental variables significantly influence tropism response kinetics and reproducibility between trials.
If seedlings show no directional response, verify stimulus intensity and check for light leaks or moisture contamination between chambers.
Use sterile technique when handling seedlings and growing media to prevent fungal or bacterial contamination.
Why: Microbial contamination can alter seedling physiology and confound tropism response measurements.
Maintain consistent seedling orientation at the branch point to standardize initial growth trajectory baselines.
Why: Variable starting positions introduce measurement error and reduce statistical power in comparative analyses.
Setup Guide
What’s in the Box
- Plant Y-Maze apparatus (PVC construction)
- 2 black plastic collection pots (5.5 cm diameter)
- 2 transparent observation trays (9×7×4 cm)
- User manual with protocol guidelines (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for experimental setup and protocol optimization.
Compliance
References
Background reading relevant to this product:
What seedling developmental stage is optimal for tropism studies?
Garden pea seedlings at 3-7 days post-germination provide optimal sensitivity to tropism stimuli while maintaining sufficient structural integrity for maze navigation studies.
How long should stimulus presentation periods be maintained?
Typical experimental protocols use 24-48 hour stimulus exposure periods, though response kinetics vary depending on stimulus intensity and seedling physiological state.
Can the apparatus accommodate species other than garden peas?
While optimized for Pisum sativum, the chamber dimensions can accommodate other small seedling species with similar growth characteristics and tropism response capabilities.
What cleaning protocols are recommended between experimental runs?
Rinse all PVC components with distilled water and mild detergent, followed by sterile water rinse to remove residual growth media and prevent contamination between trials.
How should environmental conditions be controlled during experiments?
Maintain consistent temperature (20-25°C), humidity (60-70%), and ambient light conditions while isolating specific stimulus variables in the branch chambers.
What measurement parameters should be documented?
Record growth trajectory angles, root/shoot length changes, response latency, and final orientation relative to stimulus sources for quantitative analysis.
