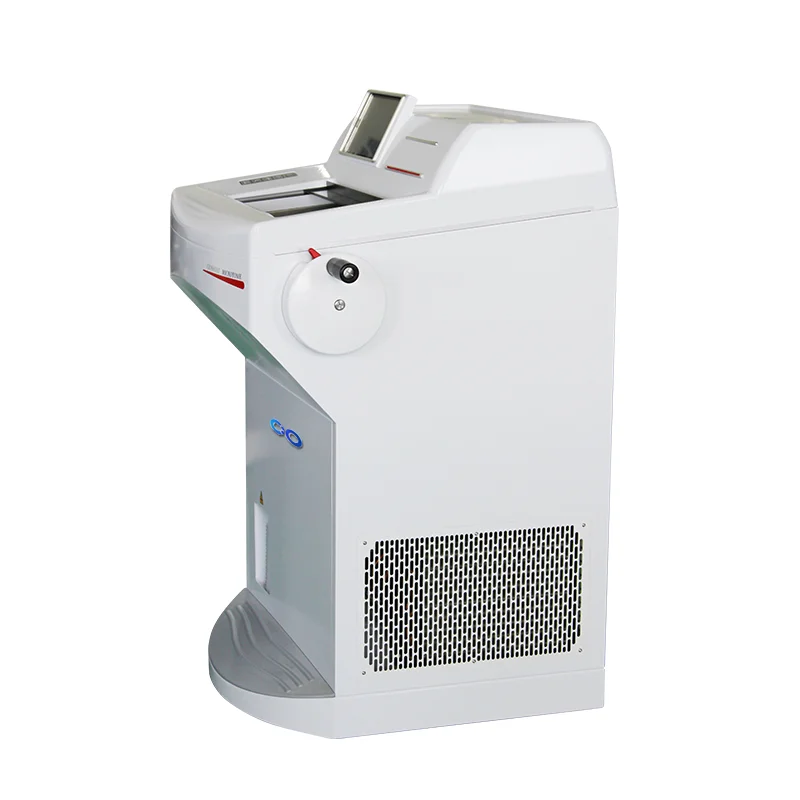

The RD-2290 Cryostat Microtome is a state-of-the-art instrument designed for high-performance frozen sectioning in pathology, biomedical research, and clinical diagnostics. It integrates rapid cooling, precise temperature control, and intelligent operation to ensure optimal sample preservation and superior slice quality. Engineered for efficiency and user safety, the RD-2290 streamlines the entire workflow from sample freezing to sectioning.
Conduct Science is a premier manufacturer of research infrastructure, born from a mission to standardize the laboratory ecosystem. We combine industrial-grade precision with a scientist-led tech-transfer model, ensuring that every instrument we build solves a real-world experimental challenge. We replace "home-brew" setups with validated tools ranging from microsurgical suites to pathology systems. With a track record of >1,600 institutional partners and hundreds of citations, our equipment is engineered to minimize human error. We help you secure more data for less of your budget, delivering the reliability required for high-impact publication.
1. Peltier-Boosted Rapid Freezing
2. Five-Point Secop Dual-Compressor Cooling
3. Automated One-Touch Operation
4. Precision Sectioning (0.5Āµm – 100Āµm)
5. Professional UVC Decontamination System
1. Advanced & Rapid Cooling System
Utilizes an international brandĀ “Secop” dual compressorĀ for powerful, reliable, and quiet operation.
ProvidesĀ five-point separate coolingĀ to the freezing chamber, freezing table, blade holder, specimen head, and tissue flattener for uniform and stable temperatures.
Peltier (Semiconductor) Assist CoolingĀ reaches an ultra-lowĀ -65Ā°CĀ on the freezing table, enabling fast freezing in justĀ 15 minutes.
2. Precision Sectioning & Versatility
Wide Sectioning Range: From ultra-thinĀ 0.5 Āµm to 100 Āµm, with incremental adjustments for flawless results.
Broad Trimming Range:Ā 0 Āµm to 600 ĀµmĀ for quick and efficient block facing.
Specimen Retraction: Adjustable fromĀ 0 – 60 ĀµmĀ to protect your sample during the return stroke.
Large Sample Capacity: Accommodates oversized specimens up toĀ 55mm Ć 80mmĀ with a generousĀ 66mm vertical travelĀ andĀ 22mm horizontal travel.
3. Intelligent User Interface & Automation

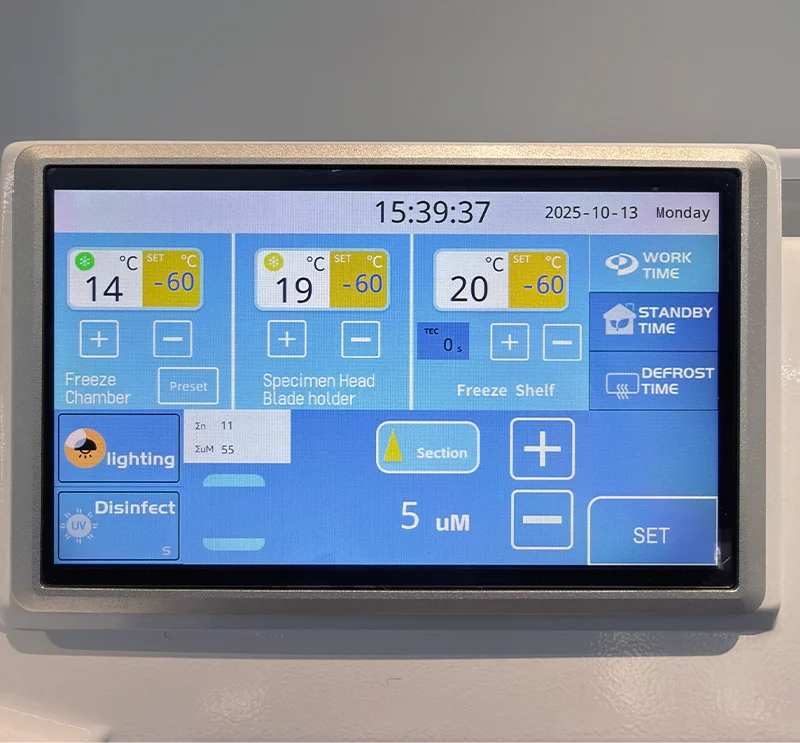

10.1-inch Color LCD TouchscreenĀ for intuitive control and clear display of all parameters (slice count/thickness, temperature, time, humidity).
Multi-language Support: Interface available in Chinese, English, Russian, Spanish, and Portuguese.
Memory Function & One-Touch Operation: The sample head automatically returns to the optimal start position, reducing manual adjustment and speeding up workflow.
Programmable Sleep Mode: Maintains the chamber at an energy-saving -5Ā°C to -15Ā°C, ready to return to cutting temperature in just 15 minutes.
4. Enhanced Safety & Hygiene

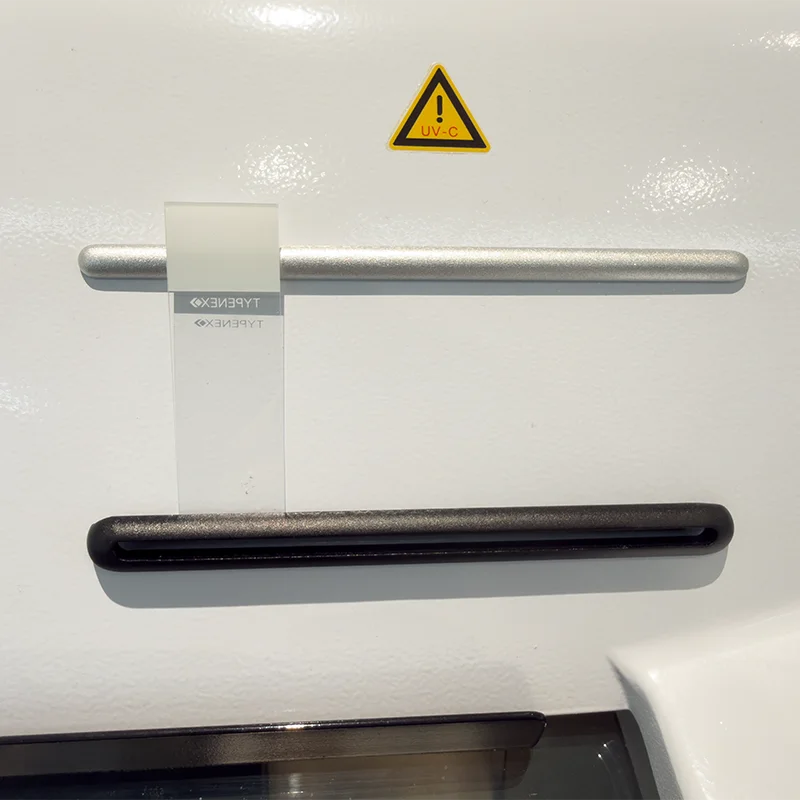

UVC Ultraviolet Disinfection: Effectively inhibits bacterial and mold growth.
Seamless Stainless Steel Interior & Nano-Coated Chamber: Prevents nitrogen leakage, inhibits microbial regeneration, and allows for easy cleaning.
Full-Length Knife Guard & Blue Knife Advancer: Provides comprehensive user protection during operation.
Double-Layer Removable Freezing Table: Prevents frost buildup and simplifies maintenance.
5. Ergonomic & Practical Design
360Ā° Y-axis & 12Ā° X-axis Cassette Head: Allows for quick and easy sample orientation.
Refrigerated Anti-Stick Tissue FlattenerĀ (down to -50Ā°C): Facilitates faster and easier sample freezing.
External Mechanical System: Located outside the freezing chamber to protect components from ice crystal damage, allowing for immediate on/off operation.
Color-Coded Specimen Trays: Easy identification of different tissue types.
Single-Pane Heated Glass Window: Prevents condensation for a clear view.
| Characteristic | Specification |
|---|---|
| Temperature Range |
Freezing Chamber/Table/Sample Head: 0Ā°C to -50Ā°C Freezing Table with Peltier: Down to -65Ā°C |
| Cooling Capacity |
Standard Freezing Points: ā„ 24 Peltier Freezing Points: ā„ 6 |
| Sample Travel |
Vertical: ā„ 66 mm Horizontal: ā„ 22 mm |
| Max. Specimen Size | 55 mm Ć 80 mm |
| Sectioning Thickness | 0.5 Āµm - 100 Āµm (Increments: 0.5Āµm, 1Āµm, 2Āµm, 5Āµm) |
| Trimming Thickness | 0 Āµm - 600 Āµm (Increments: 5Āµm, 10Āµm, 50Āµm) |
| Specimen Retraction | 0 - 60 Āµm (2Āµm increments) |
| Motorized Advance | Two Speeds: 1.8 mm/s, 0.45 mm/s |
| Display | 10.1-inch Color LCD Touchscreen |
| Slice Modes | Supports Full/Half Blade; Automatic Recognition |
| Liquid Nitrogen | Management System with Level Monitoring & Alarm |
| Dimensions (WĆDĆH) | 700 mm Ć 780 mm Ć 1230 mm |
| Other | USB/TF Card Interface, Rubber Base with Waste Container |
The RF-RD-2290 combines robust performance with user-centric design. Its rapid cooling, precision engineering, and smart features like one-touch operation and multi-language support make it an efficient, safe, and versatile choice for laboratories worldwide, enhancing productivity while ensuring consistent, high-quality results.
