Carousel Type Auto Tissue Processor (with Vacuum)

• Features
• Technical Parameters

Features

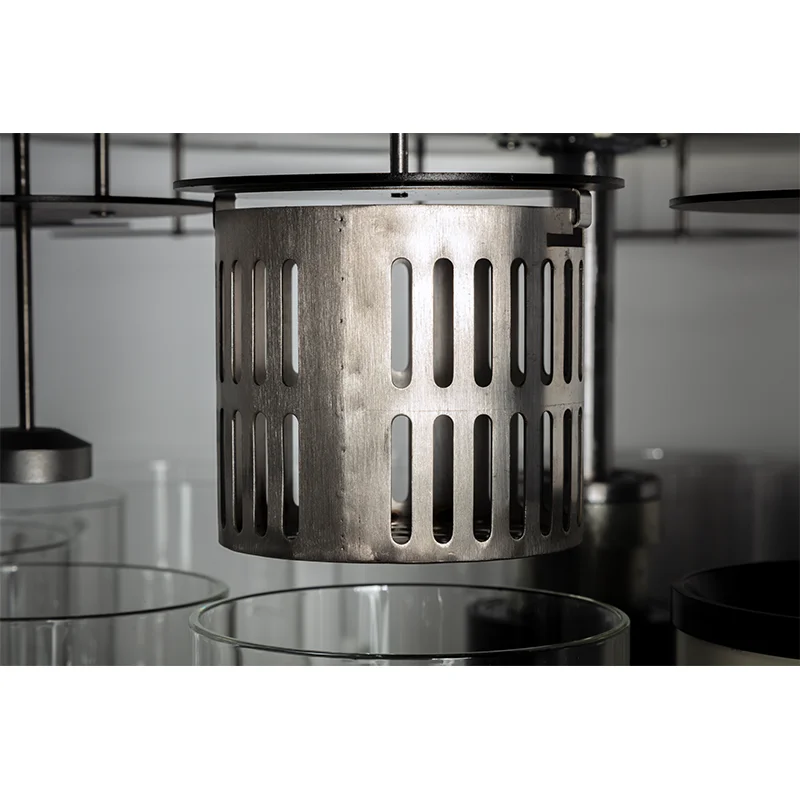

1. The sample basket has a built-in rotation function, rotating every five minutes to ensure thorough mixing of the sample with reagents, resulting in more complete reactions. 2. The reagent cylinder is made of transparent glass with handles, facilitating the retrieval and replacement of reagents. It also provides visualization of the specimen's status during dehydration. 3. The equipment is equipped with two limiters: internal software limits and external mechanical limiters, preventing dangerous component damage in case of malfunctions. 4. The equipment features an obstacle detection sensor that promptly stops operation upon encountering obstacles, preventing damage to experiments and the machine itself caused by unmelted paraffin or other foreign objects. 5. When replacing the reagent cylinder, the equipment pauses for 5 seconds at the top to allow excess liquid to drip off, preventing reagent spillage. 6. It comes with 10 built-in programming options, offering users more choices. 7. The equipment includes a power-off protection system that resumes operation from the memory position upon power restoration.









  8. Users can switch between manual and automatic modes according to their needs. 9. Users can set a delayed start time, with the option to delay up to 30 days, to accommodate specific scheduling requirements.

Technical Parameters

RF-RD-501 Auto Tissue Processor with Vacuum
Number of reagent cups	12 - Reagent cups: 9 Paraffin cups: 3
Reagent cup volume (optional configuration)	Volume	Paraffin cup capacity		Number of cassettes
	1.3L Single basket	1L		50
	1.3L Double basket			100
	2.3L Single basket	2L		100
	2.3L Double basket			200
Paraffin cup temperature range	0-85°C
Reagent cup work time setting range	0-2000min
Draining time	30s
Frequency of basket stirring	5min/time 1min once
Operating temperature/humidity	Working temperature: Rt~70°C
	Operating temperature 15°C~40°C
	Humidity 20-80% non-condensing
Product Size	Φ680* (800-720) / φ780* (800-720) mm
Weight	65KG/75KG
Voltage	220V 50Hz / 110V 60Hz
Power	300W
	Wax heating power: 80w/pc
	Basket rotation power: 4w/pc
	Lifting motor power: 25w
	Rotation motor power: 14w
Fuse	Φ5*20mm, 10A AC 120V
Certification	CE; ISO; 13485
Brand	CONDUCTSCIENCE - Accept OEM
Warranty	2 years, lifetime technical support
Customize needs	According to communication
Packing size / weight	115KG 105*80*78CM
	140KG 120*90*79CM
