Benchtop Equipment

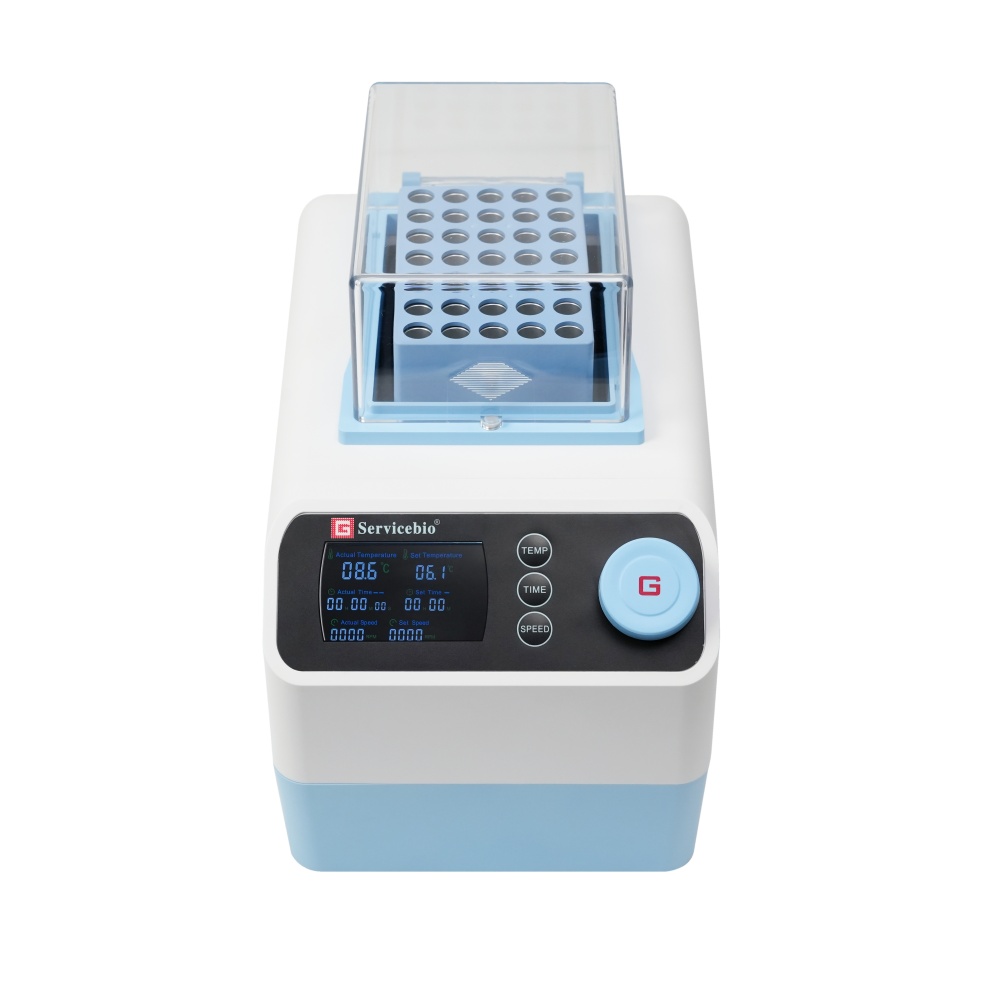

Integrated Shaking Dry Bath: Heating & Cooling System

$0.00
The dry bath series features heating, cooling and mixing functions, high temperature accuracy, and good temperature uniformity. lt is widely used in fields such as gene synthesis, gene purification, gene and protein denaturation, enzyme reactions, and bacterial growth.
Function
In stock and ready to ship
SKU: SB-SMB-H/-SMB-C/-SMB-PC-1

Description

The Integrated Shaking Dry Bath (Heating & Cooling) offers versatile sample processing with a wide temperature range and adjustable orbital shaking. It provides a stable, precisely controlled environment for sample incubation, enzyme reactions, hybridizations, and other protocols requiring simultaneous thermal management and thorough mixing to ensure reproducible results

Features

Dry Bath [Heating Cooling Shaking Type]

Dry Bath [Heating, Shaking]

  • Utilizes a microcomputer-controlled metal bath device.
  • High-temperature control accuracy, precise oscillation speed, and low fluctuation.
  • Multiple standard sample modules are available for selection, with convenient replacement.
  • Customization is also possible according to user requirements.
  • Equipped with a function, allowing users to set a cultivation time within the range of 1 minute to 99 hours and 59 minutes. An alarm will be triggered after the set time is completed.
  • Driven by a brushless DCmotor for long lifespan.
  • The oscillation speed is accurate, with small fluctuations, a brushless motor, low noise, long service life, and maintenance-free.
  • Multiple modules to choose from.
  • The instrument has fast heating speed, uniform heating, precise temperature control, and high stability.
  • Timing function with buzzer alarm.

Specifications

Parameters

SB-SMB-MC

SB-SMB-MH

Horizontal amplitude

3MM

Temperature Control Range

0-100℃

RT+5℃-100℃

Temperature Setting Range

0-100℃

RT+5℃-100℃

Timing Range

1min-

99h59min

1min-

99h59min

Module Temperature Stability @40-100°C

≤±0.5℃

≤±0.5℃

Module Temperature Uniformity @40°C

≤±0.3℃

≤±0.5℃

Module Temperature Uniformity> @40°C

≤±0.5℃

≤±0.5℃

Temperature Display Accuracy

≤±0.1℃

≤±0.1℃

Sample processing Capacity

1 standard module:

 1.5 mLx 35

1 standard module:

 1.5 mLx 35

Accessories

Model Options

Tube capacity X #Tubes

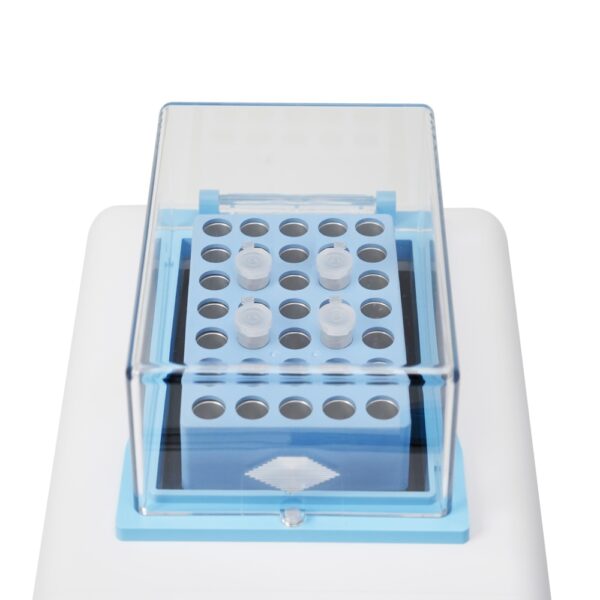

Standard Module

A: 1.5 mLx 35

Optional Modules

B: 0.5 mLx 54


C: 0.2 mLx 96


D: 2.0 mLx 35


E: 5.0 mLx 24


F:  15 mLx 15 (High Lid)


G: 15 mLx 12 (High Lid)

H: 0.2 mLx 96 ( Elisa Plate)

Note: Metal modules can be customized according to user requirements, if you need customized modules, please contact

Input Power Supply

  • AC100V/AC 220V 50Hz/60Hz

fuse

  • 250V/3A

Overall Dimension

  • SB-SMB-MC: 178*278*244mm SB-SMB-MH: 175*278*226mm

Power/Voltage

  • 150 W
  • AC100V/AC 220V

Weight

  • 3.3 kg

Dimensions

  • 178mm (SB-SMB-MC) / 175mm (SB-SMB-MH) x 278mm x 244mm (SB-SMB-MC) / 226mm (SB-SMB-MH)

frequency

  • 50Hz/60Hz

Shaking Type

  • orbital shaking

Customizable Modules

  • Metal modules can be customized according to user requirements

Weight

  • 4 lbs

Dimensions

  • 35 × 25 × 25 cm
