Explore locomotion and motor disorders in rodents like never before with automated Gait Analysis. Reveal key gait parameters—like paw state, base of support, and phase difference—using AI-driven tracking.

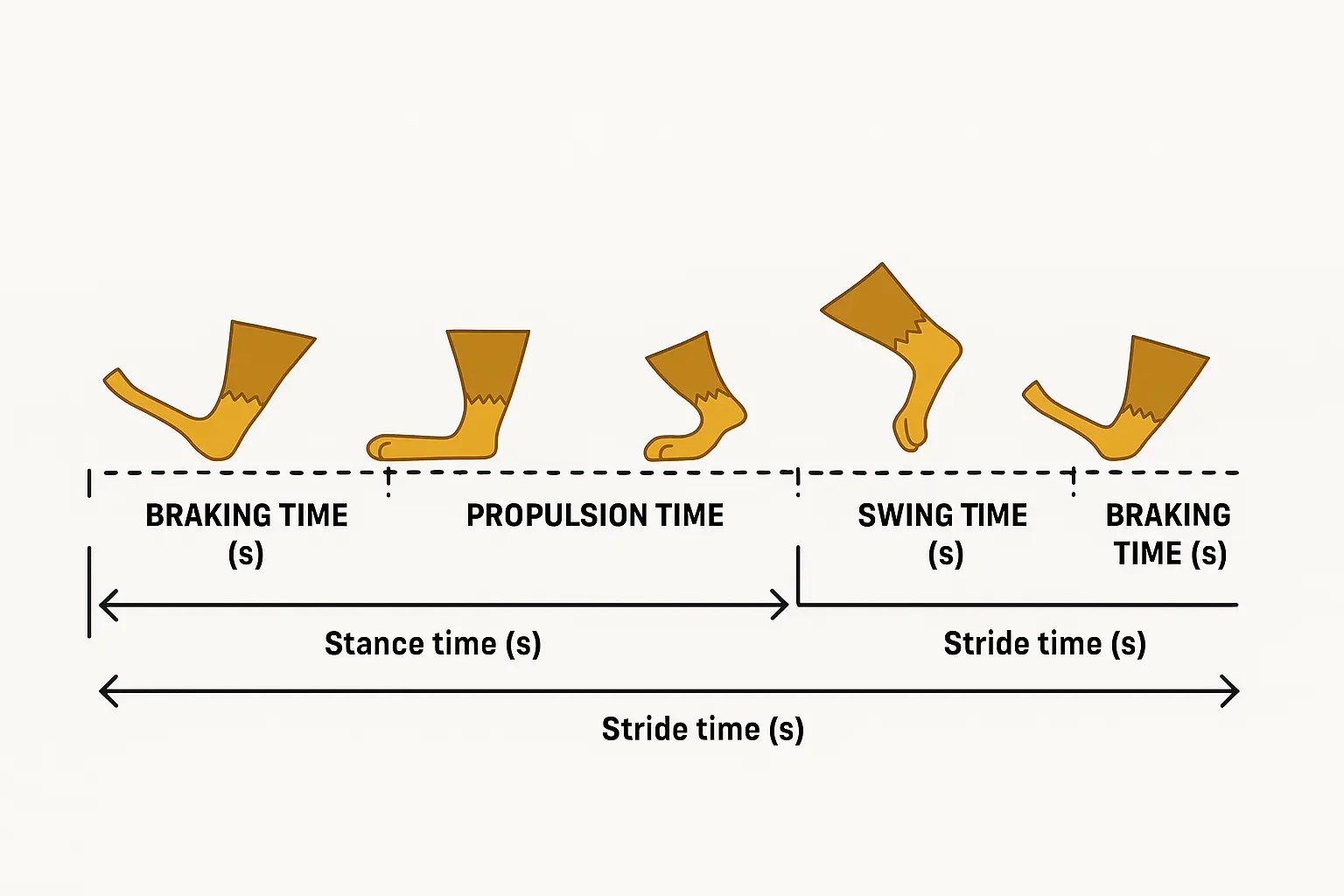

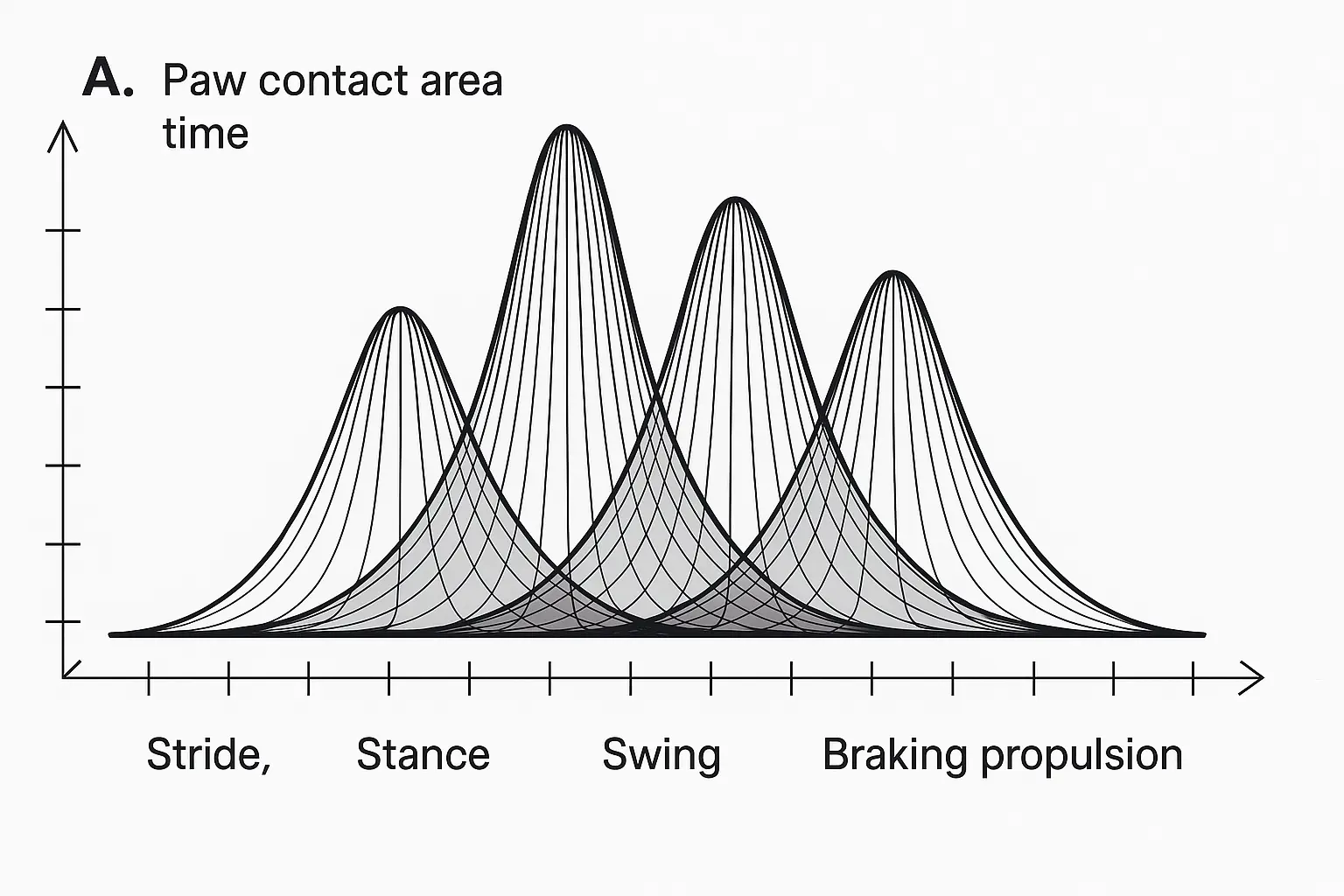

| Parameter | Stance Phase | Swing Phase |
|---|---|---|
|
Definition |
The period during which a paw is in contact with the ground and supporting body weight.
Includes braking and propulsion durations
|
The period when the paw is lifted off the ground and moves forward to initiate the next step. |
|
Function |
Provides stability, weight-bearing, and propulsion
|
Responsible for advancing the limb in preparation for the next stance.
|
|
Duration |
Typically longer than swing phase during normal walking. Approximately 70% of the gait cycle |
horter than stance phase in healthy gait. Approximately 30% of the gait cycle |
↑ Stance Phase → Often indicates instability, weakness, or cautious movement.
↓ Stance Phase → Often due to pain avoidance or reduced weight-bearing.
↑ Swing Phase → May signal reluctance to place the paw, or dragging.
↓ Swing Phase → Indicates rigidity, bradykinesia, or hyperkinetic drive
Typically expressed as a percentage.
↑ Duty Cycle → Often indicates a strategy to maximize stability or increase weight-bearing time, typically due to weakness, general fatigue, or a compensation for instability (ataxia/loss of balance).
↓ Duty Cycle → Often indicates a need to quickly remove the paw from the ground, typically due to pain avoidance (antalgic gait) or a compensation for rigidity/bradykinesia to maintain forward momentum, but is also a natural result of increased speed and gait efficiency.

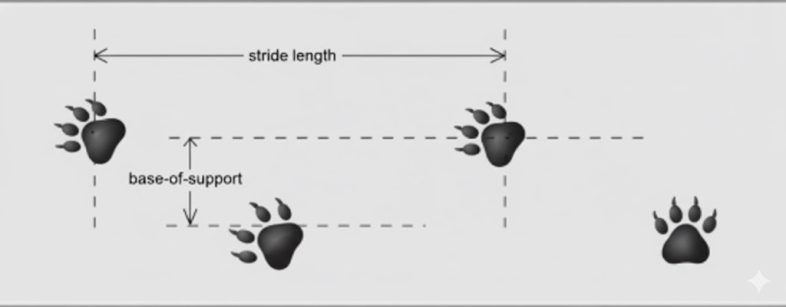

↑ Base of Support (BoS) → Often indicates a need for increased stability, typically due to loss of balance, general weakness, or ataxia (lack of voluntary coordination).
↓ Base of Support (BoS)→ May signal a shift toward cautious/narrow-based movement in some forms of rigidity, or is often a goal for increased gait efficiency (closer to a straight line) in healthy, confident movement.
Our software defines the Phase difference in degrees:
| Phase Difference (in ∘) | Synchronization Pattern | Interpretation |
|---|---|---|
|
Zero |
Synchronization (In-Phase)
|
Both paws are moving together; Paw B begins its stance phase at the exact same moment (or the end of a cycle) as Paw A’s stride begins. This is common for bilateral forelimbs or hindlimbs in abnormal/pathological gaits (e.g., “bunny hopping”) but is pathological if seen in alternating gaits. |
|
180 |
Alternation (Anti-Phase)
|
Paw B begins its stance phase at the midpoint of Paw A’s stride cycle. This represents ideal coordination for alternating diagonal (e.g., right-fore to left-hind) or alternating lateral (e.g., right-fore to left-fore) movements in a typical healthy rodent gait.
|
|
90/270 |
Compromised Alternation |
Paw B begins its stance phase when Paw A is one-quarter ($1/4$) of the way through its stride cycle. This indicates a significant mistiming or asymmetry often seen in uncoordinated or pathological gaits. |
|
Close to 0 |
Clustering/Dragging |
Paws are moving too close together, potentially indicating weakness or dragging. |
|
High Variability/Spread |
Ataxia/Lack of Control |
The differences are highly inconsistent across strides. This suggests ataxia (loss of muscle control), or severe neurological deficits affecting rhythm and control |
Shuffling steps, reduced stride, asymmetry
Unilateral limb weakness, asymmetry
Spasticity, Ataxia
Progressive hindlimb weakness
Limb paralysis, recovery tracking
Foot dragging, altered paw placement
Wide stance, uncoordinated movements
Limping, reduced weight-bearing
Joint stiffness
Weak muscles, short stride
Altered weight-bearing, paw guarding
Limping, gait cycle changes
Motor coordination deficits
Hyper/hypokinetic movements
Diabetic neuropathy impacts gait
