24/7 Non-Invasive Animal Tracking—in any Home Cage
Eliminate stress, reduce costs, and capture continuous, high-resolution data with our advanced AI-driven monitoring solution.
Quick Value Propositions
Markerless, Multi-Animal Tracking
Over 99% accurate identification without ear tags or RFID.
Day/Night Operation
Integrated infrared illumination ensures around-the-clock monitoring.
Real-Time Analytics
Detect key behavioral metrics like locomotion, social interaction, and wellness indicators instantly.
Seamless Integration
Fits into standard rodent racks with minimal adjustments.
24/7 Continuous Monitoring
Infrared Day/Night Camera
High-Sensitivity Imaging
Ensures full visibility in both bright and dark conditions.
Built-in IR Illumination
No disruption to circadian rhythms.
Always-On Data Capture
Continuous Video Recording
Embedded computing module handles video recording (up to 30 fps).
Automatic Data Buffering
Retains up to a week of recordings.
Minimal Animal Disturbance
Stress-Free Housing
Mounts above the cage, allowing group housing without stress.
No Behavior Modifications
Mice/rats remain in their home cage, eliminating single-housing artifacts.
24/7 Continuous Monitoring
Infrared Day/Night Camera
High-Sensitivity Imaging
Ensures full visibility in both bright and dark conditions.
Built-in IR Illumination
No disruption to circadian rhythms.
Always-On Data Capture
Continuous Video Recording
Embedded computing module handles video recording (up to 30 fps).
Automatic Data Buffering
Retains up to a week of recordings.
Minimal Animal Disturbance
Stress-Free Housing
Mounts above the cage, allowing group housing without stress.
No Behavior Modifications
Mice/rats remain in their home cage, eliminating single-housing artifacts.
Cage Compatibility & Size Options

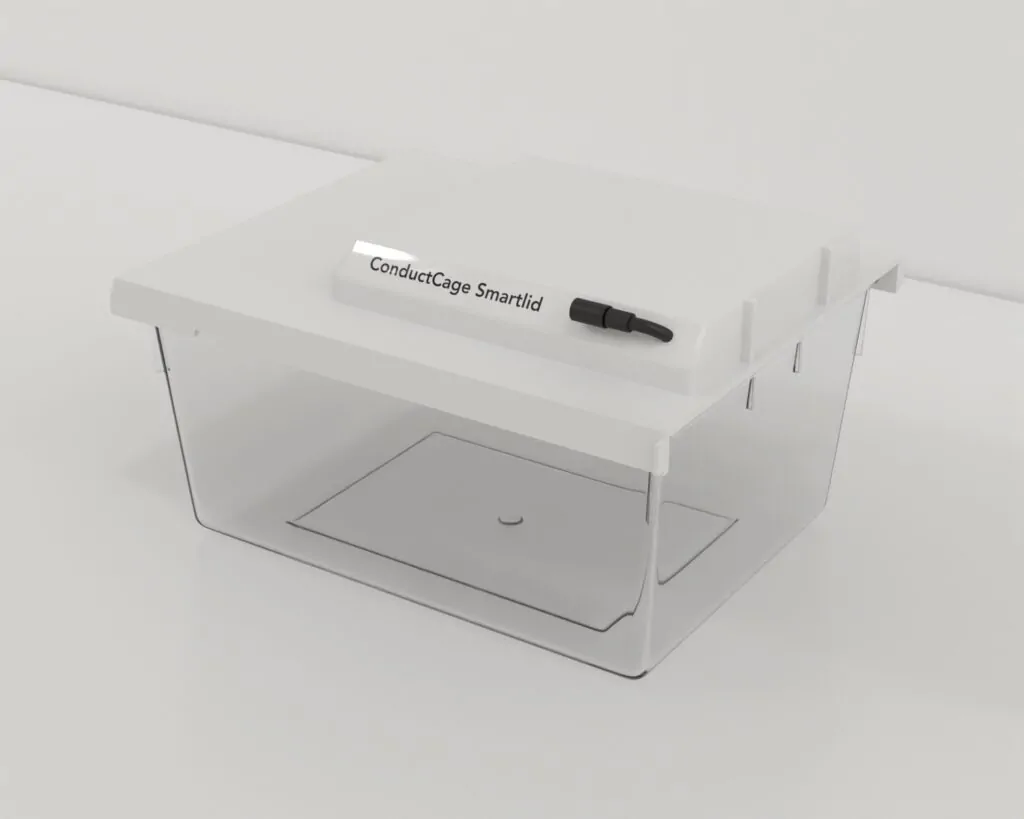

ConductCage Smartlid supports a wide range of standard rodent cage formats. Each Smartlid is pre-sized to fit your existing cage bottoms with minimal or no modification.
Supported Models
R20PC-Full
Target Cage: Ancare R20PC
Also fits: Allentown NexGen & Innovive
Cage Size: 19 × 10.5 × 5 in (482 × 267 × 127 mm)
Lid Size: 12.2 × 7.9 × 1.5 in (310 × 200 × 38 mm)
Clearance Above Bedding: 4.3 in (110 mm)
Weight (loaded): ~0.6 kg
Adapter Required: None — native drop-in
75JAG-Frame
Target Cage: Allentown 75JAG
Cage Size: 12 × 7.75 × 5 in (305 × 197 × 127 mm)
Lid Size: 12.2 × 7.9 × 1.5 in (310 × 200 × 38 mm)
Clearance Above Bedding: 4.3 in (110 mm)
Weight (loaded): ~0.6 kg
Adapter Required: Snap-on spacer (included)
Mini-Lid
Target Cage: LabProducts Optimice & other cages <15 in
Cage Size: 14.2 × 8.3 × 4.5 in (361 × 211 × 114 mm)
Lid Size: 10.4 × 6.3 × 1.5 in (265 × 160 × 38 mm)
Clearance Above Bedding: 3.9 in (100 mm)
Weight (loaded): ~0.45 kg
Adapter Required: None
Need a footprint not listed?
High-Precision Multi-Animal Tracking
Markerless Identification
AI engine follows individual animals—even in close contact—achieving >99% accuracy.
Always-On Data Capture
Embedded computing module handles continuous video recording (up to 30 fps). Automatic data buffering retains up to a week of recordings.
Edge Computing for Instant Insights
Onboard GPU-accelerated module processes video in real time, eliminating post-processing delays.
Seamless Integration & Setup

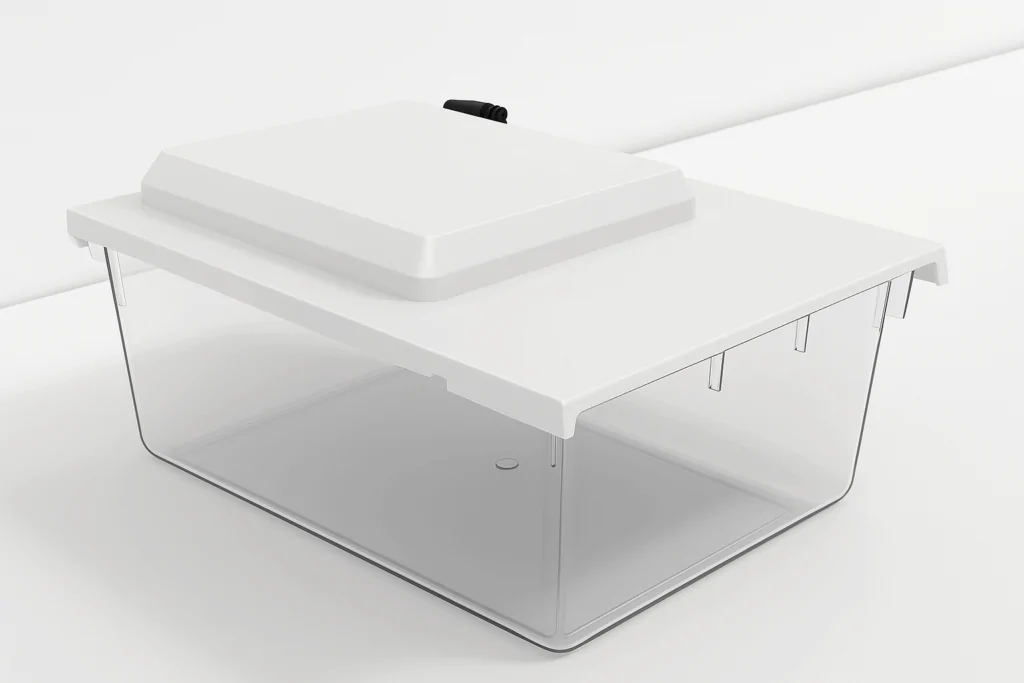

Universal Lid Replacement
A polymer dome-lid replaces standard wire lids—compatible with major cage formats (Allentown, Innovive, etc.).
Quick installation: simply place onto existing cage bottoms.
Embedded “ARC” Module
Quad-core processor + AI accelerator
Multi-sensor array (temperature, humidity, ammonia, and ambient noise)
Compact, fanless design for easy sterilization.
Modular Feed & Water Access
Side or floor-mounted feeders ensure an unobstructed top-down view.
Built-in compatibility with standard water bottles or automatic water lines.
Automated Alerts & Cloud Connectivity
Markerless Identification
Smart Notifications: Automatic alerts for abnormal behaviors or environmental changes.
Always-On Data Capture
Web-Based Dashboard: Secure login for live video streams and historical data.
Edge Computing for Instant Insights
Data Security & Retention: Encrypted streaming, local backups, and export options.
Technical Specifications
Imaging & Illumination
- Camera Resolution: 1296×972 at 30 fps (adjustable)
- Lens Field of View: 120°–130° wide-angle lens for full-cage coverage
- Illumination: 850 nm infrared LED array integrated in the lid
- Light Sensitivity: Optimized for low-light conditions (0 lux IR mode)
Embedded Computing & Data Handling
- Onboard Processor: Multi-core CPU + dedicated AI accelerator (GPU/NPU)
- Real-Time Inference: Proprietary multi-animal tracking engine, up to N real-time tracked animals (N depends on cage size/animal size)
- Memory & Storage:
- 4–8 GB RAM (depending on model)
- 128–256 GB of solid-state local storage (expandable)
- Data Buffering: Up to 7 days of continuous video in cyclical storage mode
Network Connectivity: Ethernet or dual-band Wi-Fi (802.11ac)
Environmental Sensors
- Sensors Included: Temperature, humidity, ammonia, ambient noise microphone
- Accuracy: Within ±0.1–0.2 units for each sensor (factory-calibrated)
Integration & Dimensions
- Lid Dimensions: Tailored to standard rodent cages (varies by brand); contact us for custom fits.
- Sterilization: Lid is autoclavable up to 121 °C; embedded electronics are sealed and rated for standard disinfection protocols.
- Mounting: Tool-less latch system and minimal cage modifications (approx. 5-minute install).
- Camera Resolution: 1296×972 at 30 fps (adjustable)
- Lens Field of View: 120°–130° wide-angle lens for full-cage coverage
- Illumination: 850 nm infrared LED array integrated in the lid
- Light Sensitivity: Optimized for low-light conditions (0 lux IR mode)
- Onboard Processor: Multi-core CPU + dedicated AI accelerator (GPU/NPU)
- Real-Time Inference: Proprietary multi-animal tracking engine, up to N real-time tracked animals (N depends on cage size/animal size)
- Memory & Storage:
- 4–8 GB RAM (depending on model)
- 128–256 GB of solid-state local storage (expandable)
- Data Buffering: Up to 7 days of continuous video in cyclical storage mode
Network Connectivity: Ethernet or dual-band Wi-Fi (802.11ac)
- Sensors Included: Temperature, humidity, ammonia, ambient noise microphone
- Accuracy: Within ±0.1–0.2 units for each sensor (factory-calibrated)
- Lid Dimensions: Tailored to standard rodent cages (varies by brand); contact us for custom fits.
- Sterilization: Lid is autoclavable up to 121 °C; embedded electronics are sealed and rated for standard disinfection protocols.
- Mounting: Tool-less latch system and minimal cage modifications (approx. 5-minute install).

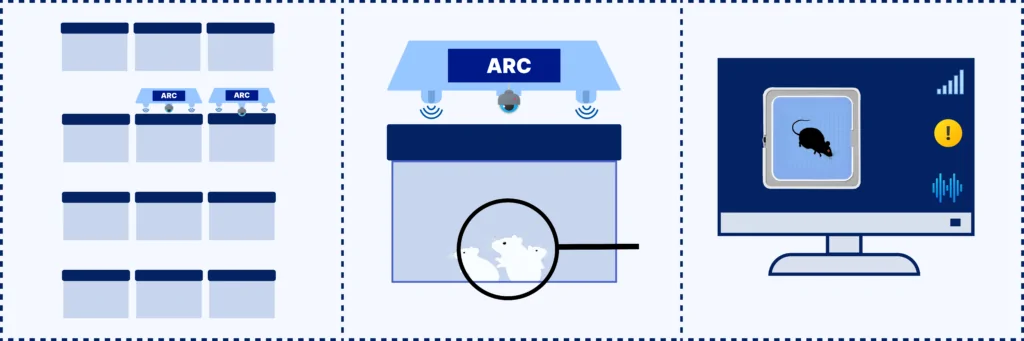

How It Works

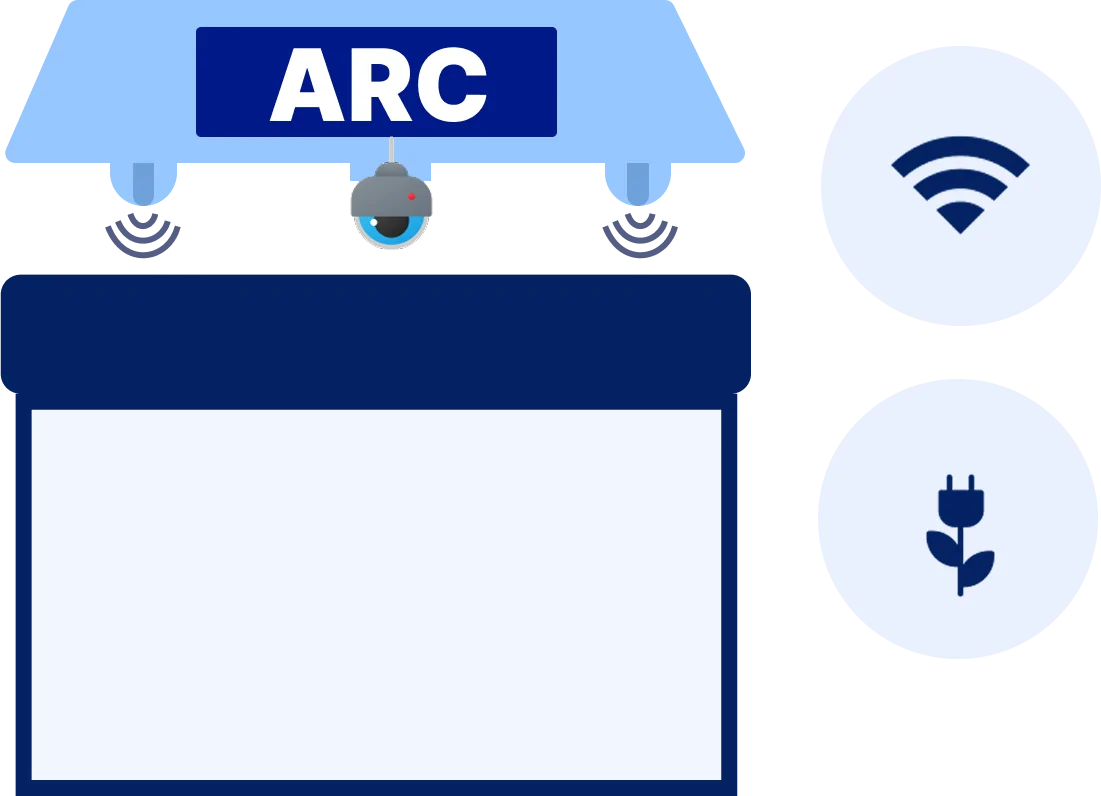

Position & Power
Place the integrated lid on the cage, connect power, and link to your local network (Wi-Fi or Ethernet)
Group-Housed Setup
Keep animals in the cage without single housing. Optional ID tags if desired, but the system works markerlessly.

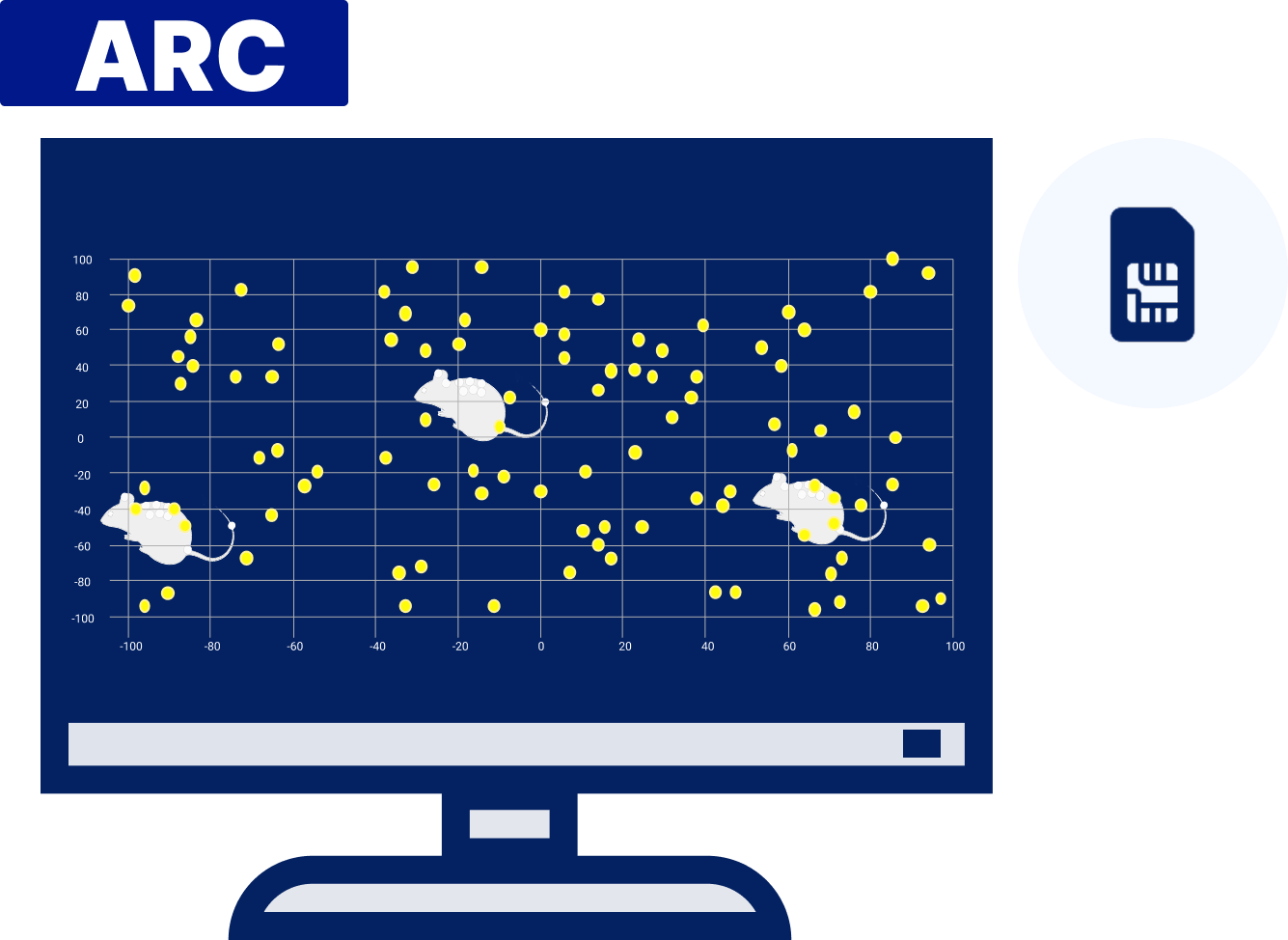

24/7 Automated Tracking
The embedded AI module continuously captures video, identifies each animal, and logs behavior analytics.

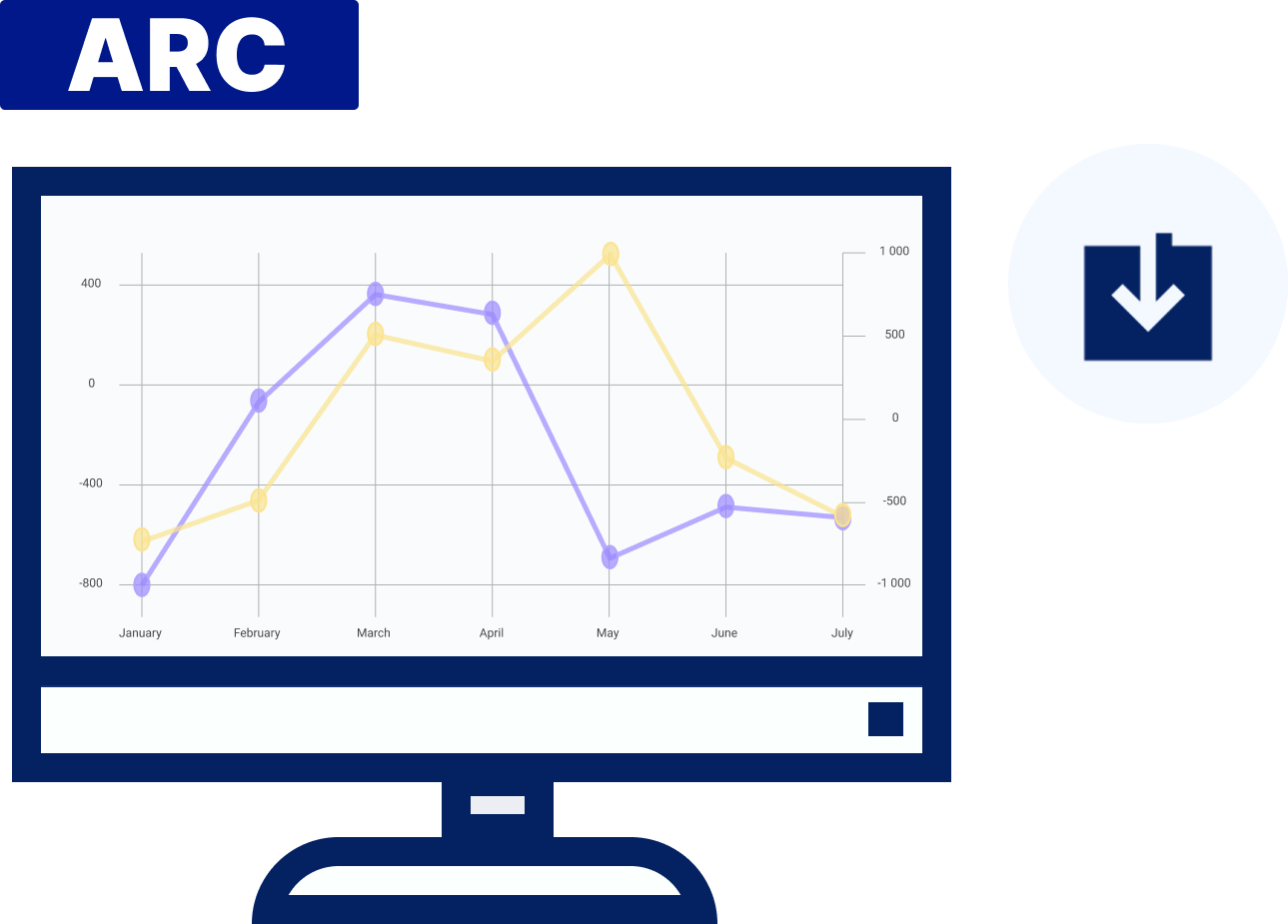

Review & Export Data
Generate automated reports for daily or weekly analysis.
Use Cases & Validation Studies
30% increase in detection accuracy for subtle seizure onset.
3 drug candidates validated 2x faster than traditional manual observation methods.
Reduced analysis time by 40% through automated tracking.
Product Packages
- Core Monitoring Kit
- 1 × AI-Integrated Dome Lid
- 1 × Power Supply & Connectivity Package
- 1 × Software License for real-time analytics
- Suitable for 1 cage with up to 5–6 rodents
- Multi-Cage Bundles
- Discounts for multi-cage setups (e.g., 5-cage, 10-cage)
- Centralized cloud or local server option for data aggregation
Technical & Customer Support
-
Installation Support: Remote or on-site setup assistance.
-
Software Updates: Automated tracking engine updates.
-
Consultation: Data interpretation support.
Key Differentiators
Truly Continuous, Non-Invasive Data
Eliminates disruptions to animal behavior.
Group-Housed Accuracy
AI tracks animals even in close contact.
Comprehensive Environmental Sensing
Monitors behavior and cage conditions.
Immediate Alerts & Insights
Reduces oversight burden.
Fast ROI:
Streamlined setup, minimal maintenance, powerful analytics.
FREQUENTLY ASKED QUESTIONS
Reach out to our team—we’re here to help you get the most out of SmartLid.
Is SmartLid compatible with any home cage?
Yes! SmartLid is designed to fit a wide range of rodent cage types, including standard industry formats.
Can SmartLid be cleaned or autoclaved?
SmartLid components are made from durable materials and can withstand standard cage washing and sanitation procedures.
Does SmartLid work with DVC systems or cages without food hoppers?
Absolutely. SmartLid can be installed on DVC setups and non-standard cage formats with minimal adjustments.
What if I don’t use ear tags or RFID?
No problem—our markerless AI technology accurately identifies individual animals without physical tags or implants.
Can I integrate SmartLid with other lab data systems?
Yes, SmartLid offers API access and compatibility with major lab data platforms for seamless integration.
Do you provide installation support?
We offer both virtual and on-site setup assistance to ensure your SmartLid system is up and running smoothly.
Are there discounts for academic institutions?
Yes! We offer custom pricing and discounts for universities and research facilities. Reach out to learn more.
Yes! SmartLid is designed to fit a wide range of rodent cage types, including standard industry formats.
SmartLid components are made from durable materials and can withstand standard cage washing and sanitation procedures.
Absolutely. SmartLid can be installed on DVC setups and non-standard cage formats with minimal adjustments.
No problem—our markerless AI technology accurately identifies individual animals without physical tags or implants.
Yes, SmartLid offers API access and compatibility with major lab data platforms for seamless integration.
We offer both virtual and on-site setup assistance to ensure your SmartLid system is up and running smoothly.
Yes! We offer custom pricing and discounts for universities and research facilities. Reach out to learn more.
