$4,860.00
1.Fully programmable computer controls allow automatic system start and stop anytime
2.Five heated areas
3.Automatic memory and restoration functions
Conduct Science is a premier manufacturer of research infrastructure, born from a mission to standardize the laboratory ecosystem. We combine industrial-grade precision with a scientist-led tech-transfer model, ensuring that every instrument we build solves a real-world experimental challenge. We replace "home-brew" setups with validated tools ranging from microsurgical suites to pathology systems. With a track record of >1,600 institutional partners and hundreds of citations, our equipment is engineered to minimize human error. We help you secure more data for less of your budget, delivering the reliability required for high-impact publication.

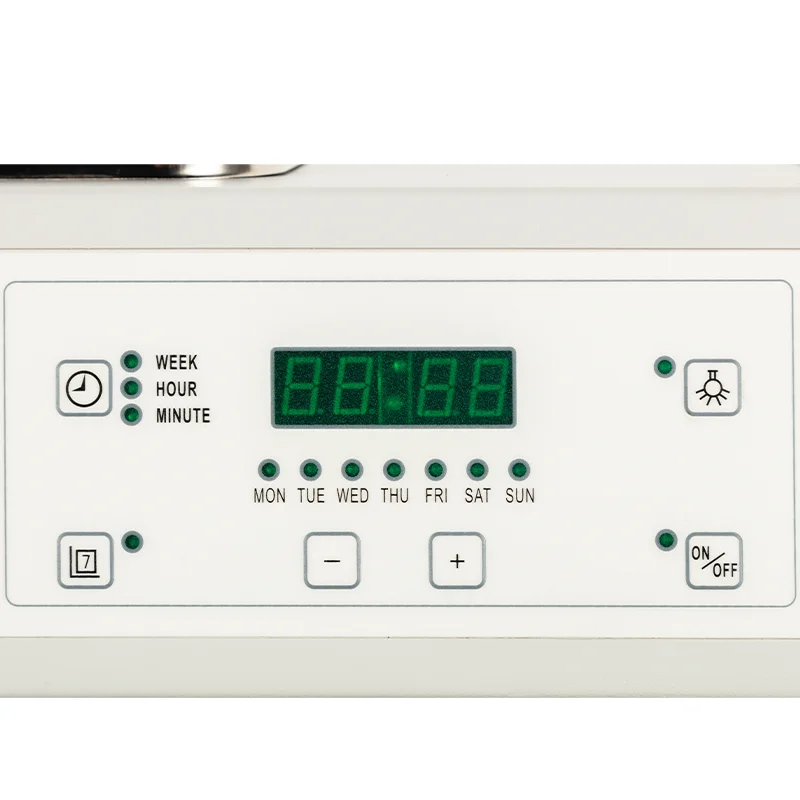

1. Fully programmable computer controls allow automatic system start and stop anytime
2. Temperature is controlled by microprocessors made in the USA and they are displayed using color-changing LED to enable clear visibility of working status.

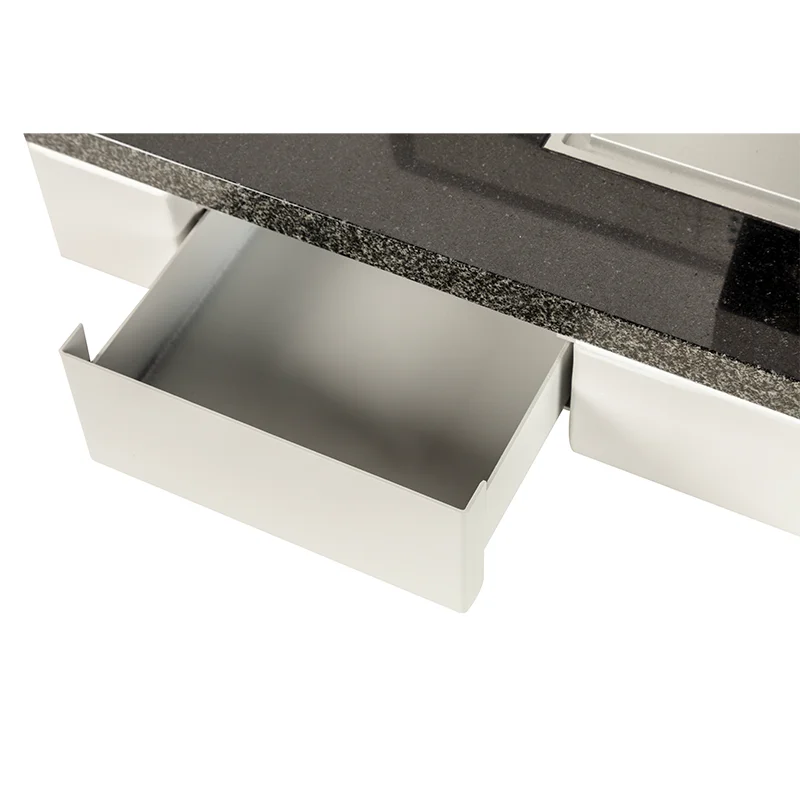

3. Five heated areas, including paraffin chamber, paraffin dispenser, left and right thermal storage compartments, and heating plate(working area), are individually controlled and work independently without interference from each other
4. Flexible heating mechanism overcomes the shortcomings of traditional technology that can result in excessive temperature differences. System provides fast heating and precise temperature control. In addition, the dual-protection from overheating is safe, reliable and energy-saving.
5. Automatic memory and restoration functions: After start up, all preset temperature data are automatically stored in the system.
1.Flexible module configuration options through a design which separates the Cryo-Module from Embedding Module

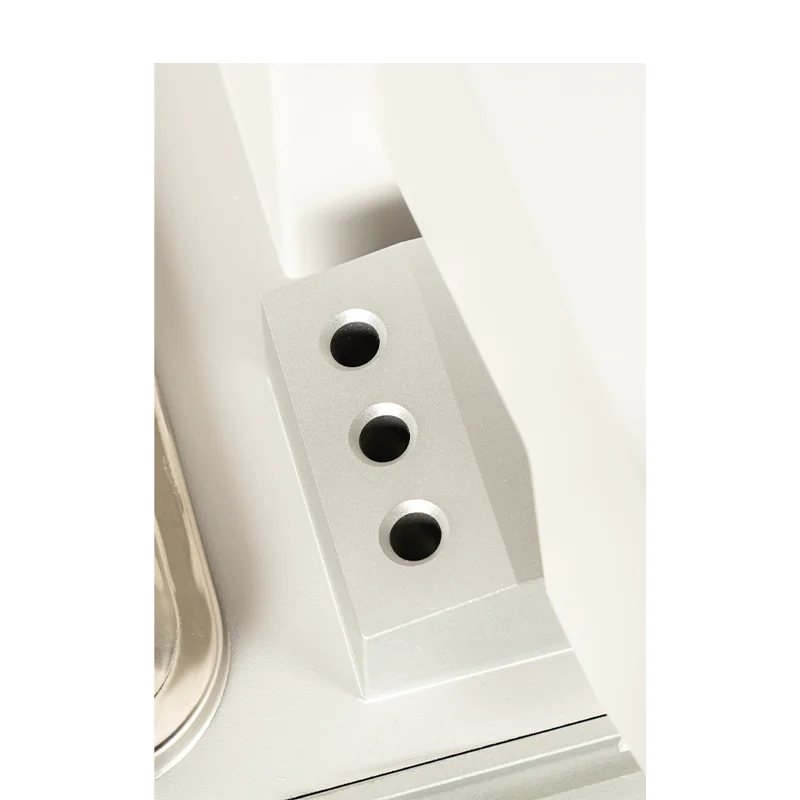

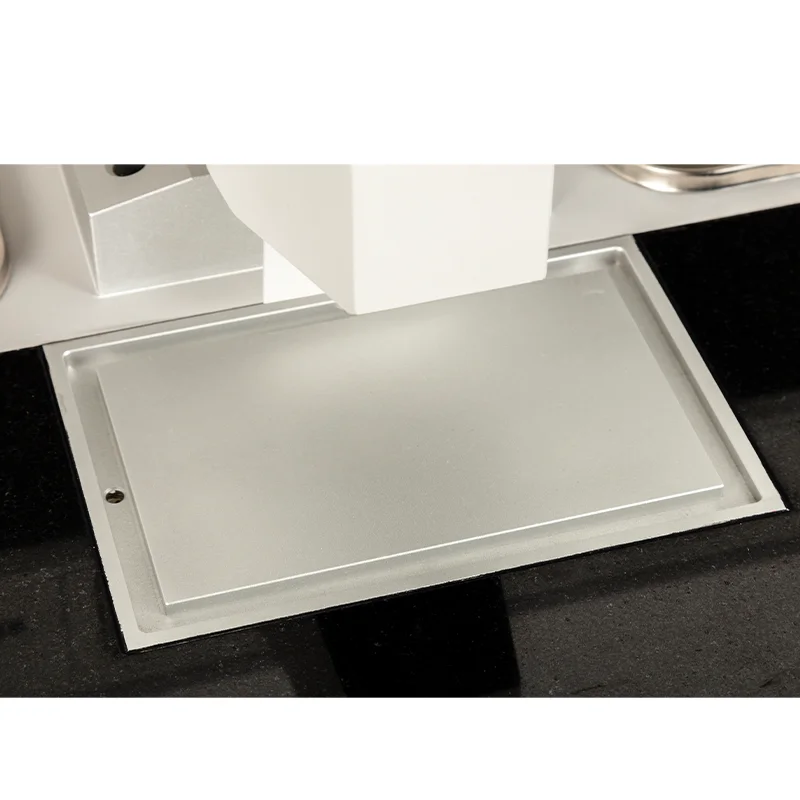

2.Heated working plate and forceps wells make tissue embedding more convenient.
3.Safe and reliable low-voltage illumination system
| Module | Category | Characteristic | Specification |
|---|---|---|---|
| Embedding Center | Parameter | Paraffin Chamber Capacity | 3L |
| Paraffin Chamber Temp | 55 - 70Ā°C | ||
| Paraffin Dispenser Temp | 55 - 70Ā°C | ||
| Heated Working Temp | 55 - 70Ā°C | ||
| Thermal Storage Compartments Temp | 55 - 70Ā°C | ||
| Forceps Wells Temp | 55 - 70Ā°C | ||
| Temperature Control Precision | Ā±1% | ||
| Paraffin Flow Control | Finger touch plate | ||
| Technical Data | Voltage and frequency | AC220VĀ±10% 50Hz(standard model) AC110VĀ±10% 60Hz |
|
| Power | 650W | ||
| Dimension | Net weight | 26KG | |
| Size | 525mm*550mm*385mm(W*D*H) | ||
| Cold Plate | Parameter | Working Temperature of Cryo-Module | ā¤-20Ā°C |
| Technical Data | Power | 300W | |
| Dimension | Net weight | 27KG | |
| Size | 590mm*345mm*385mm(W*D*H) |
There are no questions yet. Be the first to ask a question about this product.
