Price range: $1,600.00 through $1,800.00

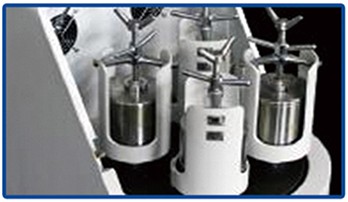

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
Conduct Science is a premier manufacturer of research infrastructure, born from a mission to standardize the laboratory ecosystem. We combine industrial-grade precision with a scientist-led tech-transfer model, ensuring that every instrument we build solves a real-world experimental challenge. We replace "home-brew" setups with validated tools ranging from microsurgical suites to pathology systems. With a track record of >1,600 institutional partners and hundreds of citations, our equipment is engineered to minimize human error. We help you secure more data for less of your budget, delivering the reliability required for high-impact publication.
1. 3D curve shape design.
2. Special gear with low noise.
| Characteristic | Model BIO-BKBM-V0.4 | Model BIO-BKBM-V2 |
|---|---|---|
| Model | BIO-BKBM-V0.4 | BIO-BKBM-V2 |
| Capacity | 0.4L | 2L |
| Volume of Each Capacity | 50~100ml | 50~500ml |
| Pot Quantity | 4pcs | |
| Running Time Range | 1~999min | |
| Reciprocal Running Time | 1~999min | |
| Adjustable Speed Revolution | 45~435rpm | 35~335rpm |
| Speed Rotation | 90~870rpm | 70~670rpm |
| Noise | 58±5dB | 60±5dB |
| Speed Control Mode | Frequency control | |
| Transmission Mode | Gear drive | |
| Working Mode | 2 or 4 pots can be used each time | |
| Maximum Sample Volume(Material+Grinding Ball) | 2/3 of the volume of the ball mill tank | |
| Feed Size | Soft and Crispy material <10mm, Other materials <3mm | |
| Out-put Granularity | Minimum granularity can be reached to 0.1µm | |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation | |
| Consumption | 0.25KW | 0.75KW |
| Power Supply | AC110/220V±10%, 50/60Hz | |
| External Size(W*D*H)mm | 530*300*340 | 750*470*565 |
| Package Size(W*D*H)mm | 595*360*485 | 820*530*720 |
| Net Weight(kg) | 29 | 80 |
| Gross Weight(kg) | 50 | 100 |
| Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. | ||
| Model | BIO-BKBM-V0.4, BIO-BKBM-V2 |
|---|
