Time Spent in the Platform Zone Quadrant: Spatial Precision in the Morris Water Maze
Learn More about our Services and how can we help you with your research!
Beyond Finding the Platform — Measuring Memory Consolidation
When it comes to evaluating spatial learning and memory, the Morris Water Maze remains a gold standard. For decades, primary outcomes such as escape latency and path length have dominated analyses. However, as neuroscience pushes toward higher-resolution phenotyping, it’s crucial to probe deeper into search behavior rather than merely arrival at a goal.
One critical, yet often underappreciated, metric is:
Time Spent in the Platform Zone Quadrant
This measure calculates how long a subject voluntarily stays within the quadrant that formerly contained the hidden escape platform (especially during probe trials where the platform is removed). It reflects not simply goal-reaching, but spatial preference, search strategy, and memory precision.
At Conduct Science, we champion metrics that add scientific richness to your datasets. Our Morris Water Maze system, combined with ConductVision AI tracking, allows researchers to automatically map quadrant occupancy with millisecond precision — offering insight into memory strength, cognitive bias, and learning robustness.
Why Measure Time Spent in the Platform Quadrant?
While finding the platform proves that an animal can reach the goal, spending more time voluntarily searching in the platform’s vicinity suggests a mental representation of the environment—an internal “cognitive map.”
Thus, time in the platform quadrant assesses:
- The specificity of spatial memory
- The confidence in spatial information
- The persistence of search strategies
- The degree of memory consolidation across trials
This variable is especially critical during probe tests, when the platform is removed and true spatial preference must be inferred from where and how long the animal searches without external reinforcement.
Behavioral Interpretation of Platform Zone Time
| Content | High platform quadrant time | Strong spatial memory; goal-directed search | Content | Random distribution across quadrants | Poor or no spatial learning; random search | Content | Preference for wrong quadrant | Confused or misencoded spatial memory | Content | Initial platform quadrant search, but rapid departure | Partial memory; exploratory deficits or motivational factors |
In simple terms, more time spent searching where the platform used to be = stronger spatial memory.
Case Study: Aging and Memory Decline
In a longitudinal study comparing young (4-month-old) and aged (18-month-old) rats:
| Content | Young Rats | 32.4 ± 3.5 | 12.6 ± 2.9 | Content | Aged Rats | 18.7 ± 4.2 | 20.3 ± 3.7 |
Findings:
Young rats spent nearly three times longer in the correct quadrant than any other quadrant, showing goal-driven search.
In contrast, aged rats showed no preference, distributing time randomly — a behavioral signature of spatial memory impairment.
Thus, platform quadrant time serves as an early marker of cognitive decline, even when escape latencies appear similar across groups.
Why Conduct Science Systems Are Built for This Metric
Our Morris Water Maze platforms are meticulously optimized for precise spatial analysis:
- Clearly demarcated virtual quadrants, customizable per trial
- High-speed 30+ fps video tracking with ConductVision AI
- Real-time quadrant occupancy maps and post-trial heatmaps
- Automated zone annotation and time-stamped exports (CSV, graphs)
Researchers can define:
- Standard quadrants (equal 90° sectors)
- Adaptive zones (narrow/wide target zones around the platform)
- Cumulative search patterns across probe tests
This ensures reliable, reproducible, and publication-grade behavioral data.
Best Practices for Measuring Quadrant Time
For maximal data integrity:
- Balance start locations: Randomize starting points across quadrants to avoid bias.
- Run visible platform controls: Rule out sensorimotor deficits.
- Use standardized pool and cue designs: Consistency improves reproducibility.
- Implement multiple probe trials: Capture both initial and consolidated memory.
- Analyze quadrant crossings: Number of entries complements time spent metrics.
Critically, automated quadrant tracking (e.g., via ConductVision) is recommended to remove human bias and ensure frame-level accuracy.
Application: When and Why Quadrant Time Matters Most
| Content | Neurodegenerative models (e.g., Alzheimer’s) | Detect early spatial memory loss | Content | Drug efficacy studies | Measure subtle improvements post-treatment | Content | Developmental neurobiology | Identify critical windows of cognitive maturation | Content | Aging studies | Distinguish between age-related slowing and memory decay | Content | Genetic knockout/knock-in models | Evaluate specific contributions to hippocampal function |
Thus, quadrant-based time analysis isn’t just a “nice-to-have”—it’s essential for detecting cognitive resilience, vulnerability, and intervention effects.

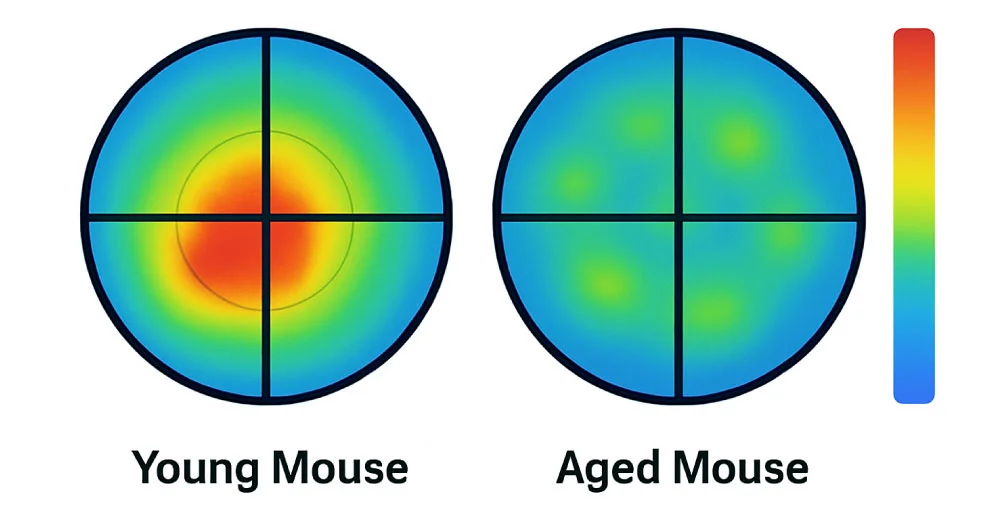

Graphical Illustration: Heatmap Example
Imagine a probe trial heatmap:
- Young mouse: Bright red cluster in platform quadrant, sparse elsewhere.
-
Aged mouse: Diffuse light scatter across all quadrants.
A picture makes cognitive consolidation instantly visible.
Conclusion: A Window into Memory Precision
Time Spent in the Platform Zone Quadrant offers a refined lens on spatial memory—revealing not just if a subject reaches a goal, but whether it remembers where the goal should be even without external cues.
By integrating this metric, researchers can:
- Differentiate learning from luck
- Detect partial vs. full memory encoding
- Reveal intervention effects earlier
- Capture memory decay before performance collapse
Conduct Science provides the tools to move your spatial learning assays from surface-level outcomes to deep behavioral insights — empowering discovery with precision.
Ready to enhance your anxiety research toolkit? Learn more about the Conduct Science Morris Water Maze:
https://conductscience.com/morris-water-maze/
References
- Morris, R. G. M. (1984). Developments of a water-maze procedure for studying spatial learning in the rat. Journal of Neuroscience Methods, 11(1), 47–60.
- D’Hooge, R., & De Deyn, P. P. (2001). Applications of the Morris water maze in the study of learning and memory. Brain Research Reviews, 36(1), 60–90.
Conduct Science Behavioral Neuroscience Platform (2025). https://conductscience.com
Written by researchers, for researchers — powered by Conduct Science.
